Engine Control System Self Diagnostics
›
Self-Diagnostic System
›
OBD Monitor & Drive Cycle Patterns
›
Catalyst Monitor & Drive Cycle Pattern
Catalyst Monitor & Drive Cycle Pattern
For catalyst monitor and drive cycle pattern, see
Fig 1
.

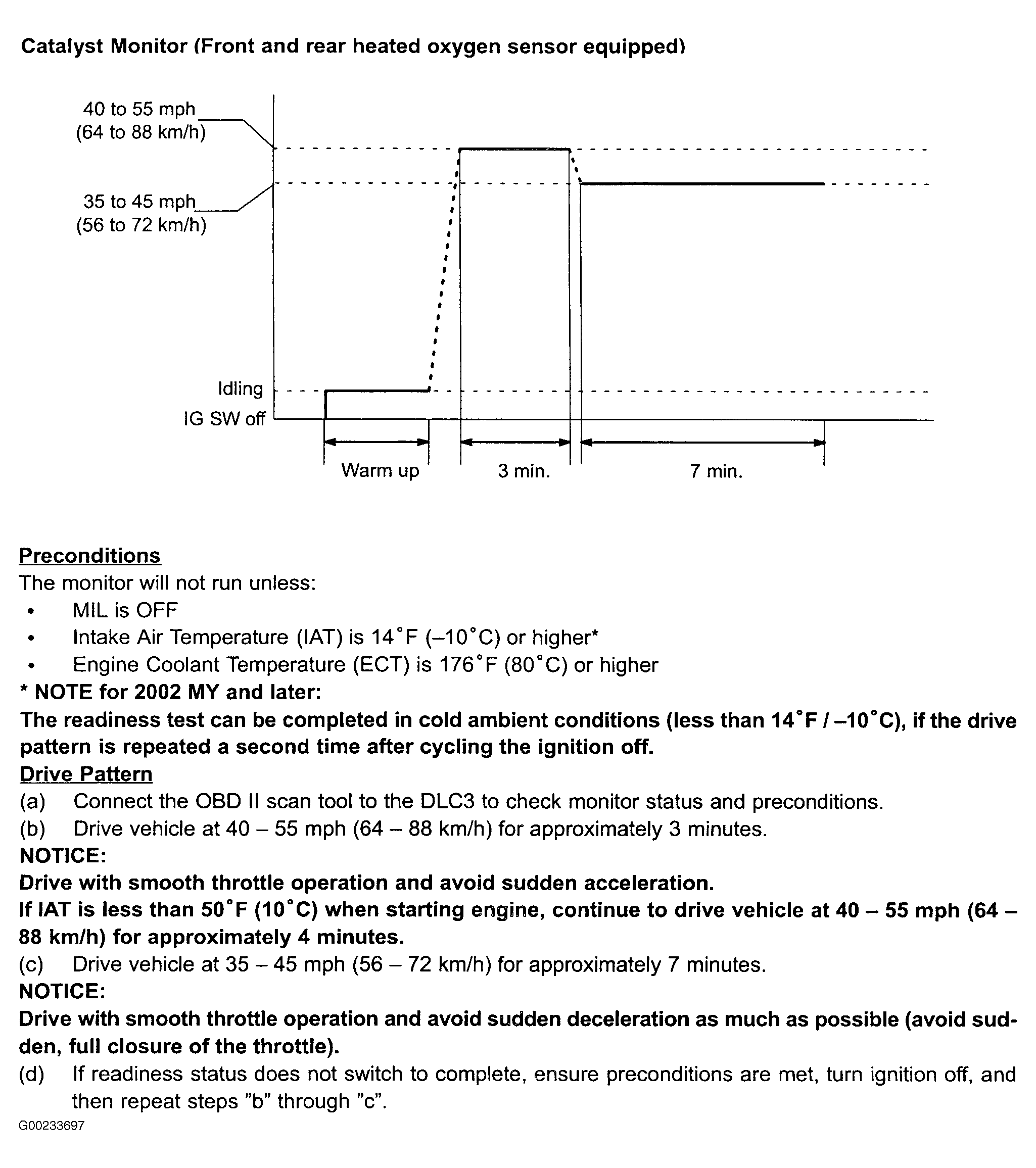

Fig 1: Catalyst Monitor & Drive Cycle Pattern
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
