Fuel Injectors (Land Cruiser)
Fuel Injectors (Land Cruiser)
For fuel injector testing procedures, see
Fig 1
-
Fig 3
.

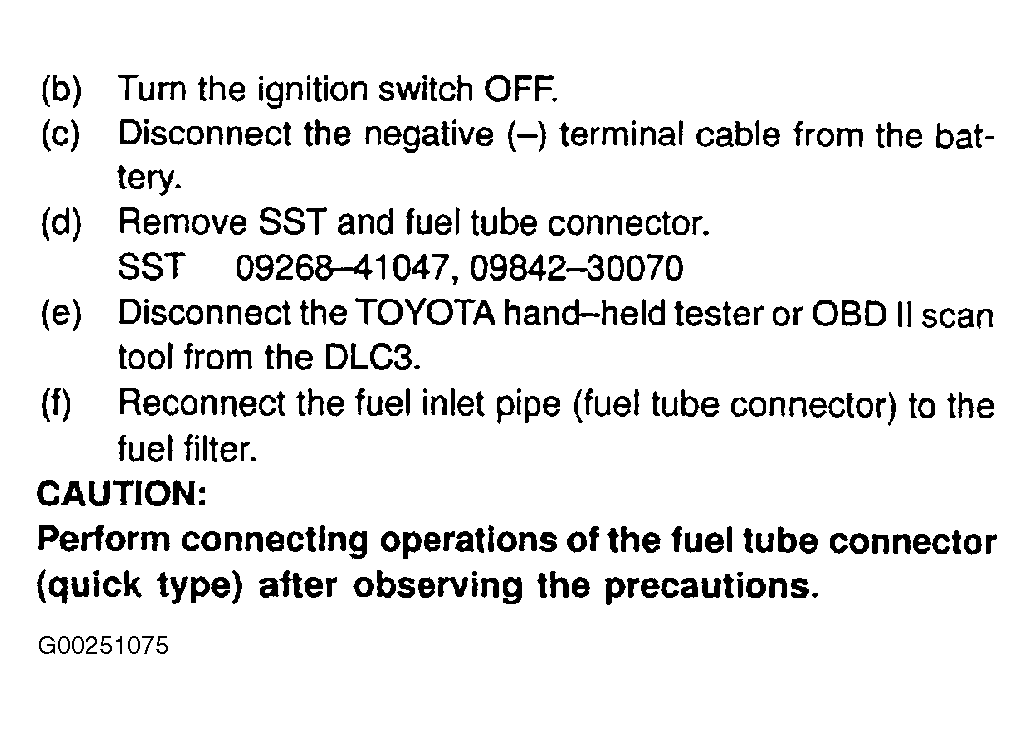

Fig 1: Testing Fuel Injectors - 1 of 3 (Land Cruiser)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

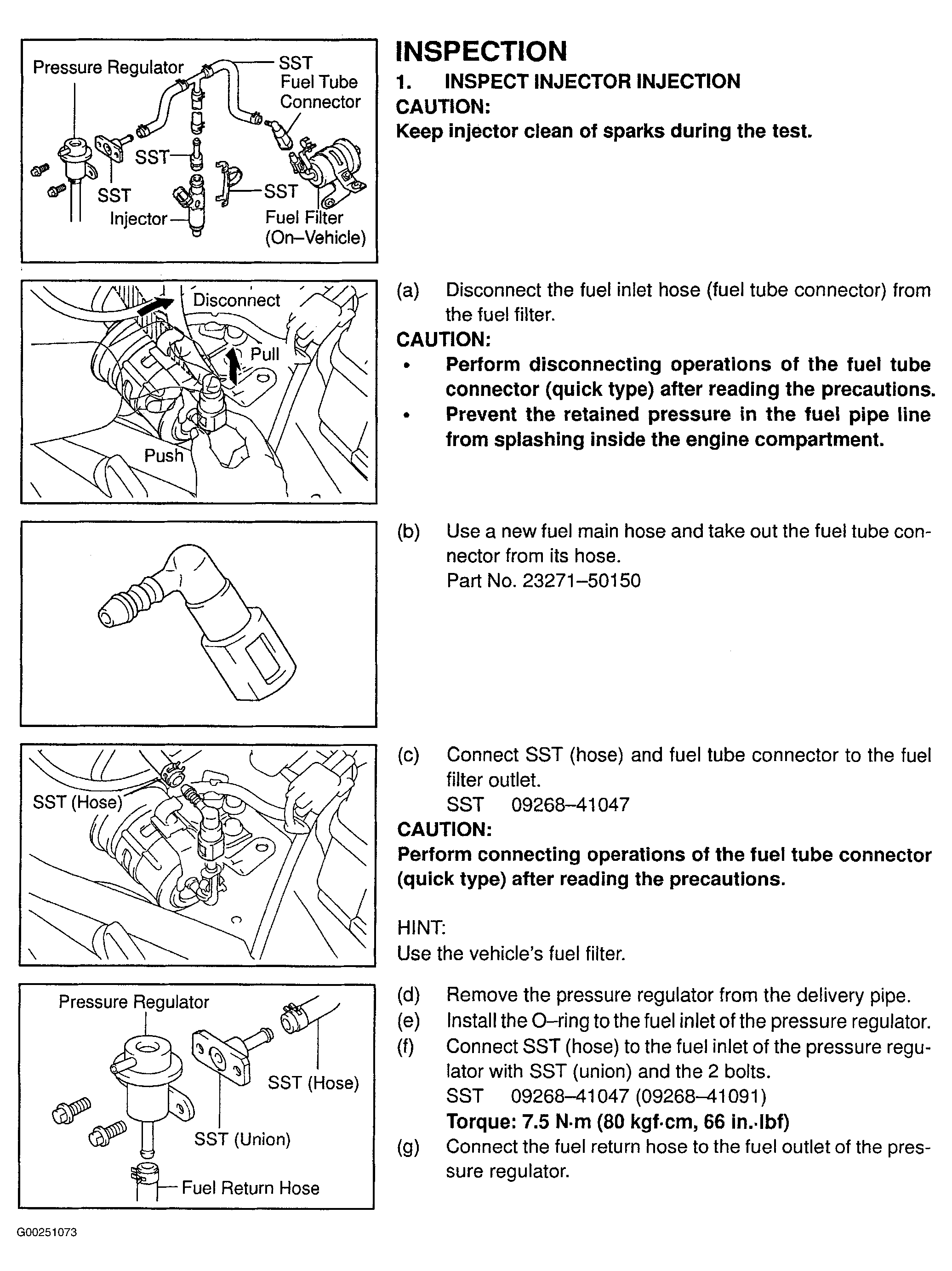

Fig 2: Testing Fuel Injectors - 2 of 3 (Land Cruiser)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

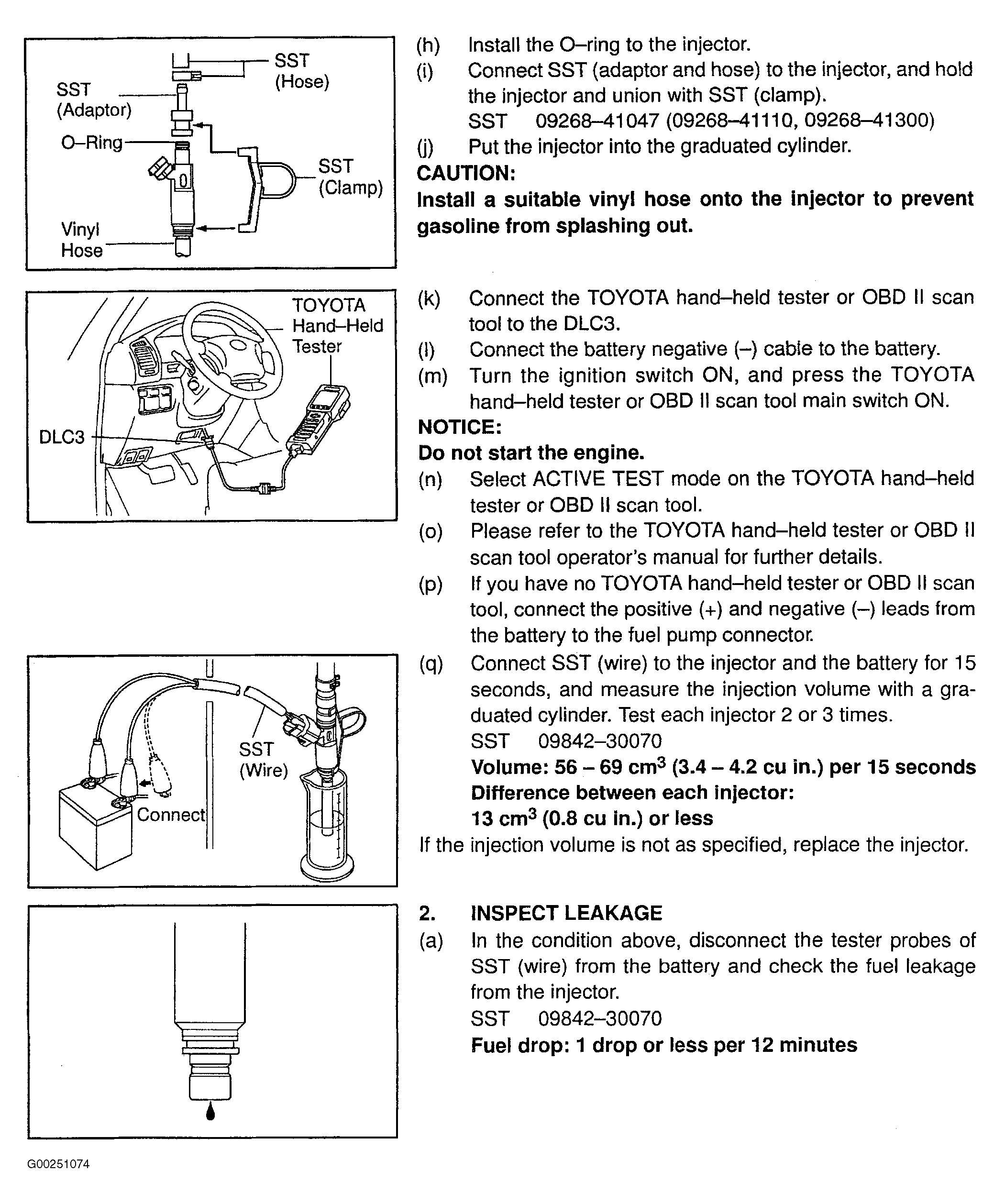

Fig 3: Testing Fuel Injectors - 3 of 3 (Land Cruiser)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
