Section 343 (Instrument Panel): Components

WARNING: This page is about a different car, the 2004 Toyota Land Cruiser. However, it is still accessible from the selected car via links, so may be relevant.

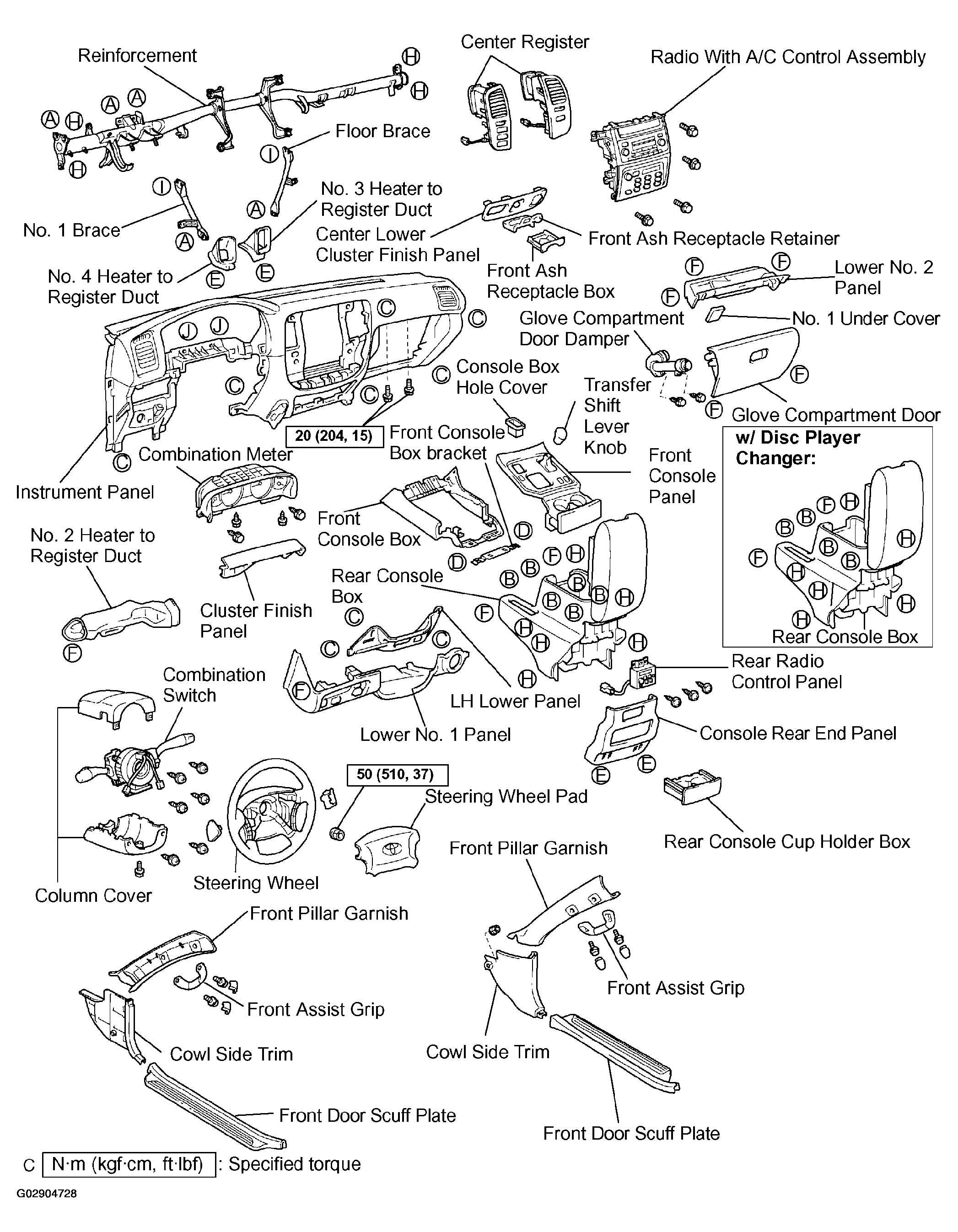

Fig 1: Exploded View Of Instrument Panel (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

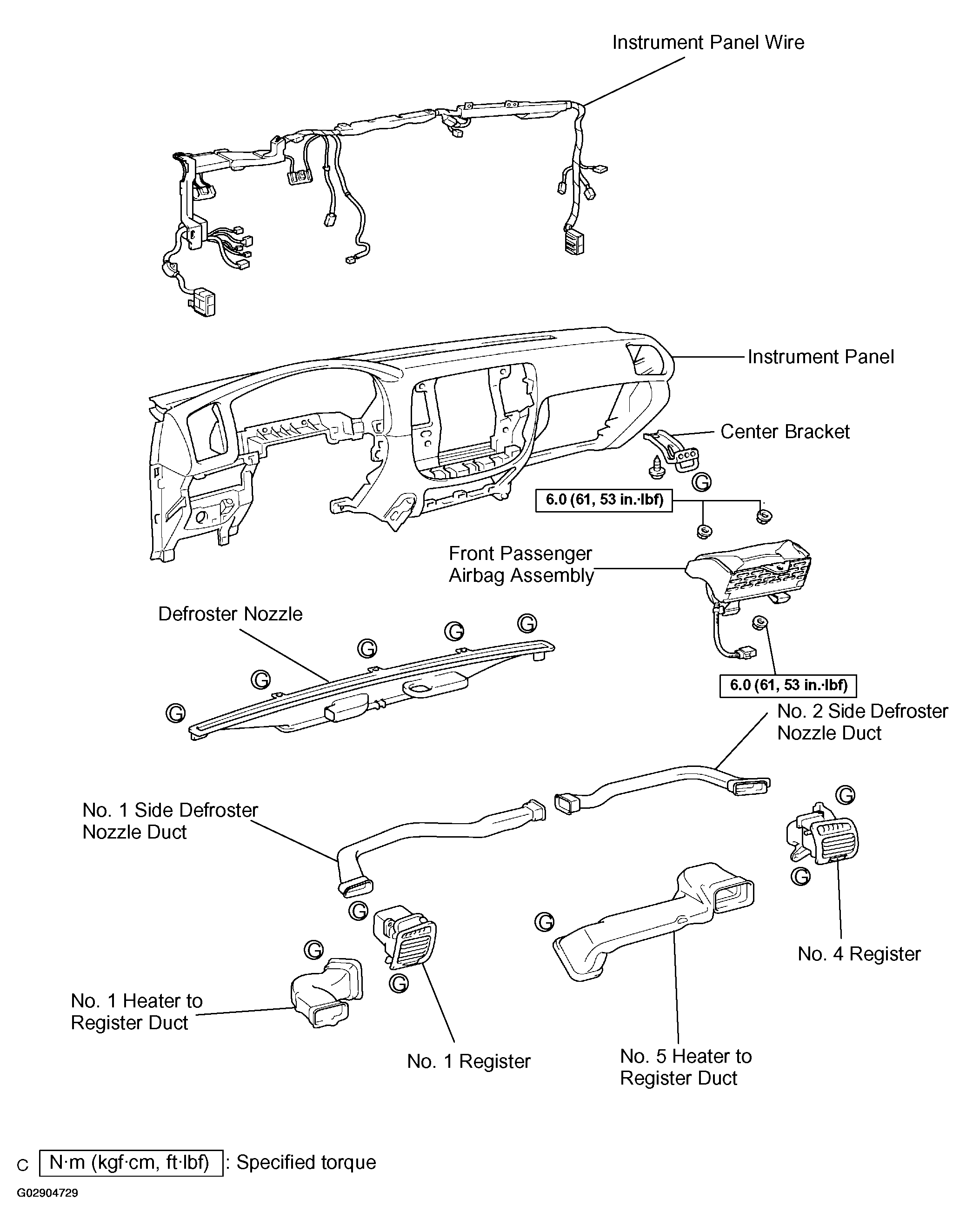

Fig 2: Exploded View Of Instrument Panel (2 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

HINT:

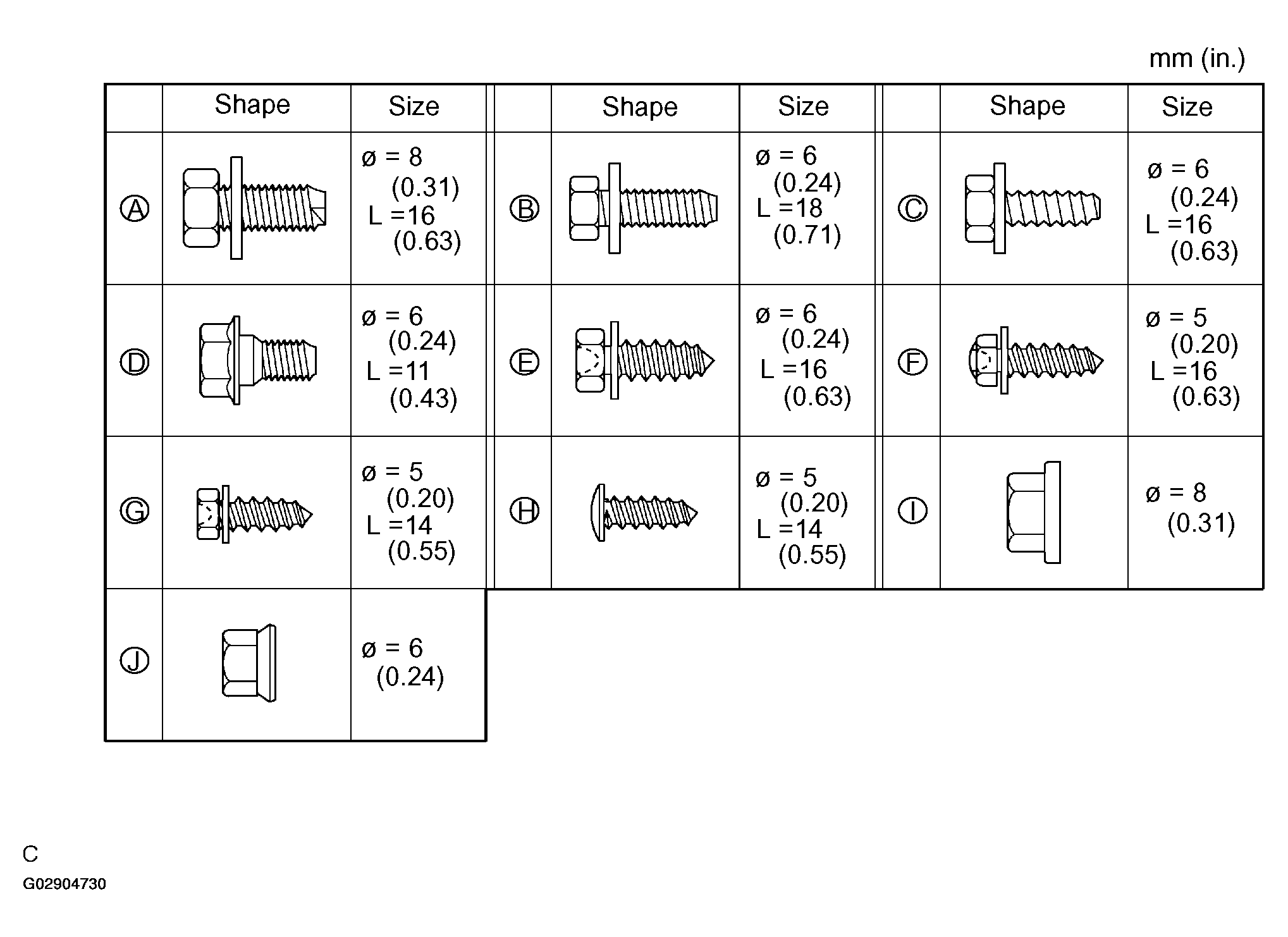

Screw shapes and sizes are indicated in the Fig 3 . The codes ("A" to "I") correspond to those indicated

Fig 3: Identifying Different Screw Shapes & Sizes (Table)
