Problem Symptoms Table

WARNING: This page is about a different car, the 2005 Toyota Land Cruiser. However, it is still accessible from the selected car via links, so may be relevant.

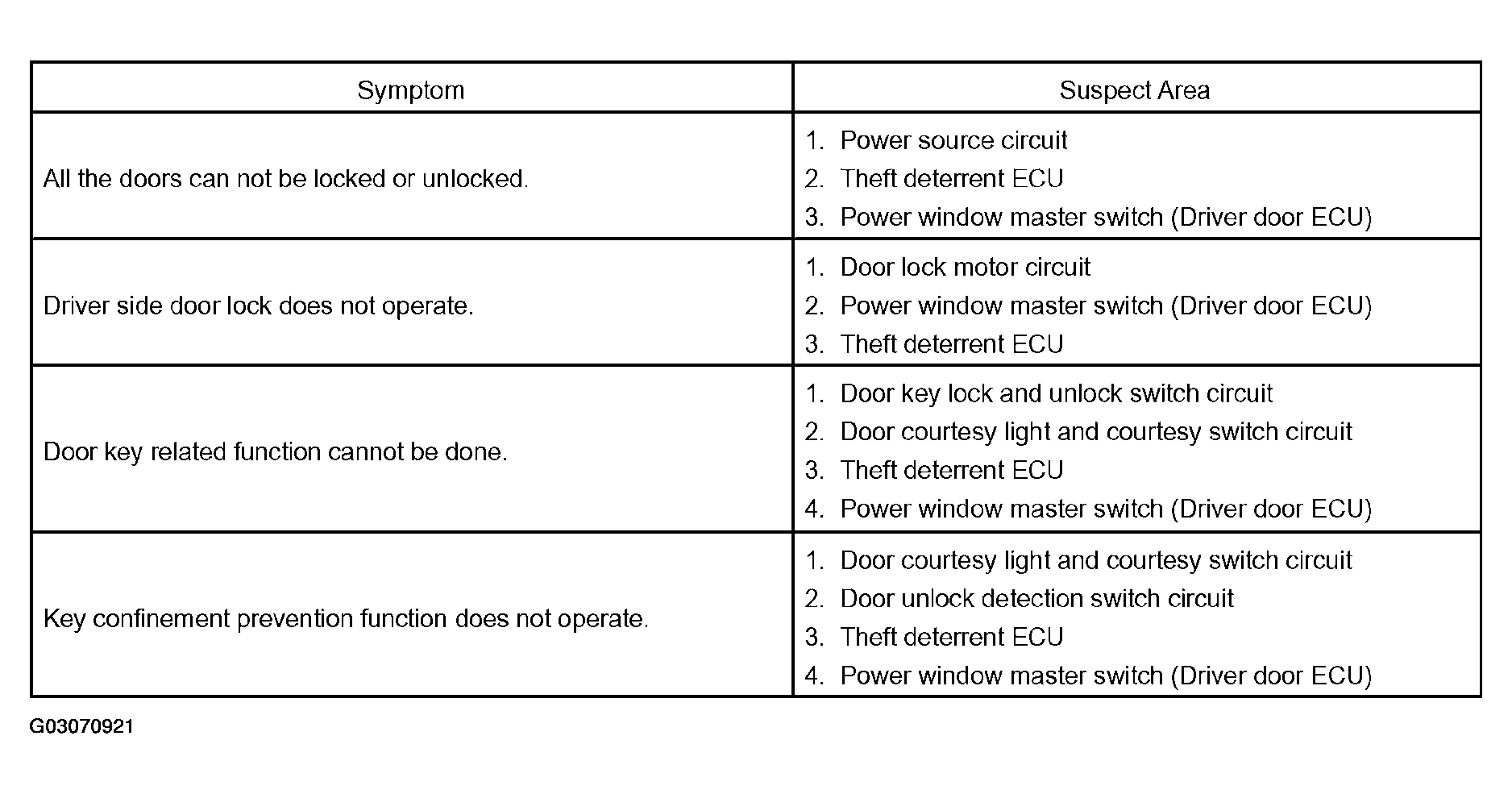

POWER DOOR LOCK CONTROL SYSTEM:

Fig 1: Diagnostic Reference Table (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

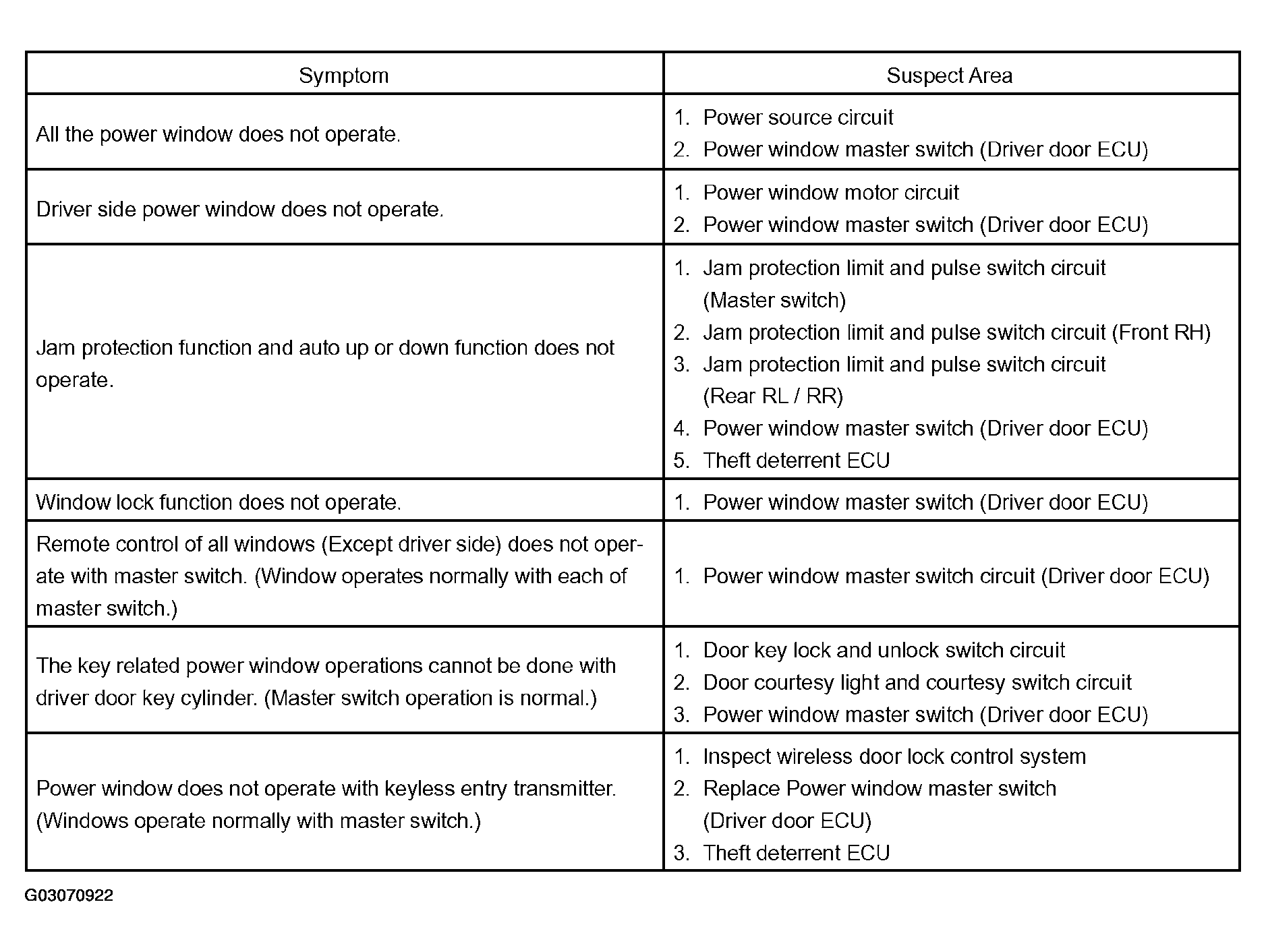

POWER WINDOW CONTROL SYSTEM:

Fig 2: Diagnostic Reference Table (2 Of 2)
