Section 527 (Starting System): Starter: Components

WARNING: This page is about a different car, the 2005 Toyota Land Cruiser. However, it is still accessible from the selected car via links, so may be relevant.

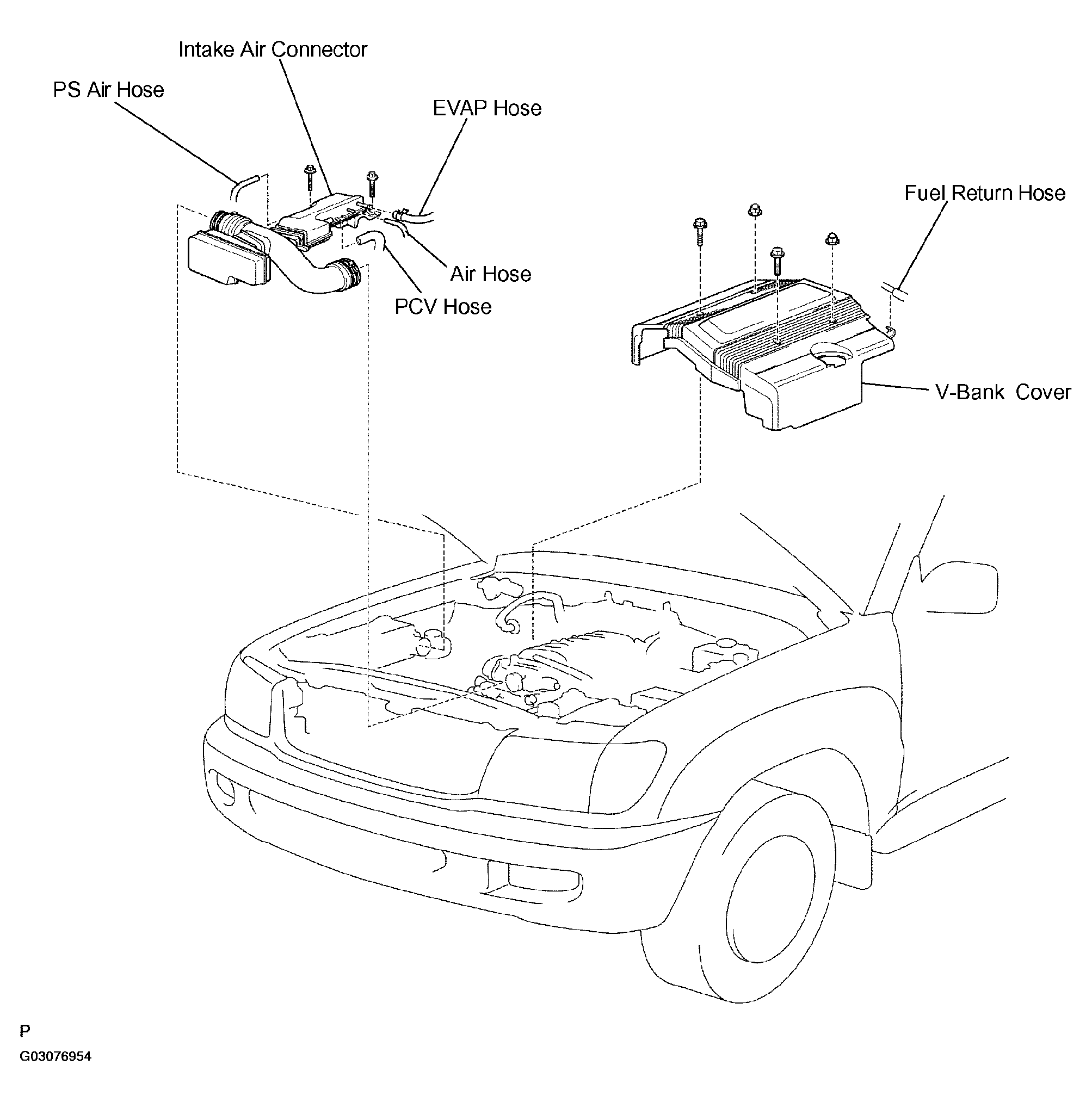

Fig 1: Accessing Starter (1 Of 2)
G03076954Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

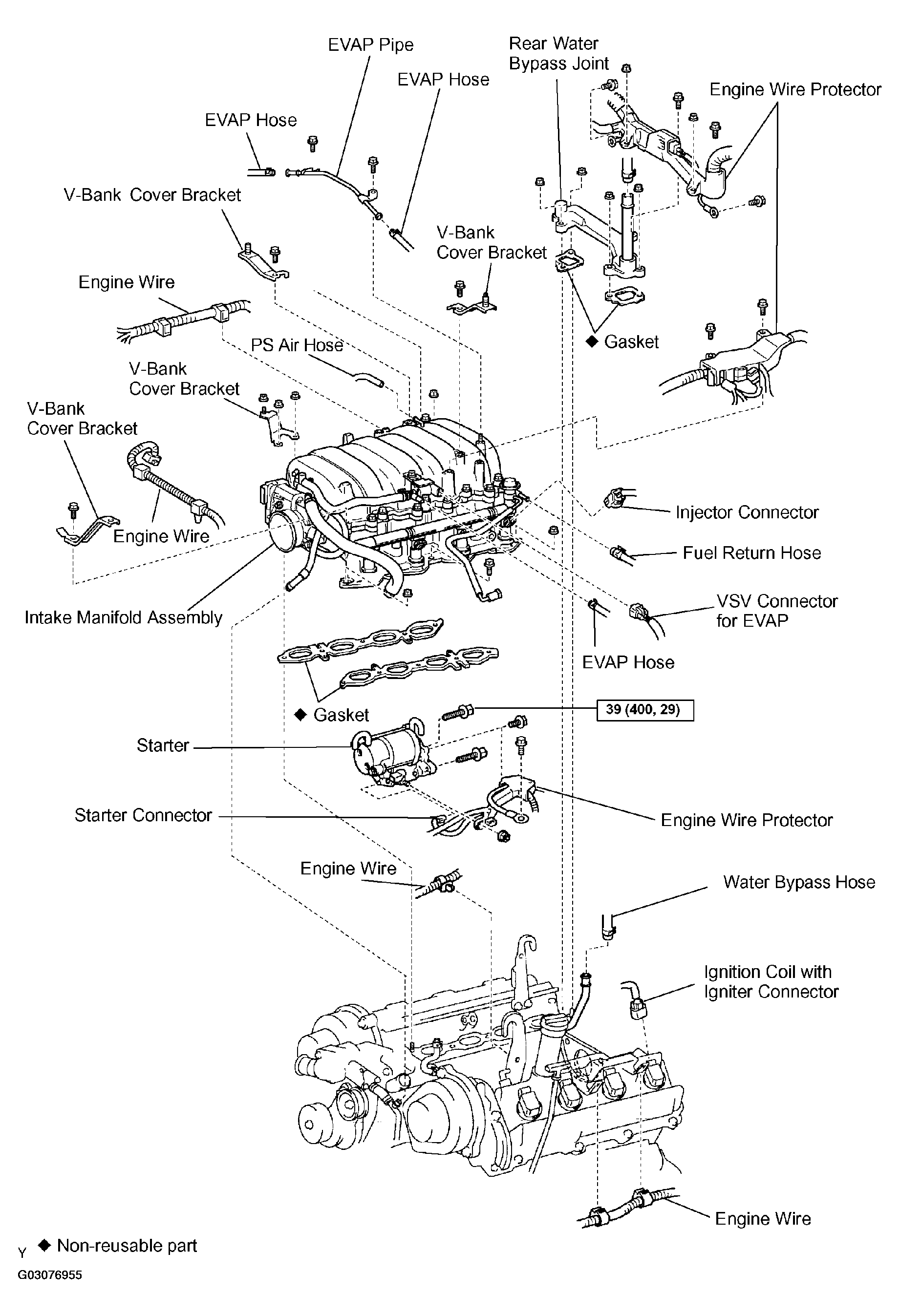

Fig 2: Accessing Starter (2 Of 2) & Torque Specifications
G03076955Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

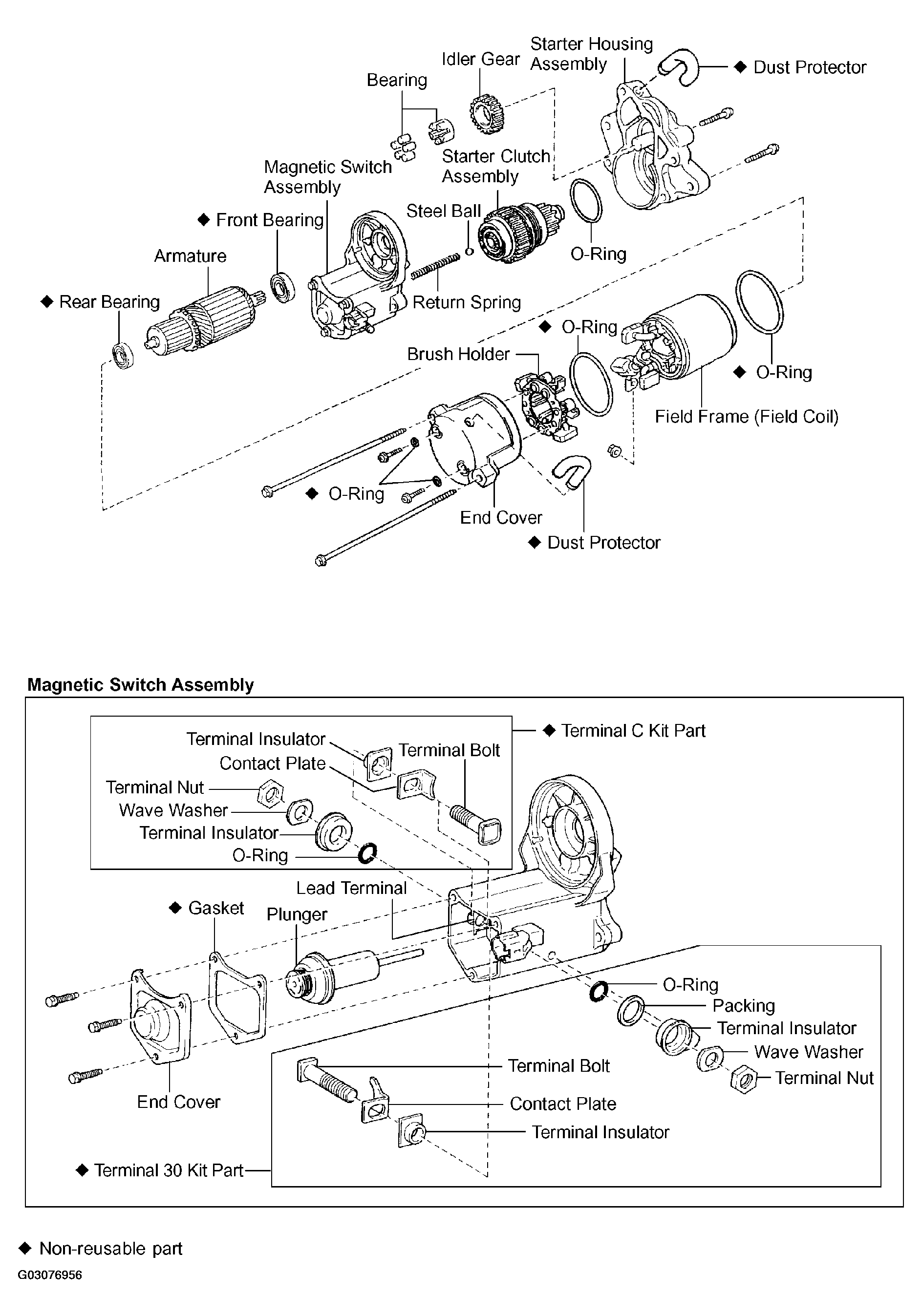

Fig 3: Exploded View Of Starter
G03076956Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
