Section 537 (Ignition Switch And Key Unlock Warning Switch): Location

WARNING: This page is about a different car, the 2005 Toyota Land Cruiser. However, it is still accessible from the selected car via links, so may be relevant.

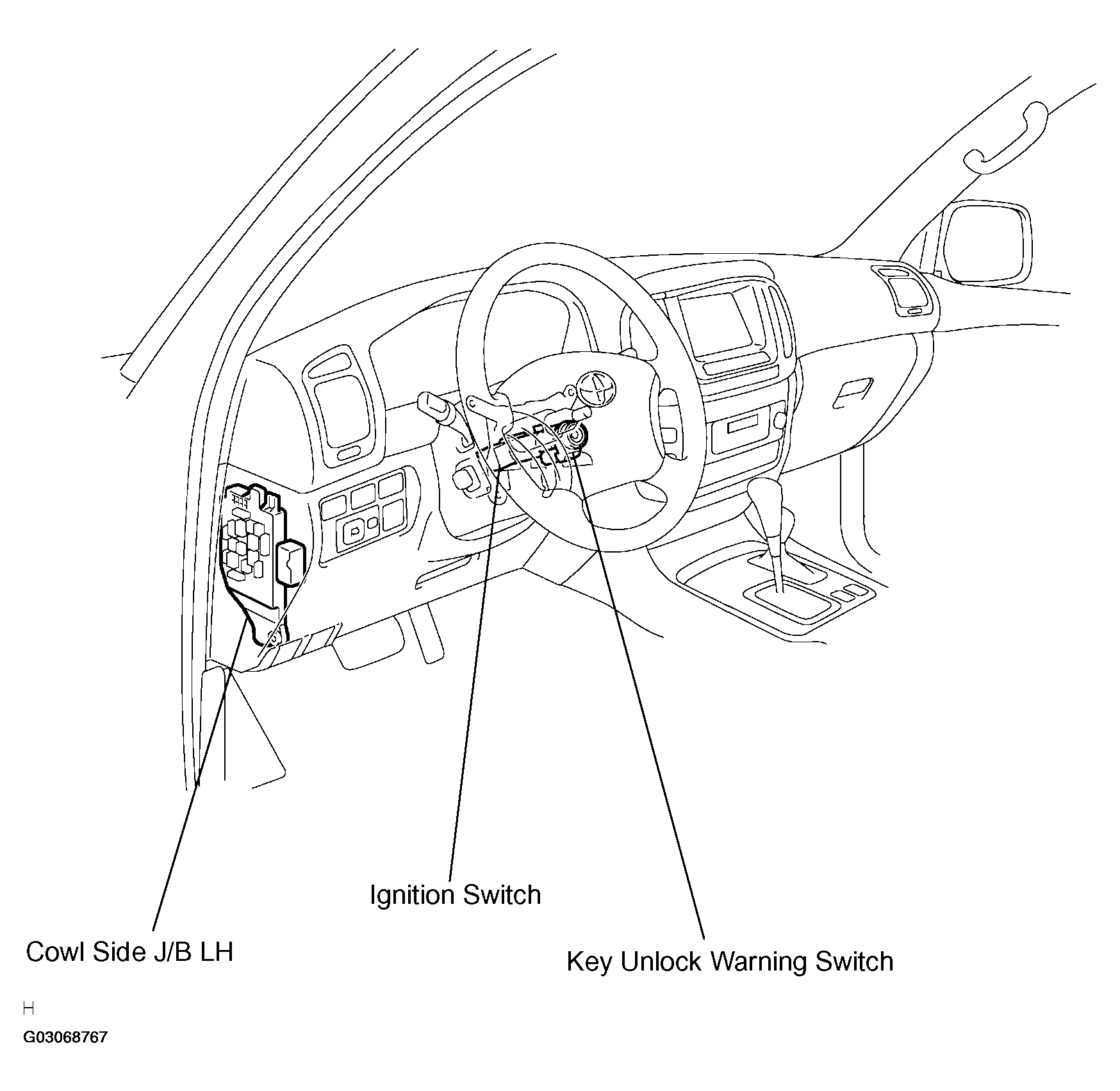

Fig 1: Identifying Ignition Switch And Key Unlock Warning Switch Component Location
G03068767Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
