Section 540 (Stop Light System): Inspection
WARNING: This page is about a different car, the 2005 Toyota Land Cruiser. However, it is still accessible from the selected car via links, so may be relevant.

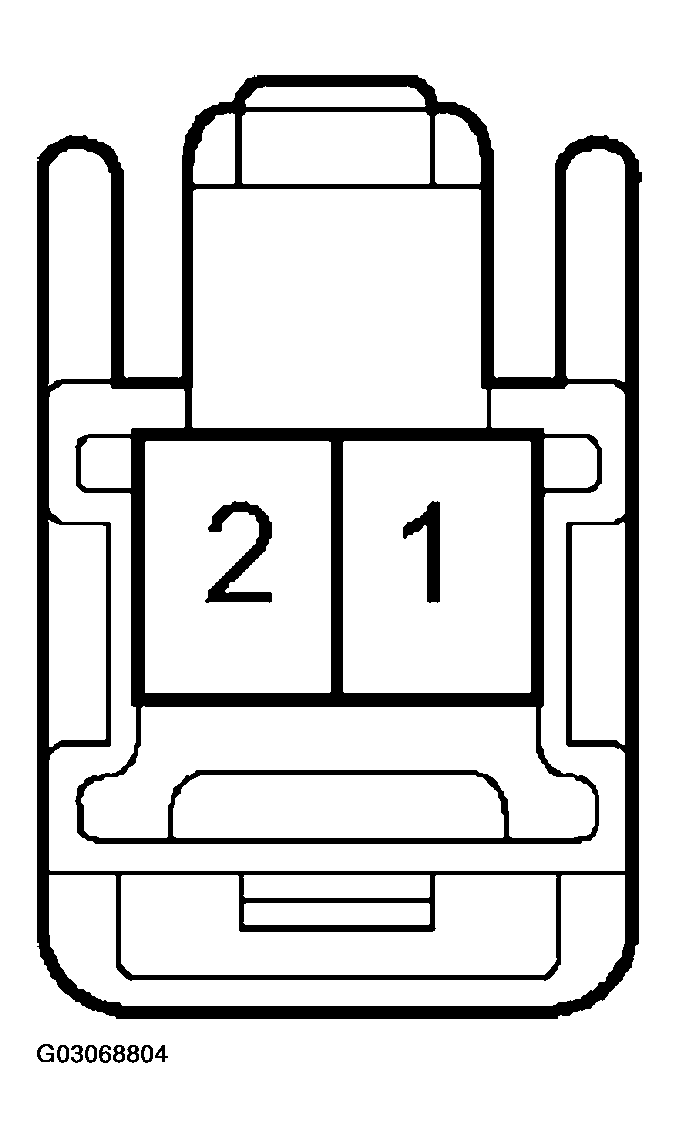

- INSPECT STOP LIGHT SWITCH CONTINUITY STOP LIGHT SWITCH CONTINUITY CONDITIONS
Switch position Tester connection Specified condition Switch pin free (Pedal depressed) 1 - 2 Continuity Switch pin pushed in (Pedal released) - No continuity Switch pin free (Pedal depressed) - No continuity Switch pin pushed in (Pedal released) 3 - 4 Continuity If continuity is not as specified, replace the switch.
- INSPECT HI-MOUNTED STOP LIGHT CONTINUITY
Using an ohmmeter, check that continuity exists between terminals.
If continuity is not as specified, replace the light assembly.
