Section 541 (Combination Meter): Components

WARNING: This page is about a different car, the 2005 Toyota Land Cruiser. However, it is still accessible from the selected car via links, so may be relevant.

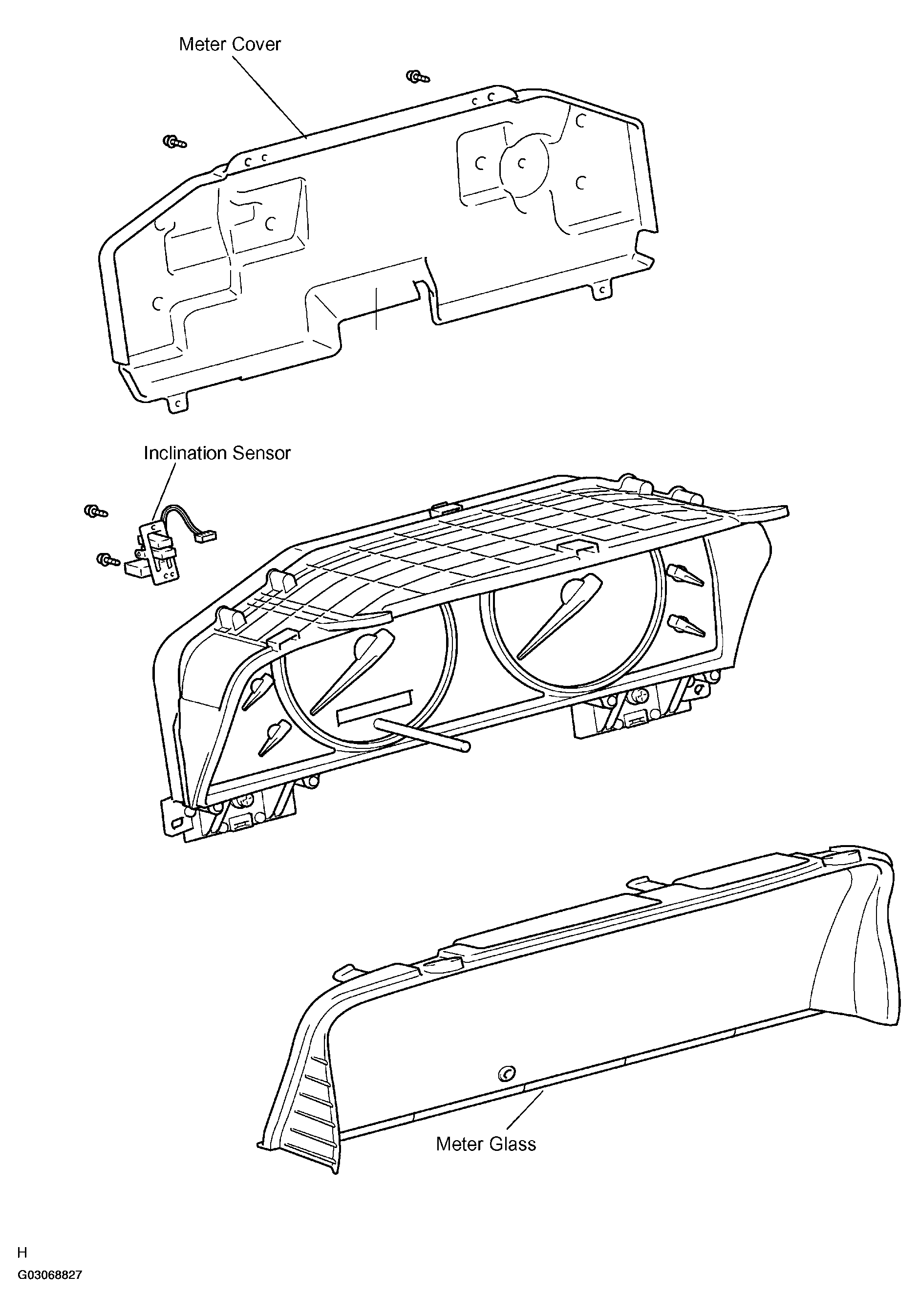

Fig 1: Identifying Combination Meter Components
G03068827Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
