Section 541 (Combination Meter): Location

WARNING: This page is about a different car, the 2005 Toyota Land Cruiser. However, it is still accessible from the selected car via links, so may be relevant.

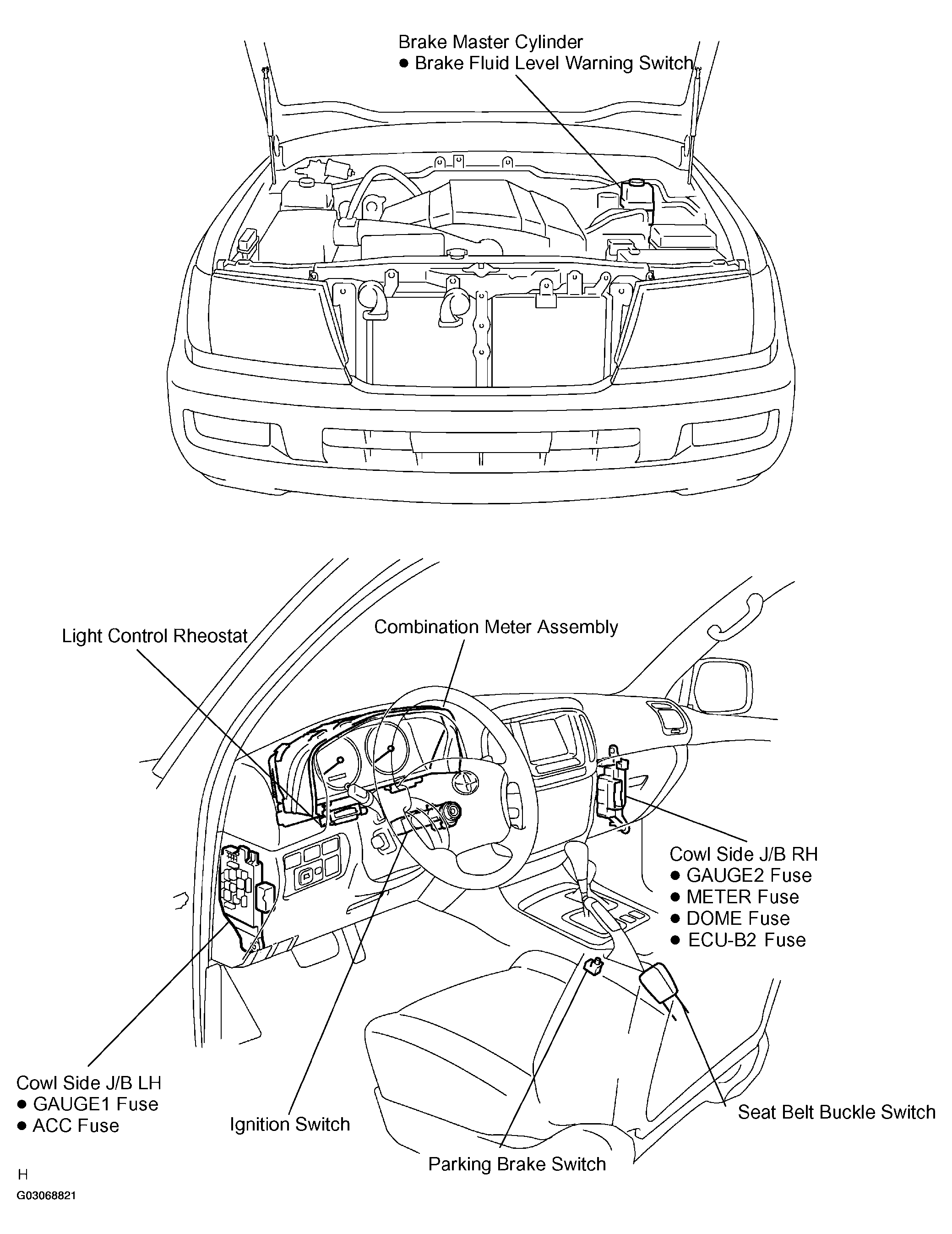

Fig 1: Locating Combination Meter Components (1 Of 2)
G03068821Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

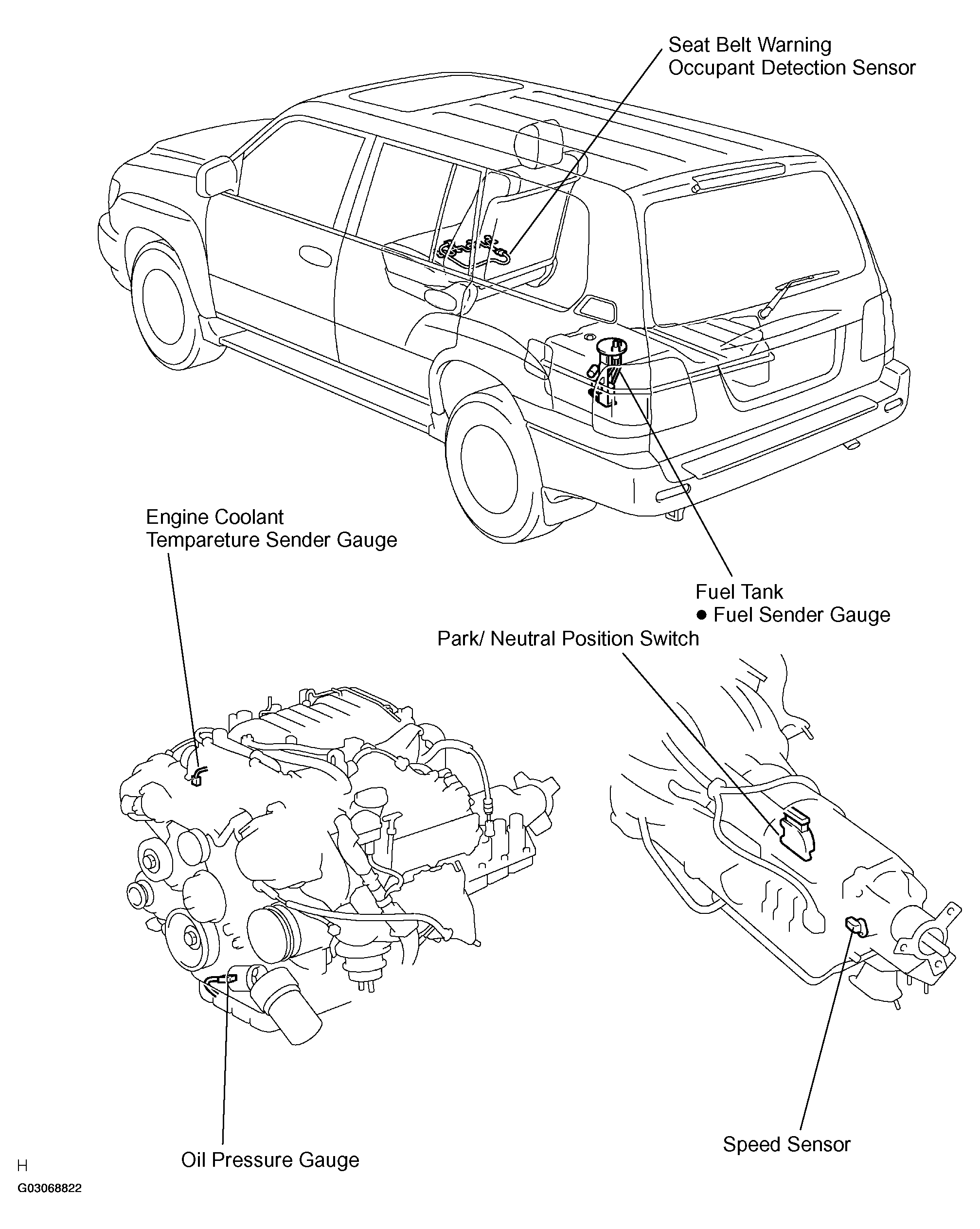

Fig 2: Locating Combination Meter Components (2 Of 2)
G03068822Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
