Section 545 (Audio System): Location

WARNING: This page is about a different car, the 2005 Toyota Land Cruiser. However, it is still accessible from the selected car via links, so may be relevant.

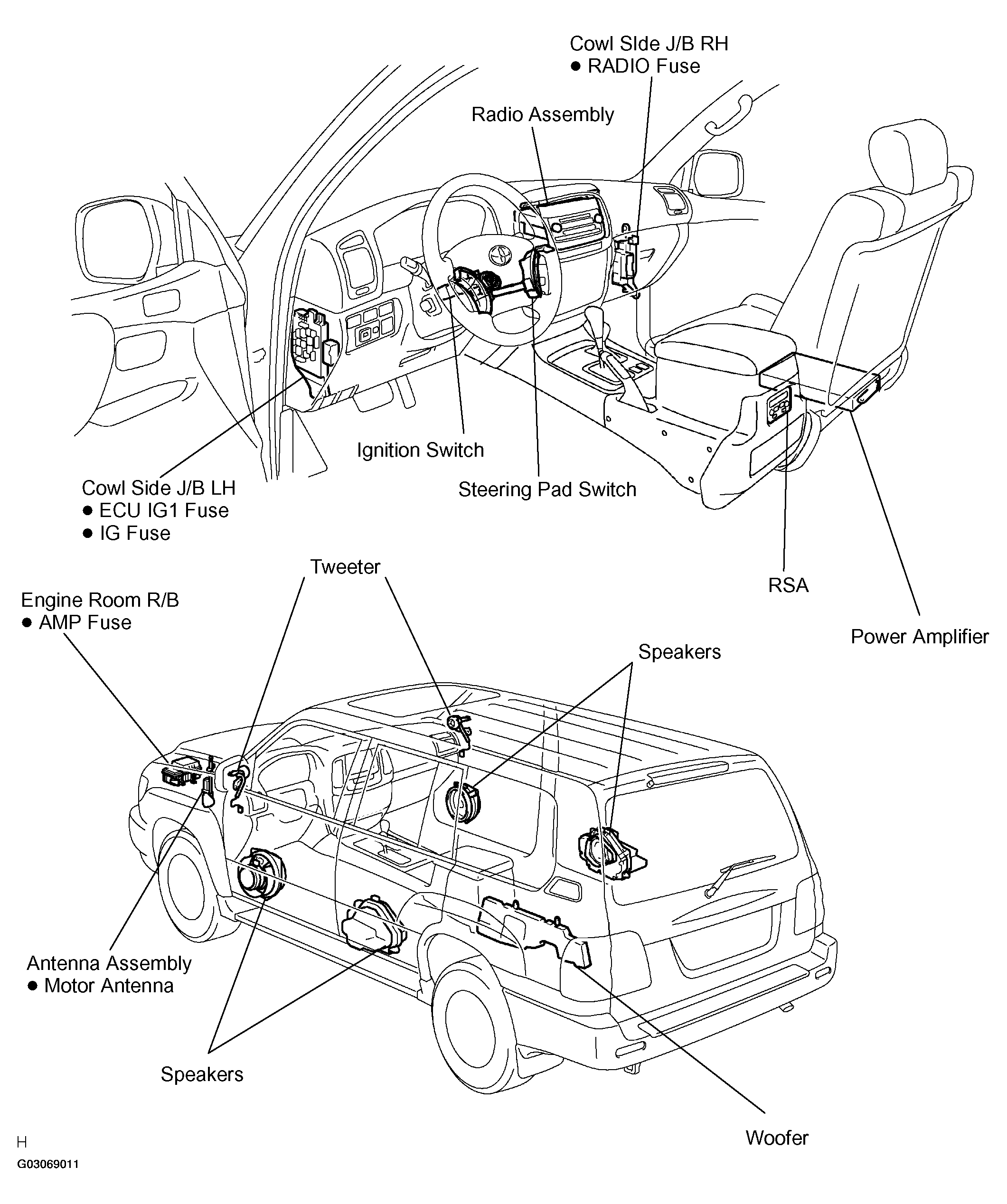

Fig 1: Locating Audio System Components
G03069011Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
