Air Conditioning Control Assembly: Removal

WARNING: This page is about a different car, the 2005 Toyota Land Cruiser. However, it is still accessible from the selected car via links, so may be relevant.
  1. REMOVE CENTER RESISTORS

    Disengage the 12 clips and remove the center resistors, then disconnect the connectors.

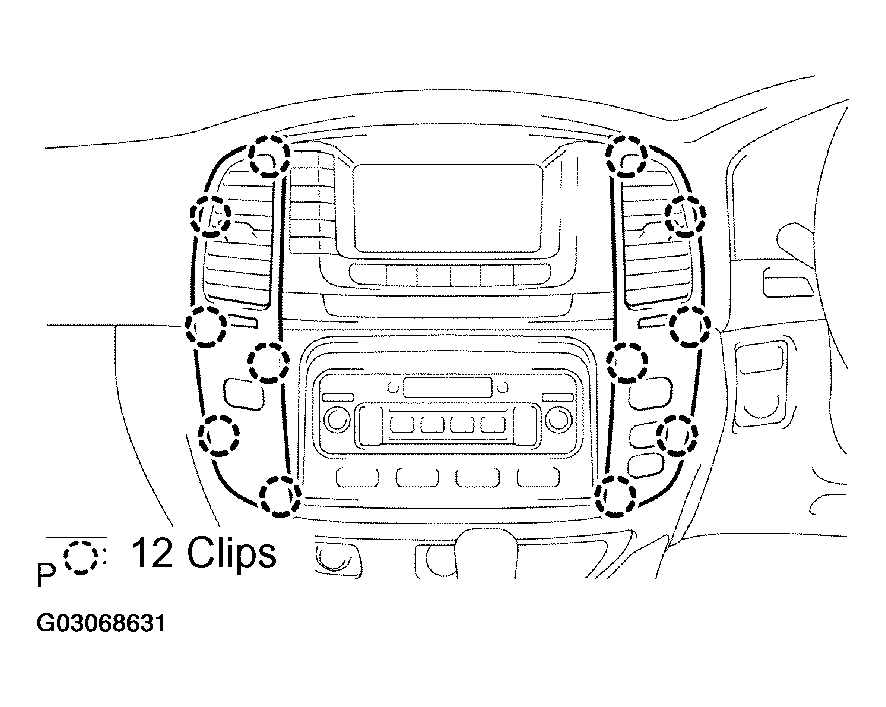

    Fig 1: Removing Center Resistors
    G03068631Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. REMOVE INTEGRATION CONTROL PANEL ASSEMBLY
    1. Remove the 4 bolts.
    2. Remove the integration control panel assembly, then disconnect the connectors.

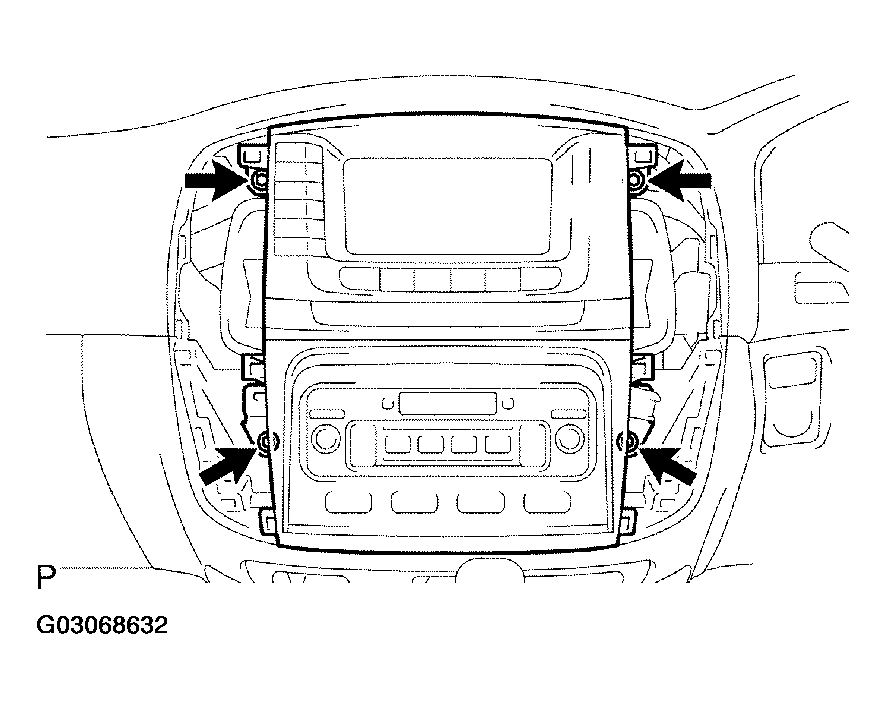

      Fig 2: Removing Integration Control Panel Assembly
      G03068632Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. w/ navigation system: REMOVE A/C AMPLIFIER
    1. Disconnect the connector clamp.
    2. Remove the 3 screws, the 4 bolts and the radio receiver bracket LH.

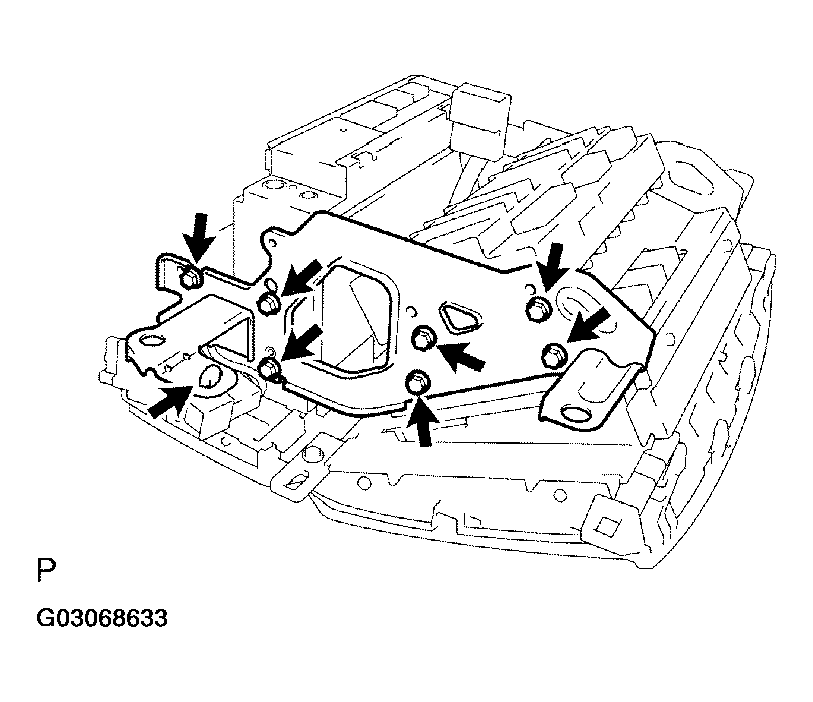

      Fig 3: Removing Radio Receiver Bracket LH (W/Navigation System)
      G03068633Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Remove the 2 screws and the A/C amplifier.

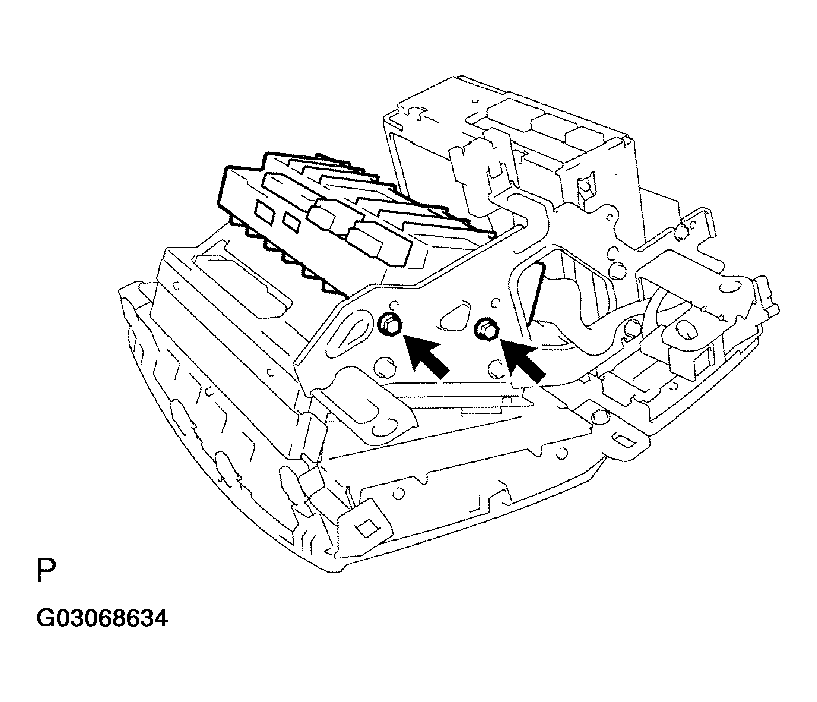

      Fig 4: Removing A/C Amplifier (W/Navigation System)
      G03068634Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. w/ LEXUS navigation system: REMOVE EMV

    Remove the 3 screws, the 2 bolts and the EMV.

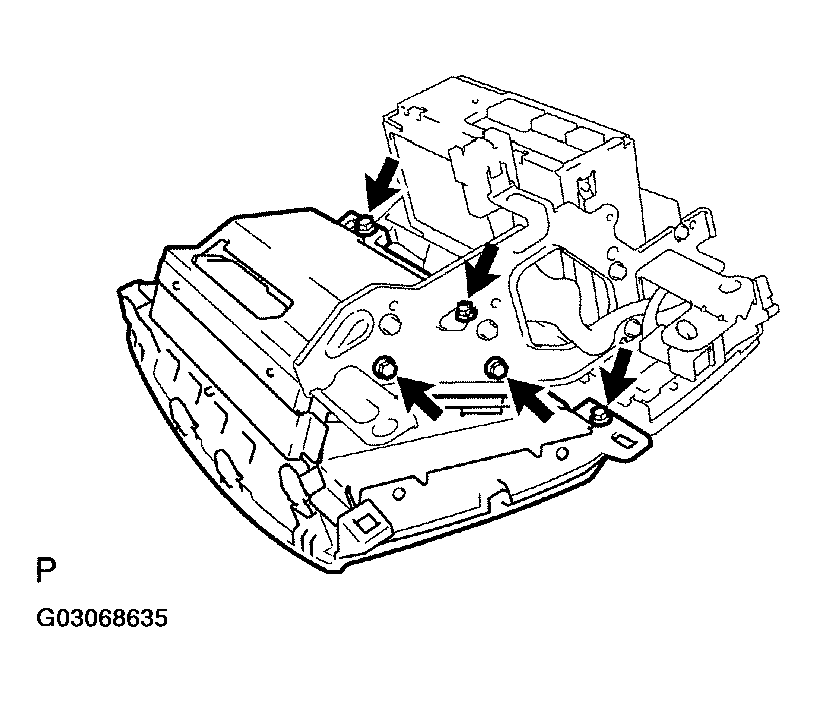

    Fig 5: Removing EMV (W/Lexus Navigation System)
    G03068635Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  5. w/ navigation system: REMOVE INTEGRATION CONTROL PANEL

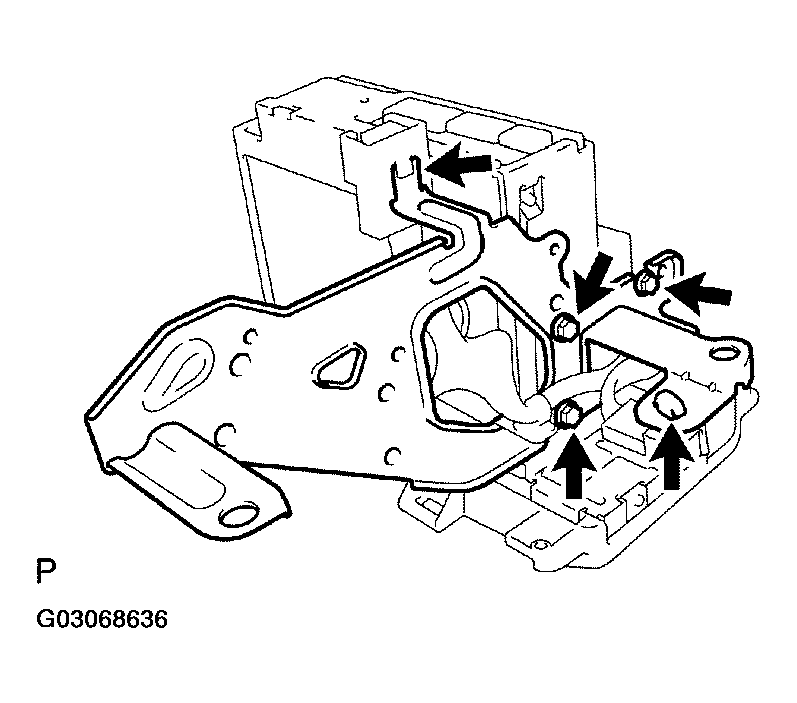

    Fig 6: Removing Integration Control Panel (W/Navigation System)
    G03068636Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  6. Disconnect the connector clamps.
    1. Remove the screw, the 2 bolts and the radio receiver bracket RH.
    2. Remove the integration control panel from the radio receiver.
  7. w/o navigation system: REMOVE INTEGRATION CONTROL PANEL
    1. Disconnect the connector clamp.
    2. Remove the 2 screws, 4 bolts and the radio receiver bracket LH.

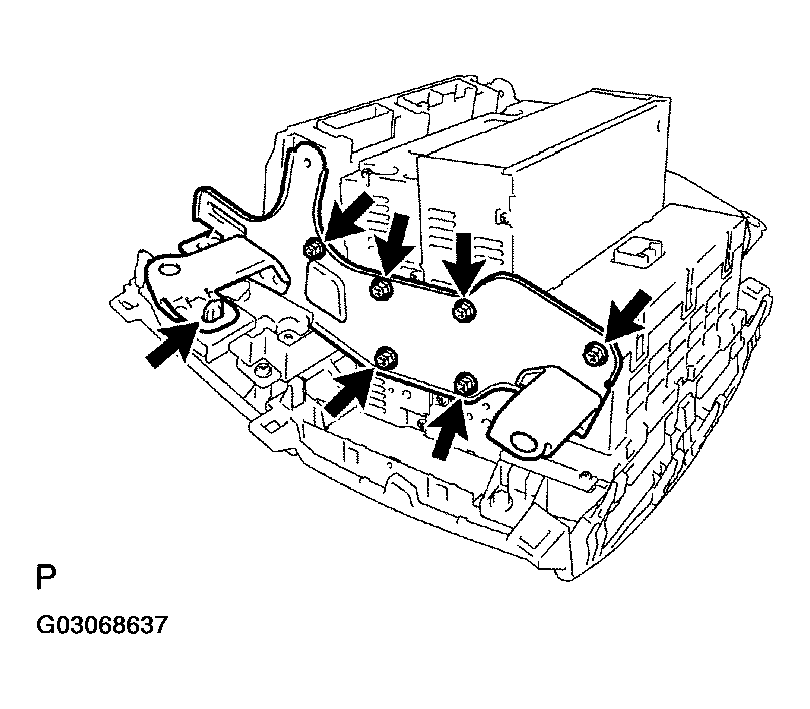

      Fig 7: Removing Radio Receiver Bracket LH (W/O Navigation System)
      G03068637Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Disconnect the connector clamp.
    4. Remove the 2 screws, 4 bolts and the radio receiver bracket RH.

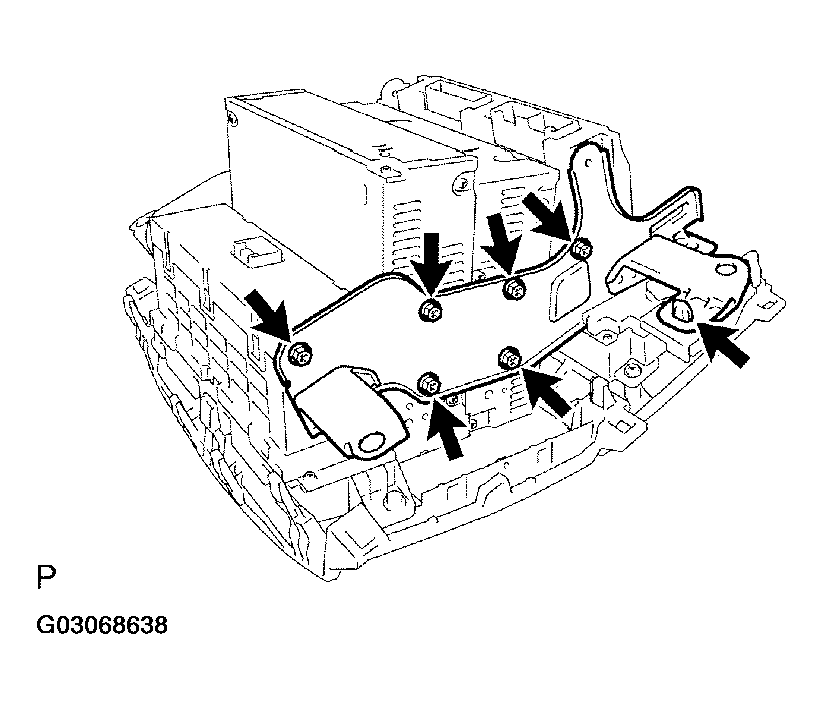

      Fig 8: Removing Radio Receiver Bracket RH (W/O Navigation System)
      G03068638Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    5. Remove the integration control panel.
