Problem Symptoms Table

IGNITION SWITCH & KEY UNLOCK WARNING SWITCH:

This system uses the body control system, so check the body control system before you proceed with troubleshooting. (See HOW TO PROCEED WITH TROUBLESHOOTING ).

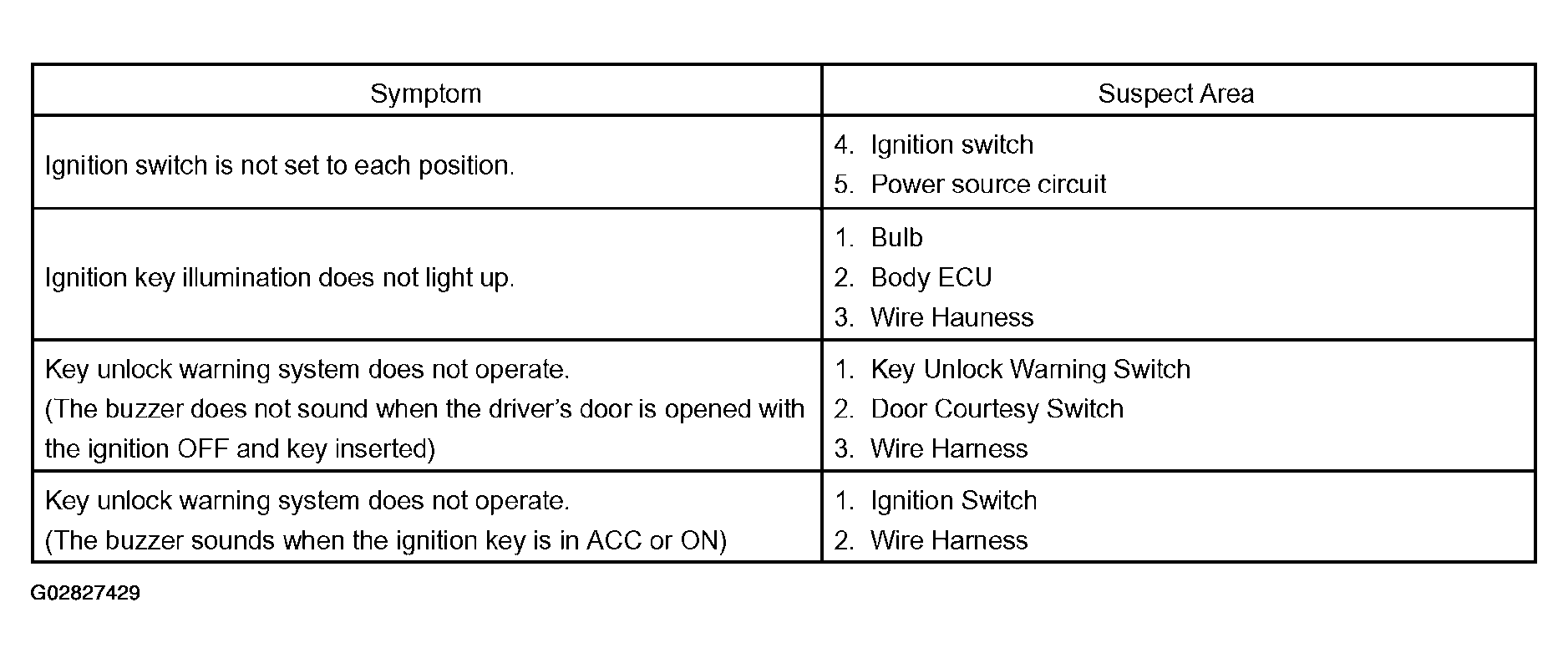

Fig 1: Problem Symptoms Table Of Ignition Switch & Key Unlock Warning Switch

G02827429

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

HEADLIGHT & TAILLIGHT SYSTEM:

This system uses the body control system, so check the body control system before you proceed with troubleshooting. (See HOW TO PROCEED WITH TROUBLESHOOTING ).

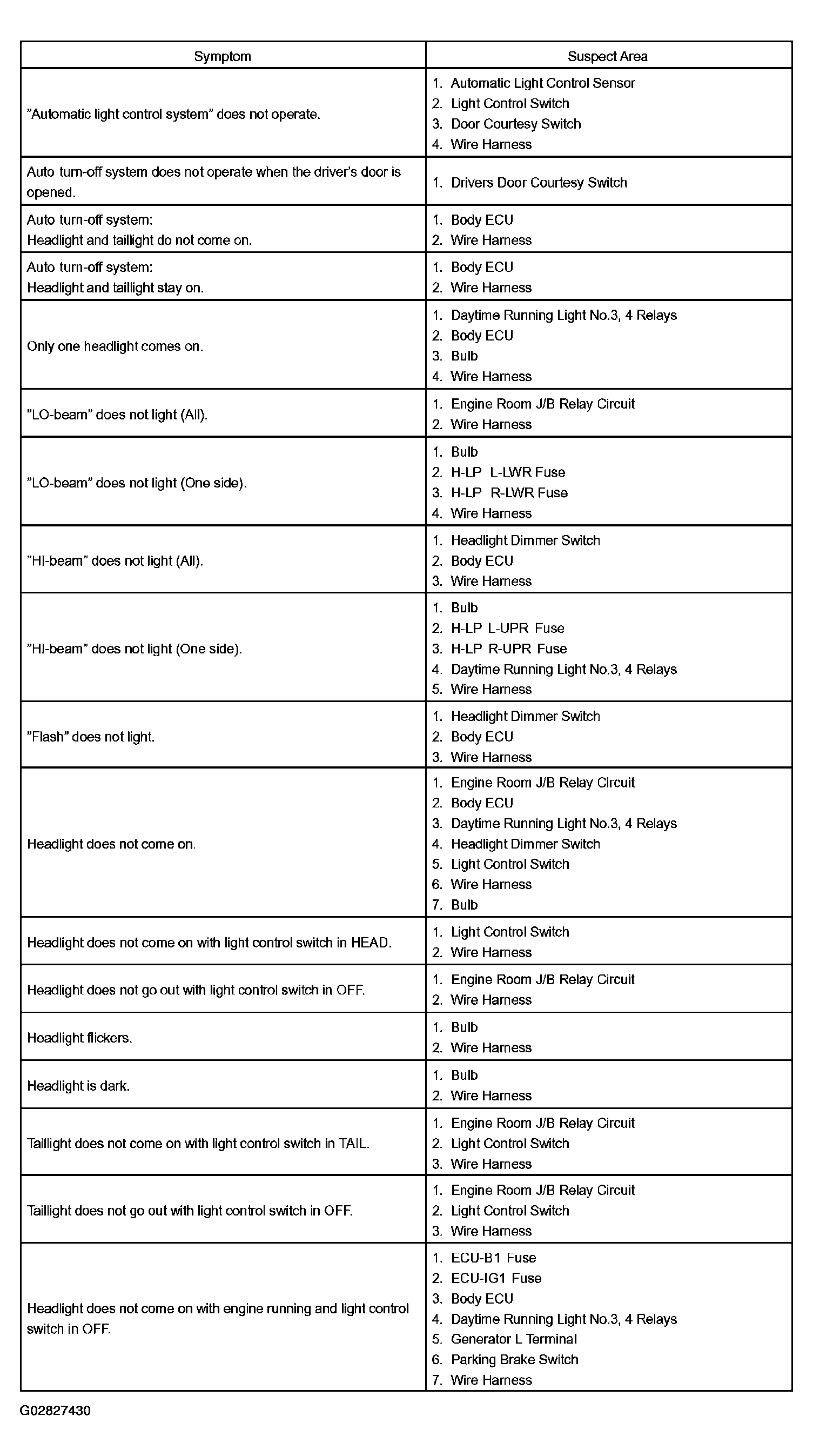

Fig 2: Problem Symptoms Table Of Headlight & Taillight System

G02827430

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

FOG LIGHT SYSTEM:

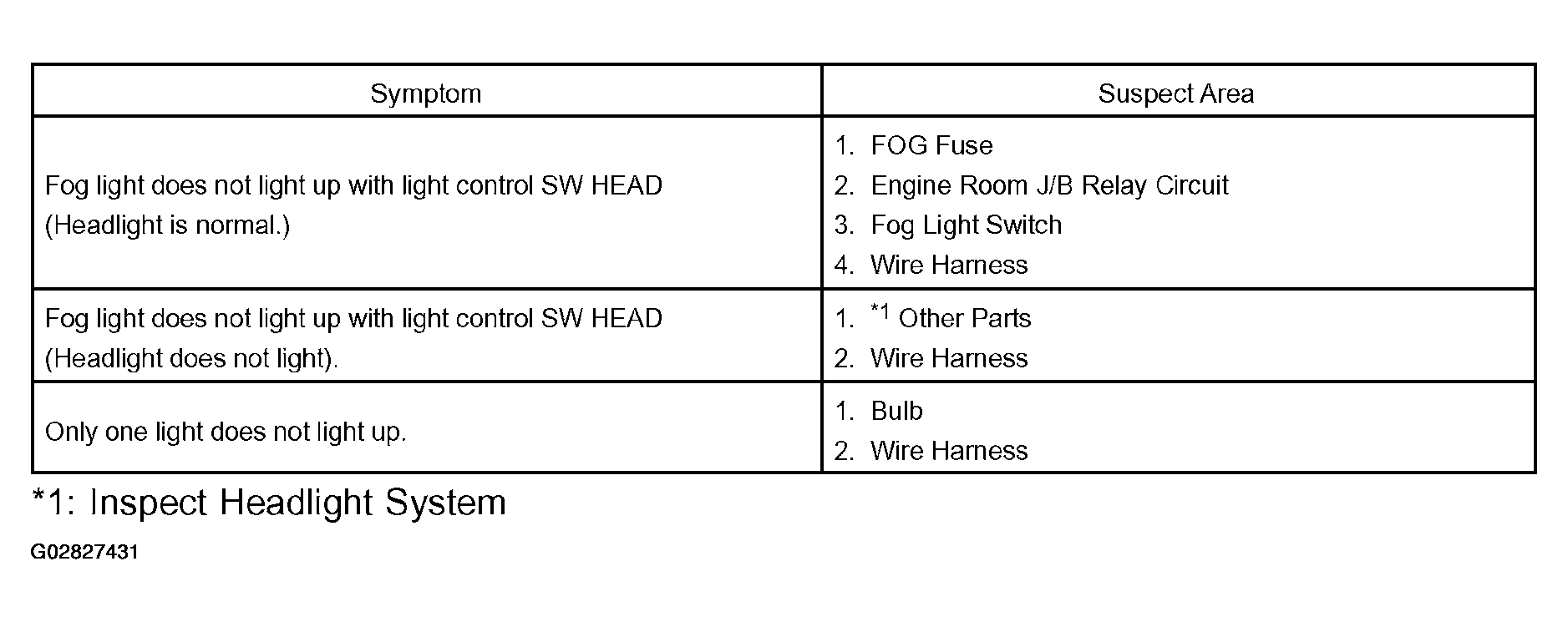

Fig 3: Problem Symptoms Table Of Fog Light System

G02827431

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

TURN SIGNAL & HAZARD WARNING SYSTEM:

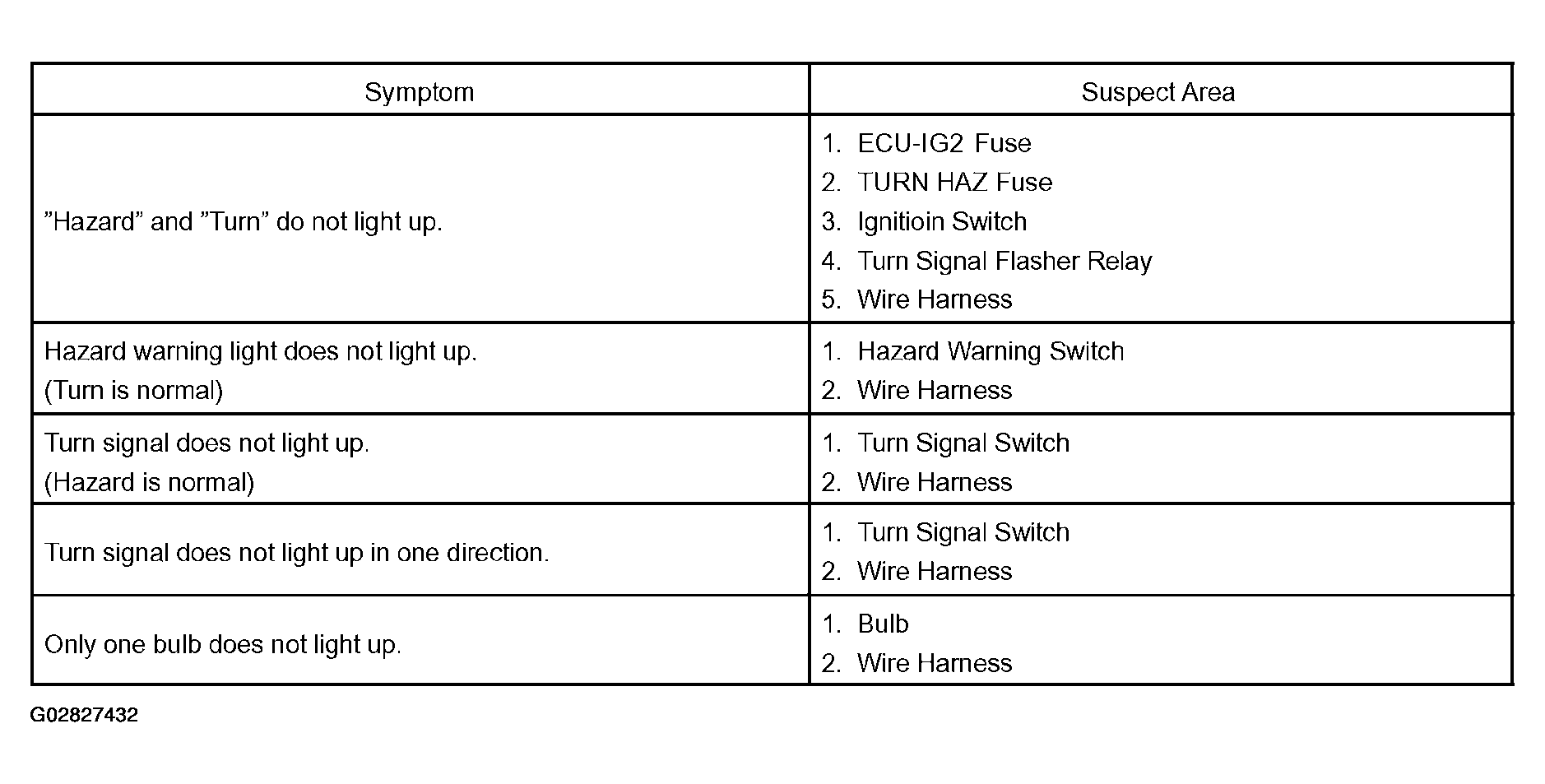

Fig 4: Problem Symptoms Table Of Turn Signal & Hazard Warning System

G02827432

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

INTERIOR LIGHT SYSTEM:

This system uses the body control system, so check the body control system before you proceed with troubleshooting. (See HOW TO PROCEED WITH TROUBLESHOOTING ).

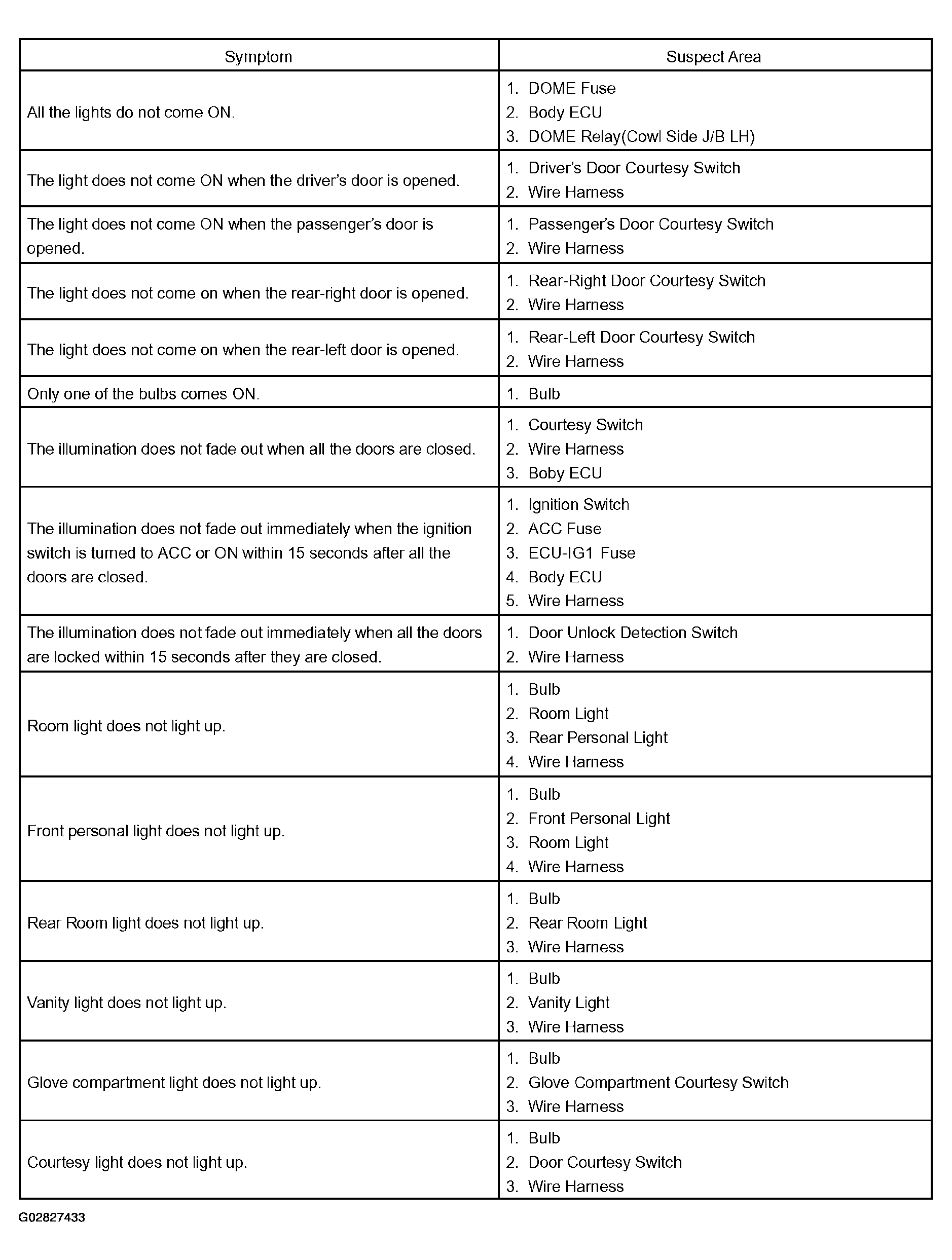

Fig 5: Problem Symptoms Table Of Interior Light System

G02827433

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

BACK-UP LIGHT SYSTEM:

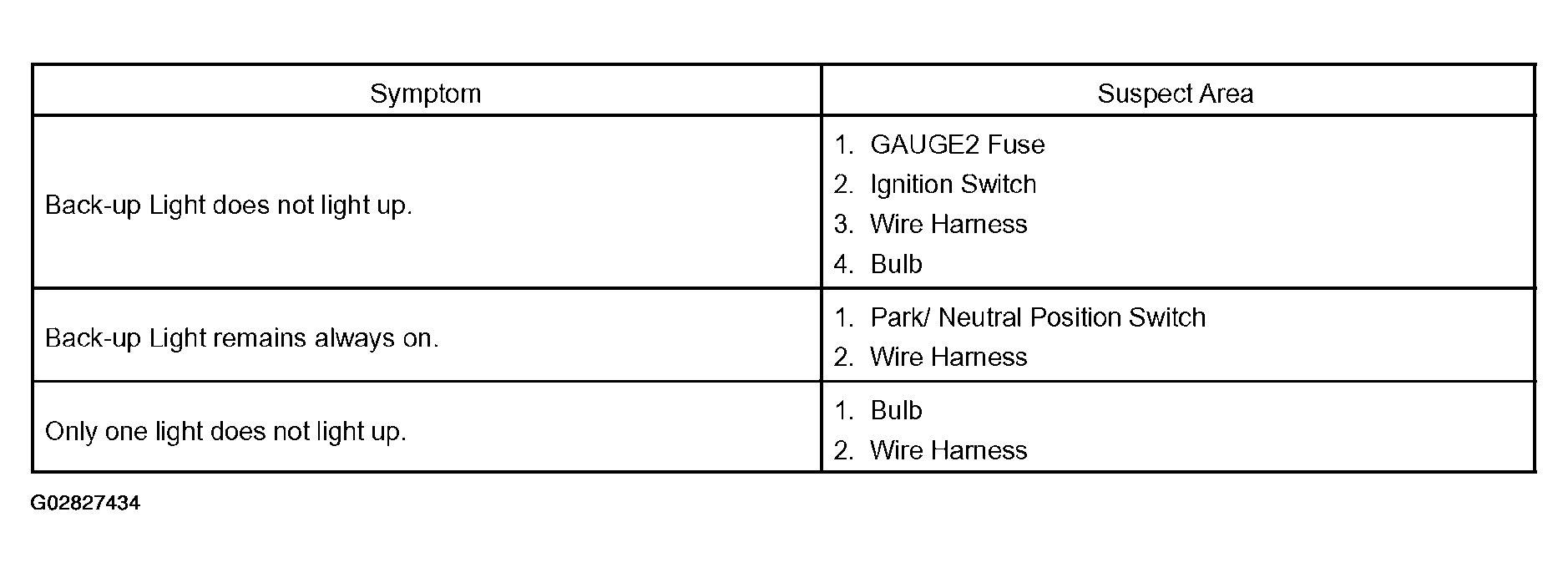

Fig 6: Problem Symptoms Table Of Back-Up Light System

G02827434

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

STOP LIGHT SYSTEM:

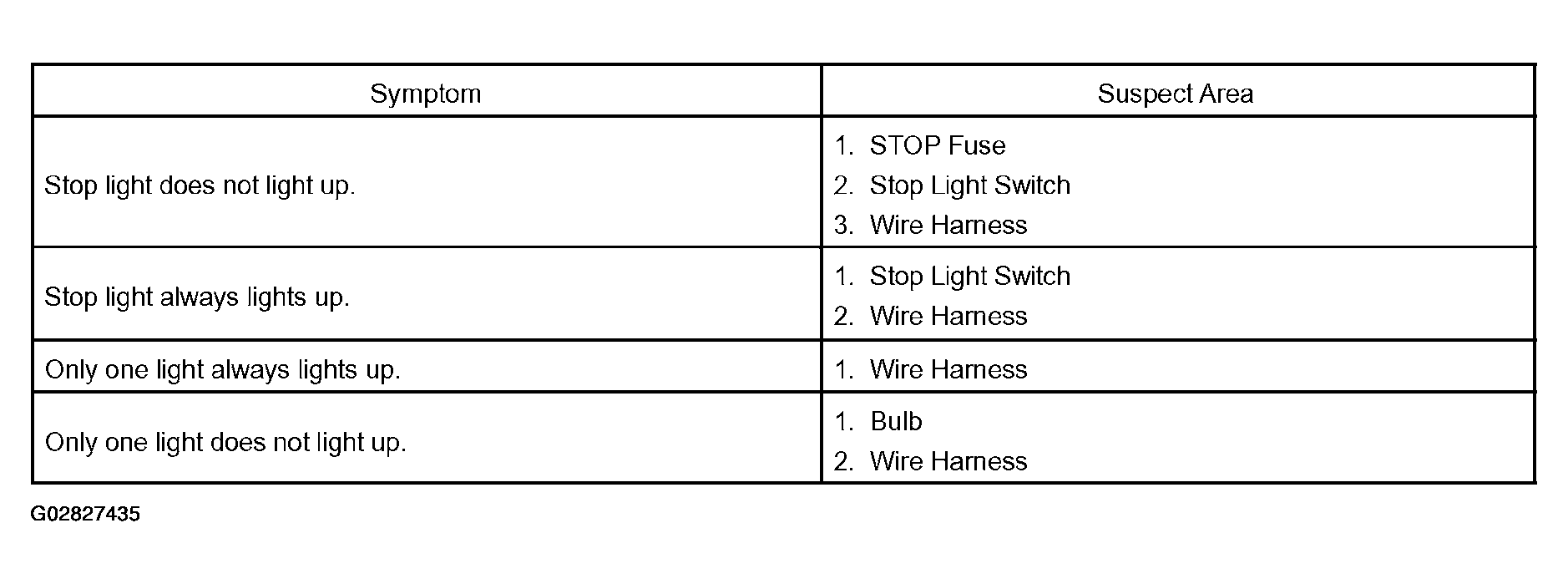

Fig 7: Problem Symptoms Table Of Stop Light System

G02827435

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

WIPER & WASHER SYSTEM:

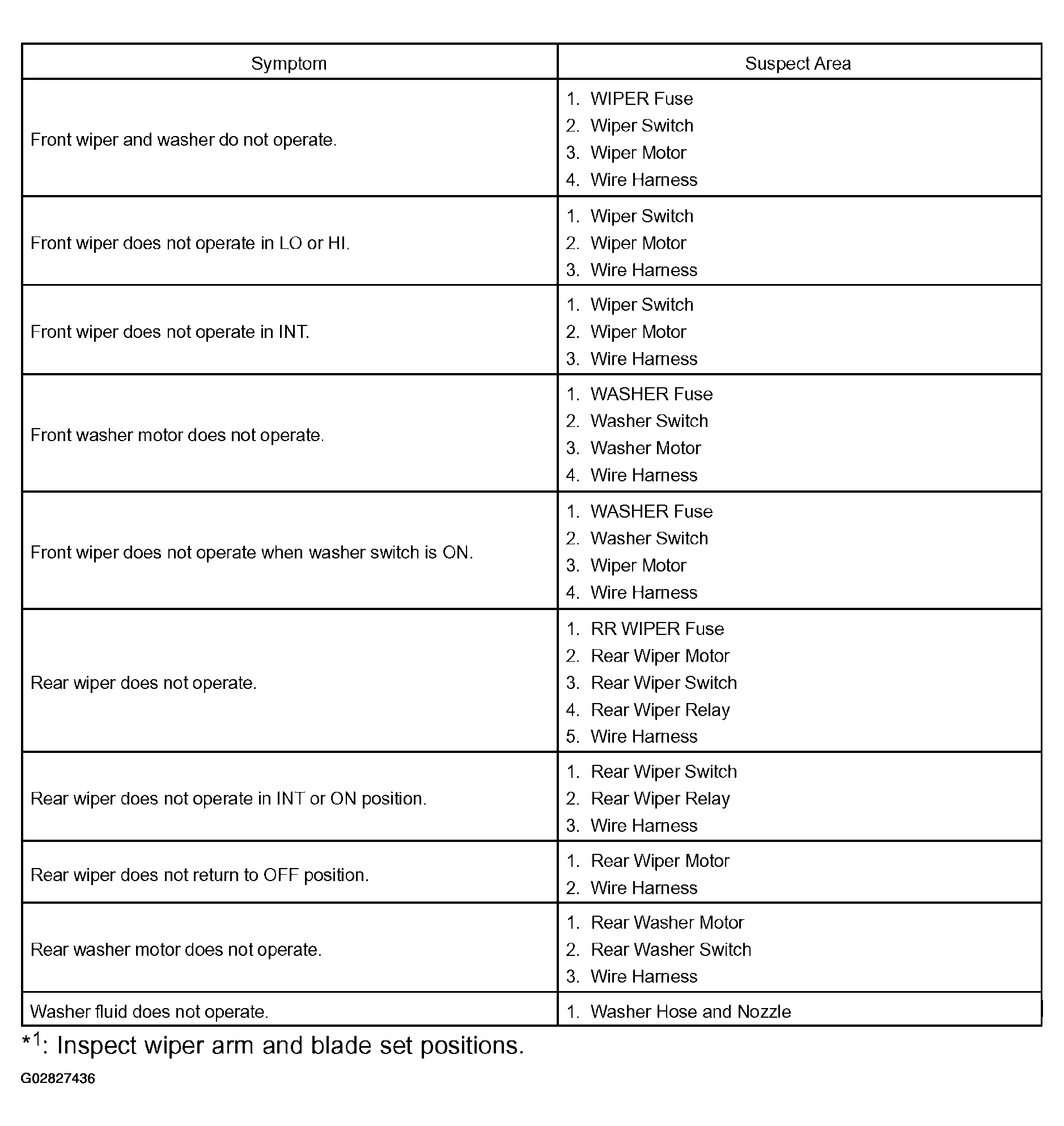

Fig 8: Problem Symptoms Table Of Wiper & Washer System

G02827436

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

COMBINATION METER (Meter Gauges & Illumination):

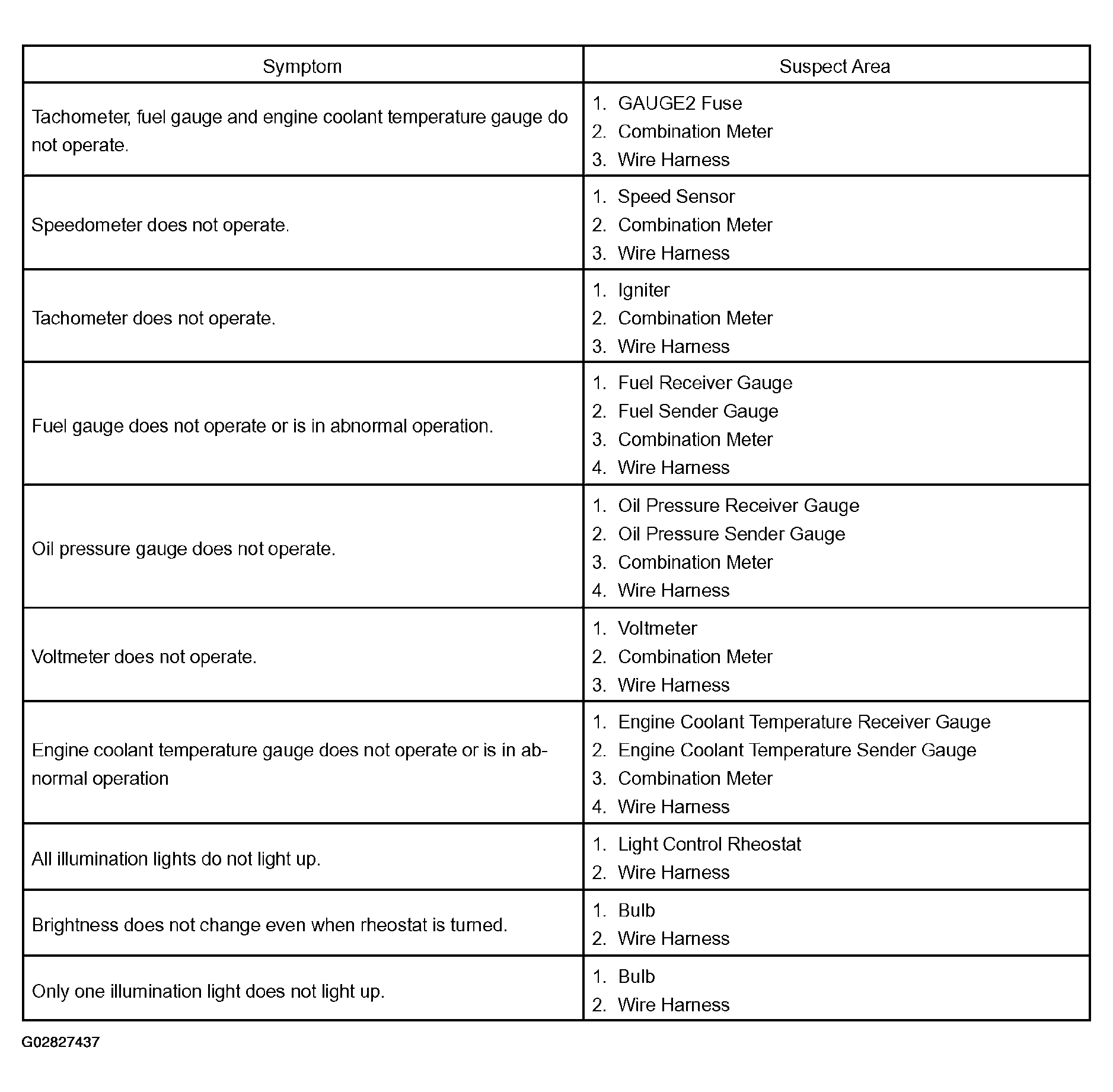

Fig 9: Problem Symptoms Table Of Combination Meter (Meter Gauges & Illumination)

G02827437

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

COMBINATION METER (Warning Light):

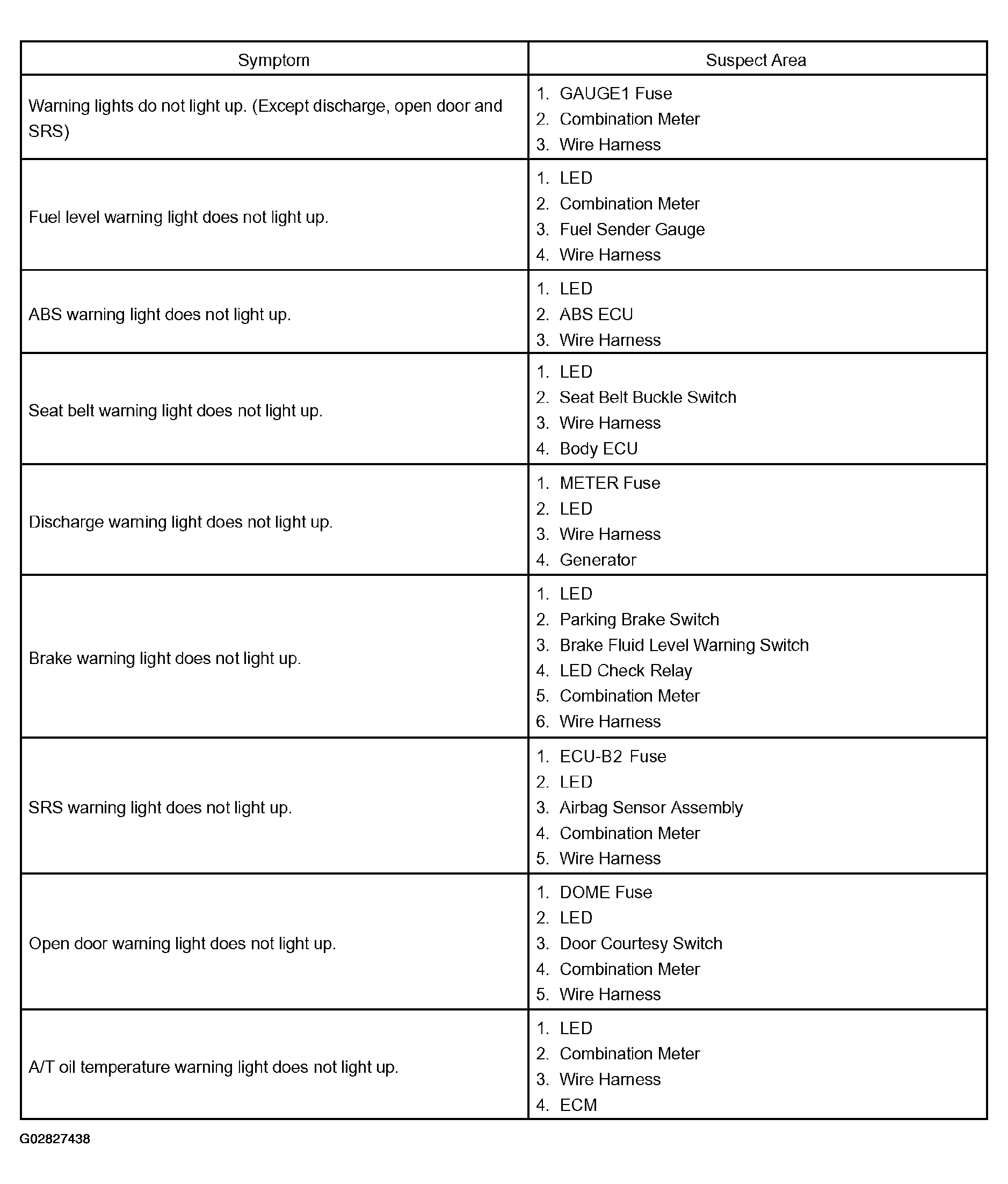

Fig 10: Problem Symptoms Table Of Combination Meter (Warning Light)

G02827438

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

COMBINATION METER (Indicator Light):

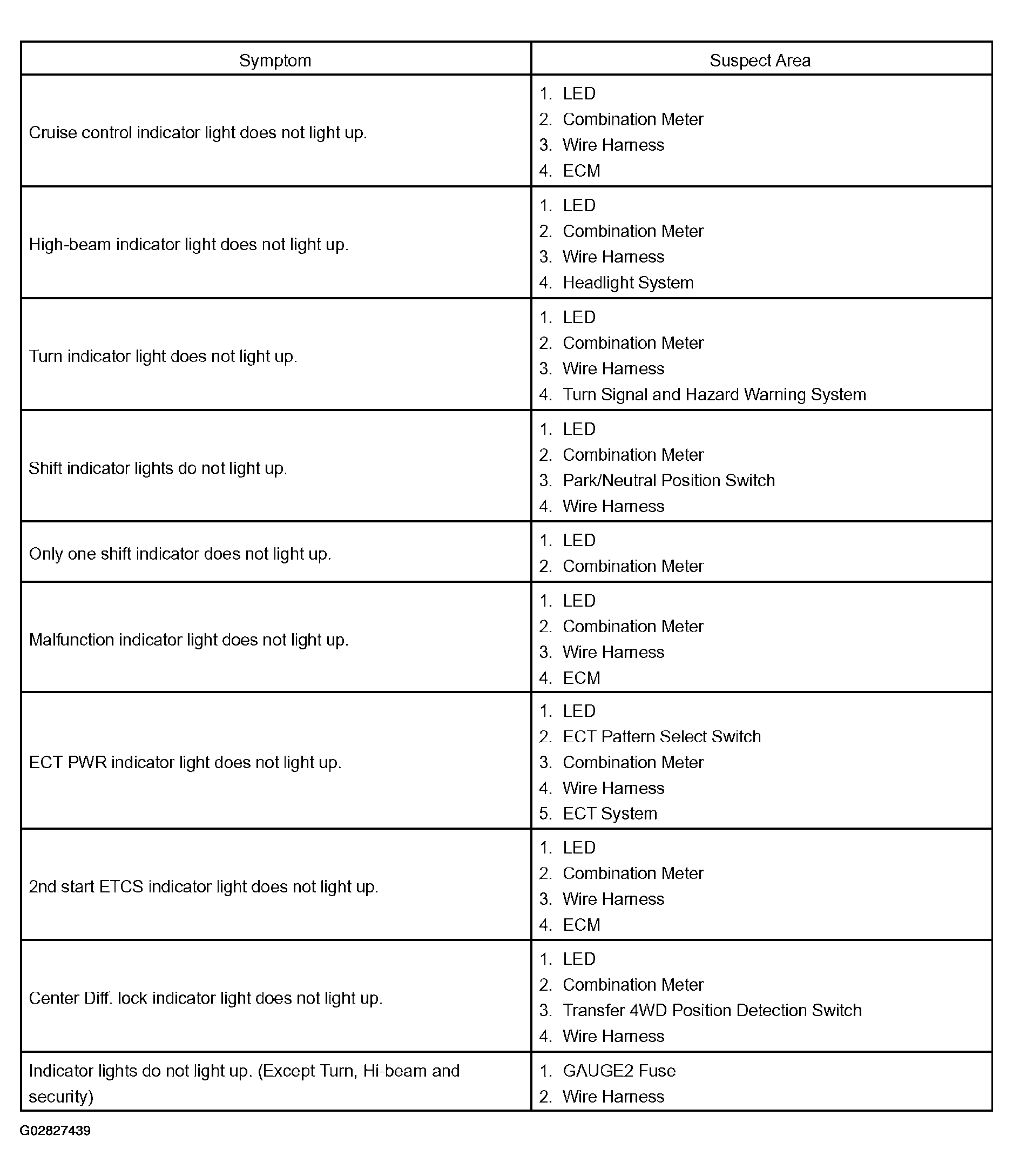

Fig 11: Problem Symptoms Table Of Combination Meter (Indicator Light)

G02827439

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

DEFOGGER SYSTEM:

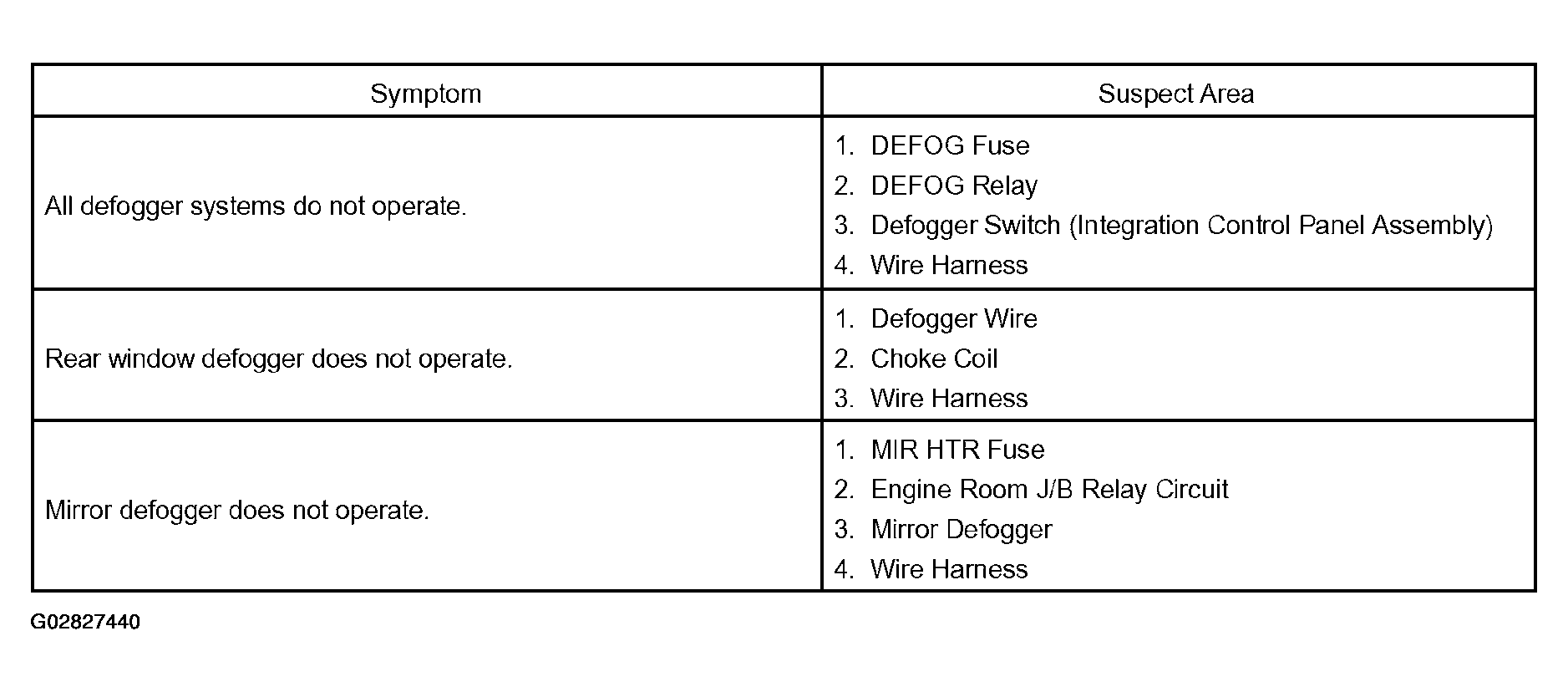

Fig 12: Problem Symptoms Table Of Defogger System

G02827440

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

POWER WINDOW CONTROL SYSTEM:

This system uses the multiplex communication system, so check diagnosis system of the multiplex communication system before you proceed with troubleshooting. (See HOW TO PROCEED WITH TROUBLESHOOTING .)

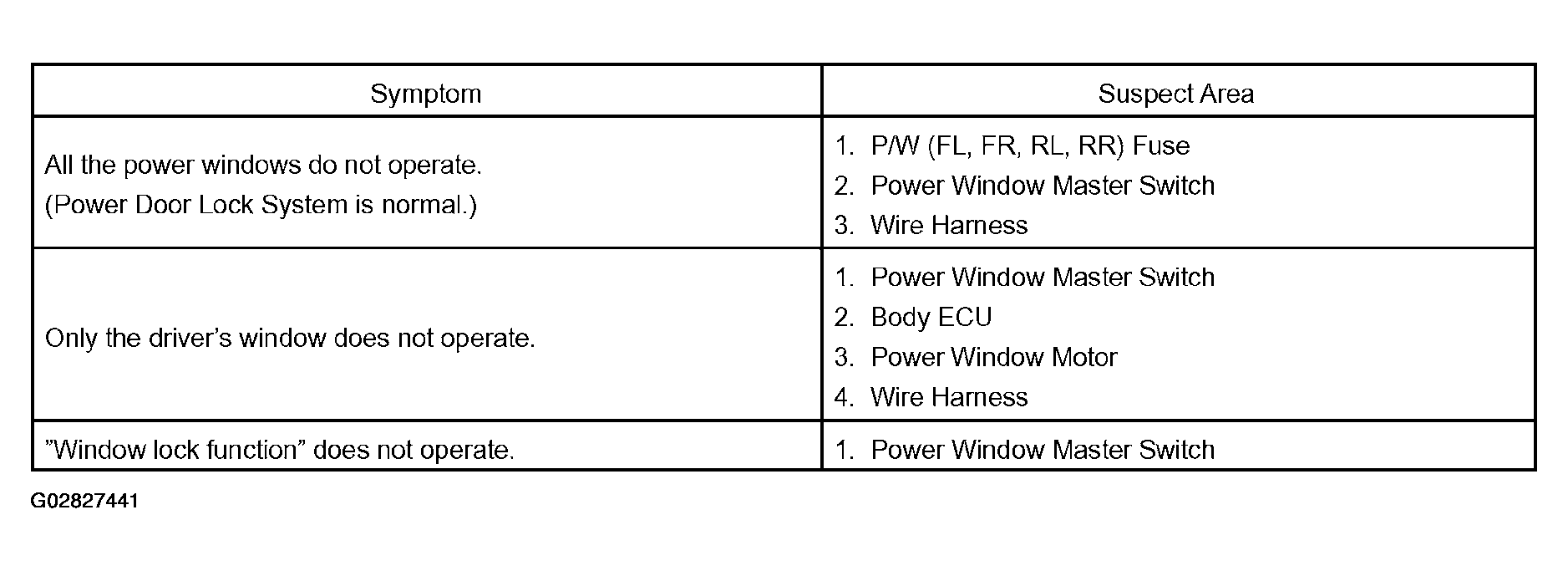

Fig 13: Problem Symptoms Table Of Power Window Control System

G02827441

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

POWER DOOR LOCK CONTROL SYSTEM:

This system uses the body control system, so check diagnosis system of the body control system before you proceed with troubleshooting. (See HOW TO PROCEED WITH TROUBLESHOOTING .)

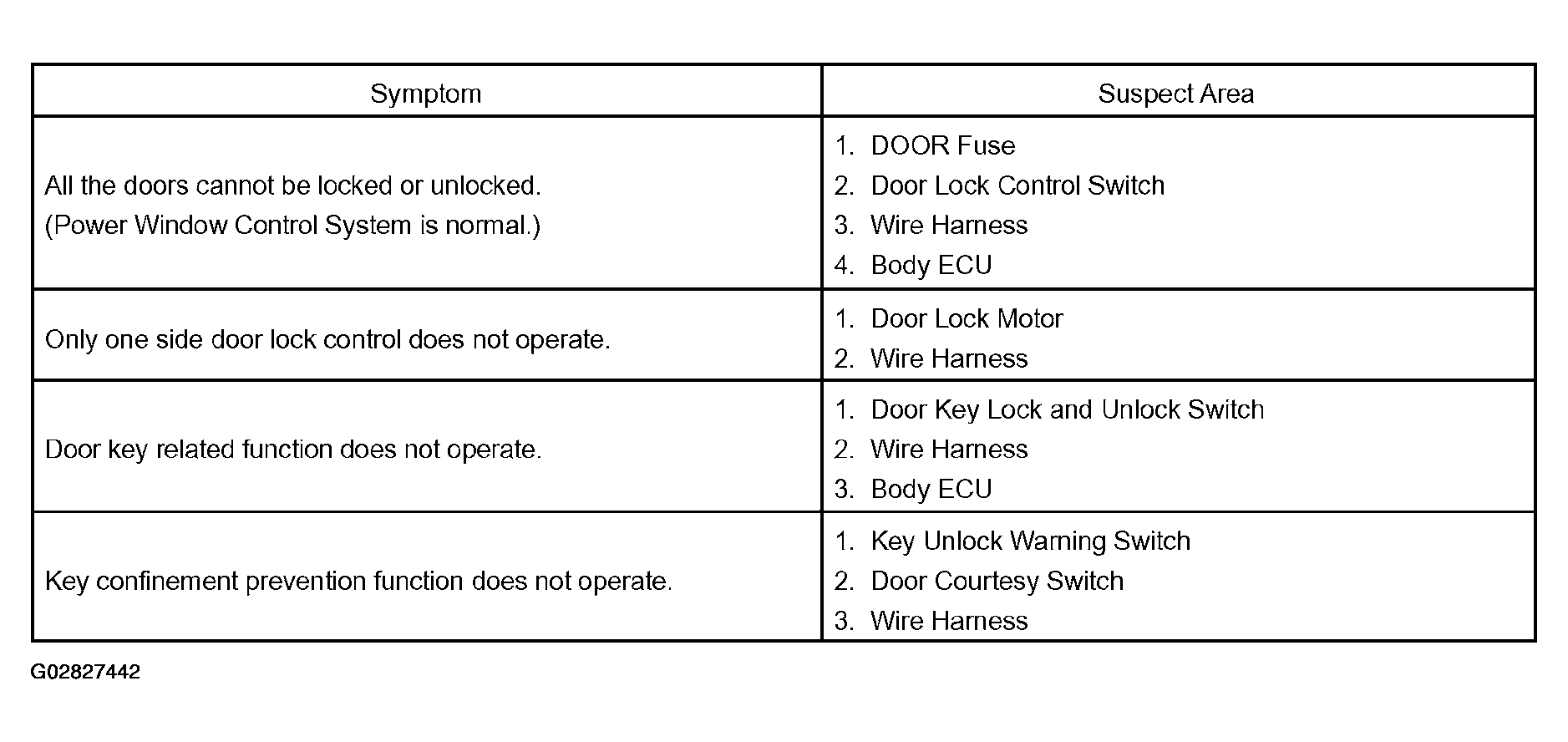

Fig 14: Problem Symptoms Table Of Power Door Lock Control System

G02827442

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

POWER SEAT CONTROL SYSTEM:

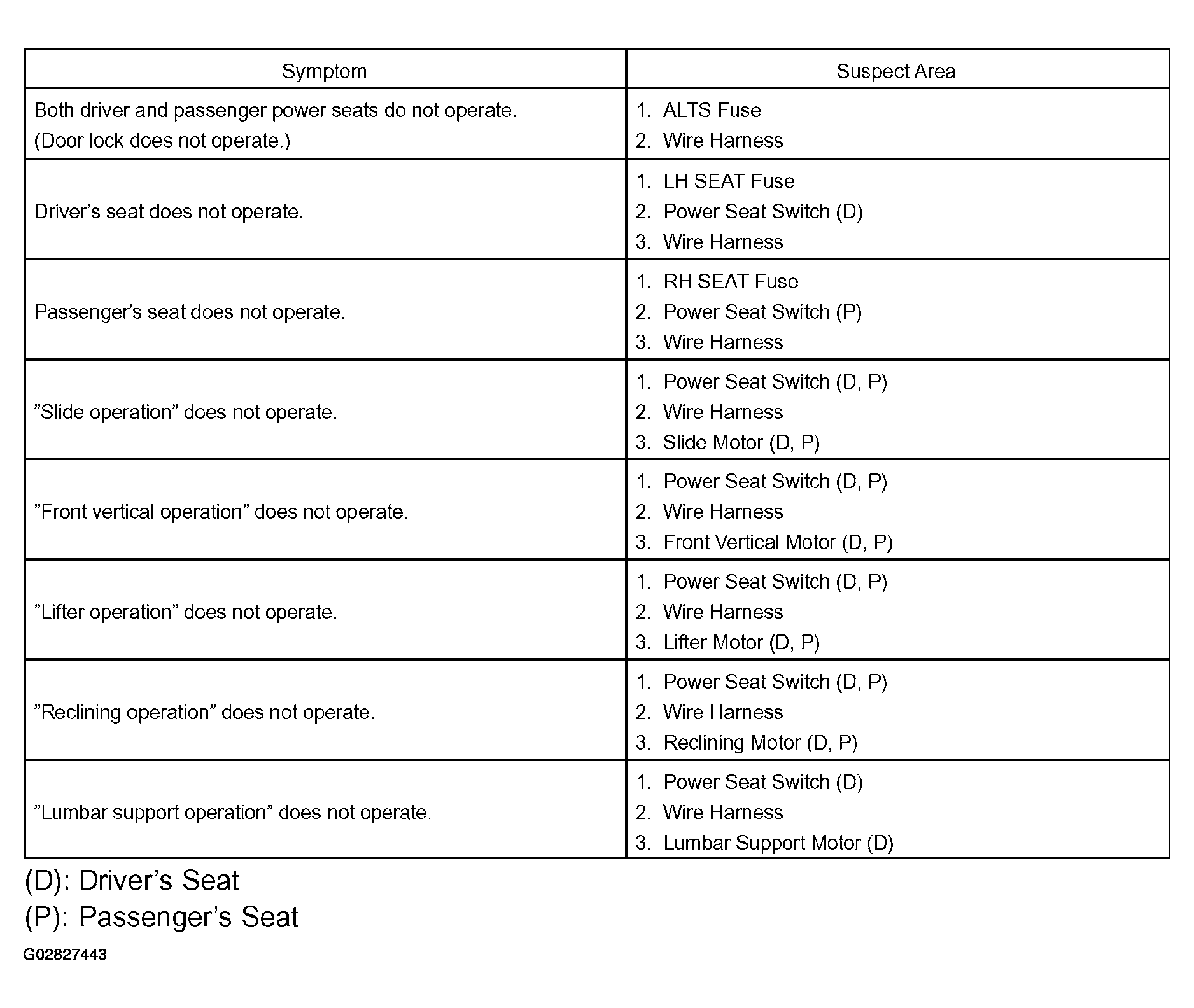

Fig 15: Problem Symptoms Table Of Power Seat Control System

G02827443

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

POWER MIRROR CONTROL SYSTEM:

Fig 16: Problem Symptoms Table Of Power Mirror Control System

G02827444

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

SEAT HEATER SYSTEM:

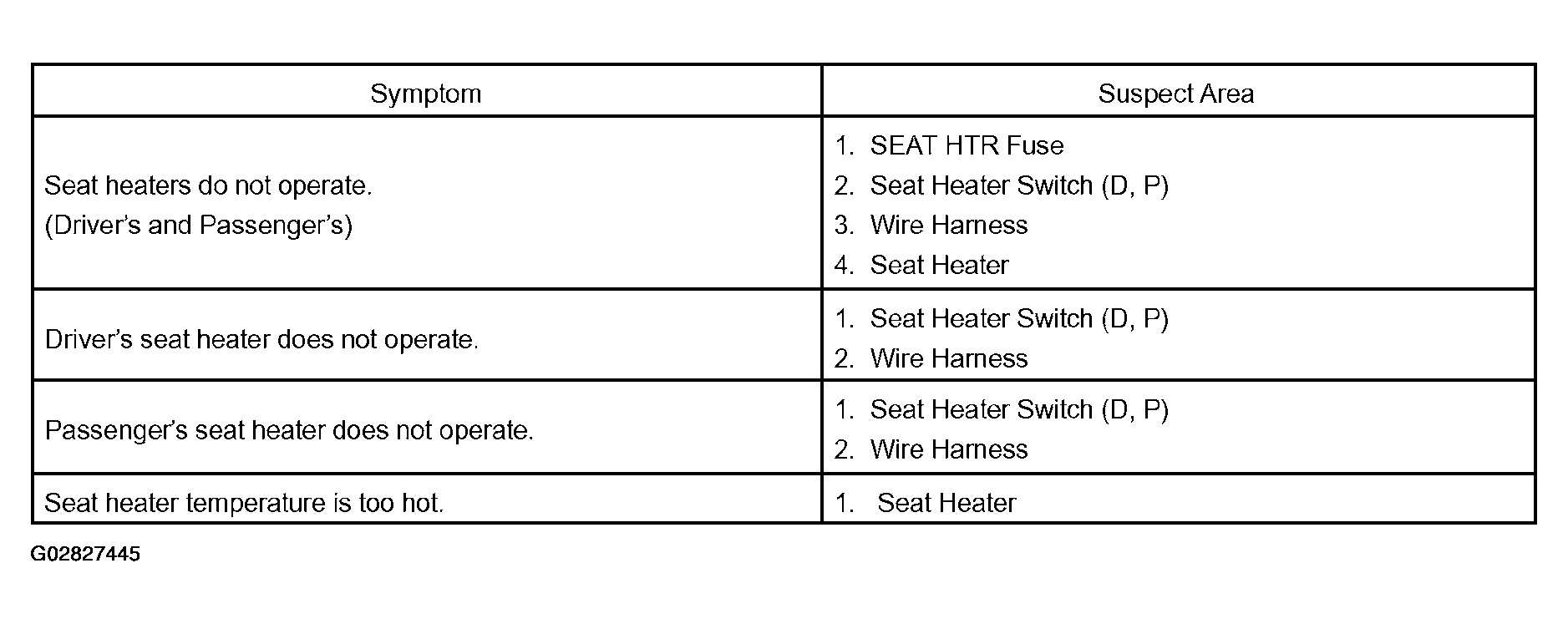

Fig 17: Problem Symptoms Table Of Seat Heater Control System

G02827445

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

AUDIO SYSTEM:

AUDIO SYSTEM PROBLEM SYMPTOMS

Symptom	Suspect Area
Audio system abnormal operation.	TROUBLESHOOTING - AUDIO

MULTI DISPLAY:

MULTI DISPLAY PROBLEM SYMPTOMS

Symptom	Suspect Area
Clock will not operate.	TROUBLESHOOTING - MULTI DISPLAY
Clock loses or gains time.	TROUBLESHOOTING - MULTI DISPLAY

GARAGE DOOR OPENER SYSTEM:

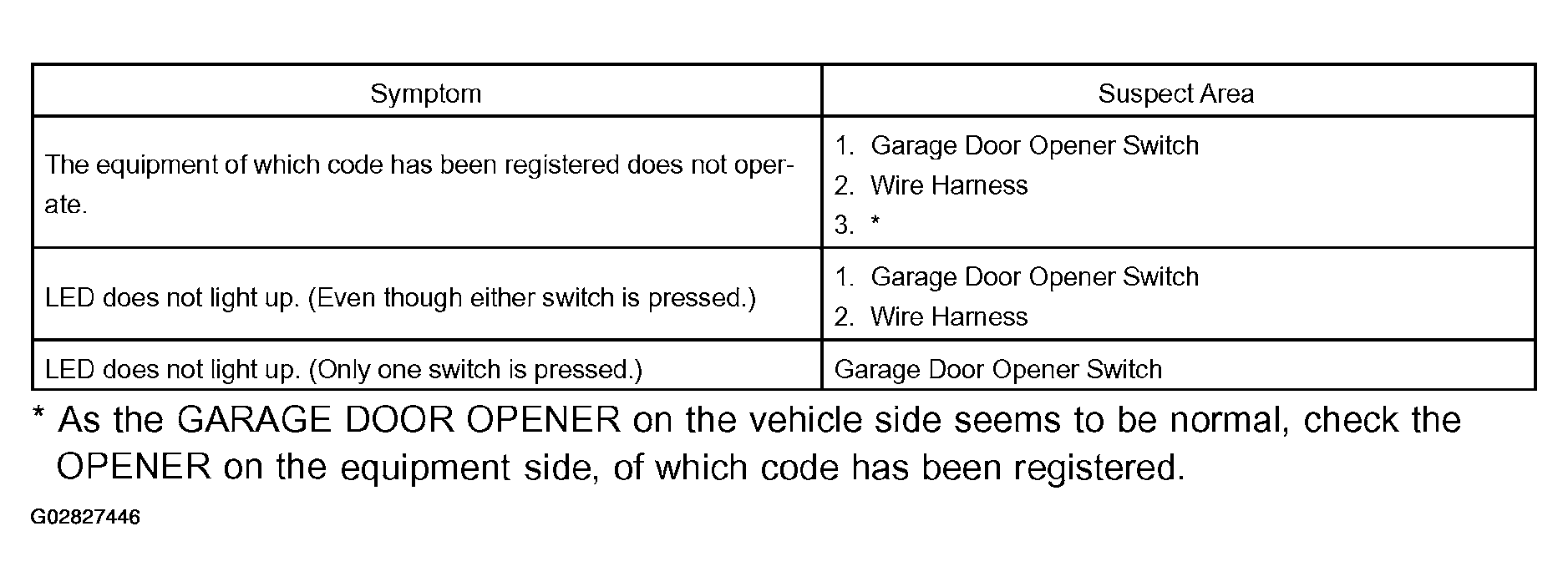

Fig 18: Problem Symptom Table Of Garage Door Opener System

G02827446

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

ENGINE IMMOBILIZER SYSTEM:

ENGINE IMMOBILIZER PROBLEM SYMPTOM

Symptom	Suspect Area
Engine immobilizer system does not operate.	See ENGINE IMMOBILIZER SYSTEM - DIAGNOSIS

HORN SYSTEM:

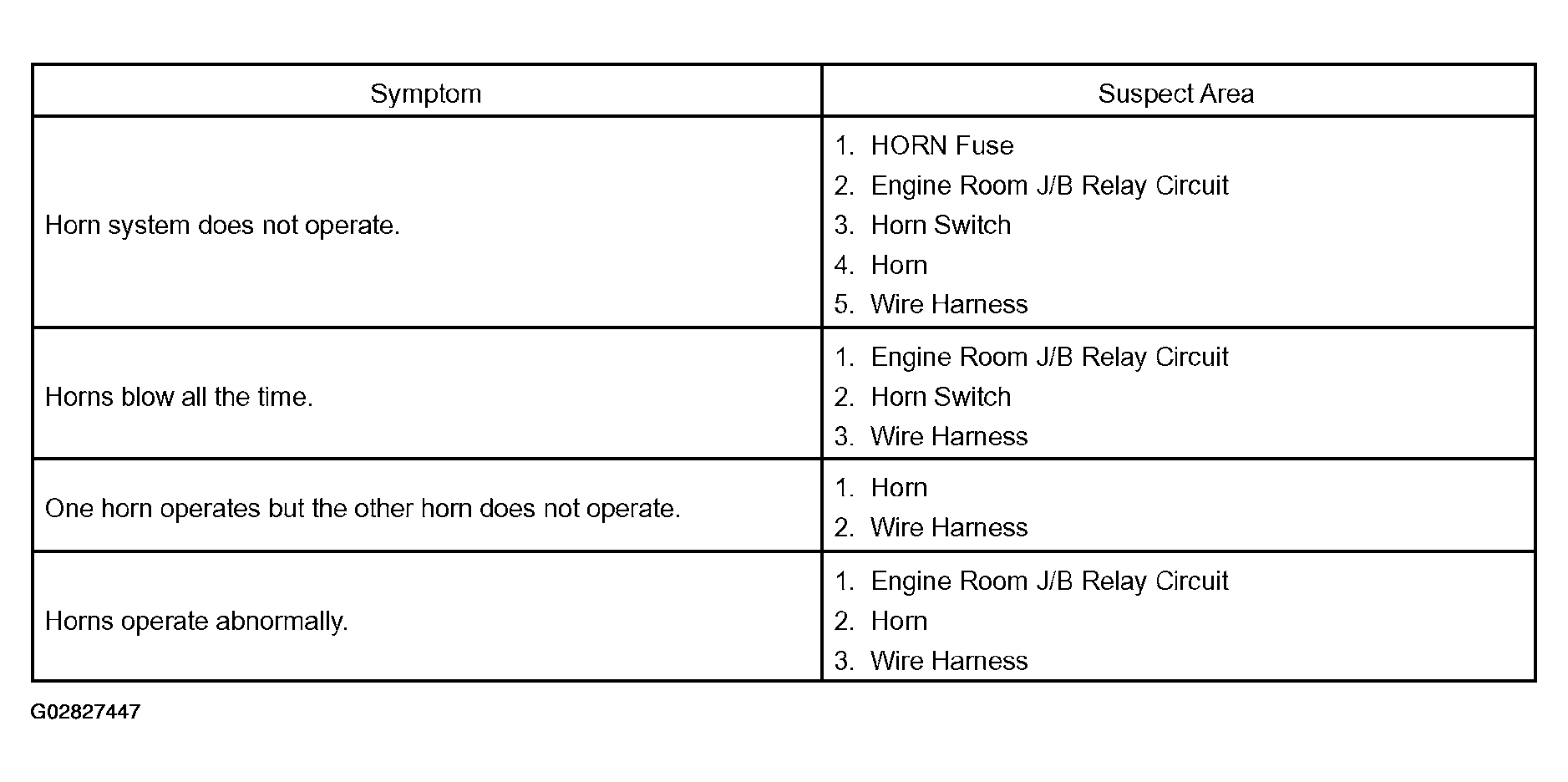

Fig 19: Problem Symptoms Table Of Horn System

G02827447

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
