Vehicle Lift And Support Locations

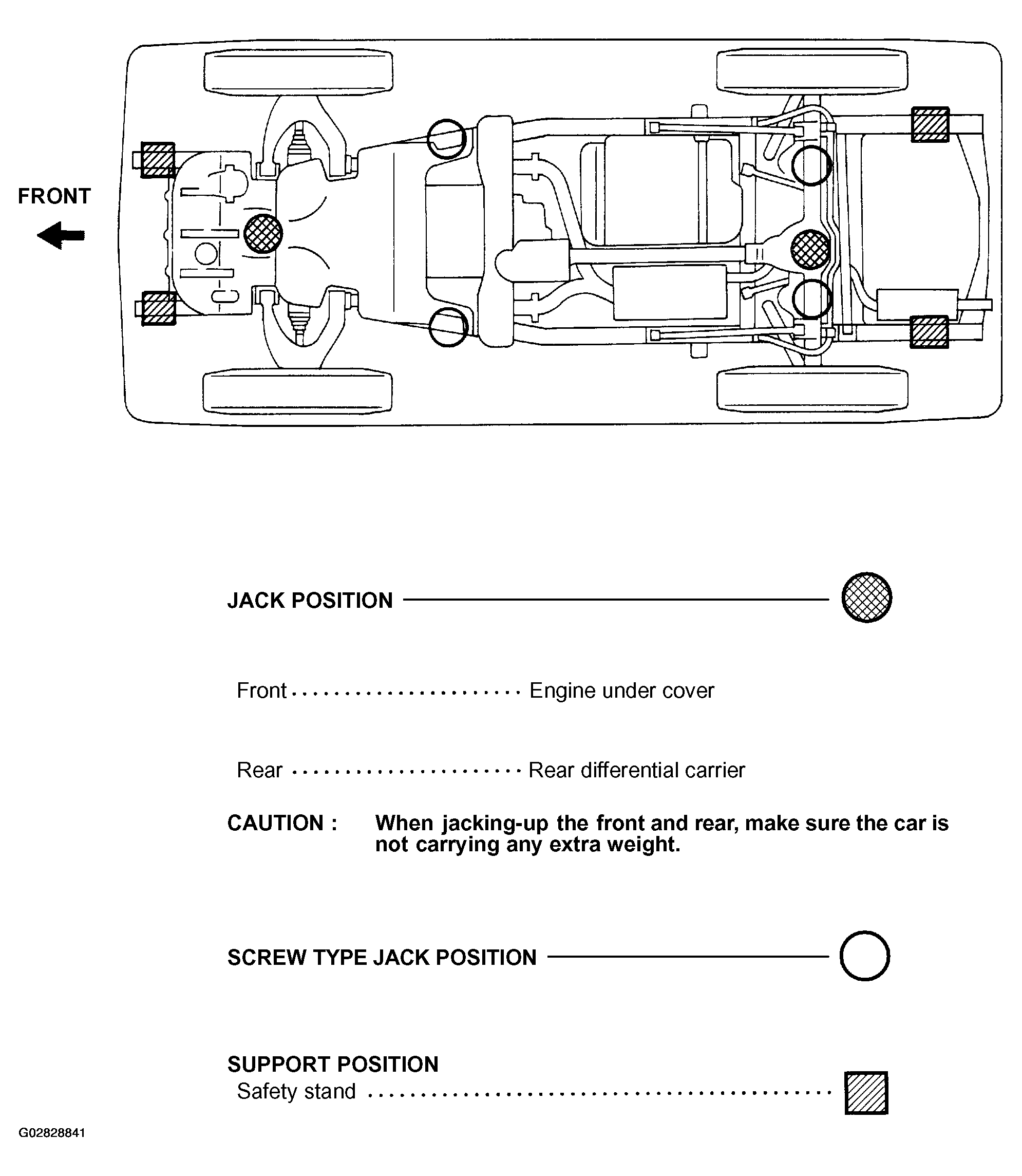

Fig 1: Locating Vehicle Lift And Support Position

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

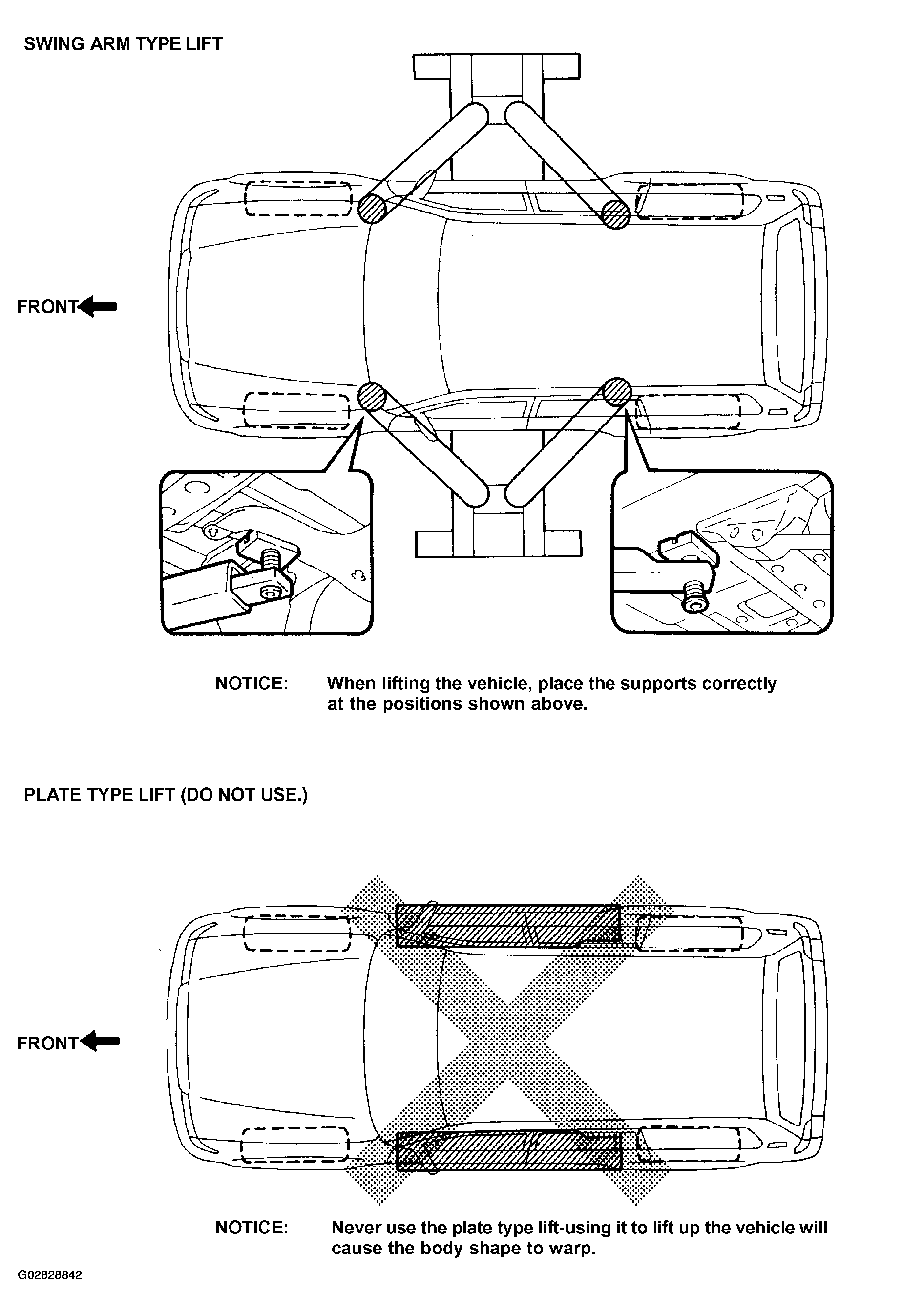

Fig 2: Placing Supports Correctly

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
