Power Door Lock Control System: Inspection

  1. INSPECT DRIVER SIDE DOOR LOCK CONTROL SWITCH CONTINUITY
    Fig 1: Inspecting Driver Side Door Lock Control Switch Continuity
    G02837721Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    DRIVER SIDE DOOR LOCK CONTROL SWITCH CONTINUITY SPECIFICATIONS

    Switch position Tester connection Specified condition
    LOCK 1 - 3, 5 - 6 Continuity
    OFF - No continuity
    UNLOCK 1 - 6, 3 - 5 Continuity

    If the continuity is not as specified, replace the switch.

  2. Drive side door: INSPECT DOOR KEY LOCK AND UNLOCK SWITCH CONTINUITY
    Fig 2: Inspecting Door Key Lock And Unlock Switch Continuity (Driver Side)
    G02837722Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    DOOR KEY LOCK AND UNLOCK SWITCH CONTINUITY SPECIFICATIONS

    Switch position Tester connection Specified condition
    LOCK 2 - 4 Continuity
    OFF - No continuity
    UNLOCK 2 - 3 Continuity

    If the continuity is not as specified, replace the switch.

  3. Passenger side door: INSPECT DOOR KEY LOCK AND UNLOCK SWITCH CONTINUITY
    Fig 3: Inspecting Door Key Lock And Unlock Switch Continuity (Passenger Side)
    G02837723Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    DOOR KEY LOCK AND UNLOCK SWITCH CONTINUITY SPECIFICATIONS

    Switch position Tester connection Specified condition
    LOCK 3 - 5 Continuity
    OFF - No continuity
    UNLOCK 4 - 5 Continuity

    If the continuity is not as specified, replace the switch.

  4. Driver side door: INSPECT DOOR UNLOCK DETECTION SWITCH CONTINUITY
    Fig 4: Door Unlock Detection Switch Continuity Reference Table (Driver Side)
    G02837724Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    Fig 5: Inspecting Door Unlock Detection Switch Continuity (Driver Side)
    G02837725Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    If the continuity is not as specified, replace the switch.

  5. Passenger side door: INSPECT DOOR UNLOCK DETECTION SWITCH CONTINUITY
    Fig 6: Door Unlock Detection Switch Continuity Reference Table (Passenger Side)
    G02837726Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    Fig 7: Inspecting Door Unlock Detection Switch Continuity (Passenger Side)
    G02837727Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    If the continuity is not as specified, replace the switch.

  6. Driver side door: INSPECT DOOR LOCK MOTOR OPERATION

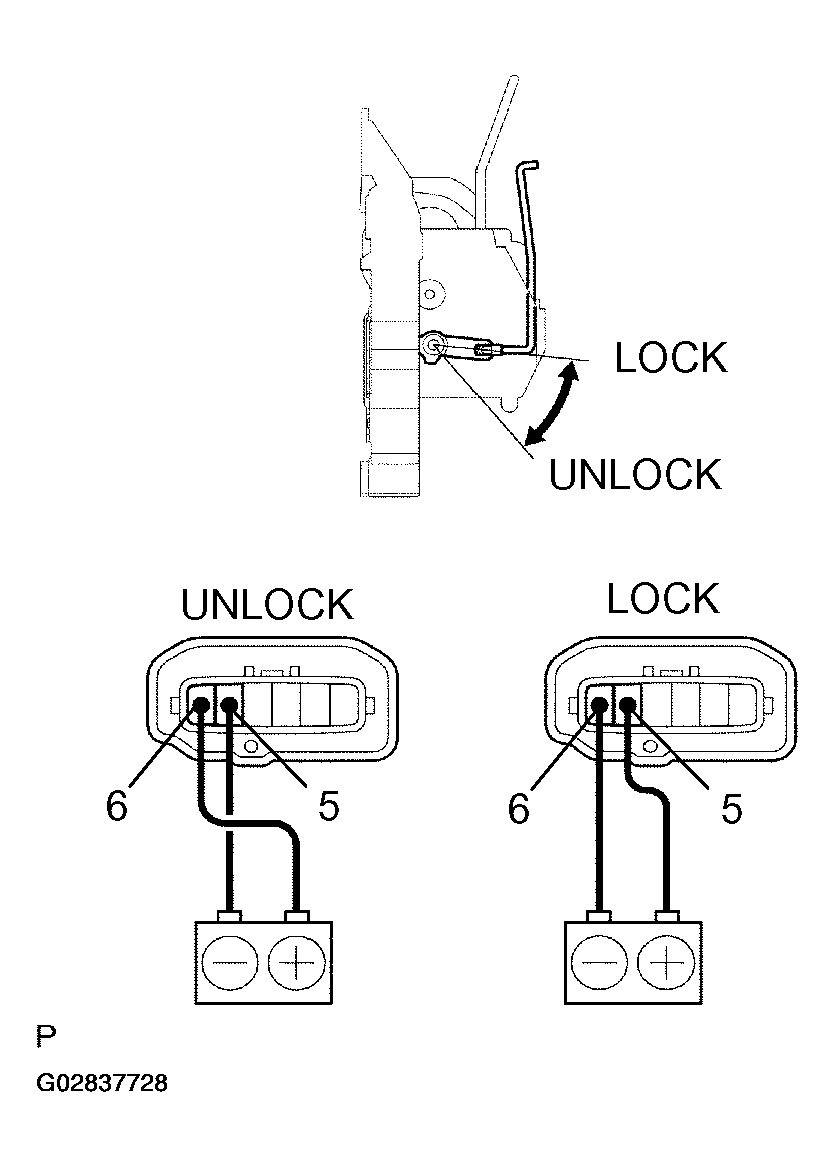

    Fig 8: Inspecting Door Lock Motor Operation (Driver Side)
    G02837728Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Connect the positive (+) lead from the battery to terminal 6 and the negative (-) lead to terminal 5, and check that the door lock link moves to UNLOCK position.
    2. Reverse the polarity and check that the door lock link moves to LOCK position.

      If the operation is not as specified, replace the door lock assembly.

  7. Passenger side door: INSPECT DOOR LOCK MOTOR OPERATION

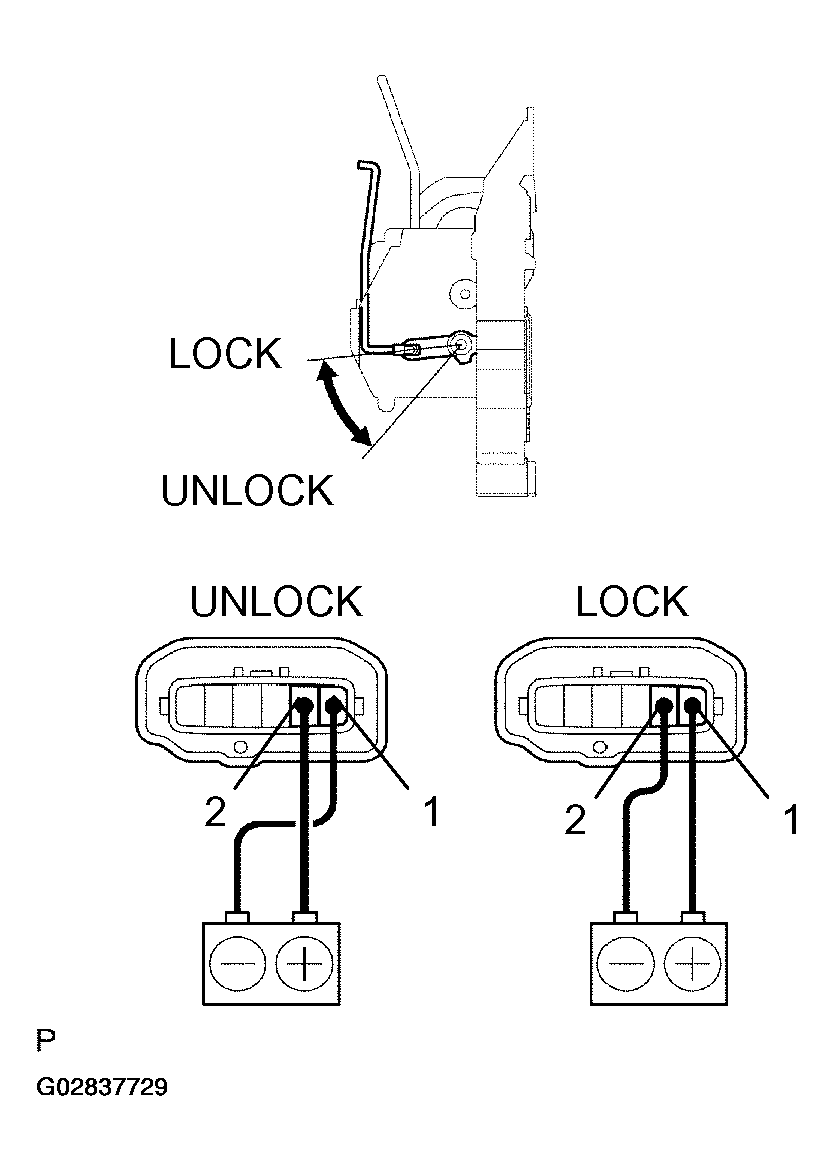

    Fig 9: Inspecting Door Lock Motor Operation (Passenger Side)
    G02837729Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Connect the positive (+) lead from the battery to terminal 2 and the negative (-) lead to terminal 1, and check that the door lock link moves to UNLOCK position.
    2. Reverse the polarity and check that the door lock link moves to LOCK position.

      If the operation is not as specified, replace the door lock assembly.

  8. INSPECT DRIVER'S DOOR PTC THERMISTOR OPERATION

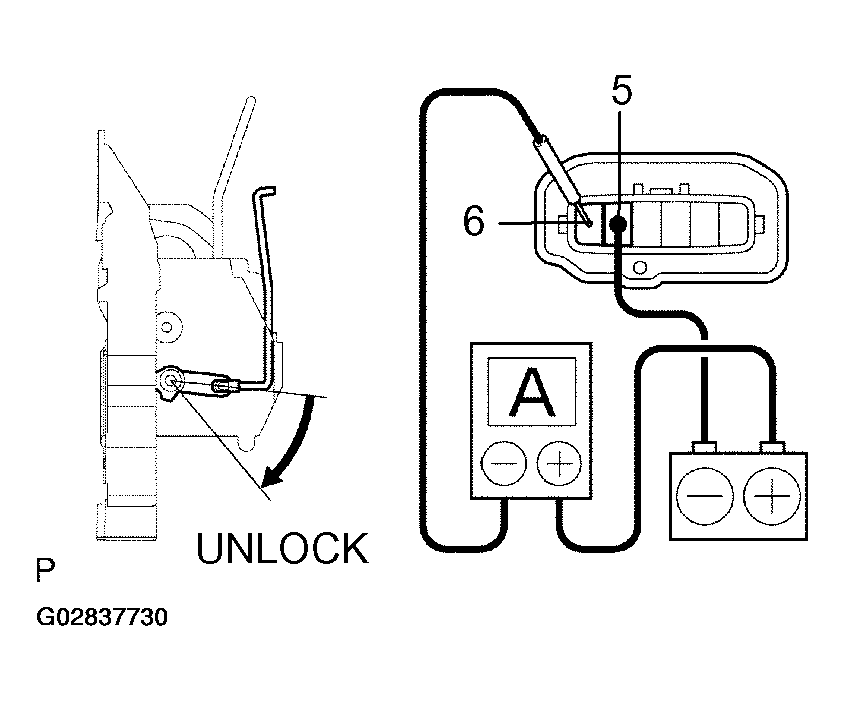

    Fig 10: Inspecting Driver Door PTC Thermistor Operation (1 Of 2)
    G02837730Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Connect the negative (-) lead from the ammeter to terminal 6, and the positive (+) lead to negative terminal of the battery.
    2. Connect the negative (-) lead from the battery to terminal 5.
    3. Check that the current changes from approximately 3.2 A to less than 0.5 A within 20 to 70 seconds.
    4. Disconnect the leads from terminals.
    5. Fig 11: Inspecting Driver Door PTC Thermistor Operation (2 Of 2)
      G02837731Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    6. Approximately 60 seconds later, connect the positive (+) lead from the battery to terminal 5 and the negative (-) lead to terminal 6, and check that the door lock moves to the LOCK position.

      If the operation is not as specified, replace the door lock assembly.

  9. INSPECT PASSENGER SIDE DOOR PTC THERMISTOR OPERATION

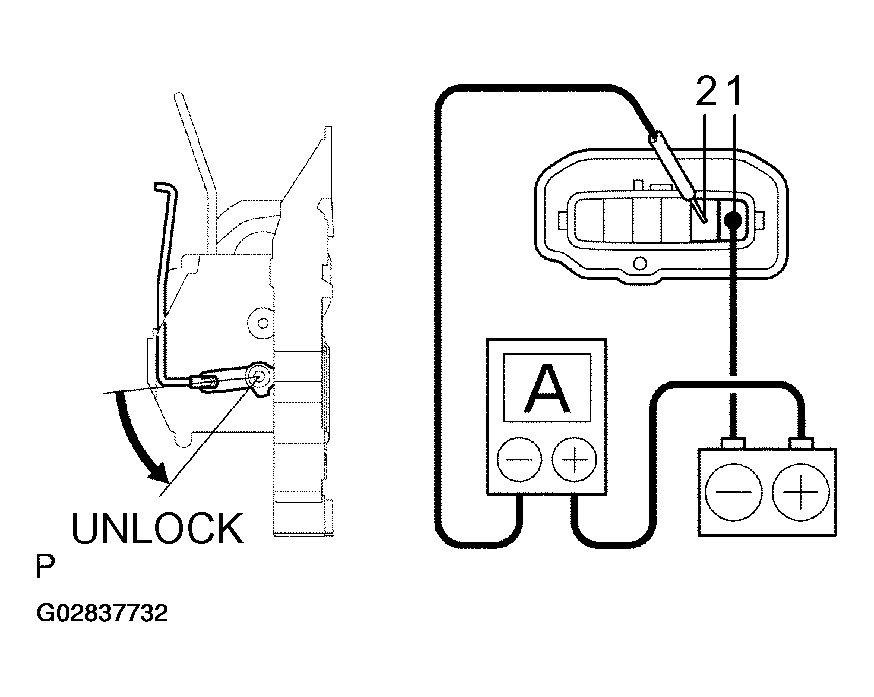

    Fig 12: Inspecting Passenger Side Door PTC Thermistor Operation (1 Of 2)
    G02837732Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Connect the negative (-) lead from the ammeter to terminal 2, and the positive (+) lead to negative terminal of the battery.
    2. Connect the negative (-) lead from the battery to terminal 1.
    3. Check that the current changes from approximately 3.2 A to less than 0.5 A within 20 to 70 seconds.
    4. Disconnect the leads from terminals.
    5. Approximately 60 seconds later, connect the positive (+) lead from the battery to terminal 1 and the negative (-) lead to terminal 2, and check that the door lock moves to the LOCK position.
      Fig 13: Inspecting Passenger Side Door PTC Thermistor Operation (2 Of 2)
      G02837733Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      If the operation is not as specified, replace the door lock assembly.

  10. INSPECT DRIVER SIDE DOOR PTC THERMISTOR OPERATION

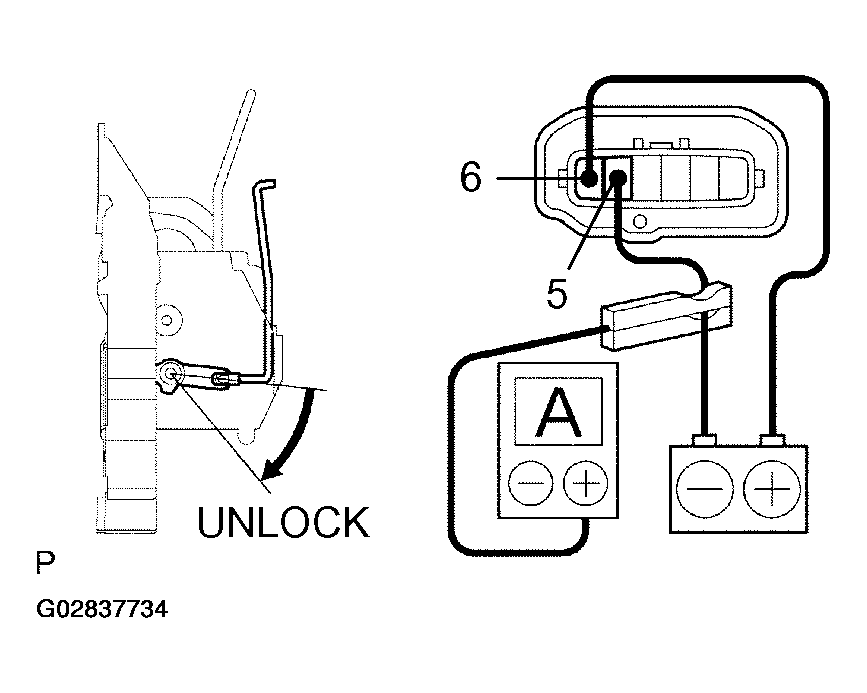

    Fig 14: Inspecting Driver Side Door PTC Thermistor Operation (1 Of 2)
    G02837734Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Connect the positive (+) lead from the battery to terminal 6 and the negative (-) lead to terminal 5.
    2. Attach a current-measuring probe to either the positive (+) lead or the negative (-) lead, and check that the current changes from approximately 3.2 A to less than 0.5 A within 20 to 70 seconds.
    3. Disconnect the leads from terminals.
    4. Approximately 60 seconds later, reverse the polarity, and check that the door lock moves to the LOCK position.
      Fig 15: Inspecting Driver Side Door PTC Thermistor Operation (2 Of 2)
      G02837735Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      If the operation is not as specified, replace the door lock assembly.

  11. INSPECT PASSENGER SIDE DOOR PTC THERMISTOR OPERATION

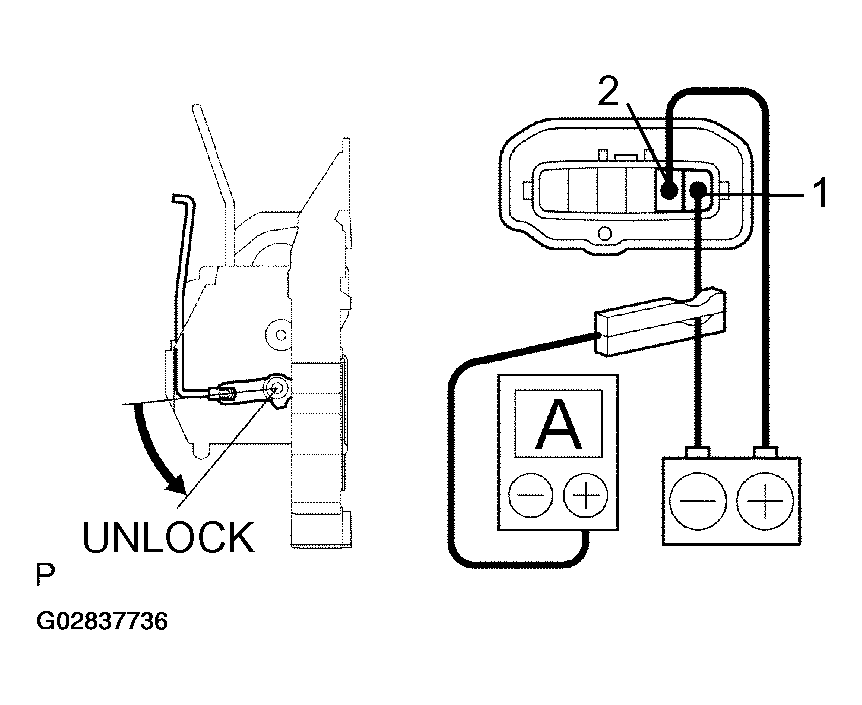

    Fig 16: Inspecting Passenger Side Door PTC Thermistor Operation (1 Of 2)
    G02837736Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Connect the positive (+) lead from the battery to terminal 2 and the negative (-) lead to terminal 1.
    2. Attach a current-measuring probe to either the positive (+) lead or the negative (-) lead, and check that the current changes from approximately 3.2 A to less than 0.5 A within 20 to 70 seconds.
    3. Disconnect the leads from terminals.
    4. Approximately 60 seconds later, reverse the polarity, and check that the door lock moves to the LOCK position.
      Fig 17: Inspecting Passenger Side Door PTC Thermistor Operation (2 Of 2)
      G02837737Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      If the operation is not as specified, replace the door lock assembly.
