Body Clips: Replacement

The removal and installation methods of typical clips used in the body parts are shown in the table below.

HINT:

If the clip is damaged during the operation, always replace it with a new clip.

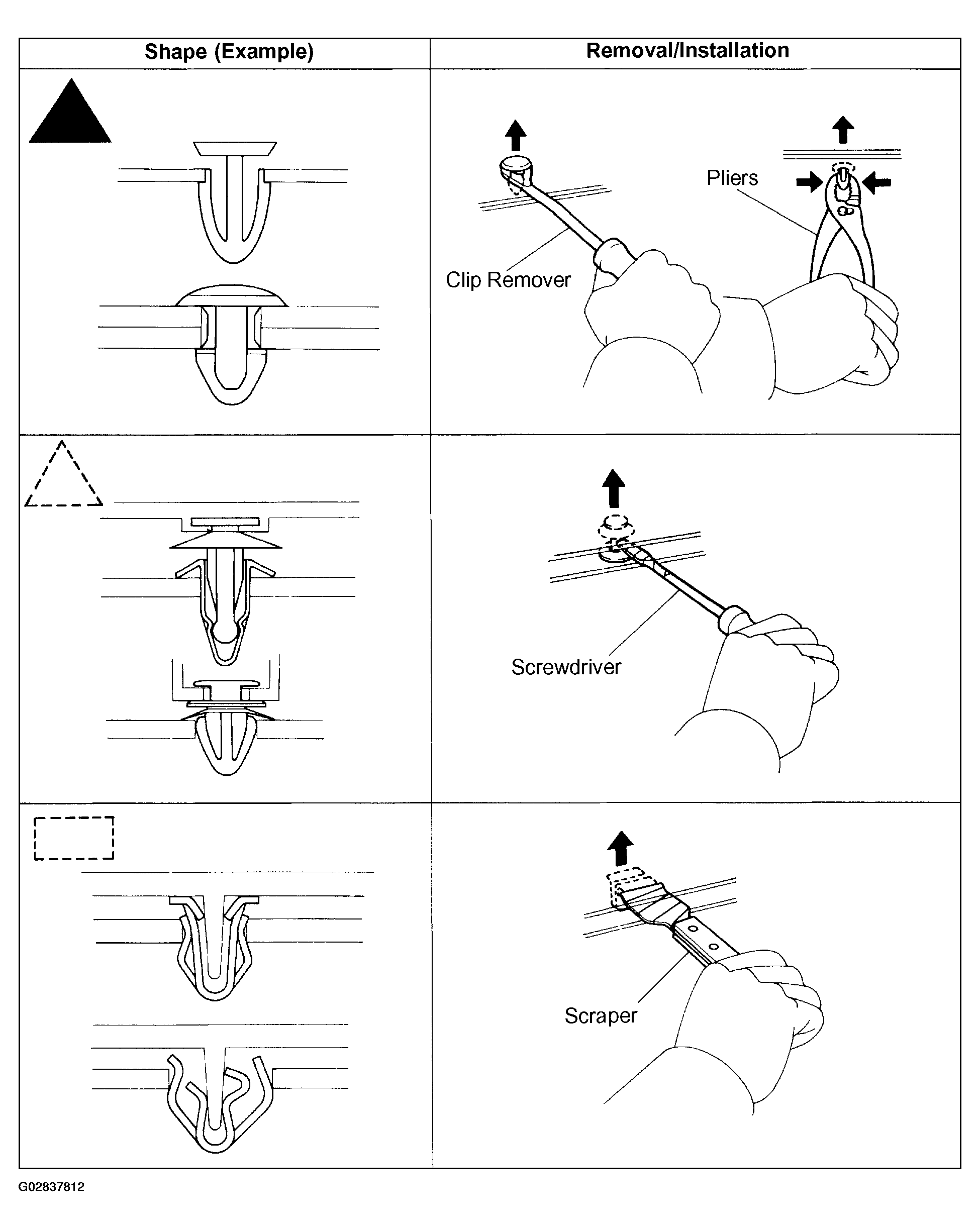

Fig 1: Removing And Installing Methods Of Typical Clips - Chart (1 Of 2)

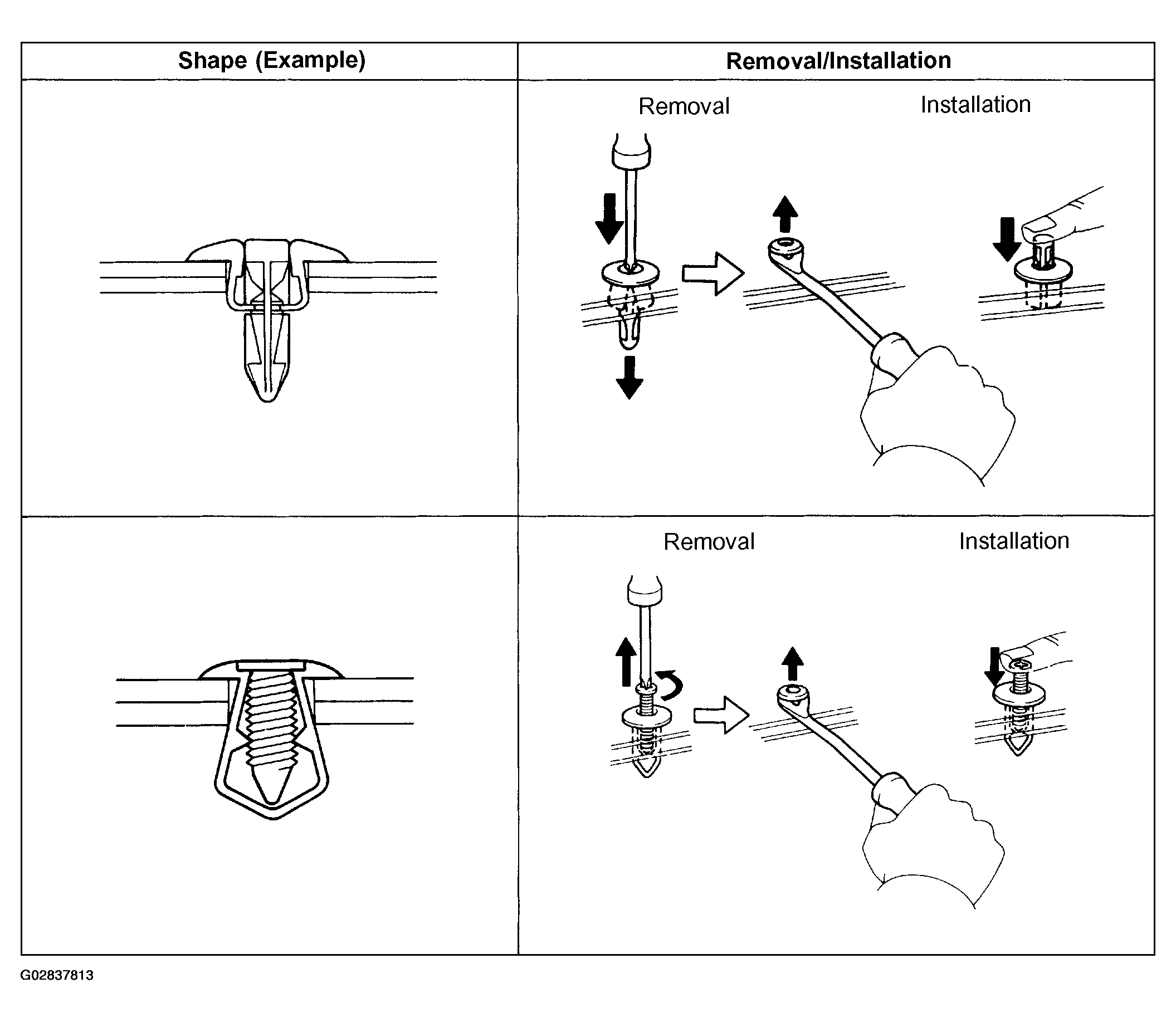

Fig 2: Removing And Installing Methods Of Typical Clips - Chart (2 Of 2)
