Problem Symptoms Table

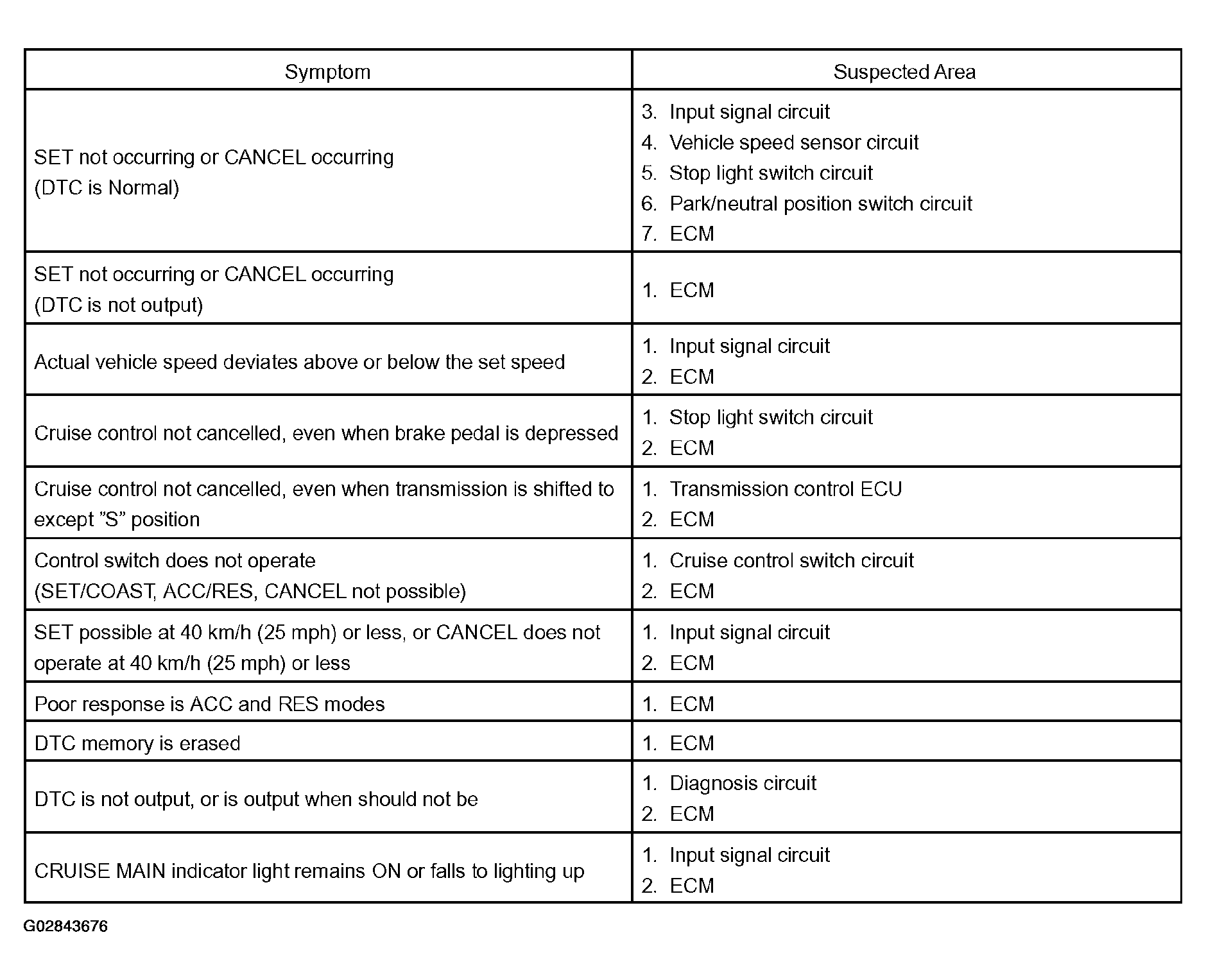

Fig 1: Problem Symptoms Table

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

DIAGNOSTIC TROUBLE CODES (DTC) LIST

DTC	Description
DTC P0500/21, 23	VEHICLE SPEED SENSOR CIRCUIT
DTC P1520/52	STOP LIGHT SWITCH CIRCUIT
DTC P1566/54	INPUT SIGNAL CIRCUIT
