Front Seat: Components

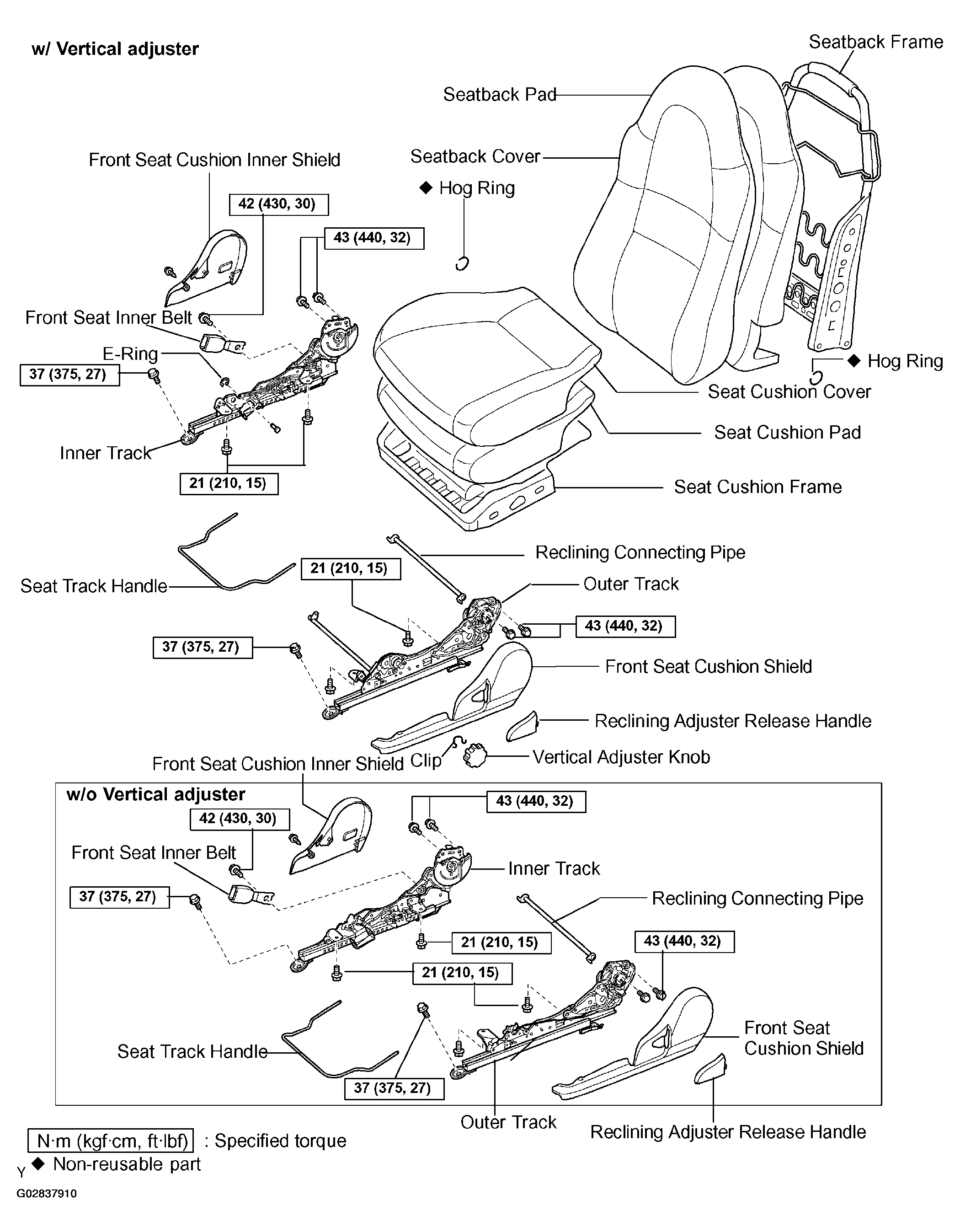

Fig 1: Component Location And Torque Specification Of Front Seat

G02837910

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
