INSTALL ABS ACTUATOR
1. Install the 2 holders and 3 cushions to the ABS actuator.
2. Install the ABS actuator to the actuator bracket with the 2 nuts.
  Torque: 5.4 N.m (55 kgf.cm, 48 in.lbf)
3. Install the ABS actuator assembly with the 2 bolts and nut. Torque: 19 N.m (195 kgf.cm, 14 ft.lbf)
  Torque: 19 N.m (195 kgf.cm, 14 in.lbf)

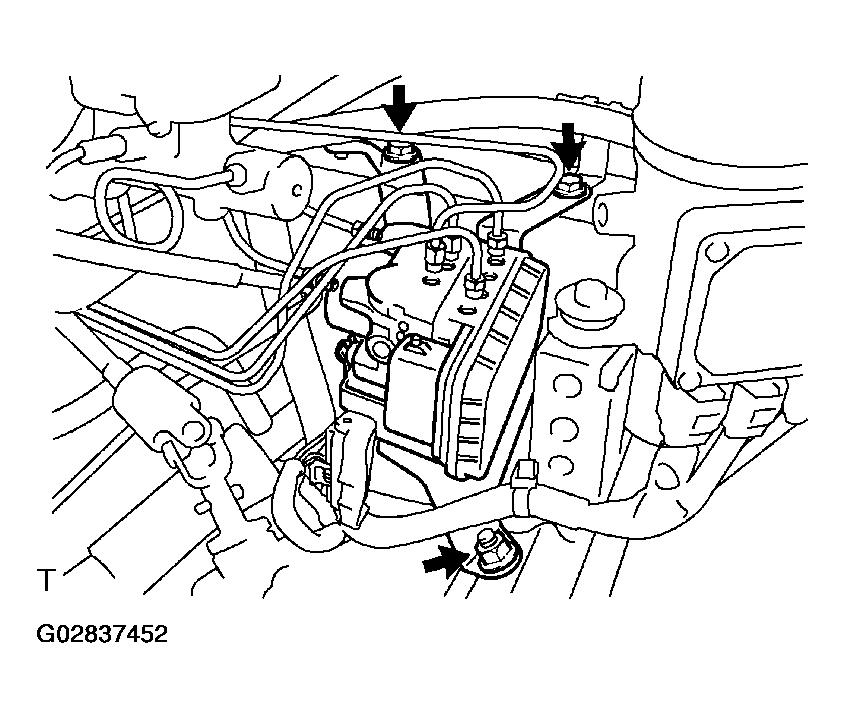

  Fig 1: Installing ABS Actuator Bracket Nut & 2 Bolts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. Connect the 2 harness clamps.

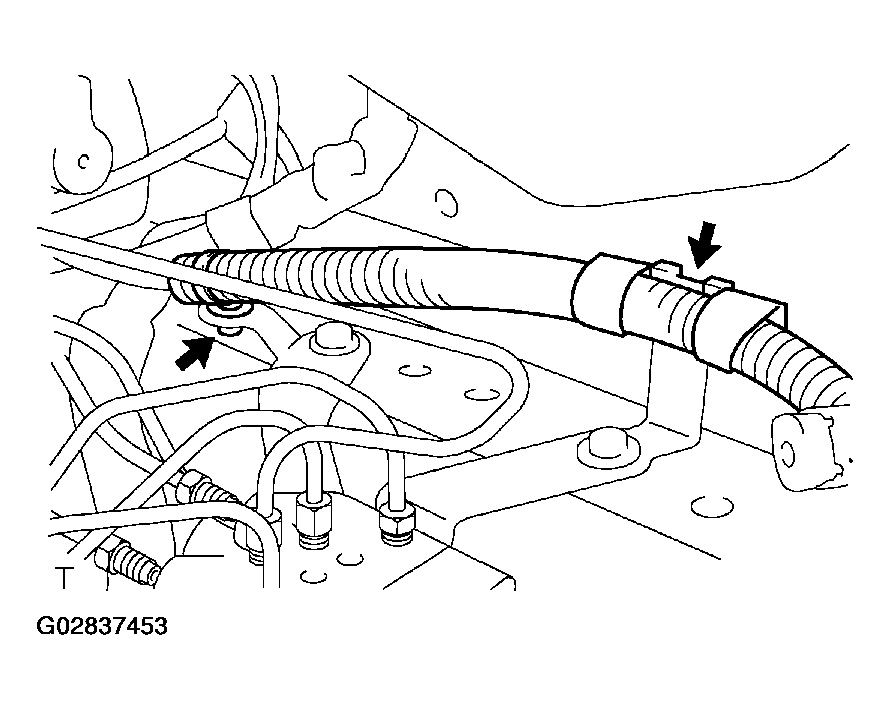

  Fig 2: Connecting 2 Harness Clamps
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
5. Connect the 2 harness clamps and actuator connector.

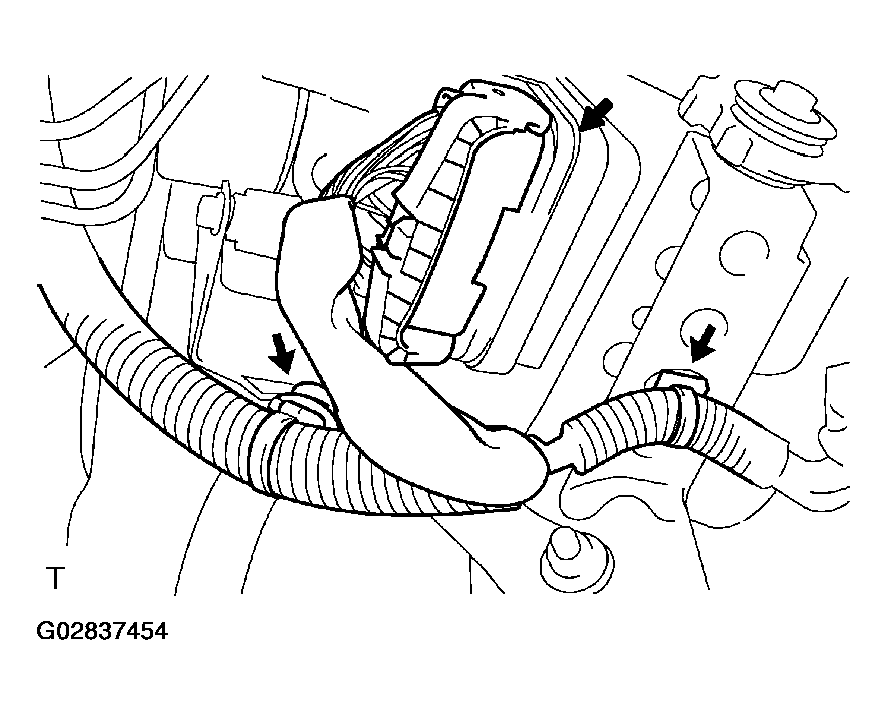

  Fig 3: Connecting 2 Harness Clamps & Actuator Connector
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
CONNECT BRAKE LINES TO ABS ACTUATOR
Using SST, connect the 6 brake lines.

SST 09023-00100

Torque:

15 N.m (155 kgf.cm, 11 ft.lbf)

14 N.m (143 kgf.cm, 10 ft.lbf) for use with SST

HINT:

Use a torque wrench with a fulcrum length of 30 cm (11.81 in.).
FILL RESERVOIR WITH BRAKE FLUID AND BLEED BRAKE SYSTEM (See BLEEDING ).

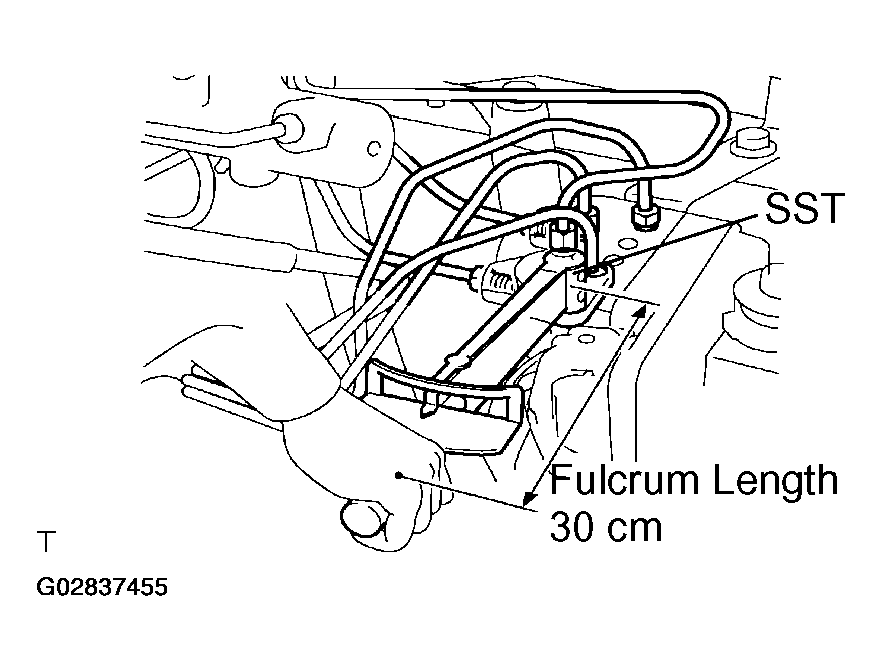

Fig 4: Connecting 6 Brake Lines To ABS Actuator
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
CHECK FOR FLUID LEAKAGE
INSTALL LUGGAGE COMPARTMENT TRIM BOX COVER
INSTALL TOOL BOX
