Heated Oxygen Sensor Monitor & Drive Cycle Pattern

For heated oxygen sensor monitor and drive cycle pattern, see Fig 1.

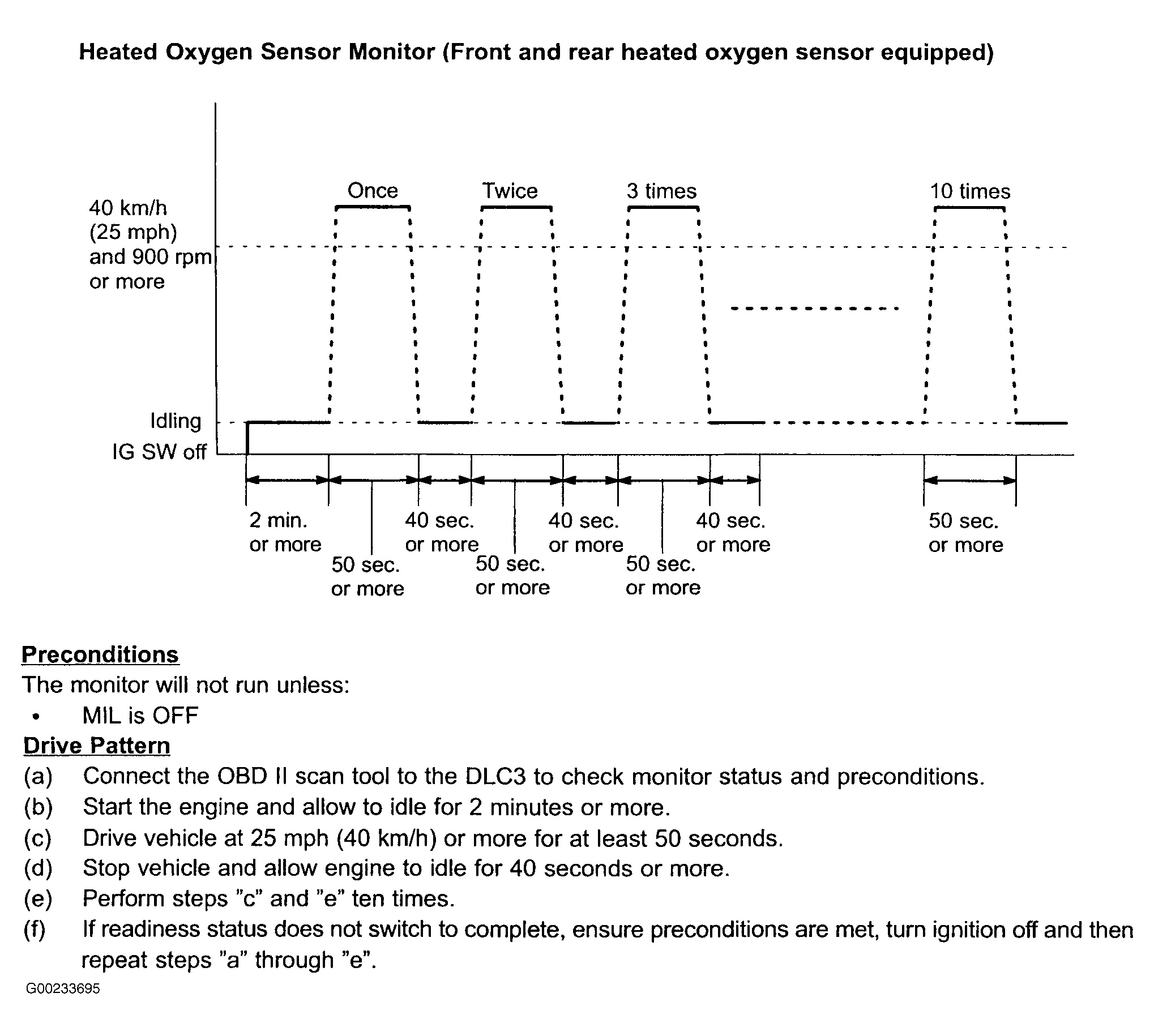

Fig 1: Heated Oxygen Sensor Monitor & Drive Cycle Pattern

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
