Section 353 (Heater Control Assembly): Components

WARNING: This page is about a different car, the 2004 Toyota MR2. However, it is still accessible from the selected car via links, so may be relevant.

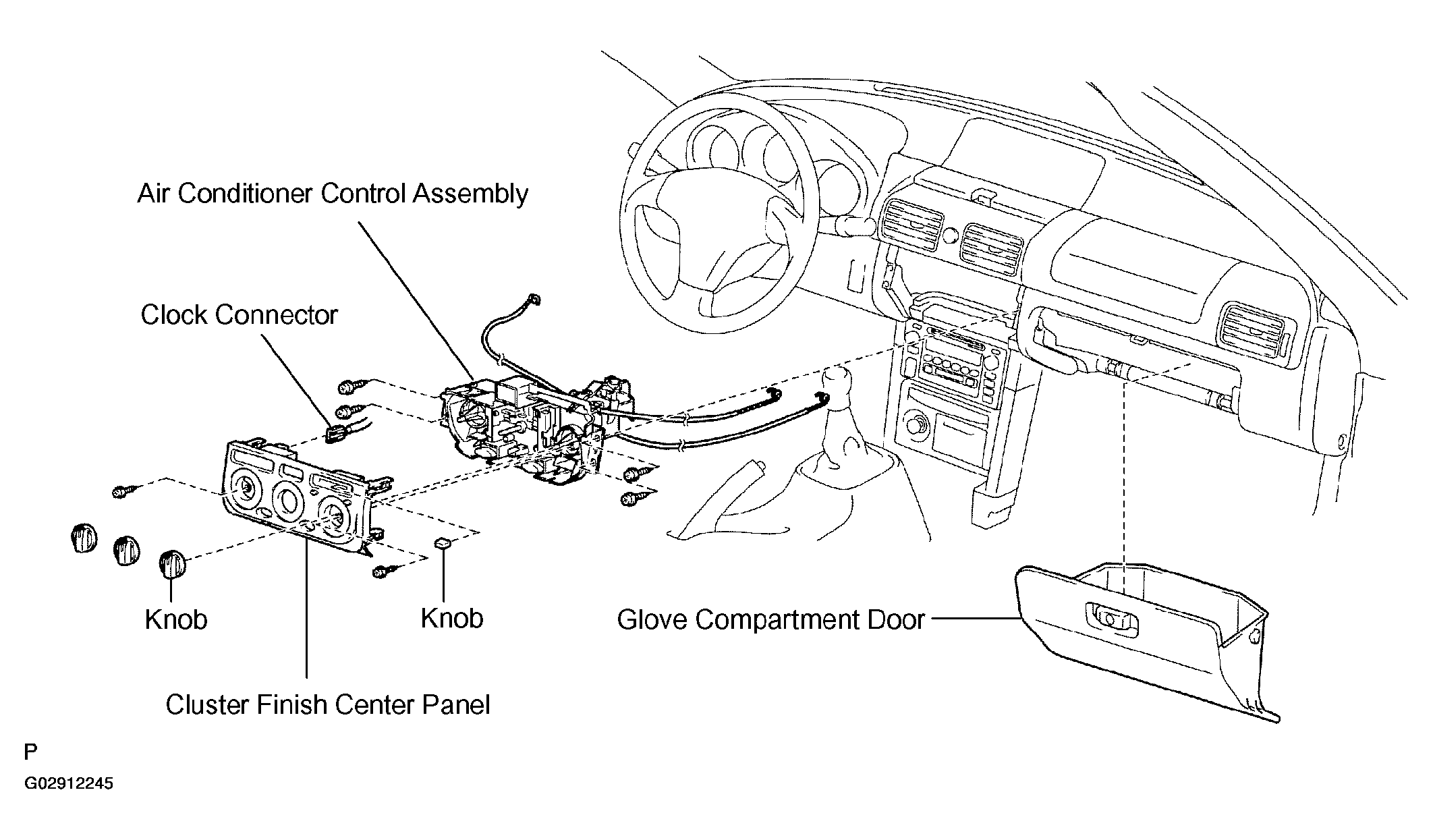

Fig 1: Identifying Heater Control Assy Components
G02912245Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

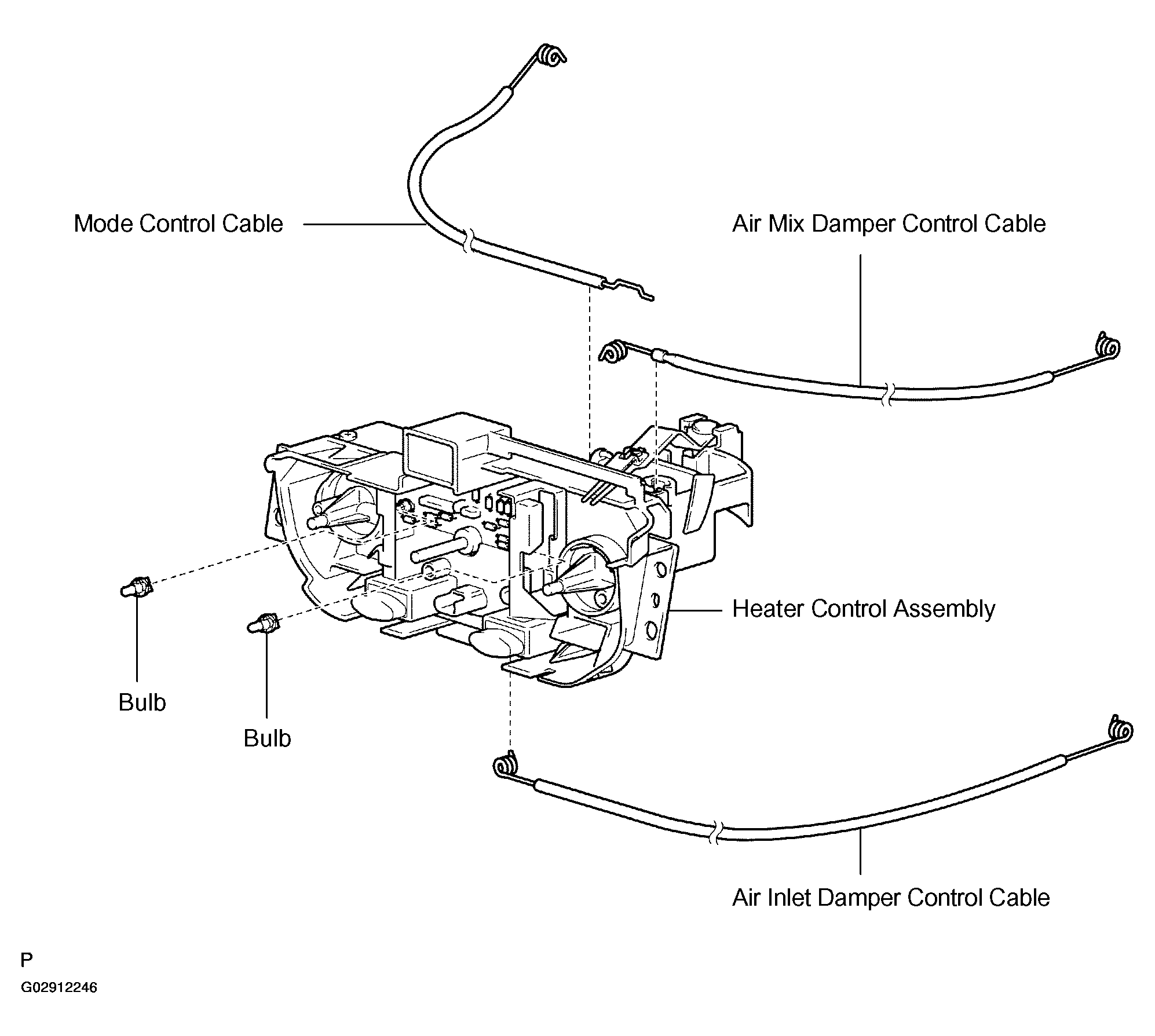

Fig 2: Identifying Heater Control Cables
G02912246Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
