Seat Belt: Components

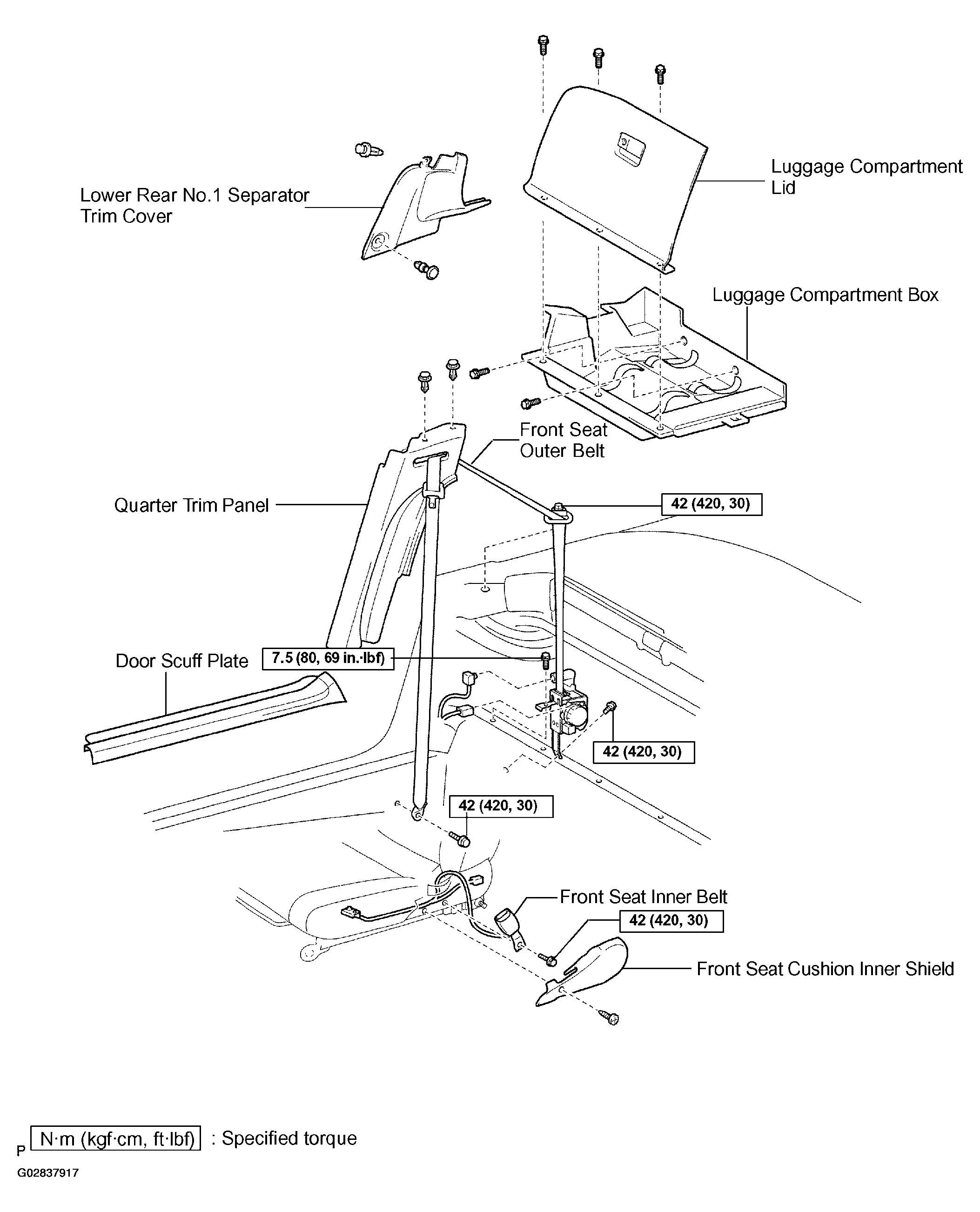

Fig 1: Component Location And Torque Specification Of Seat Belt
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
