Tilt Steering Column: Inspection

INSPECT STEERING LOCK OPERATION
Check that the steering lock mechanism operates properly.

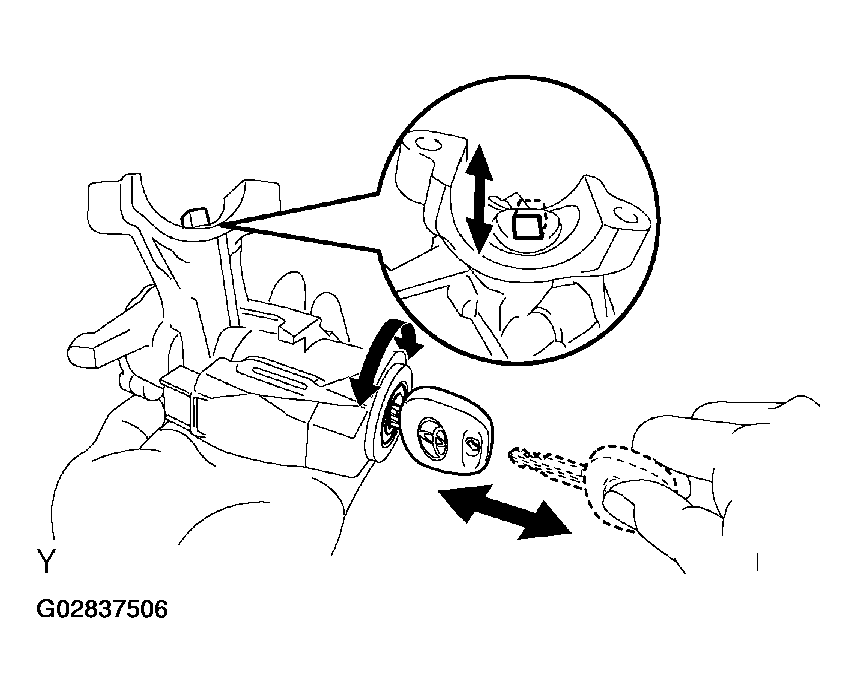

Fig 1: Checking Steering Lock Mechanism
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
IF NECESSARY, REPLACE KEY CYLINDER
1. Place the ignition key at the ACC position.
2. Push down the stop pin with a screwdriver, and pull out the cylinder.
3. Install a new cylinder.
  HINT:

  Make sure the key is at the ACC position.

  Fig 2: Placing Ignition Key At ACC Position
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSPECT IGNITION SWITCH (See INSPECTION ).
IF NECESSARY, REPLACE IGNITION SWITCH
1. Remove the 2 screws and ignition switch from the column upper bracket.
2. Install a new ignition switch with the 2 screws.
INSPECT KEY UNLOCK WARNING SWITCH (See INSPECTION ).
IF NECESSARY, REPLACE KEY UNLOCK WARNING SWITCH
1. Slide the key unlock warning switch out of the column upper bracket.
2. Slide a new key unlock warning switch in the column upper bracket.
INSPECT BEARING
Check the bearing rotation condition and check for abnormal noise.

If the bearing is worn or damaged, replace the column tube.

Fig 3: Checking Condition Of Bearing
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
