Audio & Visual System: Components

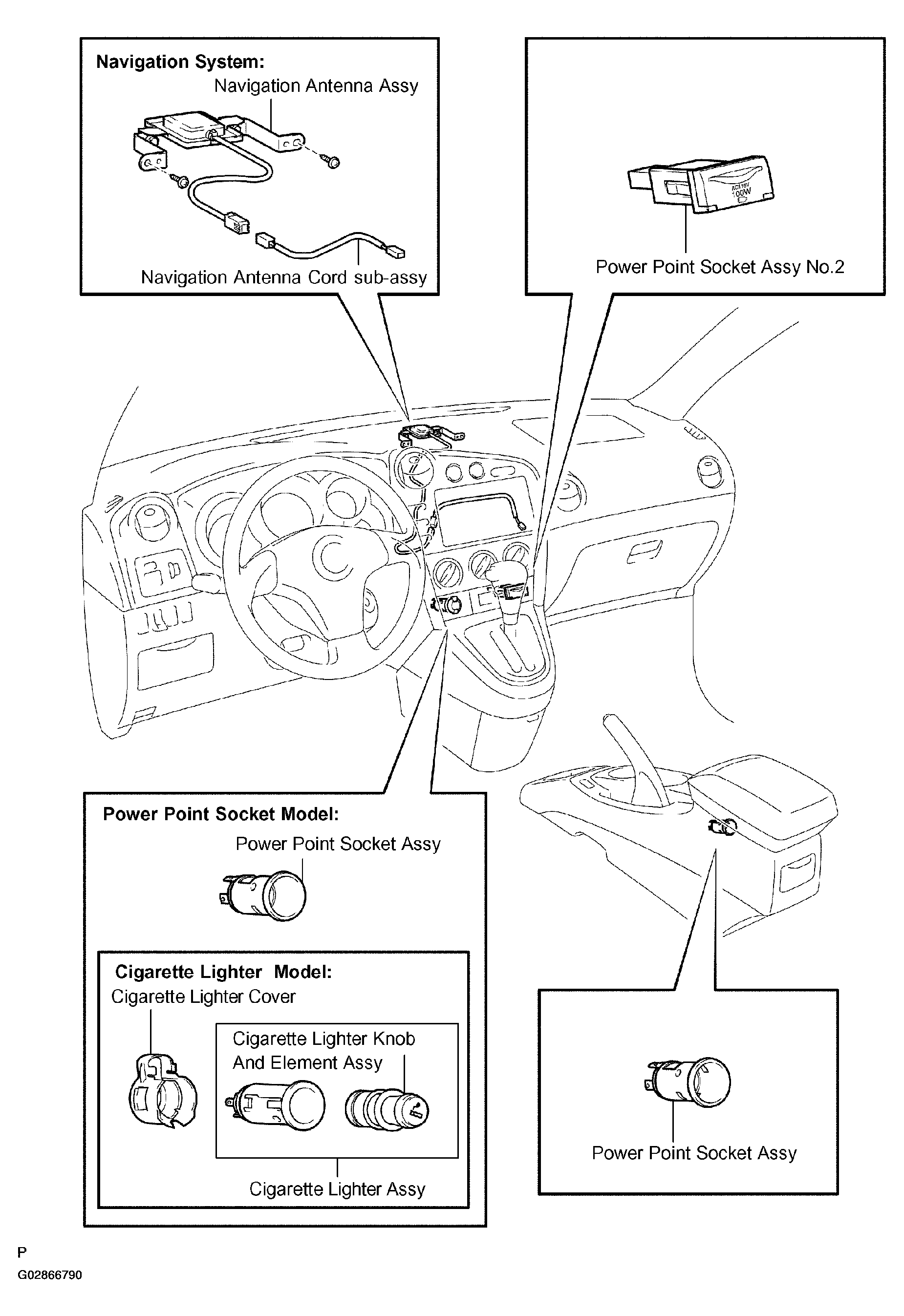

Fig 1: Identifying Audio - Visual System Components (1 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

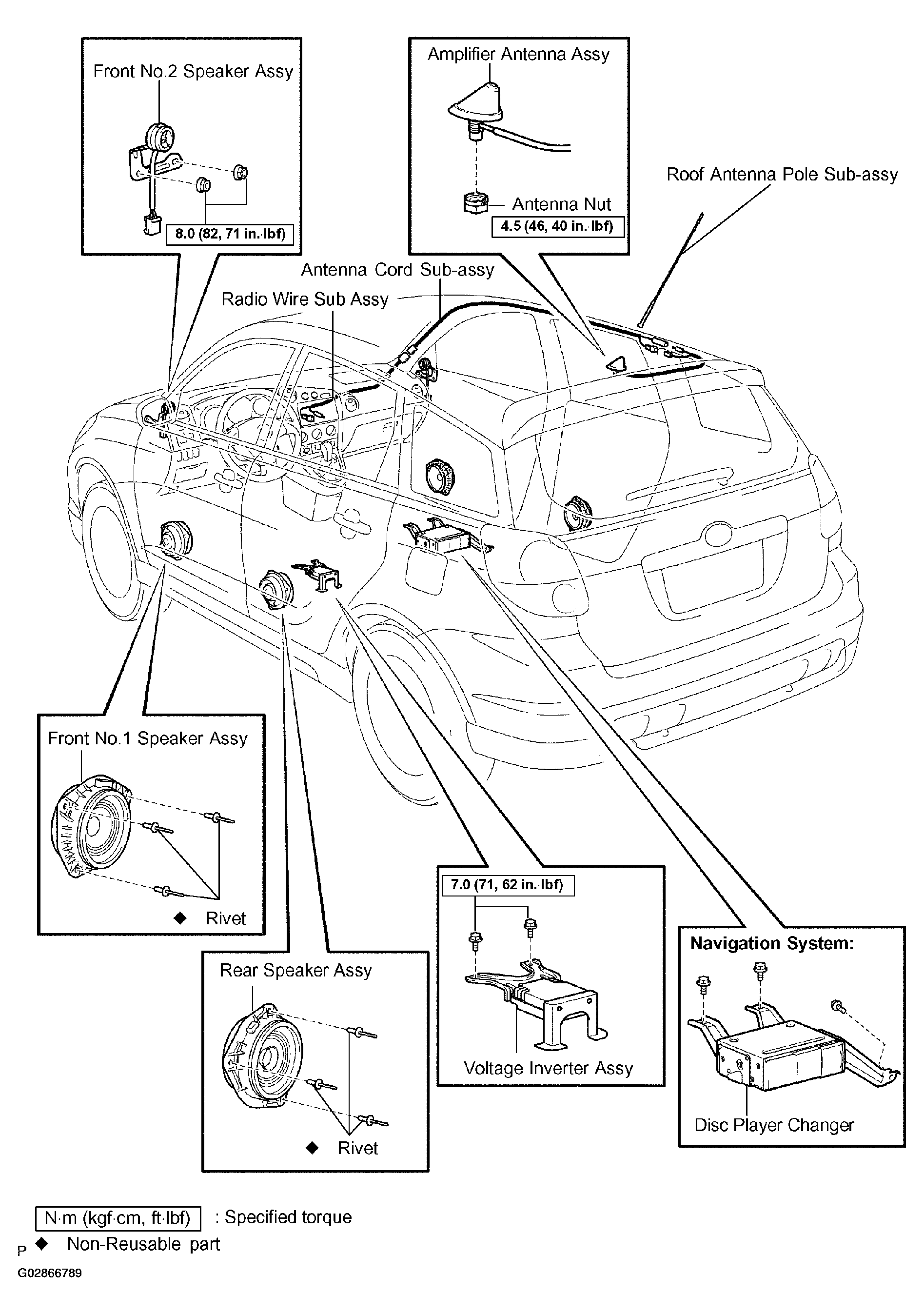

Fig 2: Identifying Audio - Visual System Components (2 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

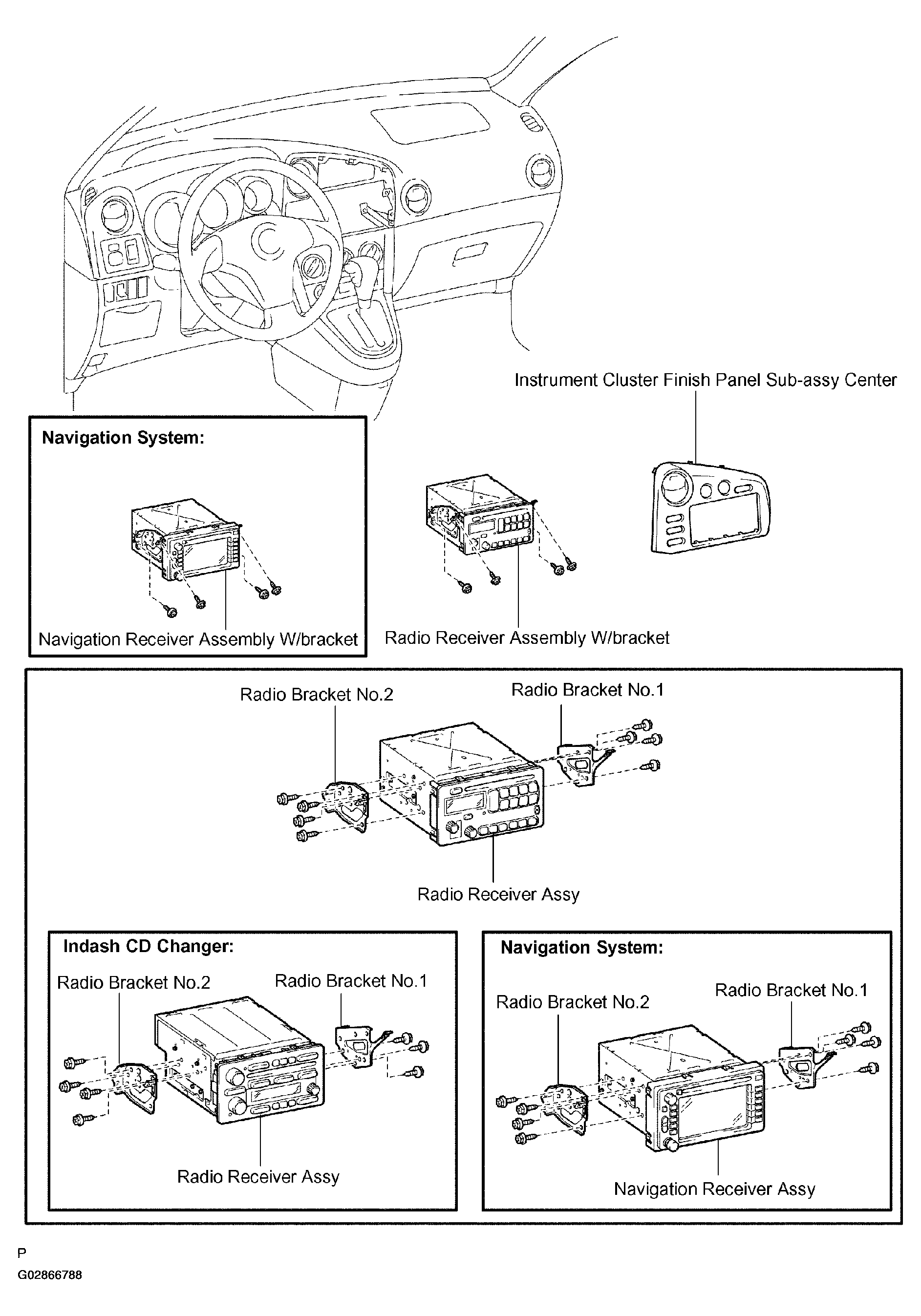

Fig 3: Identifying Audio - Visual System Components (3 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
