Navigation System - Diagnostics: Location

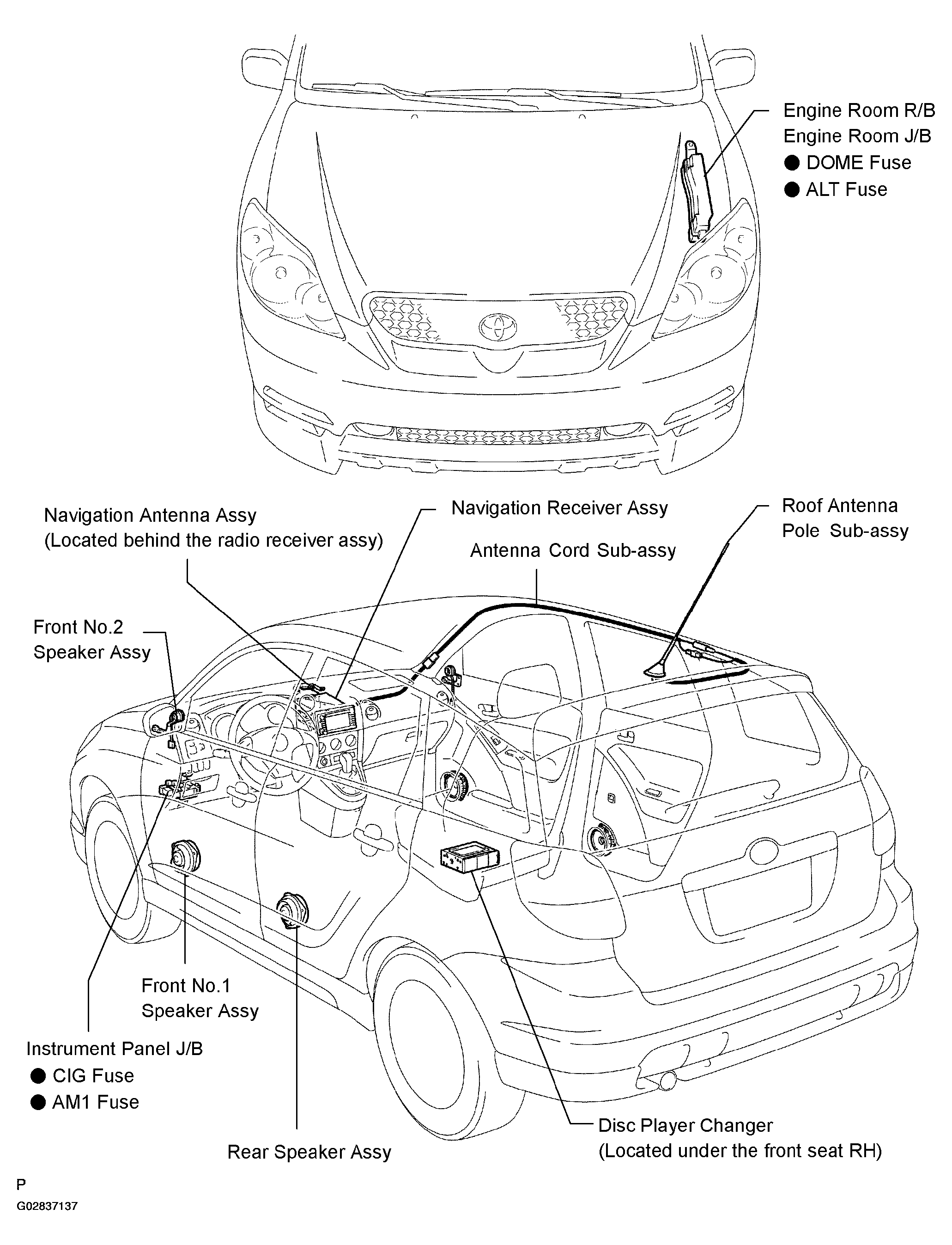

Fig 1: Identifying Navigation System Components Location
G02837137Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
