Key Confinement Prevention Function Does Not Work Properly (Unlock Warning Switch Circuit): Wiring Diagram

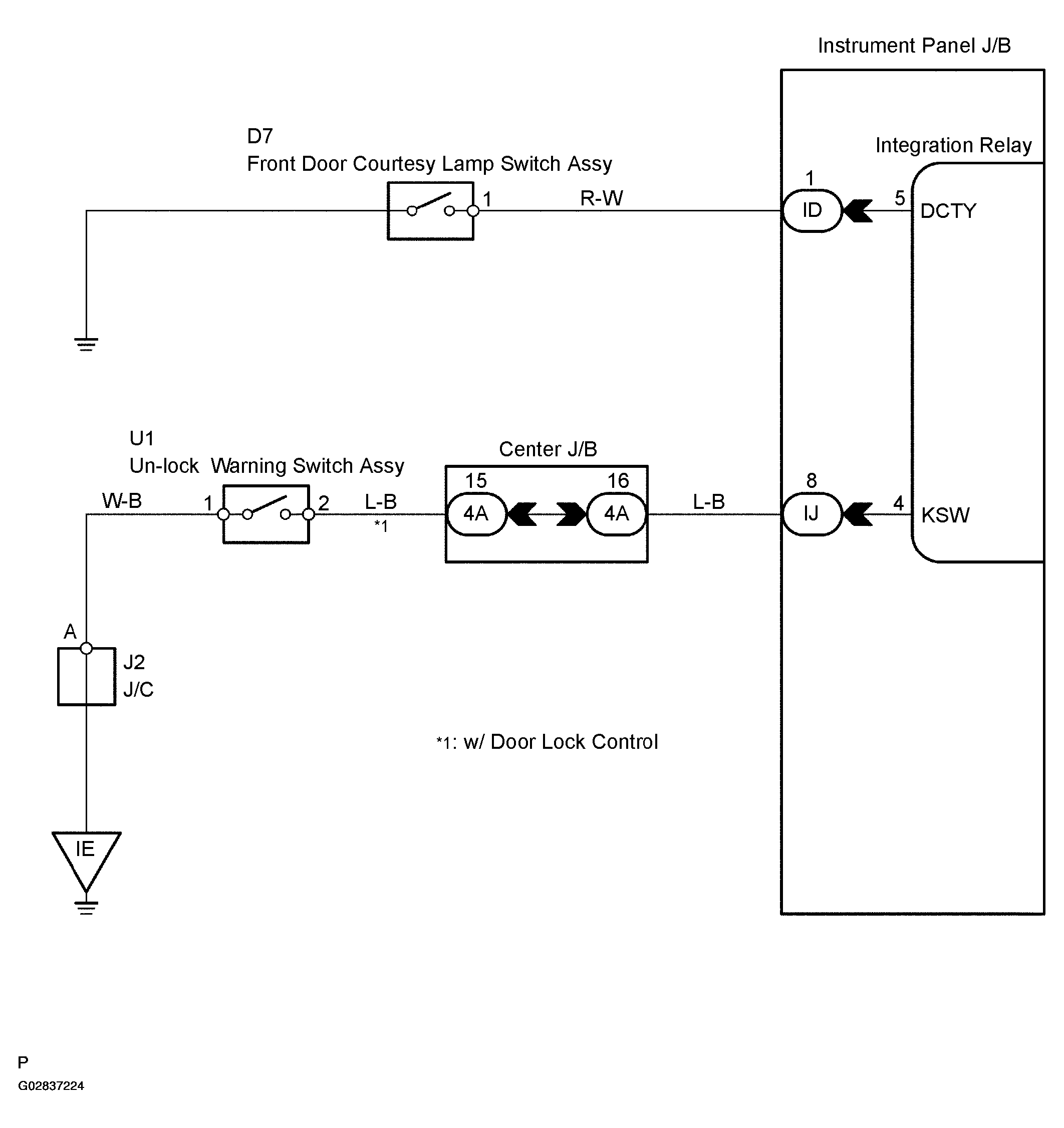

Fig 1: Wiring Diagram - Unlock Warning Switch Circuit
G02837224Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
