Vehicle Intrusion Protection System - Diagnostics
›
Door Key Lock And Unlock Switch Circuit
›
Wiring Diagram
Door Key Lock And Unlock Switch Circuit: Wiring Diagram

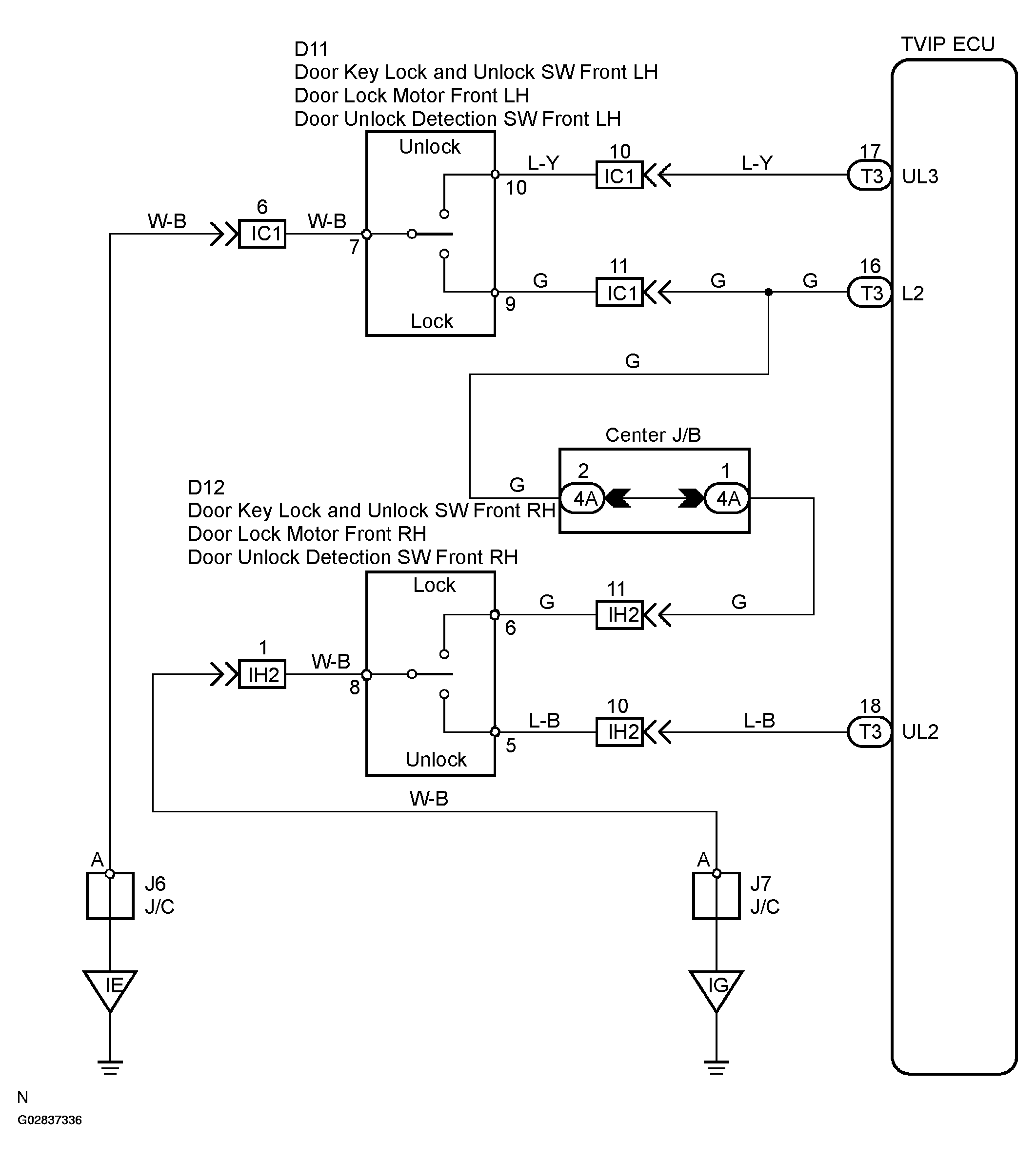

Fig 1: Wiring Diagram - Door Key Lock & Unlock Switch Circuit
