Vehicle Intrusion Protection System - Diagnostics
›
Door Unlock Detection Switch Circuit
›
Wiring Diagram
Door Unlock Detection Switch Circuit: Wiring Diagram

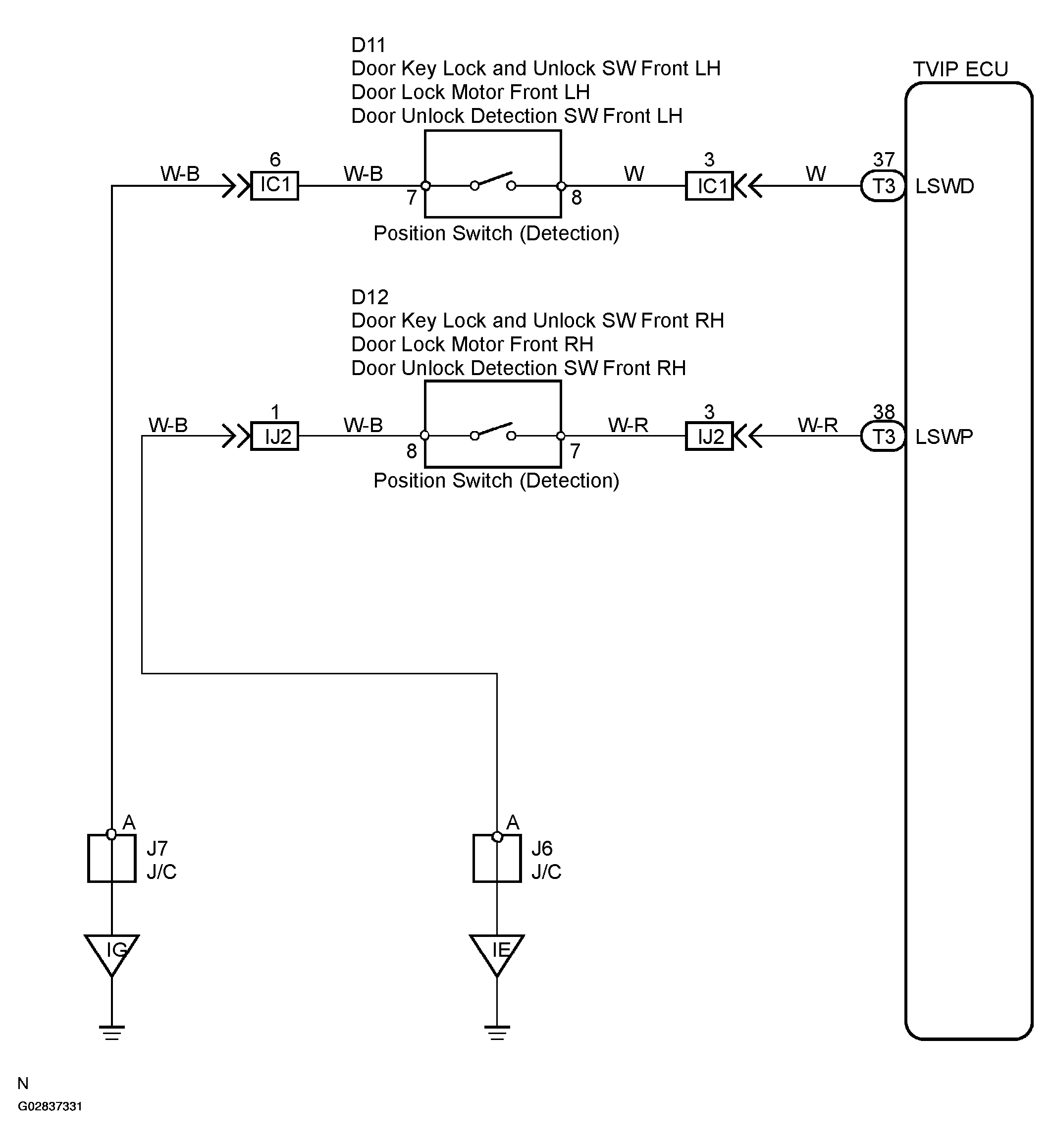

Fig 1: Wiring diagram - Door Unlock Detection Switch Circuit
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
