Vehicle Intrusion Protection System - Diagnostics
›
Ecu Power Source Circuit
›
Wiring Diagram
Ecu Power Source Circuit: Wiring Diagram

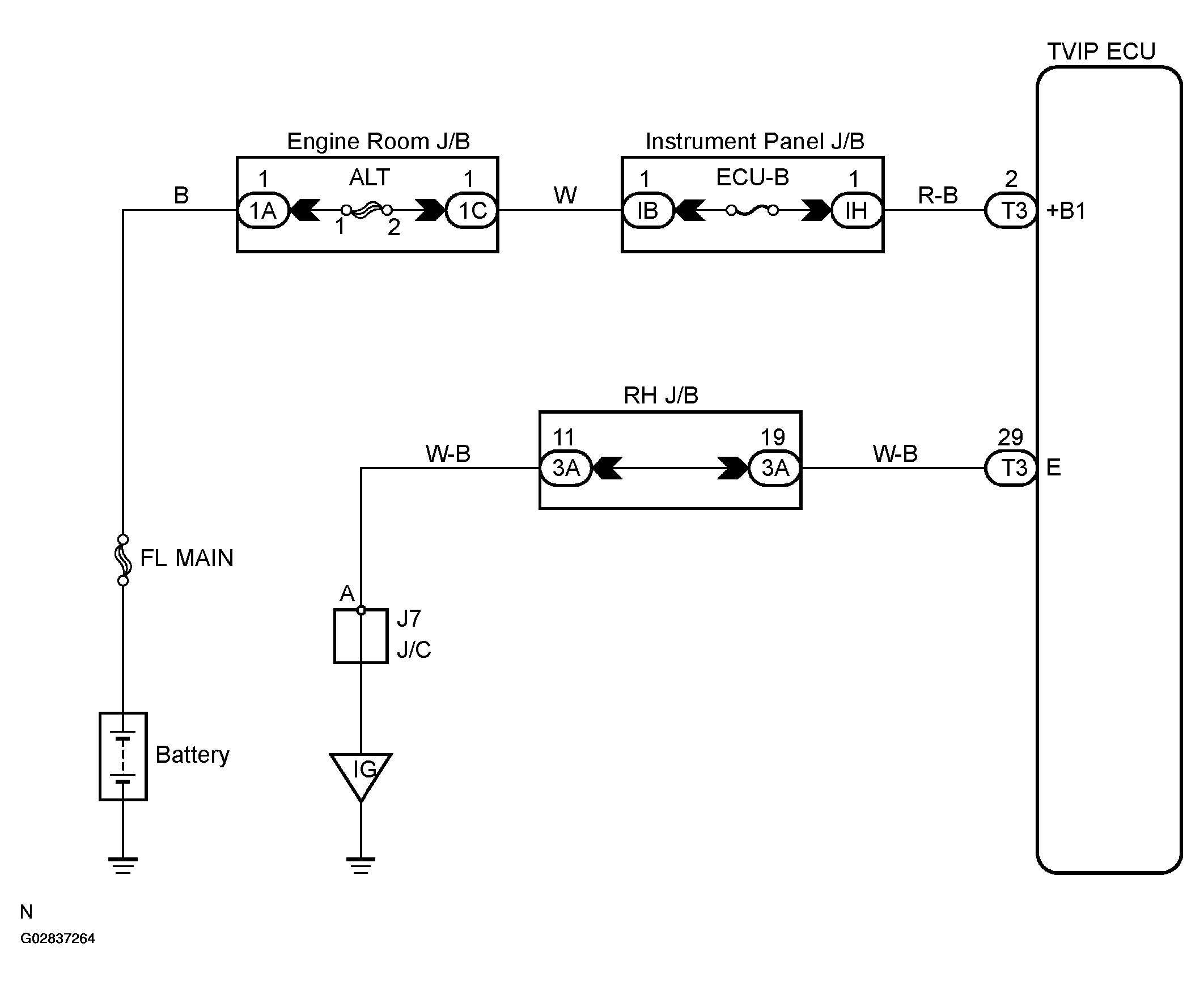

Fig 1: Wiring Diagram - ECU Power Source Circuit
