Vehicle Intrusion Protection System - Diagnostics
›
Glass Breakage Sensor Circuit
›
Wiring Diagram
Glass Breakage Sensor Circuit: Wiring Diagram

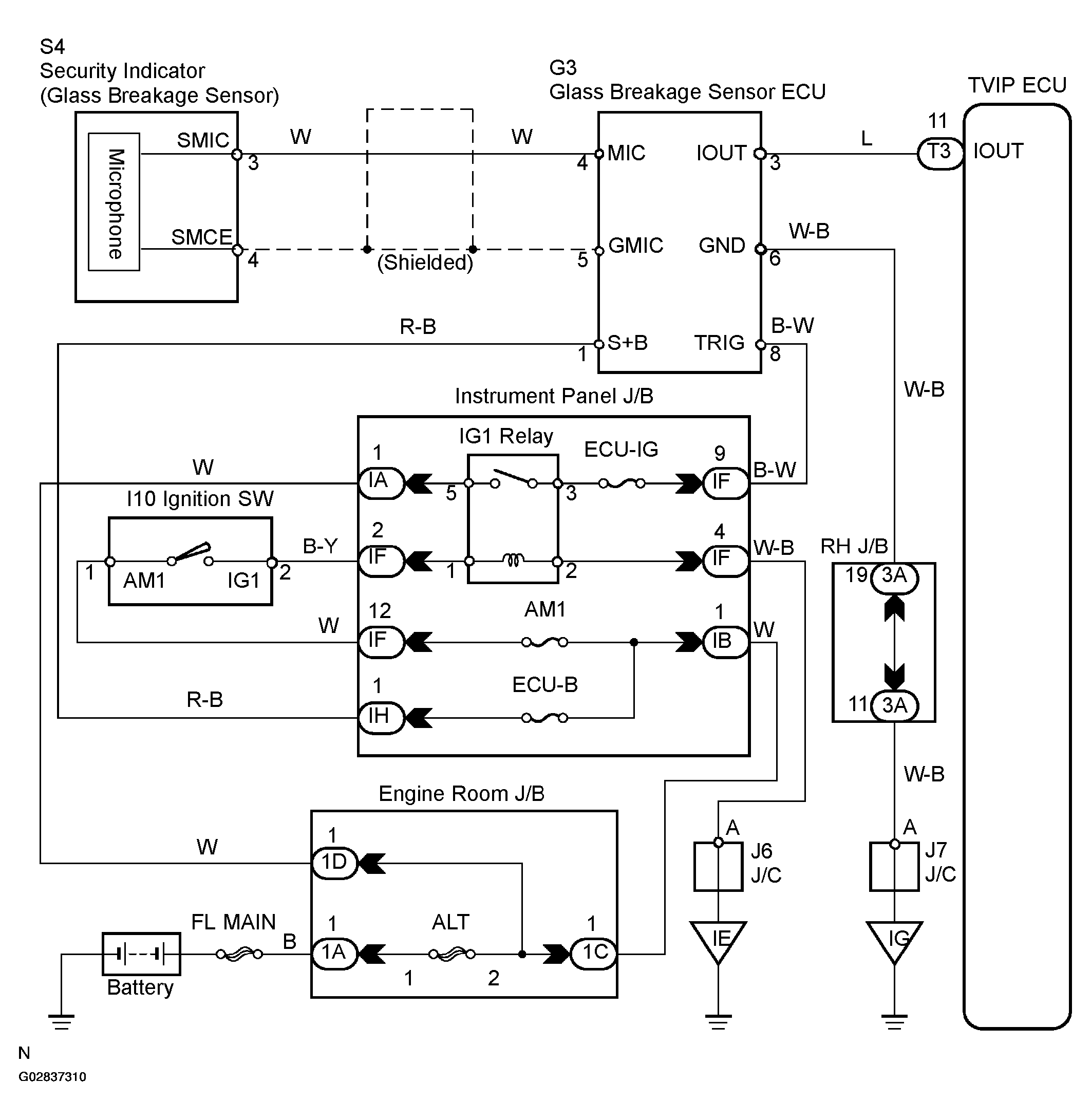

Fig 1: Wiring Diagram - Glass Breakage Sensor Circuit
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
