Vehicle Intrusion Protection System - Diagnostics
›
Hazard Warning Switch Circuit
›
Wiring Diagram
Hazard Warning Switch Circuit: Wiring Diagram

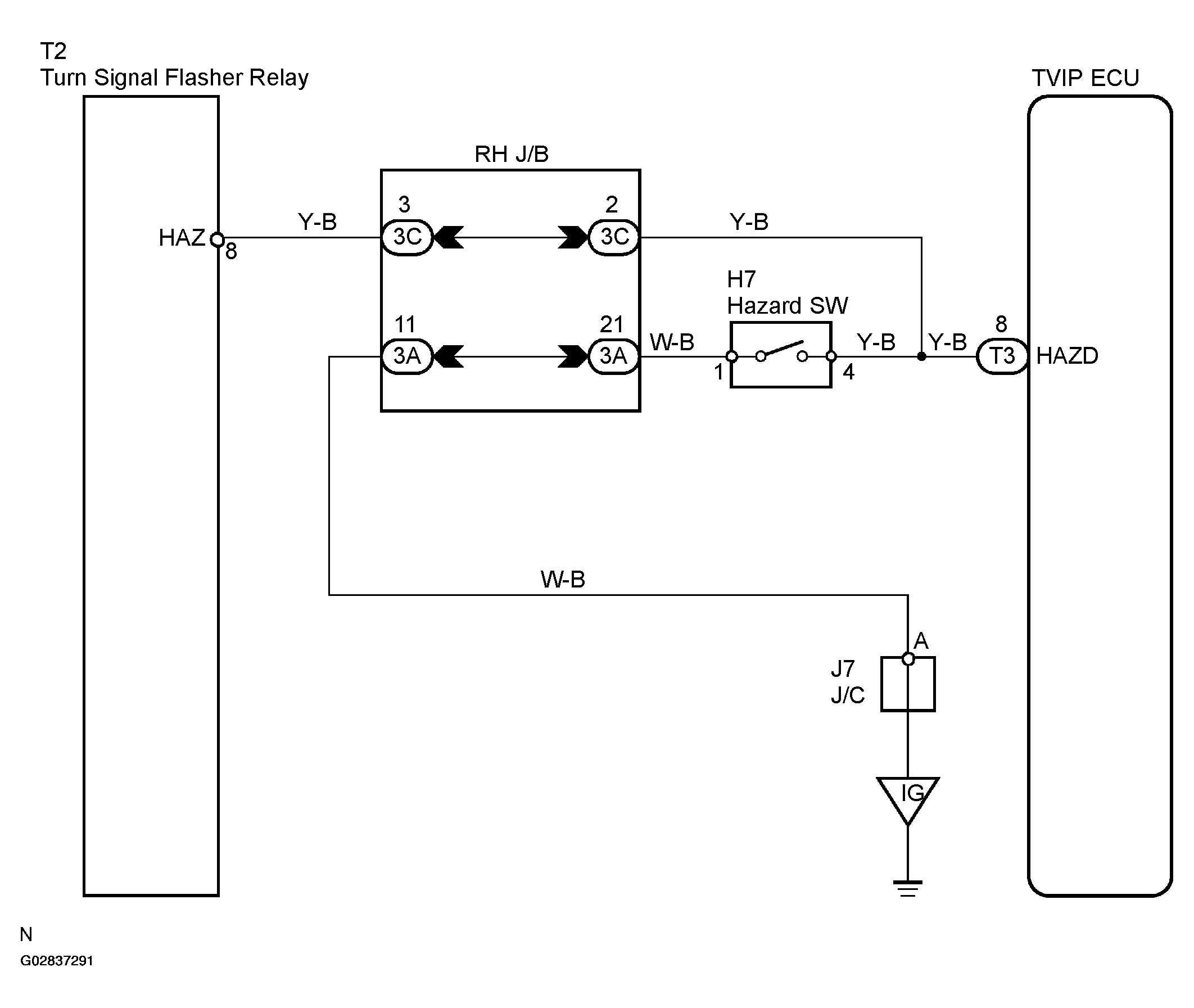

Fig 1: Wiring Diagram - Hazard Warning Switch Circuit
