Vehicle Intrusion Protection System - Diagnostics
›
Indicator Light Circuit
›
Wiring Diagram
Indicator Light Circuit: Wiring Diagram

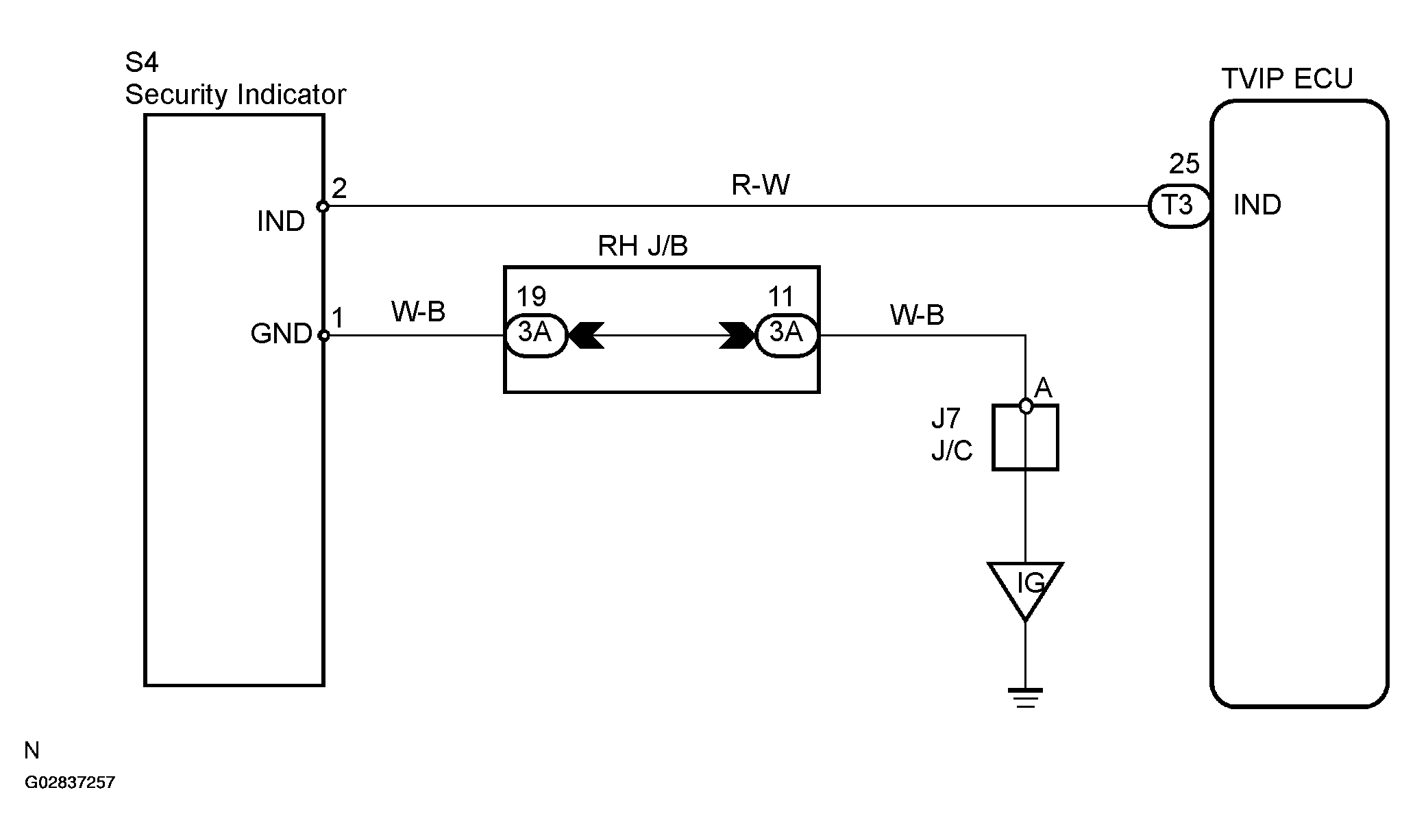

Fig 1: Wiring Diagram - Indicator Light Circuit
