Front Seat (Driver Side): Components

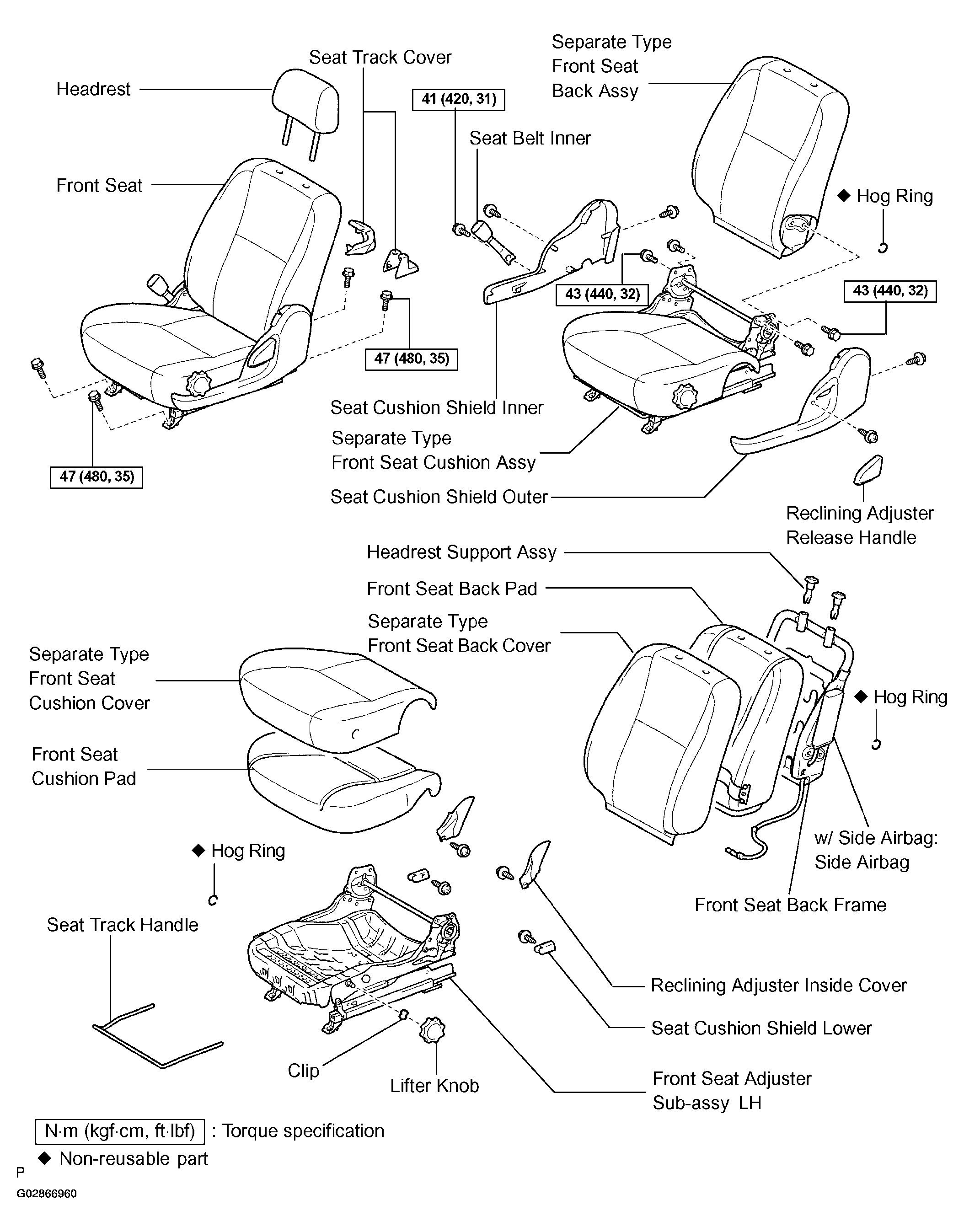

Fig 1: Identifying Front Seat (Driver Side) Components

G02866960

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
