Abs Speed Sensor Rear LH (4WD): Replacement

1. Remove the 3 bolts, then remove the fuel tank filler pipe protector LH.

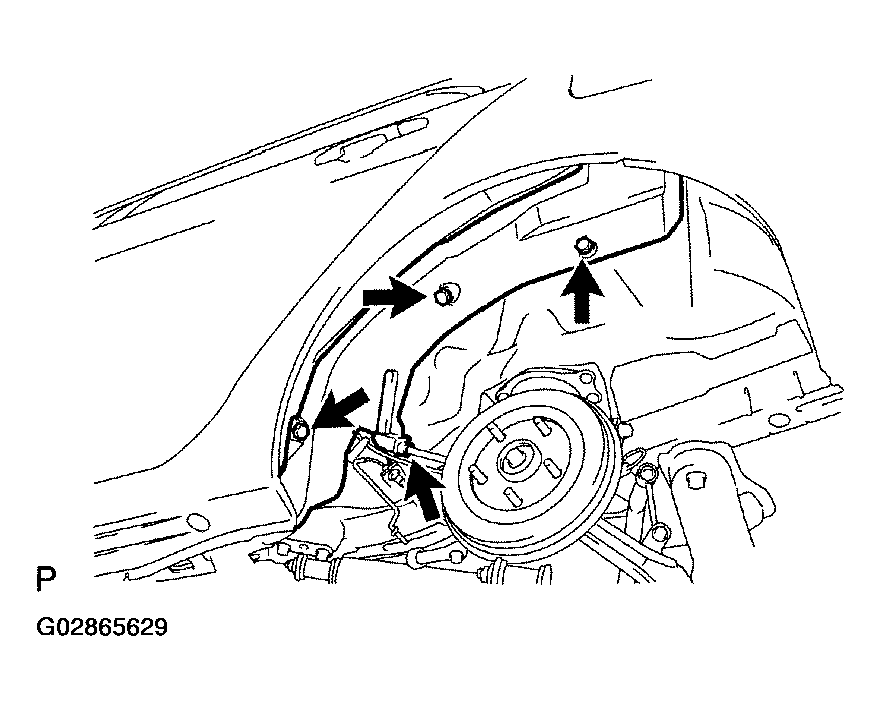

   Fig 1: Removing Fuel Tank Filler Pipe Protector LH & Bolts

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Disconnect the speed sensor connector, and pull out the sensor wire harness with grommet.

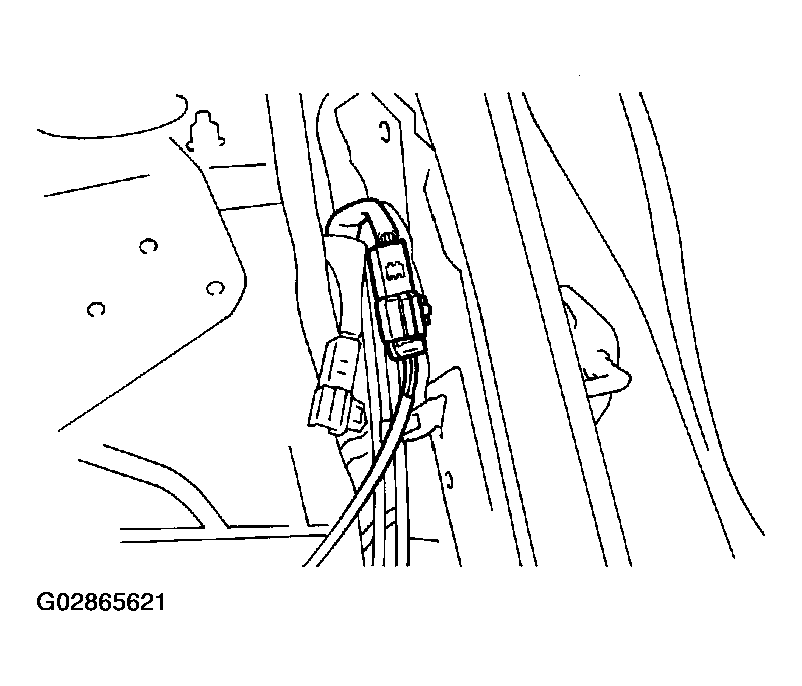

   Fig 2: Disconnecting Speed Sensor Connector

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Remove the bolt from the body.

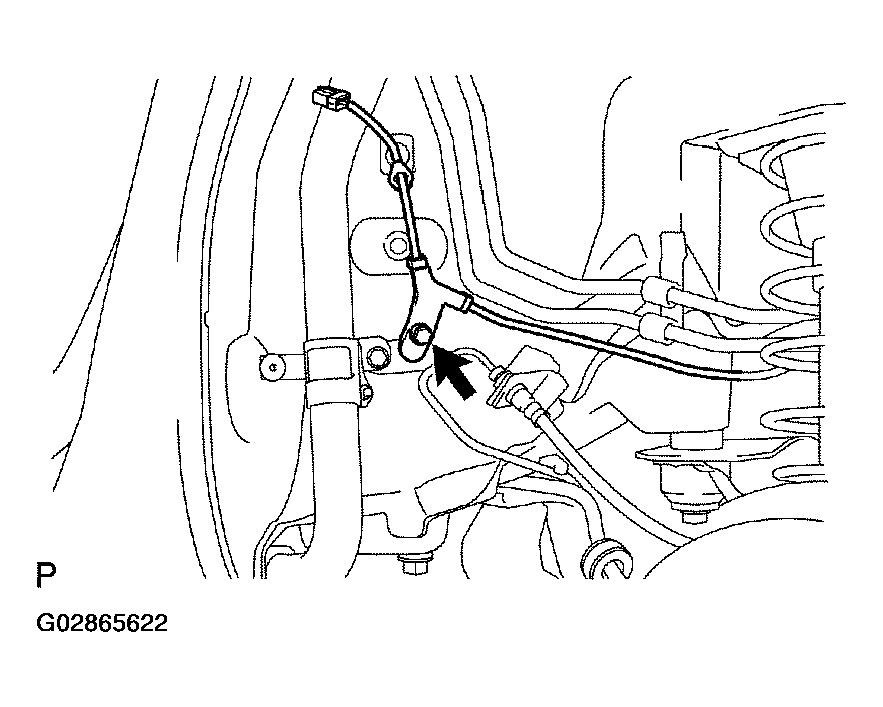

   Fig 3: Removing Bolt From Body

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Remove the bolt and nut from the suspension member and upper arm.

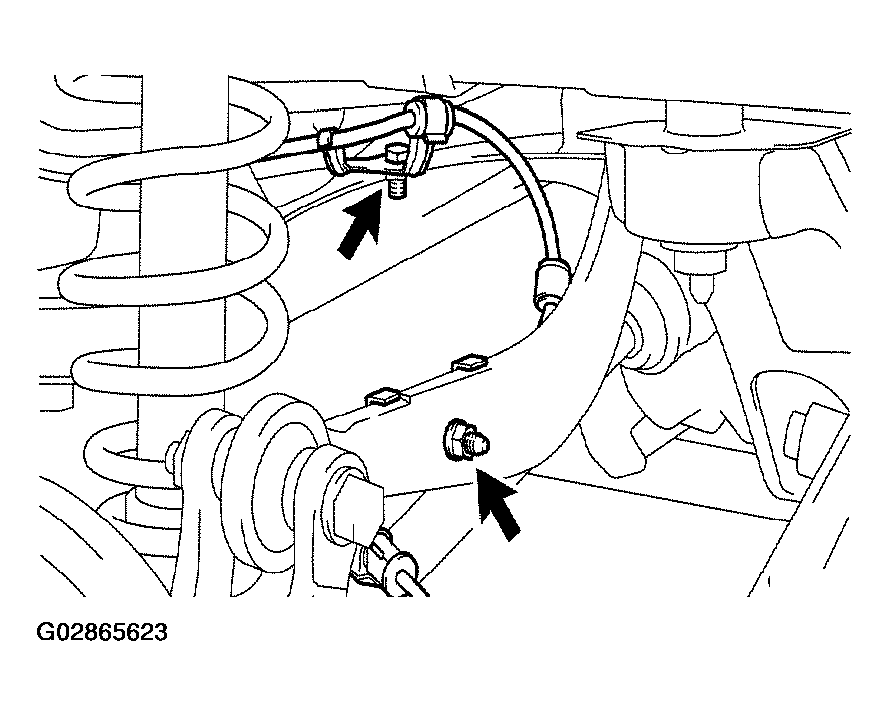

   Fig 4: Removing Bolt & Nut From Suspension Member & Upper Arm

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Remove the bolt from the knuckle, and remove the speed sensor rear LH.

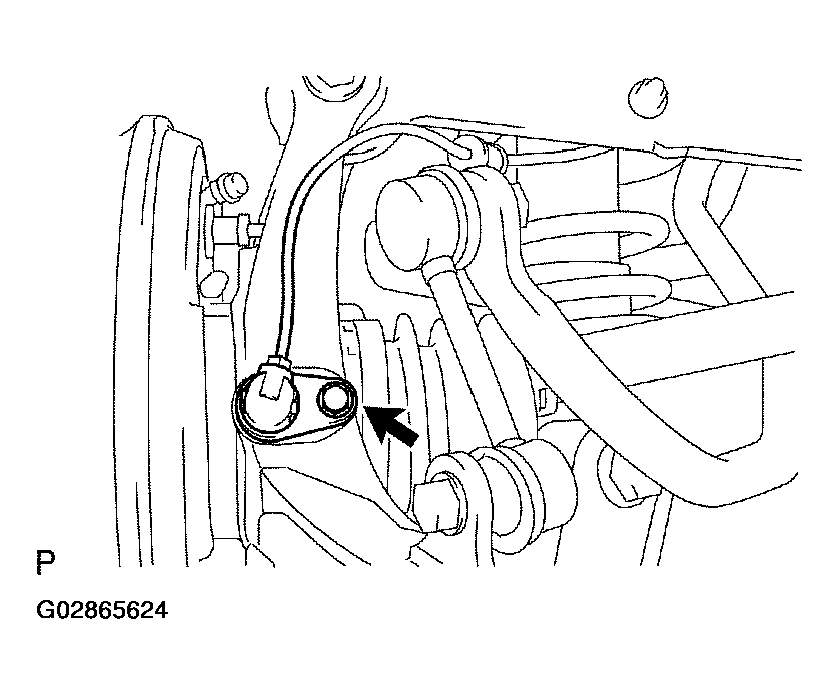

Fig 5: Removing Speed Sensor Rear LH & Bolt
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Install the speed sensor rear LH with the bolt to knuckle.
   Fig 6: Installing Speed Sensor Rear LH

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   NOTE: Make sure the sensor tip is clean.

   Torque: 8.0 N.m (82 kgf.cm, 71 in.lbf)

2. Install the clamp with the bolt and nut to the upper arm and suspension member.

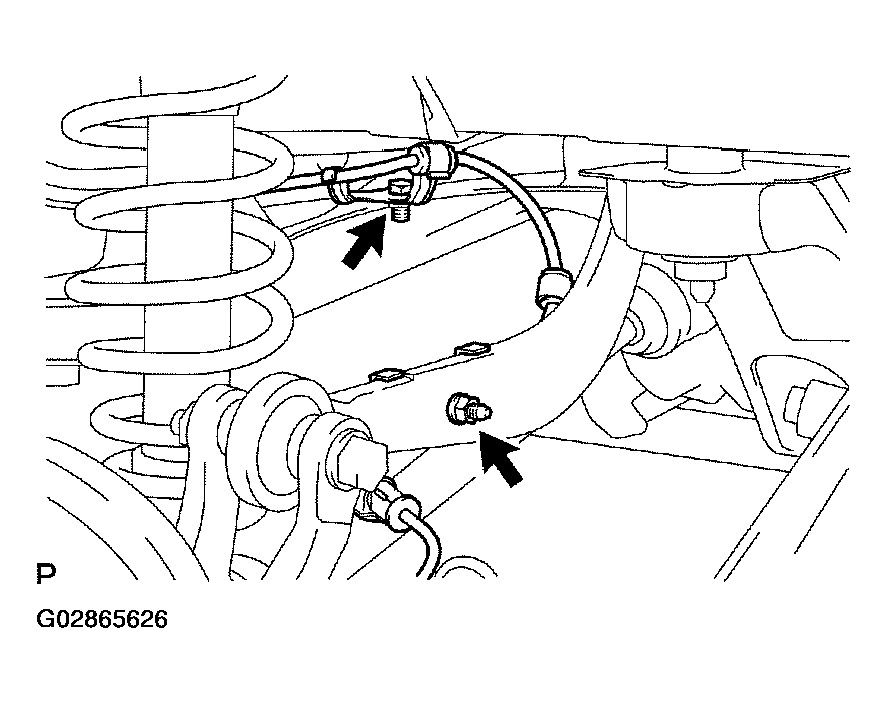

   Fig 7: Installing Clamp With Bolt & Nut To Upper Arm & Suspension Member

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Torque: 5.0 N.m (51 kgf.cm, 44 in.lbf)

3. Install the clamp with the bolt to the body, and install the grommet to the body.

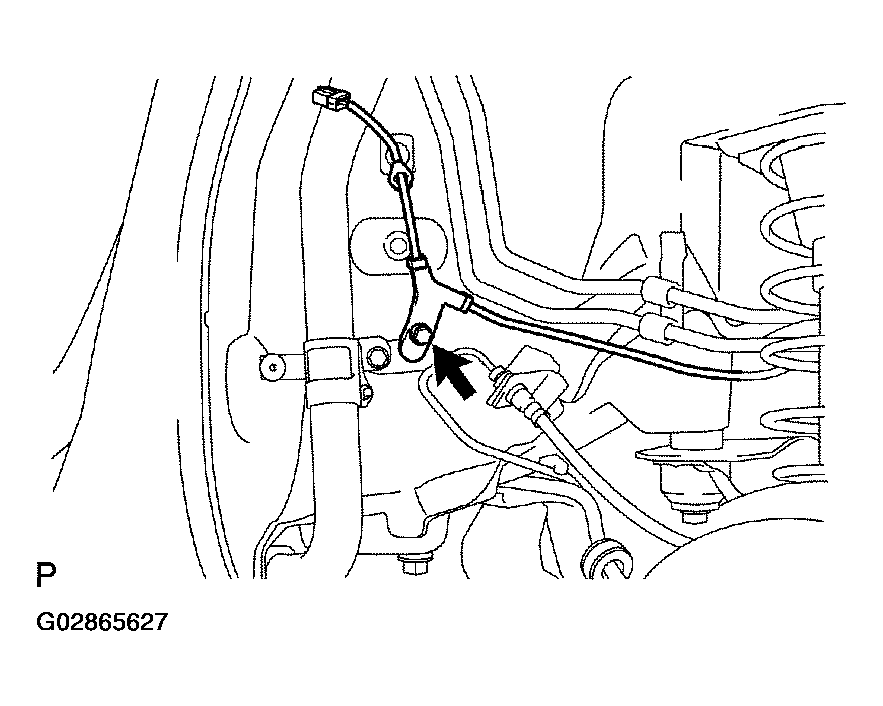

Fig 8: Installing Clamp With Bolt To Body
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Torque: 5.0 N.m (51 kgf.cm, 44 in.lbf)

1. Push in the wire harness with grommet, and connect the speed sensor connector.

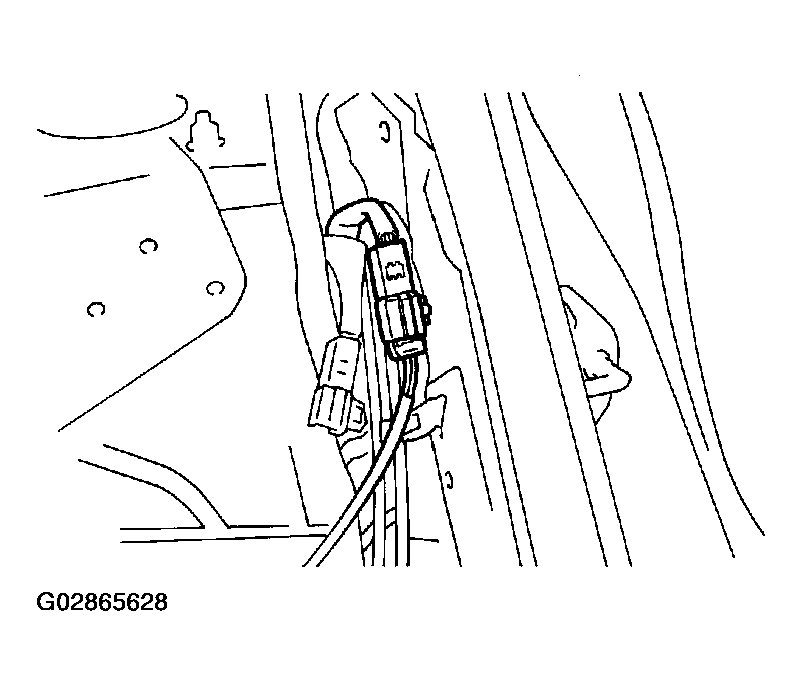

   Fig 9: Connecting Speed Sensor Connector

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Install the fuel tank filler pipe protector with the 3 bolts
   Fig 10: Installing Fuel Tank Filler Pipe Protector

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Torque: 103 N.m (1,050 kgf.cm, 76 ft.lbf)
