Engine Mechanical Timing Chain Sub-Assembly - 1ZZ-FE: Replacement

  1. REMOVE ENGINE UNDER COVER RH
  2. DRAIN COOLANT (See  REPLACEMENT  )
  3. REMOVE FRONT WHEEL RH
  4. REMOVE CYLINDER HEAD COVER NO.2
    1. Remove the 2 nuts, 2 clips and cylinder head cover.

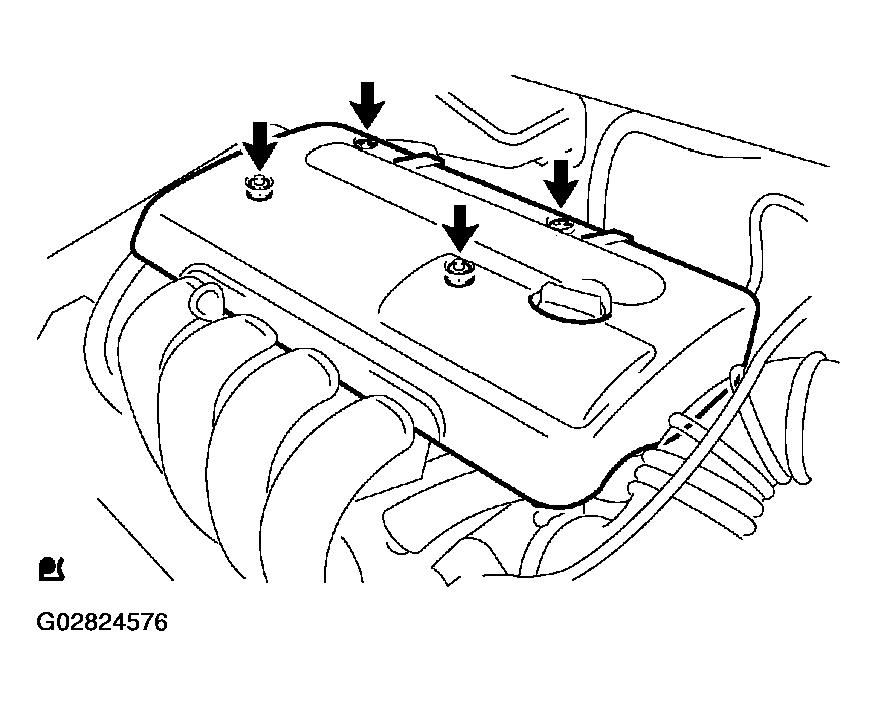

    Fig 1: Removing Cylinder Head Cover
    G02824576Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  5. REMOVE FAN AND GENERATOR V BELT
    1. Turn the drive belt tensioner clockwise to relieve tension on the belt, and then remove the belt.
    2. Carefully return the tensioner to the unloaded position.
    Fig 2: Removing Drive Belt Tensioner And Generator V Belt
    G02824577Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  6. SEPARATE POWER STEERING VANE PUMP ASSY
    NOTE: Do not disconnect the hose.
  7. REMOVE GENERATOR ASSY (See  GENERATOR  )
  8. REMOVE ENGINE MOUNTING INSULATOR SUB-ASSY RH
    1. Remove the PS oil pump reservoir and put it aside.
    2. Place a wooden block between the jack and engine, and set the jack, then remove the 4 bolts, the 2 nuts and engine mounting insulator RH.
    Fig 3: Placing A Wooden Block Between Jack And Engine
    G02824578Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    Fig 4: Removing Engine Mounting
    G02824579Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  9. DISCONNECT ENGINE WIRE
    1. Remove the 5 clamps from the 5 clamp brackets.
    2. Disconnect the 4 ignition coil connectors.

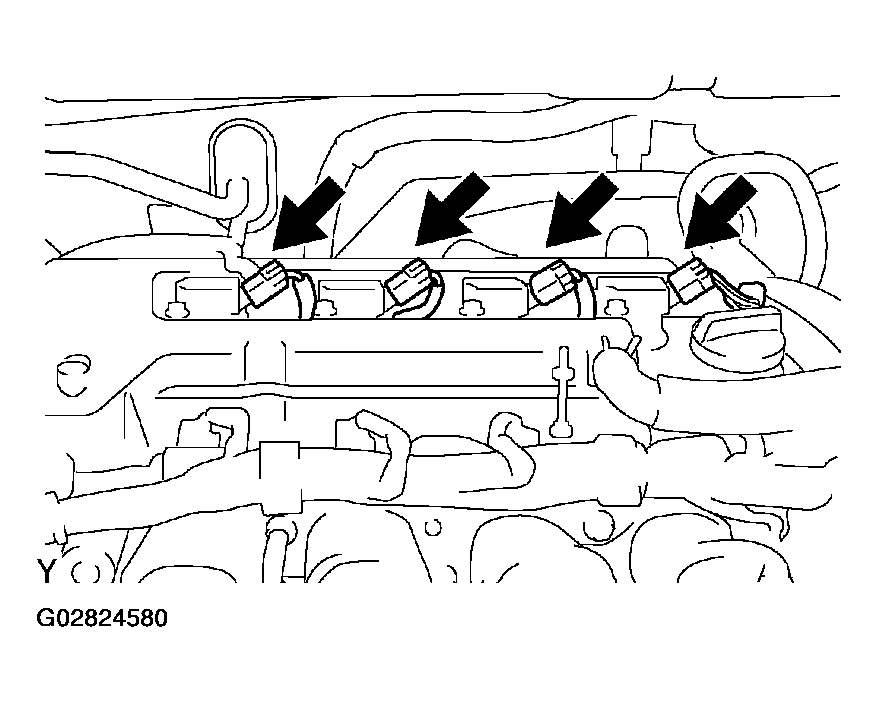

      Fig 5: Disconnecting Ignition Coil Connectors
      G02824580Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Remove the bolt and nut installing the engine wire.
      Fig 6: Removing Bolt And Nuts
      G02824581Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  10. REMOVE IGNITION COIL ASSY
    1. Remove the 4 bolts and 4 ignition coils.

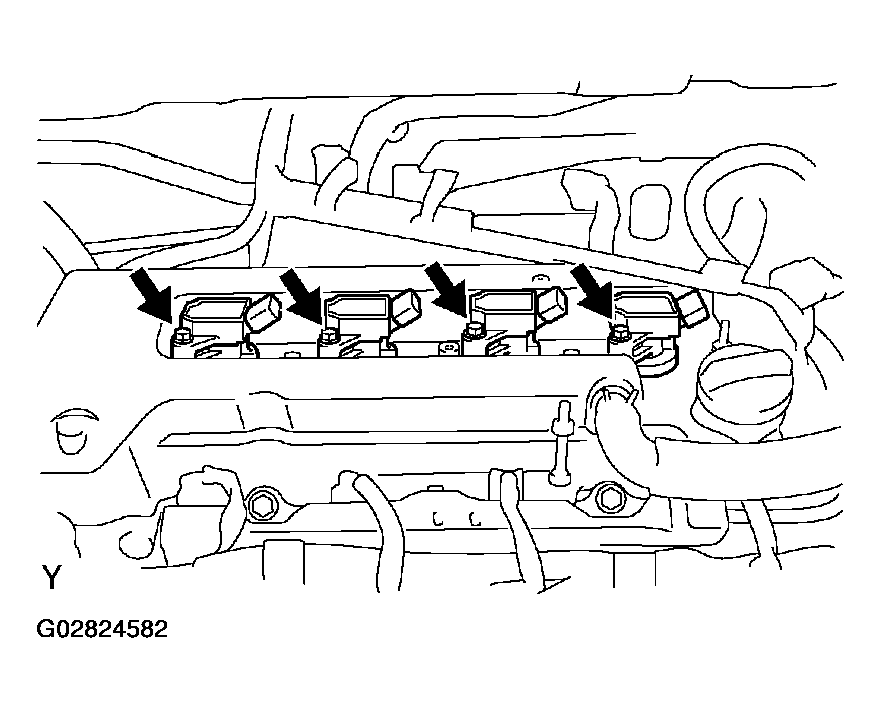

    Fig 7: Removing Ignition Coil Assy
    G02824582Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  11. DISCONNECT VENTILATION HOSE
    1. Disconnect the ventilation hose from the cylinder head cover.

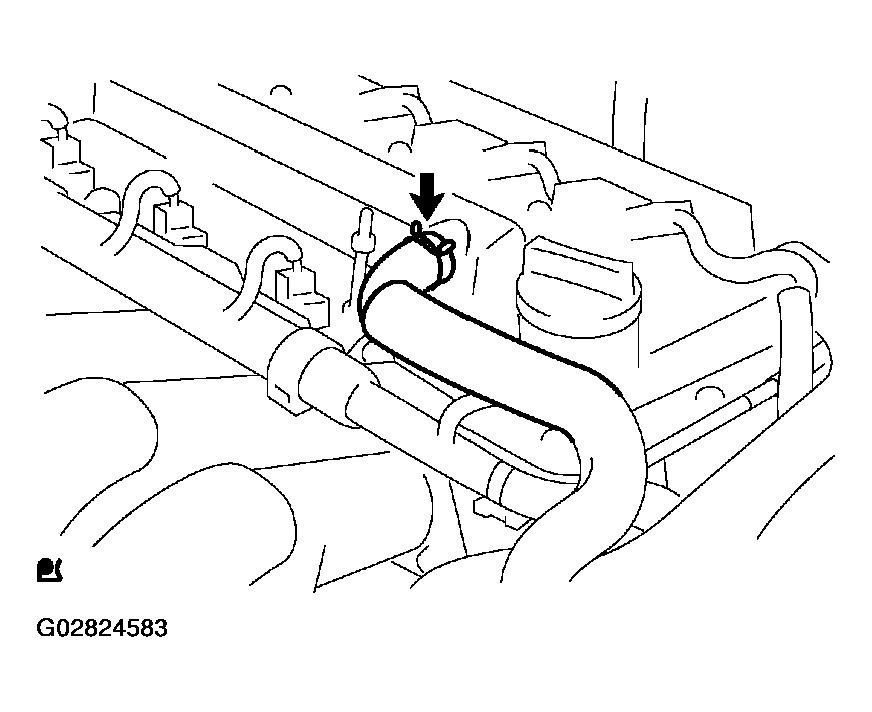

    Fig 8: Disconnecting Ventilation Hose
    G02824583Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  12. DISCONNECT VENTILATION HOSE NO.2
    1. Disconnect the ventilation hose from the cylinder head cover.

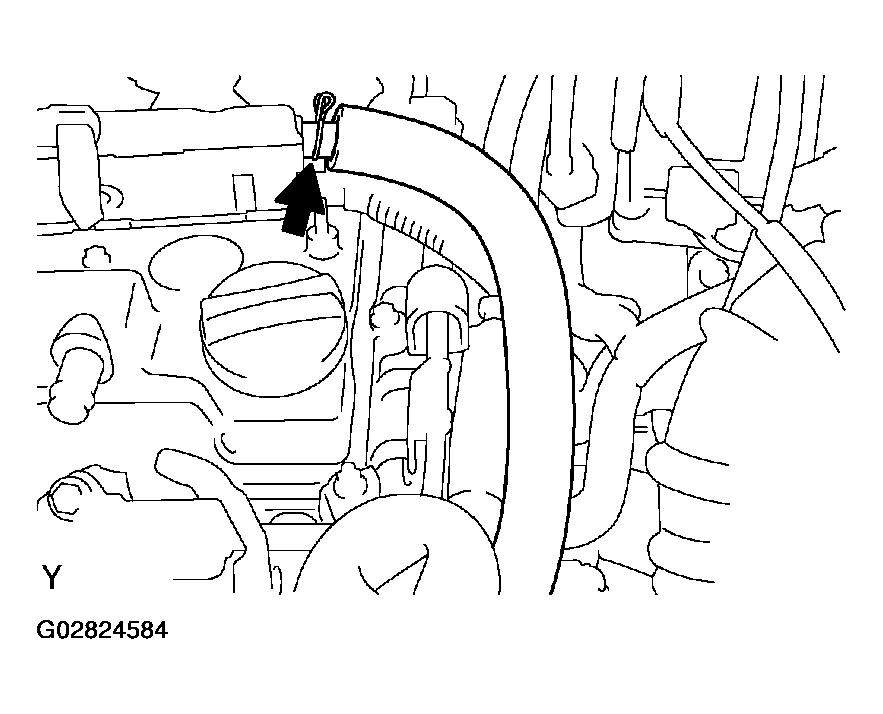

    Fig 9: Disconnecting Ventilation Hose-2
    G02824584Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  13. REMOVE CYLINDER HEAD COVER SUB-ASSY
    1. Remove the 9 bolts, 2 seal washers, 2 nuts, 3 clamp brackets and cylinder head cover.
    Fig 10: Removing Cylinder Head Cover Bolts
    G02824585Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  14. SET NO. 1 CYLINDER TO TDC/COMPRESSION
    1. Turn the crankshaft pulley, and align its groove with timing mark "0" of the timing chain cover.
    2. Check that the point marks of the camshaft timing sprocket and VVT timing sprocket are in straight line on the timing chain cover surface as shown in the illustration.

    HINT:

    If not, turn the crankshaft 1 revolution (360°) and align the marks as above.

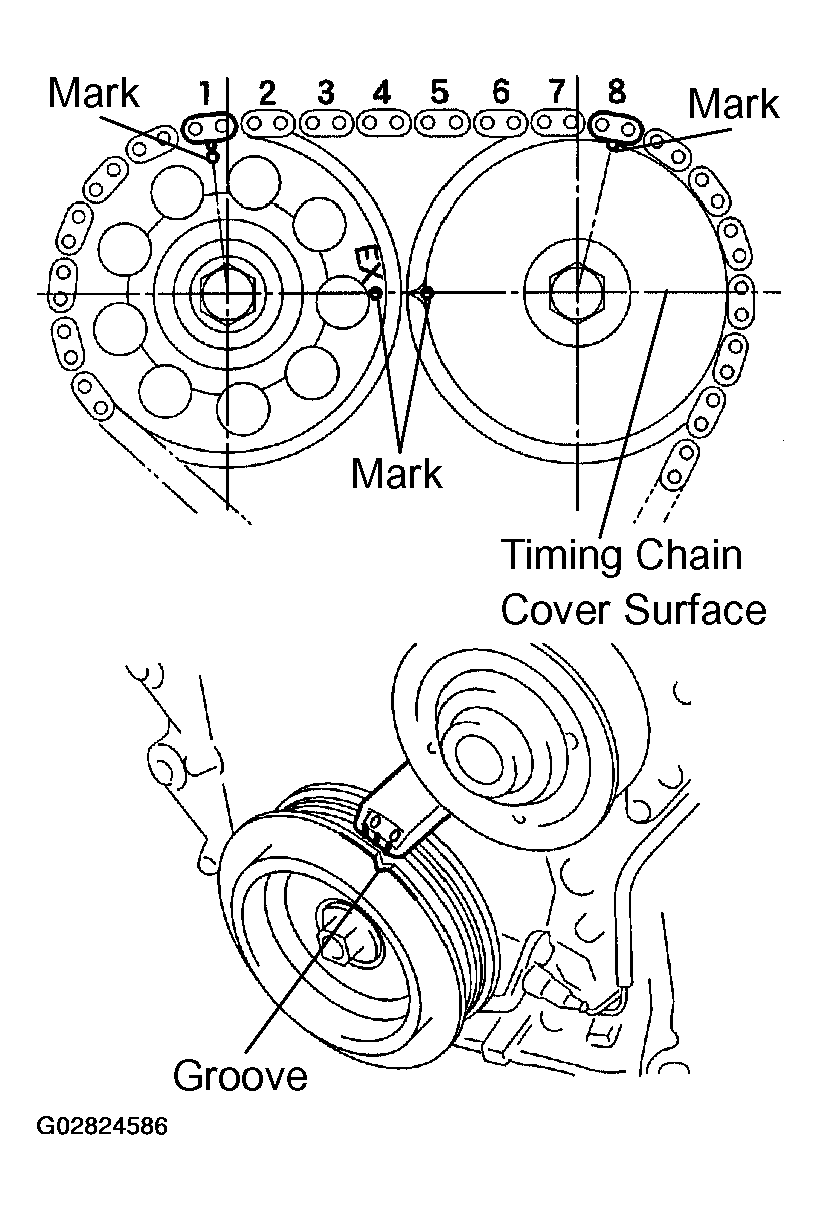

    Fig 11: Checking Point Marks Of Camshaft And VVT Timing Sprocket
    G02824586Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  15. REMOVE CRANKSHAFT PULLEY
    1. Using SST, remove the pulley bolt.

      SST 09960-10010 (09962-01000, 09963-01000)

    2. Remove the crankshaft pulley from the crankshaft.
    Fig 12: Removing Crankshaft Pulley
    G02824587Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  16. REMOVE V-RIBBED BELT TENSIONER ASSY
    1. Remove the bolt, nut and V-ribbed belt tensioner.

    HINT:

    Handle a jack up and down to remove the bolt.

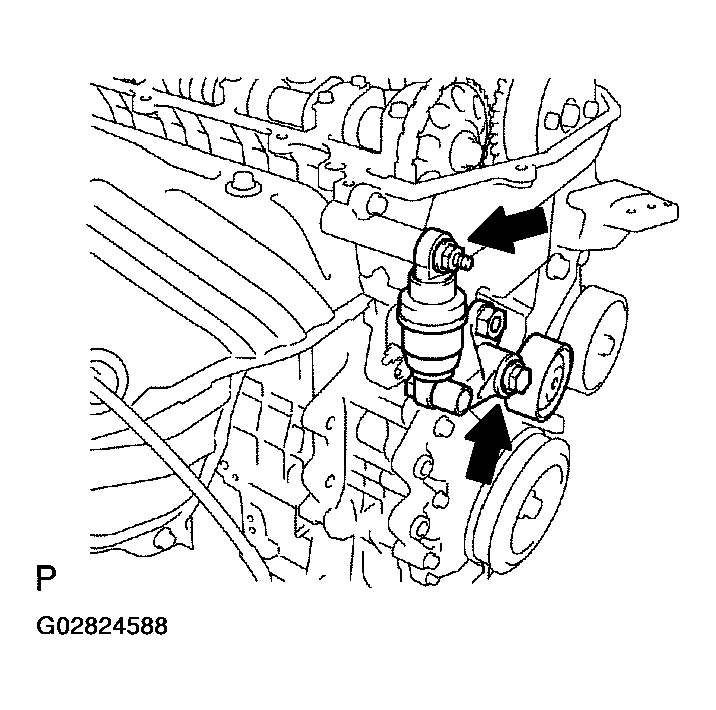

    Fig 13: Removing V-Ribbed Belt Tensioner
    G02824588Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  17. REMOVE WATER PUMP ASSY (See  WATER PUMP ASSEMBLY  )
  18. REMOVE TRANSVERSE ENGINE MOUNTING BRACKET
    1. Remove the 3 bolts and transverse engine mounting bracket.
    Fig 14: Removing Transverse Engine Mounting Bracket
    G02824589Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  19. REMOVE CRANK POSITION SENSOR
    1. Remove the 2 bolts installing the crank position sensor.
    Fig 15: Removing Crank Position Sensor
    G02824590Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  20. REMOVE CHAIN TENSIONER ASSY NO.1
    1. Remove the 2 nuts and chain tensioner.
    NOTE: Be sure not to revolve the crankshaft without the chain tensioner.

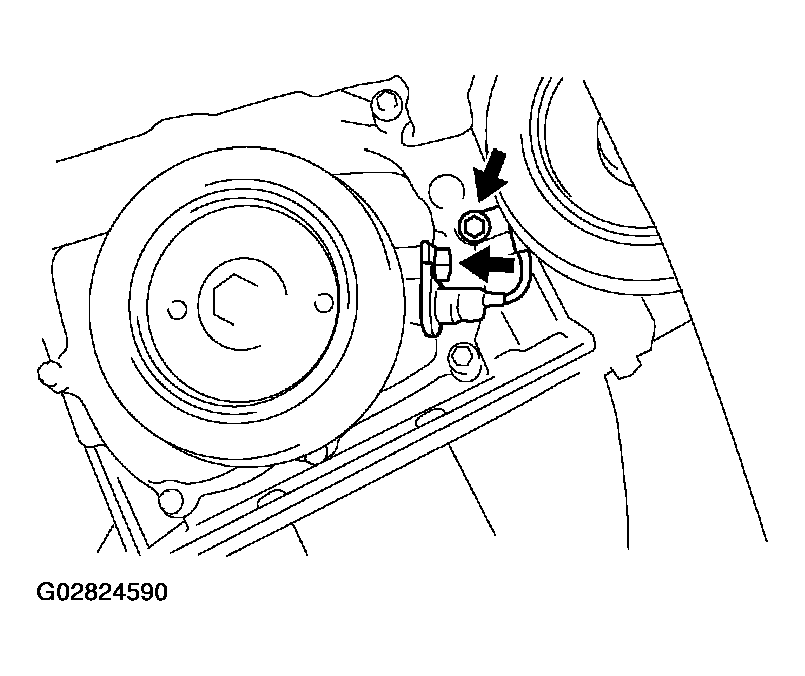

    Fig 16: Removing Chain Tensioner
    G02824591Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  21. REMOVE TIMING CHAIN OR BELT COVER SUB-ASSY
    1. Remove the 11 bolts and nuts.
    2. Using a Torx wrench socket (E8), remove the stud bolt.
    3. Remove the timing chain cover by prying the portions between the cylinder head and cylinder block with a screwdriver.
    NOTE: Be careful no tot damage the contact surfaces of the timing chain cover, cylinder head and cylinder block.

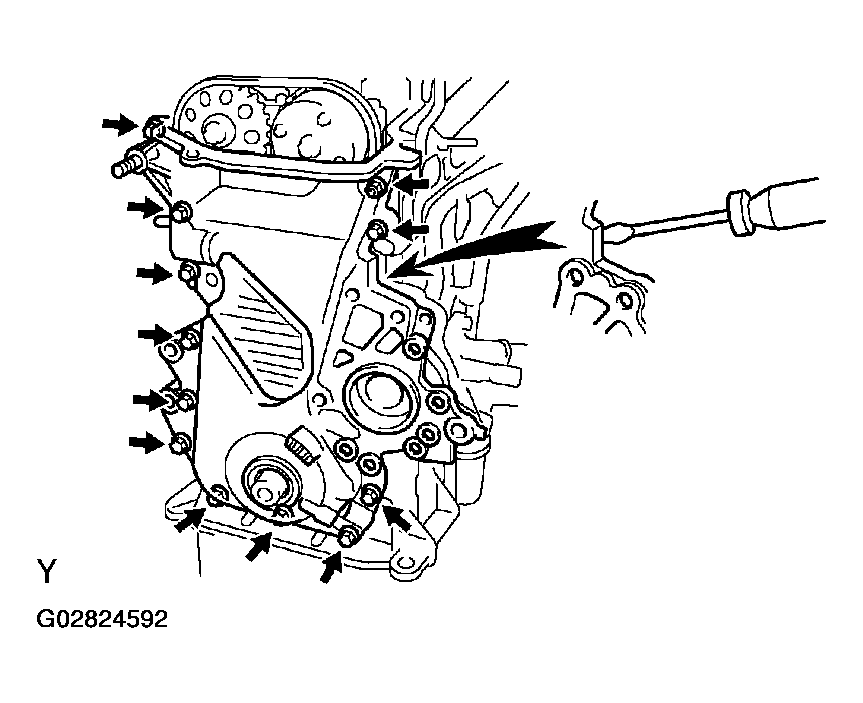

    Fig 17: Removing Timing Chain Cover And Bolts
    G02824592Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  22. REMOVE TIMING GEAR COVER OIL SEAL
    1. Using a screwdriver, remove the oil seal.
    Fig 18: Removing Oil Seal
    G02824593Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  23. REMOVE CRANKSHAFT POSITION SENSOR PLATE NO. 1
  24. REMOVE CHAIN TENSIONER SLIPPER
    1. Remove the bolt and chain tensioner slipper.
  25. REMOVE CHAIN SUB-ASSY
    1. Remove the timing chain with the crankshaft timing gear plying screwdrivers as shown in the illustration.

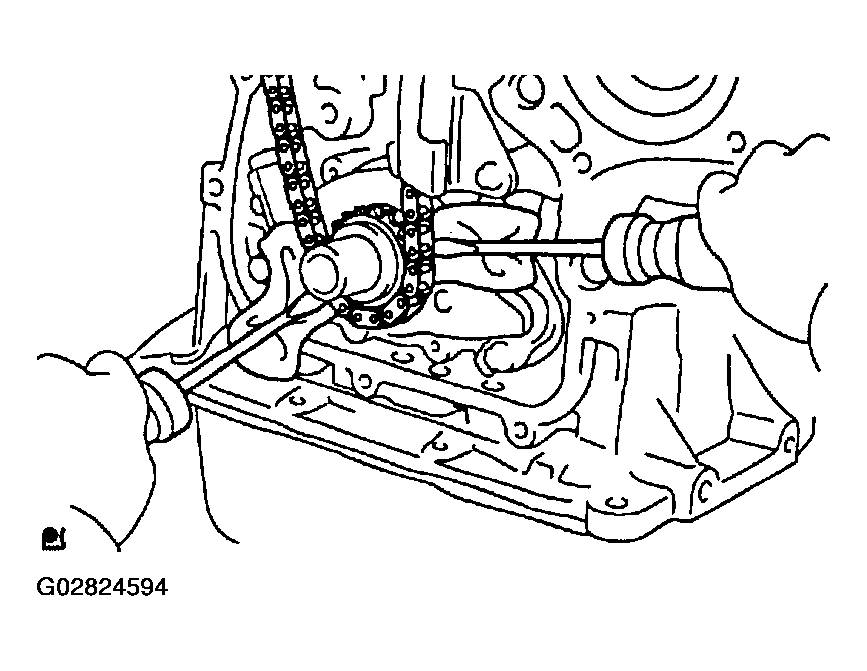

    2. Fig 19: Removing Timing Chain With Crankshaft Timing Gear
      G02824594Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    NOTE:
    • Put shop rag to protect the engine.
    • In case of revolving the camshafts with the chain off the sprockets, turn the crankshaft 1/4 revolution for valves not to touch the pistons.
  26. INSTALL CHAIN SUB-ASSY
    1. Set No. 1 cylinder to TDC/compression.
      1. Turn the hexagonal wrench head portion of the camshafts, and align the point marks of the camshaft timing sprockets.
        Fig 20: Aligning Point Marks Of Camshaft Timing Sprockets
        G02824595Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      2. Using a crankshaft pulley bolt, turn the crankshaft and set the set key on the crankshaft upward.

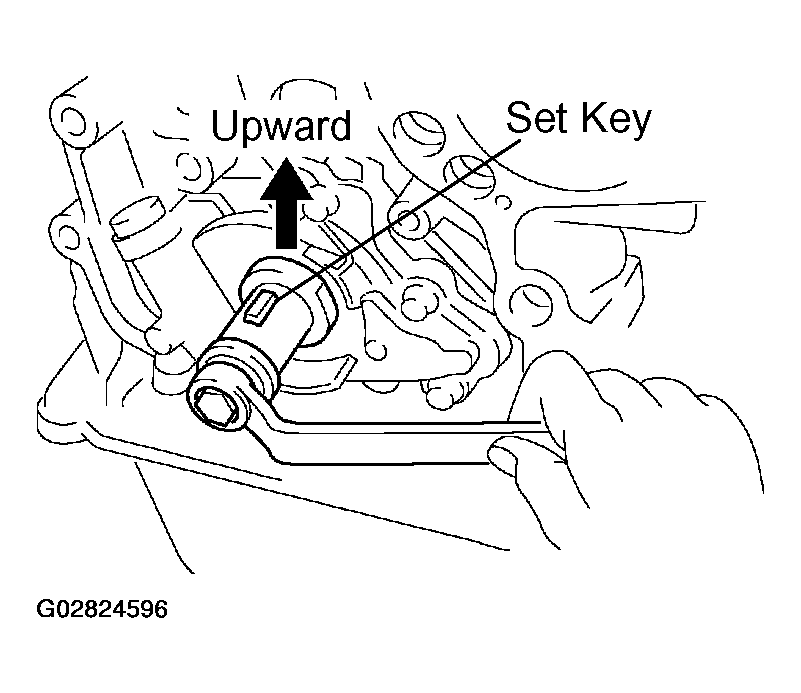

        Fig 21: Turning Crankshaft And Set Key On Crankshaft Upward
        G02824596Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Install the timing chain on the crankshaft timing sprocket with the yellow color link aligned with the timing mark on the crankshaft timing sprocket.

      HINT:

      Three yellow color links are on the chain.

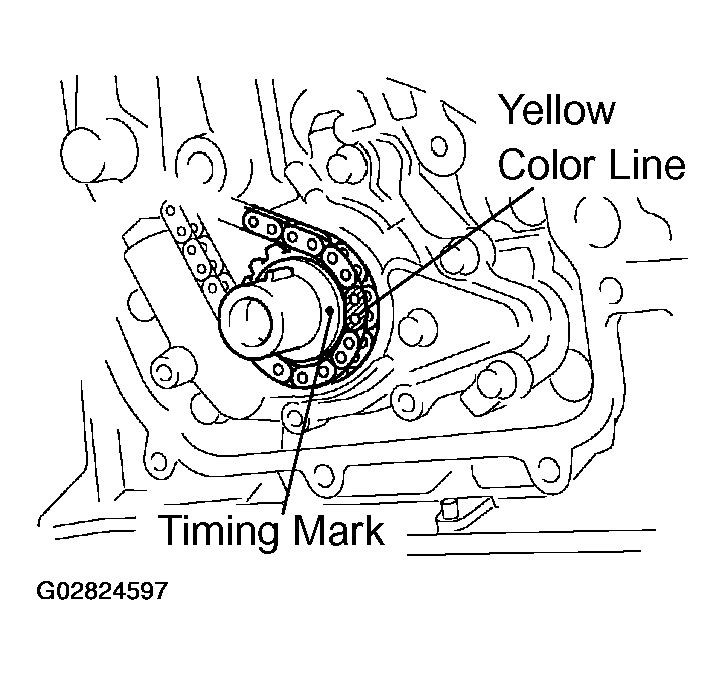

      Fig 22: Installing Timing Chain On Crankshaft Timing Sprocket
      G02824597Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Using SST, install the crankshaft timing sprocket.

      SST 09223-22010

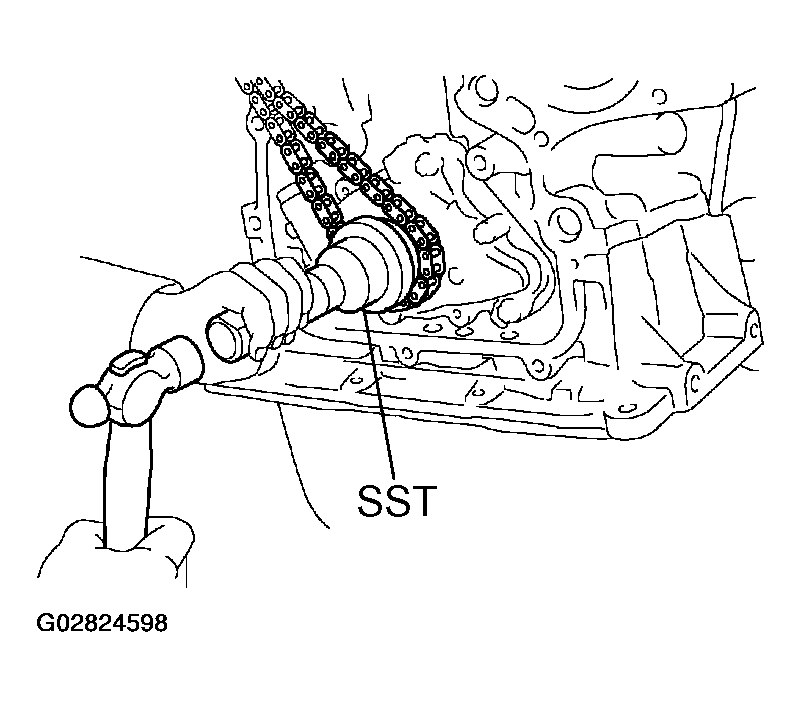

      Fig 23: Installing Crankshaft Timing Sprocket
      G02824598Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Install the timing chain on the camshaft timing sprockets with the yellow color links aligned with the timing marks on the camshaft timing sprockets.

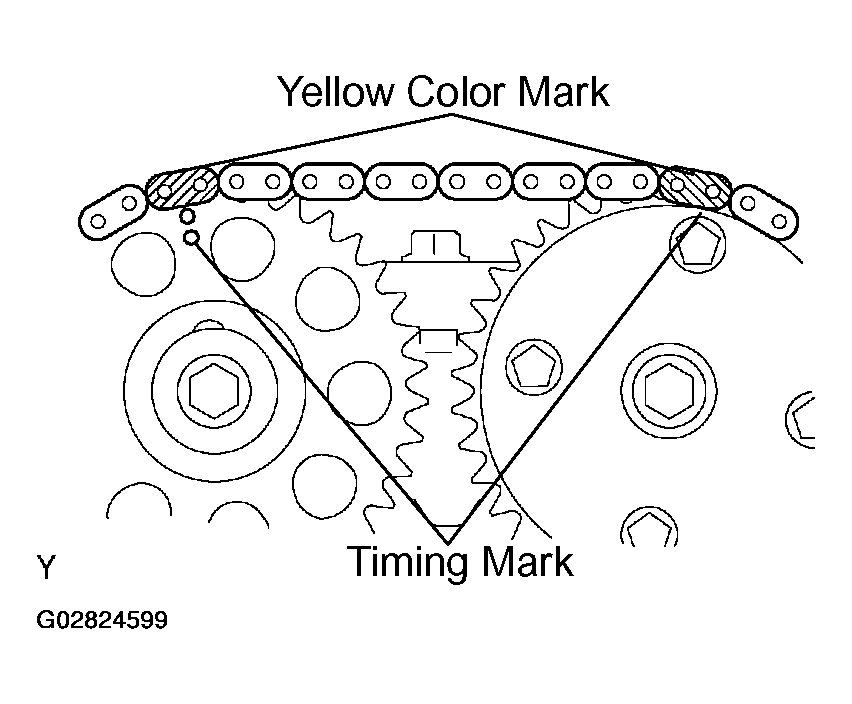

      Fig 24: Aligning Timing Marks On Camshaft Timing Sprockets
      G02824599Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  27. INSTALL CHAIN TENSIONER SLIPPER
    1. Install the chain tensioner slipper with the bolt.

      Torque: 19 N.m (194 kgf.cm, 14 ft.lbf)

  28. INSTALL CRANKSHAFT POSITION SENSOR PLATE NO. 1
    1. Install the plate with the "F" mark facing forward.
    Fig 25: Installing Crankshaft Position Sensor Plate
    G02824600Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  29. INSTALL TIMING GEAR COVER OIL SEAL
    1. Apply MP grease to a new oil seal lip.
    2. Using SST, tap in the oil seal until its surface is flush with the timing chain cover edge.

      SST 09223-22010

    NOTE: Keep the lip off foreign materials.

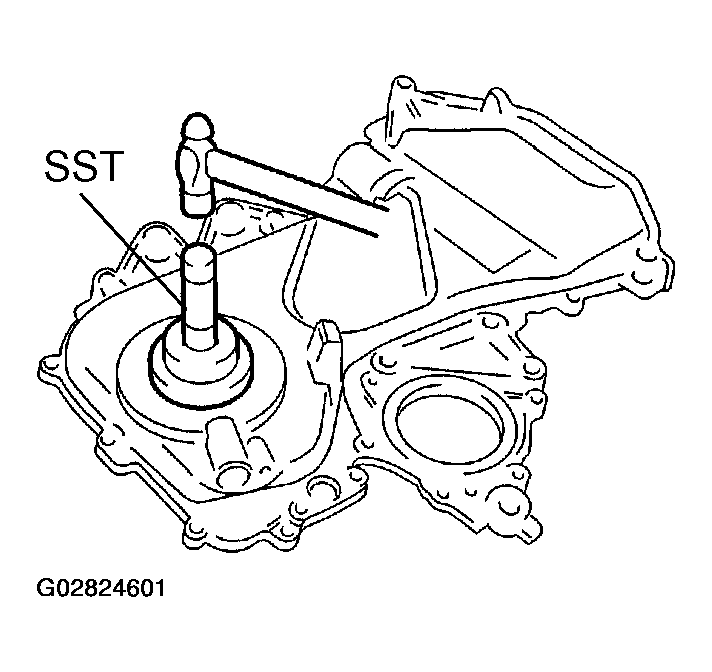

    Fig 26: Installing Timing Gear Cover Oil Seal
    G02824601Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  30. INSTALL TIMING CHAIN OR BELT COVER SUB-ASSY
    1. Remove any old packing material from the contact surface.
    2. Apply seal packing in the shape of bead (Diameter 3.5 mm - 4.5 mm (0.1379 - 0.177 in.)) consequently as shown in the illustration.

      Seal packing:

      Water pump part No. 08826-00100 or equivalent Other part No. 08826-00080 or equivalent.

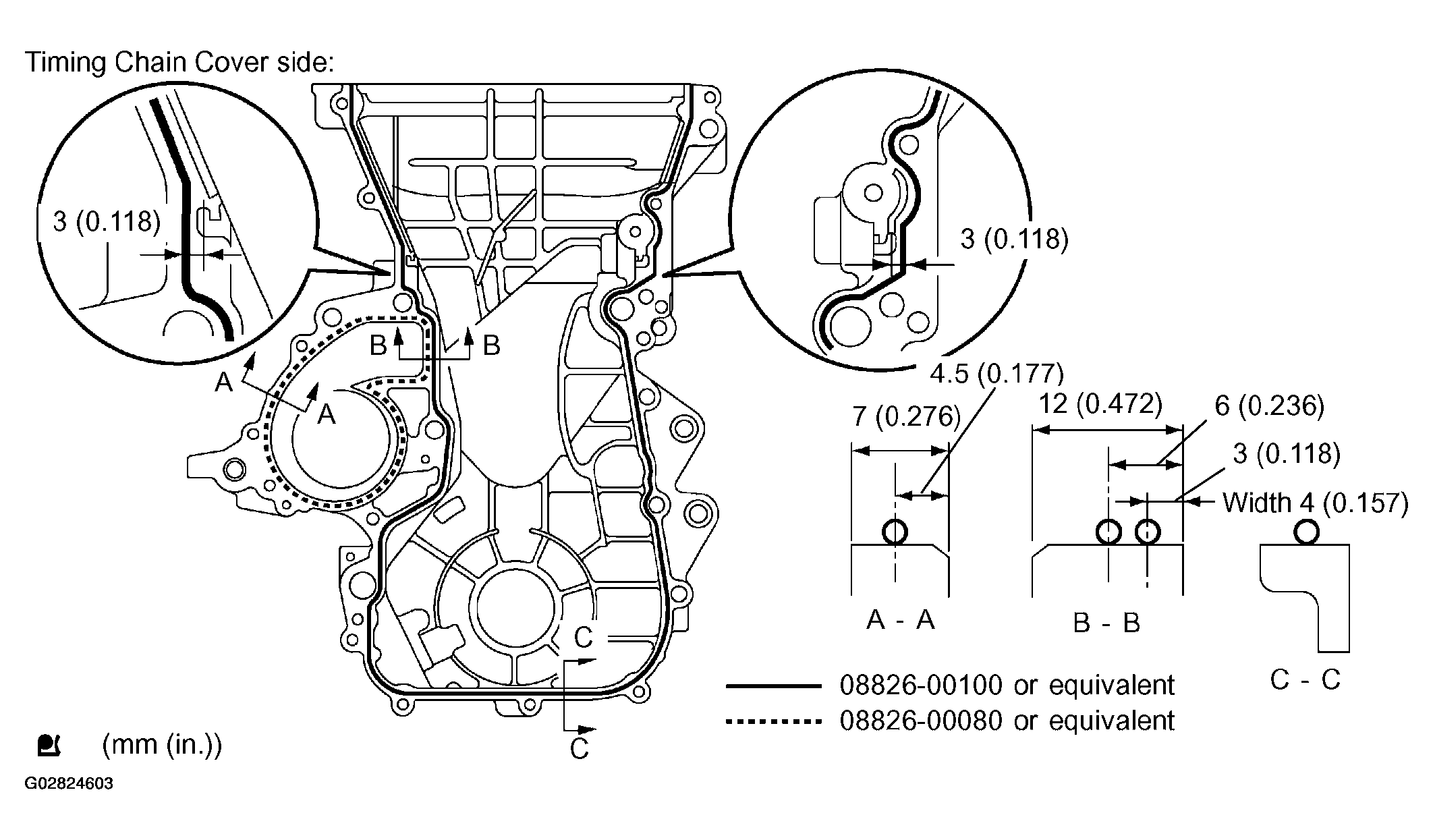

      Fig 27: Applying Seal Packing
      G02824602Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE:
      • Remove any oil from the contact surface.
      • Install the oil pan within 3 minutes after applying seal packing.
      • Do not put into engine oil within 2 hours after installing.

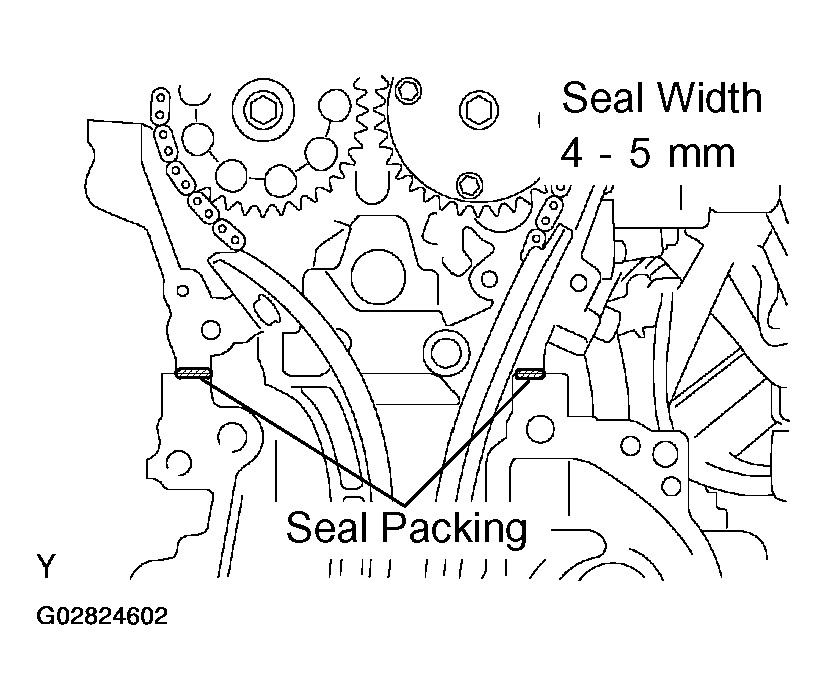

      Fig 28: Applying Seal Packing
      G02824603Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Install the timing chain cover with the 11 bolts and nut.

      Torque:

      13 N.m (133 kgf.cm, 10 ft.lbf)

      19 N.m (194 kgf.cm, 14 ft.lbf)

    4. Using a Torx wrench socket (E8), install the stud bolt.

      Torque: 9.5 N.m (97 kgf.cm, 84 in. lbf)

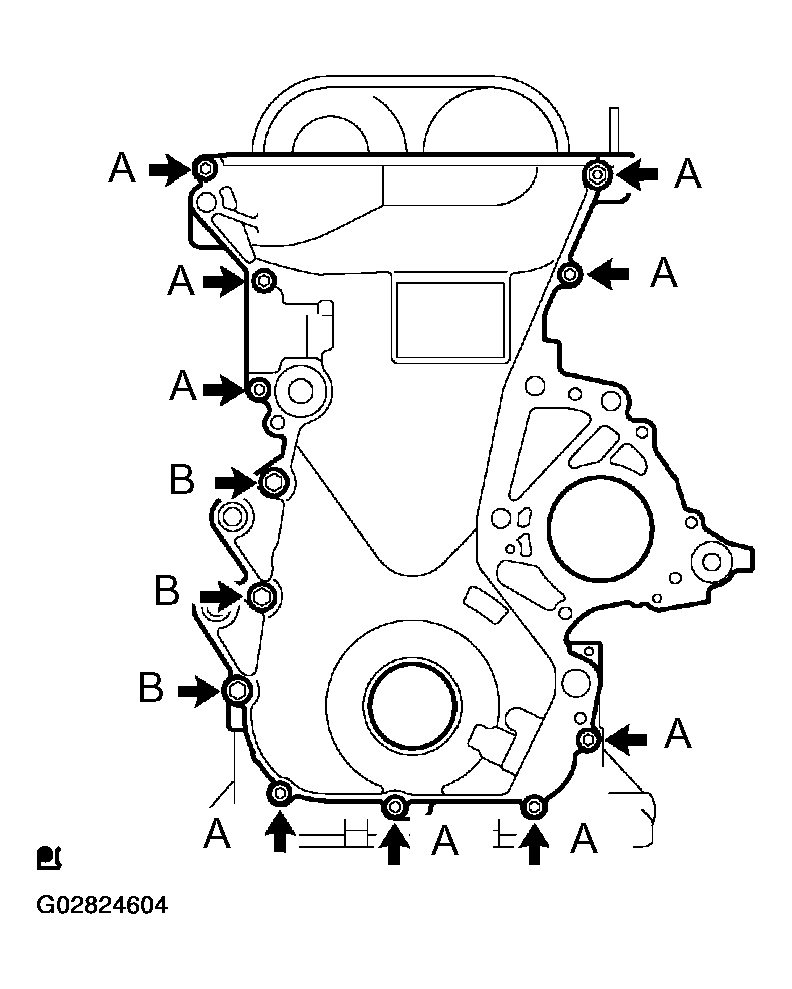

    Fig 29: Installing Timing Chain Cover
    G02824604Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  31. INSTALL CHAIN TENSIONER ASSY NO.1
    1. Check the O-ring is clean, and set the hook as shown in the illustration.
      Fig 30: Checking O-Ring And Set Hook
      G02824605Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Apply engine oil to the chain tensioner and install it with 2 nuts.

      Torque: 9.0 N.m (92 kgf.cm, 80 in. lbf)

    NOTE: When installing the tensioner, set the hook again if the hook release the plunger.
    Fig 31: Applying Engine Oil To Chain Tensioner
    G02824606Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  32. INSTALL CRANK POSITION SENSOR
    1. Install the crank position sensor with the 2 bolts.

      Torque: 9.0 N.m (92 kgf.cm, 80 in. lbf)

    Fig 32: Installing Crank Position Sensor
    G02824607Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  33. INSTALL TRANSVERSE ENGINE MOUNTING BRACKET
    1. Install the transverse engine mounting bracket with the 3 bolts.

      Torque: 47 N.m (479 kgf.cm, 35 ft.lbf)

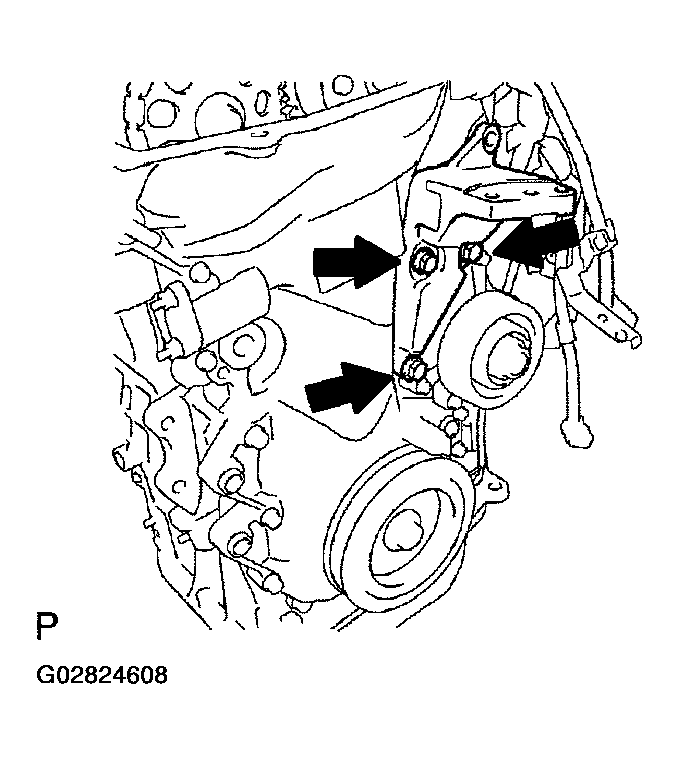

    Fig 33: Installing Transverse Engine Mounting Bracket
    G02824608Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  34. INSTALL WATER PUMP ASSY (See  WATER PUMP ASSEMBLY  )
  35. INSTALL V-RIBBED BELT TENSIONER ASSY
    1. Install the V-ribbed belt tensioner with the nut and bolt.

      Torque:

      Nut 29 N.m (296 kgf.cm, 21 ft.lbf)

      Bolt 69 N.m (704 kgf.cm, 51 ft.lbf)

    Fig 34: Installing V-Ribbed Belt Tensioner
    G02824609Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  36. INSTALL CRANKSHAFT PULLEY
    1. Align the pulley set key with the key groove of the pulley, and slide on the pulley.

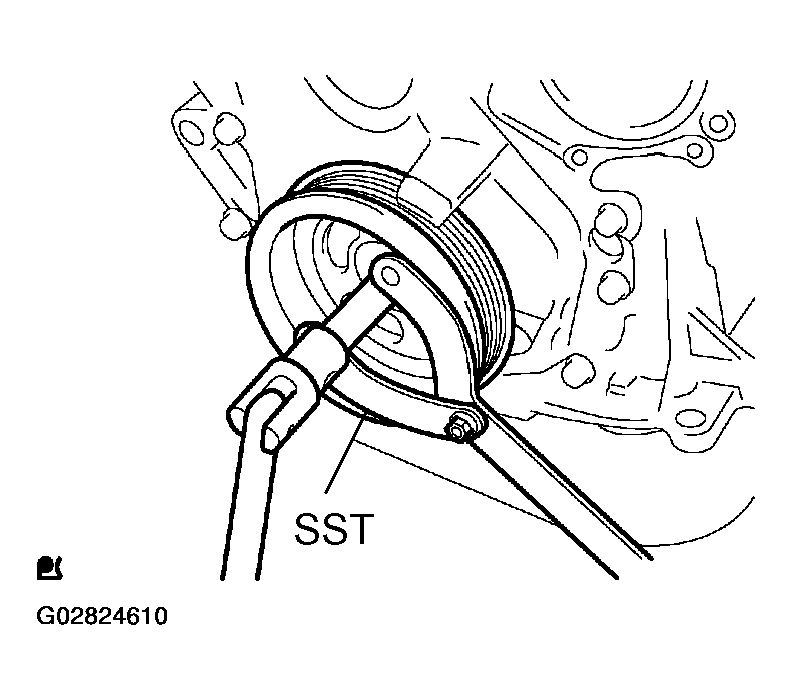

    2. Using SST, install the crankshaft pulley bolt.

      SST 09960-10010 (09962-01000, 09963-01000)

      Torque: 138 N.m (1,407 kgf.cm, 102 ft.lbf)

      Fig 35: Installing Crankshaft Pulley
      G02824610Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Turn the crankshaft counter clockwise, and disconnect the plunger knock pin form the hook.

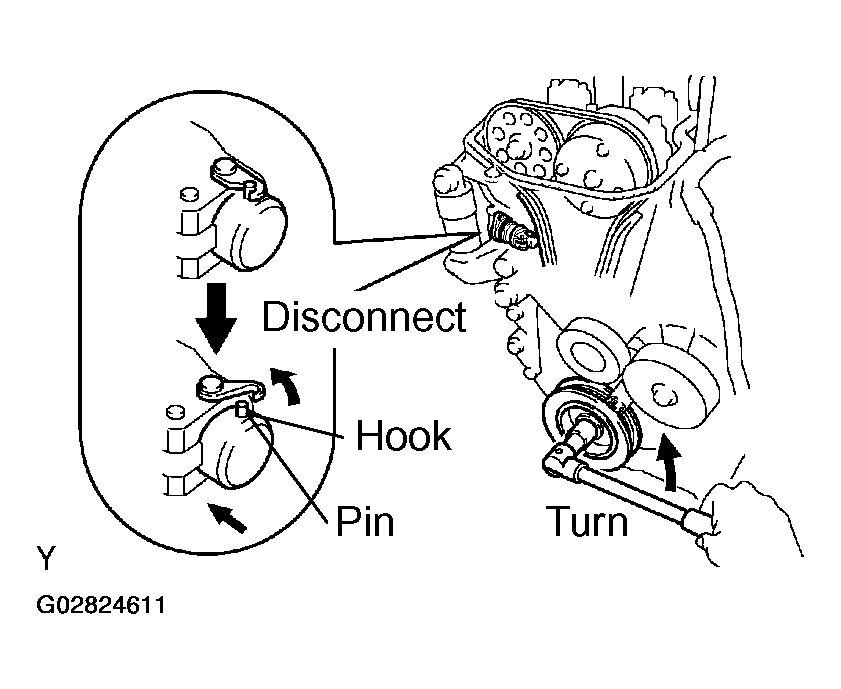

      Fig 36: Disconnect Plunger Knock Pin From Hook
      G02824611Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Turn the crankshaft clockwise, and check that the slipper is pushed by the plunger.

    HINT:

    If the plunger does not spring out, press the slipper into the chain tensioner with a screwdriver so that the hook is released from the knock pin and the plunger springs out.

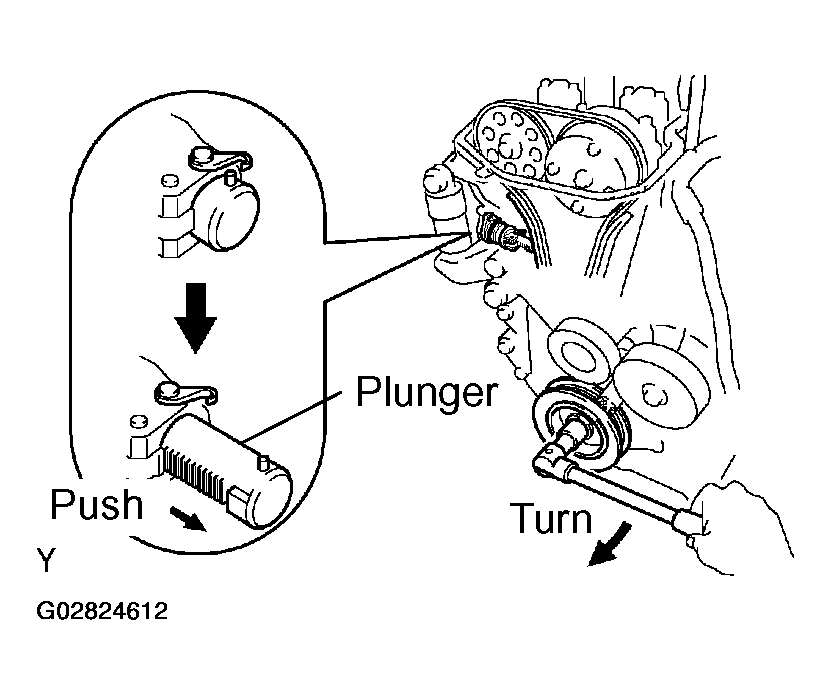

    Fig 37: Locating Plunger
    G02824612Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  37. INSTALL CYLINDER HEAD COVER SUB-ASSY
    1. Remove any old pacing (FIPG) material.
    2. Apply seal packing to 2 locations as shown in the illustration.

      Seal packing: Part No. 08826-00080 or equivalent

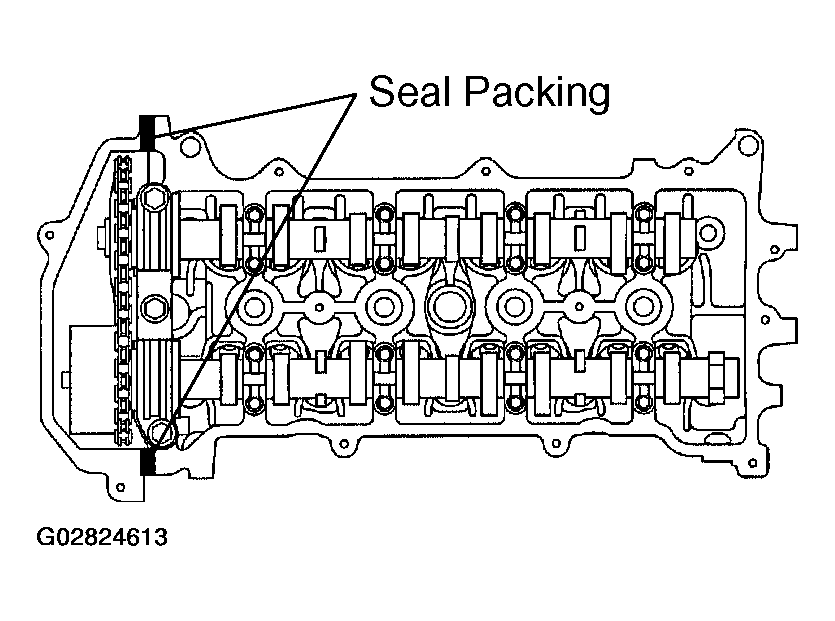

      Fig 38: Applying Seal Packing To 2 Locations
      G02824613Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE:
      • Remove any oil from the contact surface.
      • Install the cylinder head cover within 3 minutes after applying seal packing.
      • Do not put into engine oil 2 hours after installing.
    3. Install the cylinder head cover and 3 cable brackets with the 9 bolts, 2 seal washers and 2 nuts. Uniformly tighten the bolts and nuts, in the several passes.

      Torque:

      A 11 N.m (112 kgf.cm, 8 ft.lbf)

      B 9.0 N.m (92 kgf.cm, 80 in. lbf)

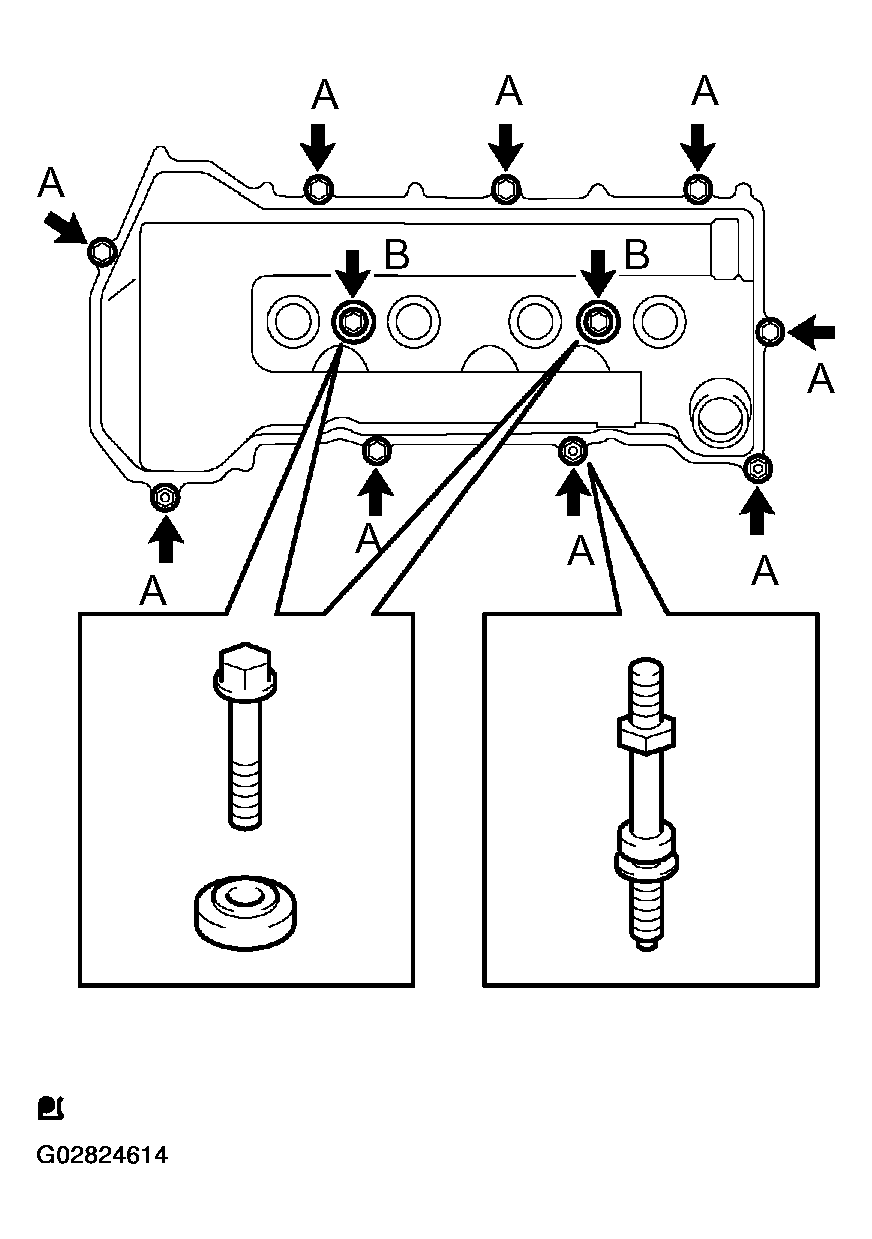

      Fig 39: Installing Cylinder Head Cover
      G02824614Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  38. INSTALL IGNITION COIL ASSY
    1. Install the 4 ignition coils with the 4 bolts.

      Torque: 9.0 N.m (92 kgf.cm, 80 in. lbf)

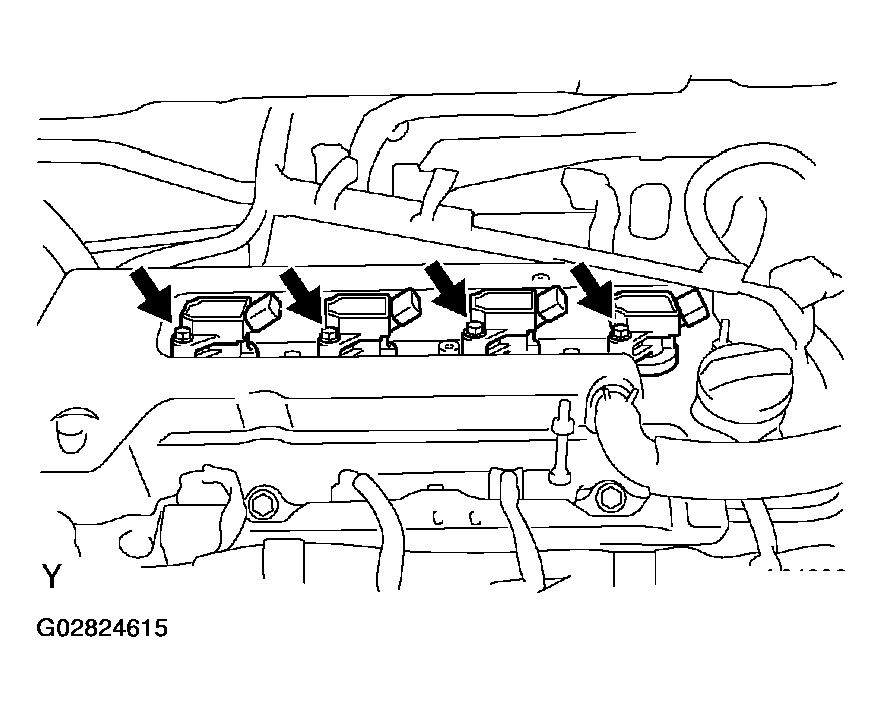

    Fig 40: Installing Ignition Coil Assy
    G02824615Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  39. INSTALL ENGINE WIRE
    1. Install the engine wire with the bolt and nut.

      Torque: 9.0 N.m (92 kgf.cm, 80 in. lbf)

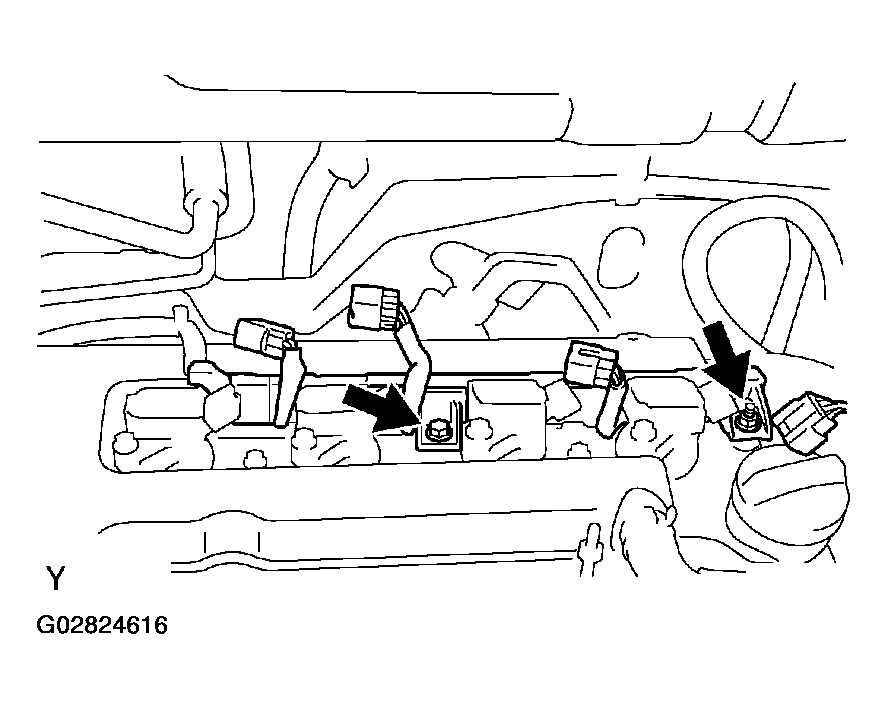

    Fig 41: Installing Engine Wire With Bolt & Nut
    G02824616Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  40. INSTALL ENGINE MOUNTING INSULATOR SUB-ASSY RH
    1. Install the engine mounting insulator with the 4 bolts and 2 nuts.

      Torque: 52 N.m (530 kgf.cm, 38 ft.lbf)

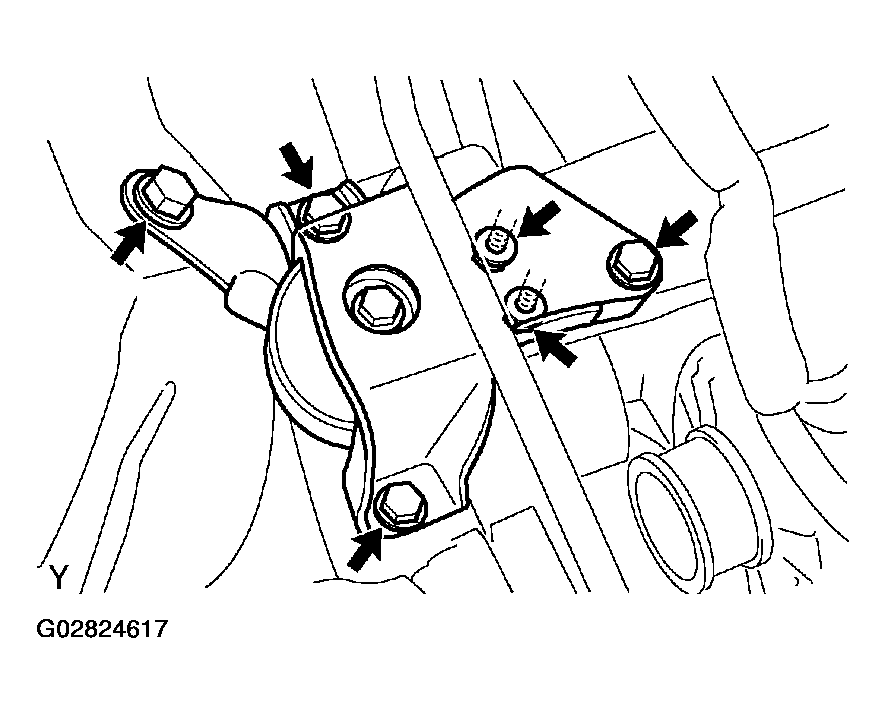

    Fig 42: Installing Engine Mounting
    G02824617Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  41. INSTALL GENERATOR ASSY (See  GENERATOR  )
  42. INSTALL POWER STEERNG VANE PUMP ASSY

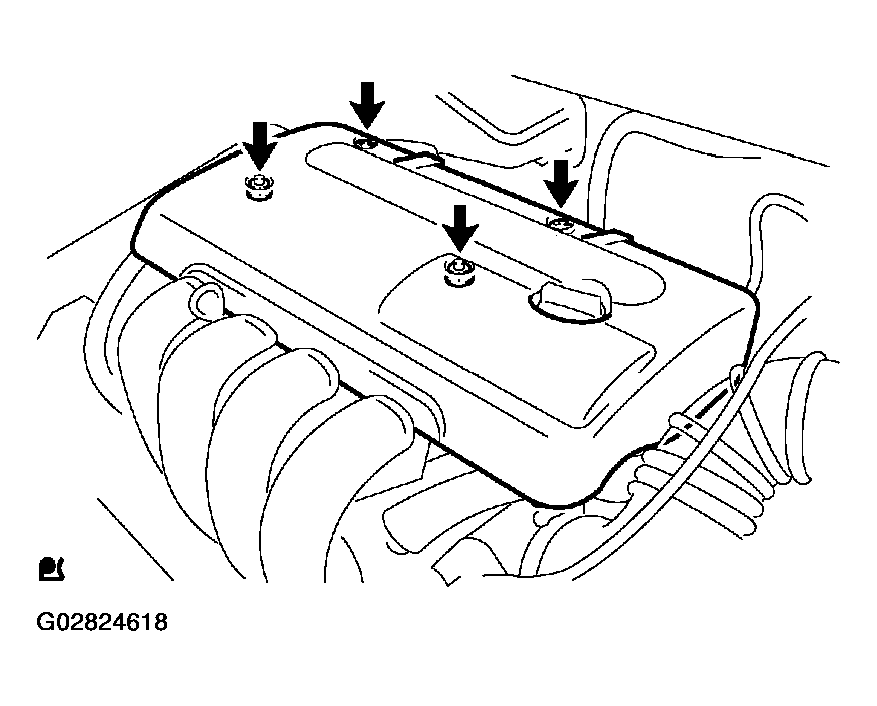

  43. INSTALL CYLINDER HEAD COVER NO.2
    1. Install the cylinder head cover with the 2 nuts and 2 clips.

      Torque: 7.0 N.m (71 kgf.cm, 62 in. lbf)

    Fig 43: Installing Cylinder Head Cover
    G02824618Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  44. INSTALL FRONT WHEEL RH

    Torque: 103 N.m (1,050 kgf.cm, 76 ft.lbf)

  45. ADD COOLANT (See  REPLACEMENT  )
  46. CHECK ENGINE COOLANT LEAK (See  REPLACEMENT  )
  47. CHECK ENGINE OIL LEAK
