Fuel EVAP System Test (Highlander)

For fuel EVAP system test, see Fig 1-Fig 5 .

Fig 1: Testing Fuel EVAP System - 1 Of 5 (Highlander)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

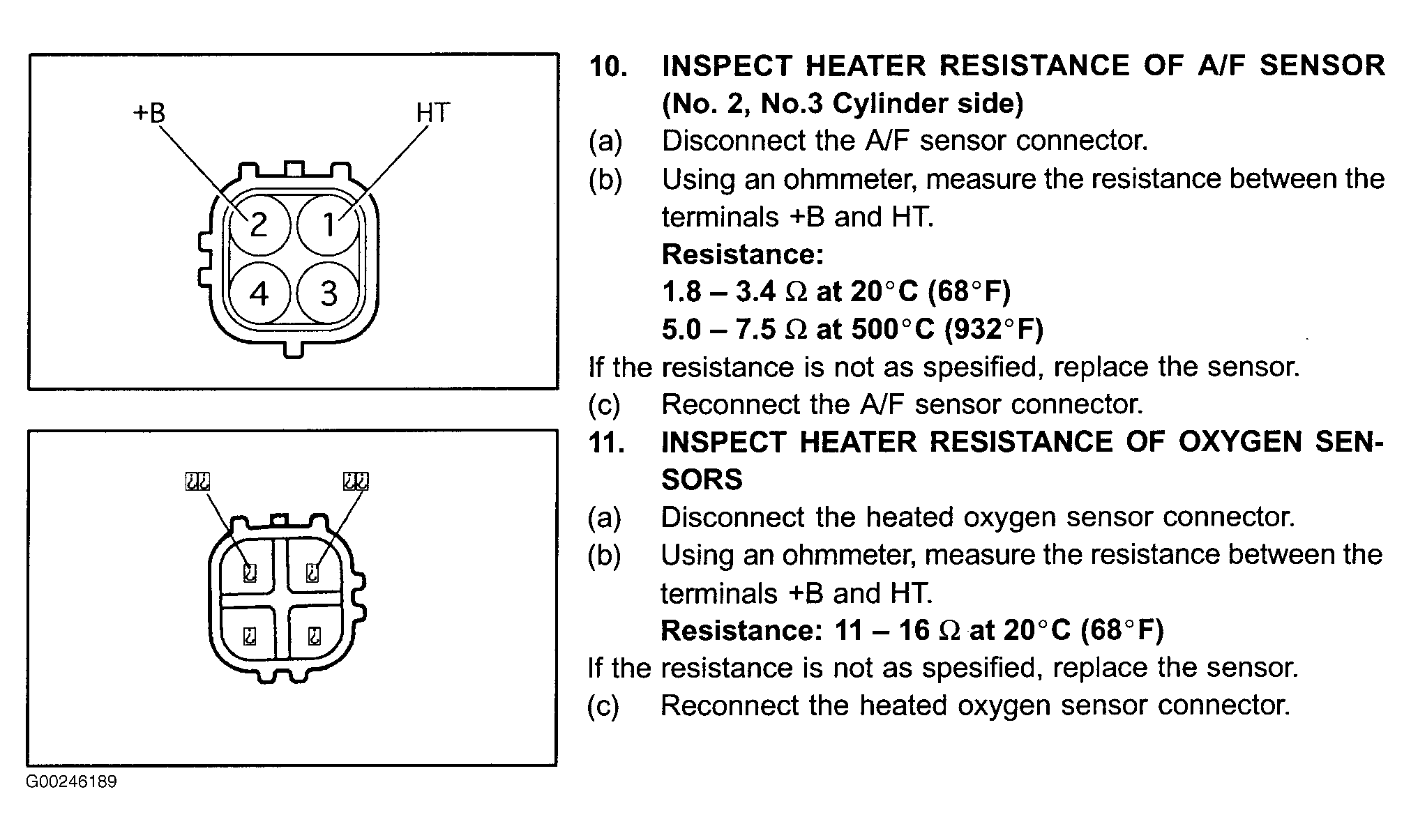

Fig 2: Testing Fuel EVAP System - 2 Of 5 (Highlander)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

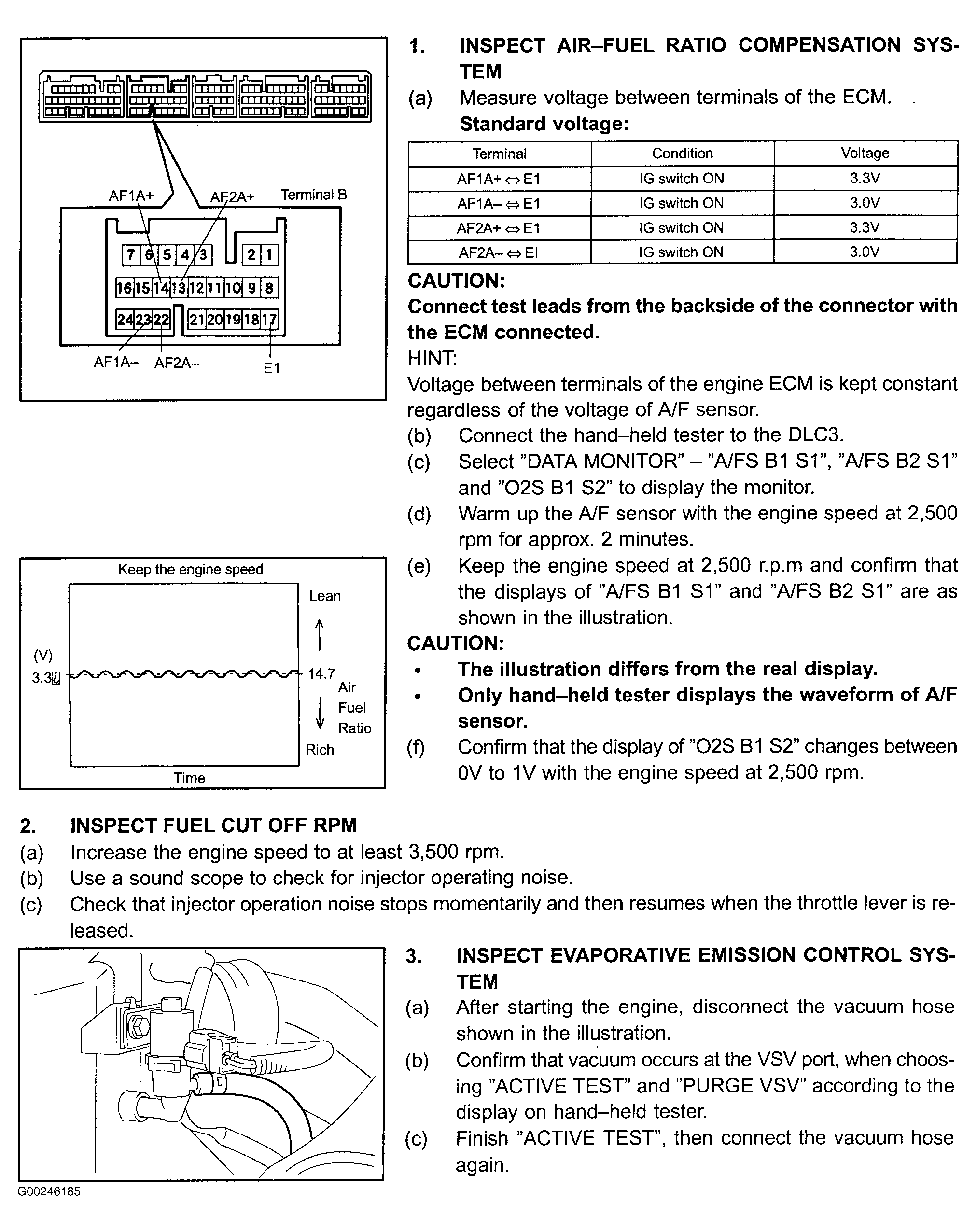

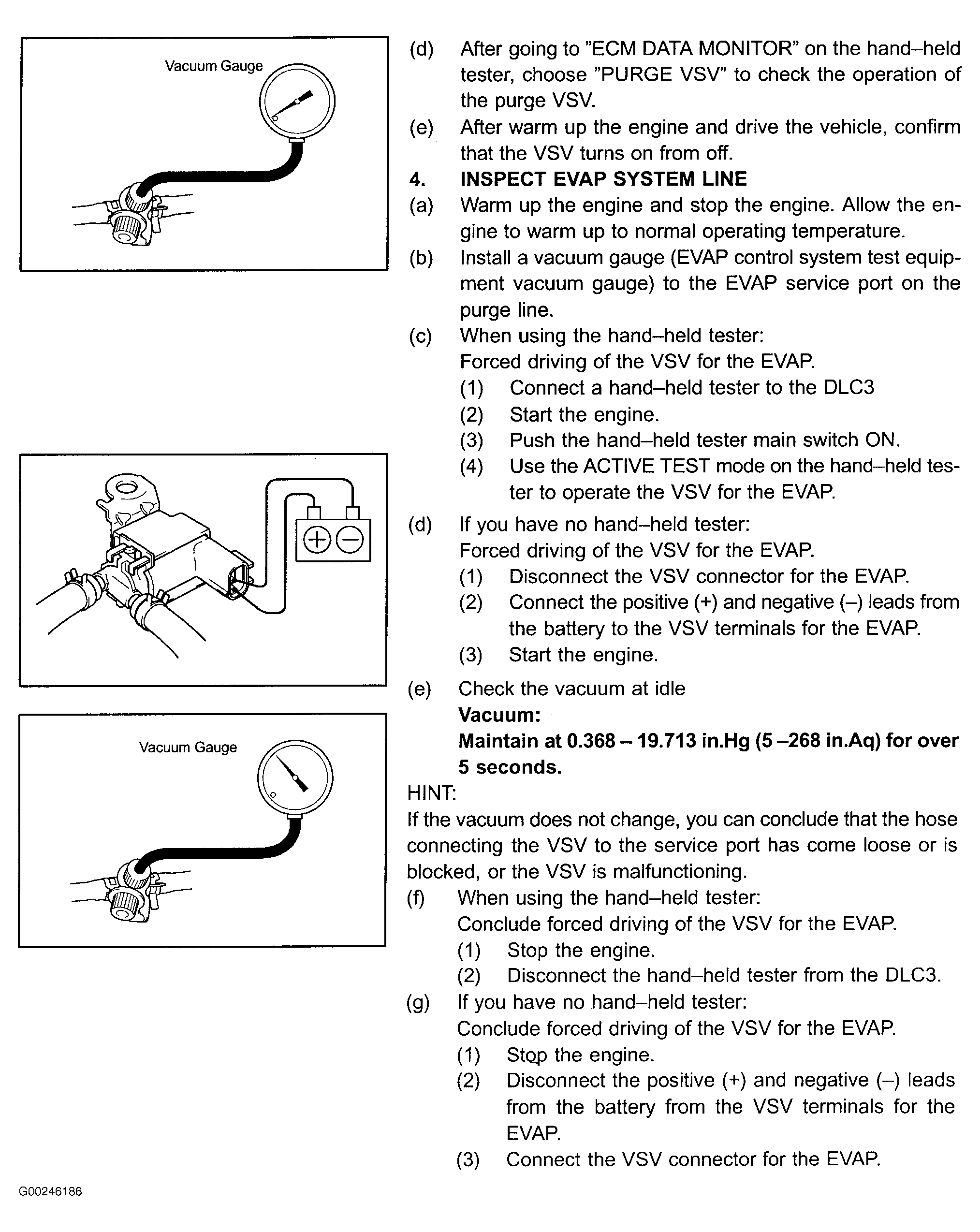

Fig 3: Testing Fuel EVAP System - 3 Of 5 (Highlander)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

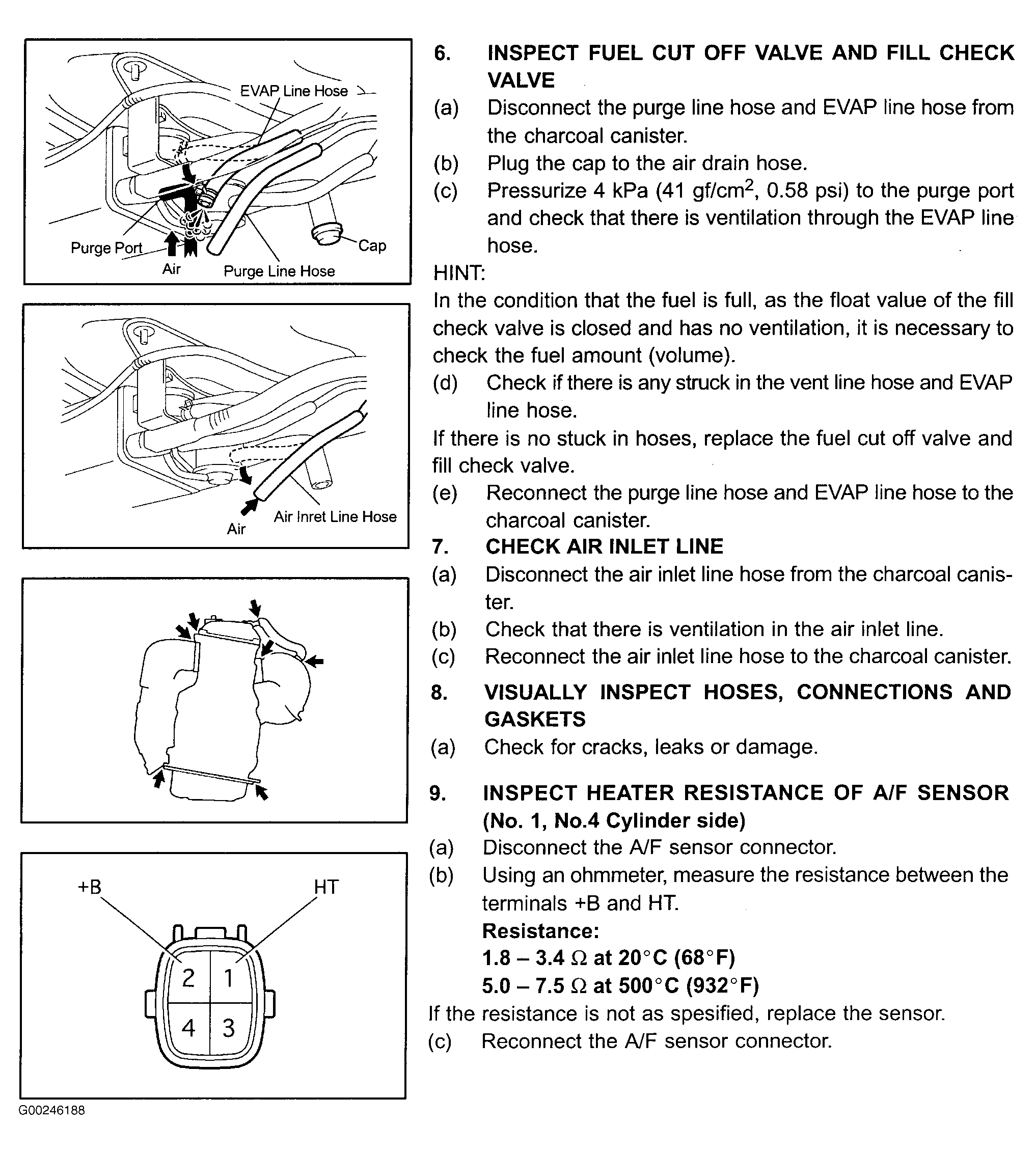

Fig 4: Testing Fuel EVAP System - 4 Of 5 (Highlander)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

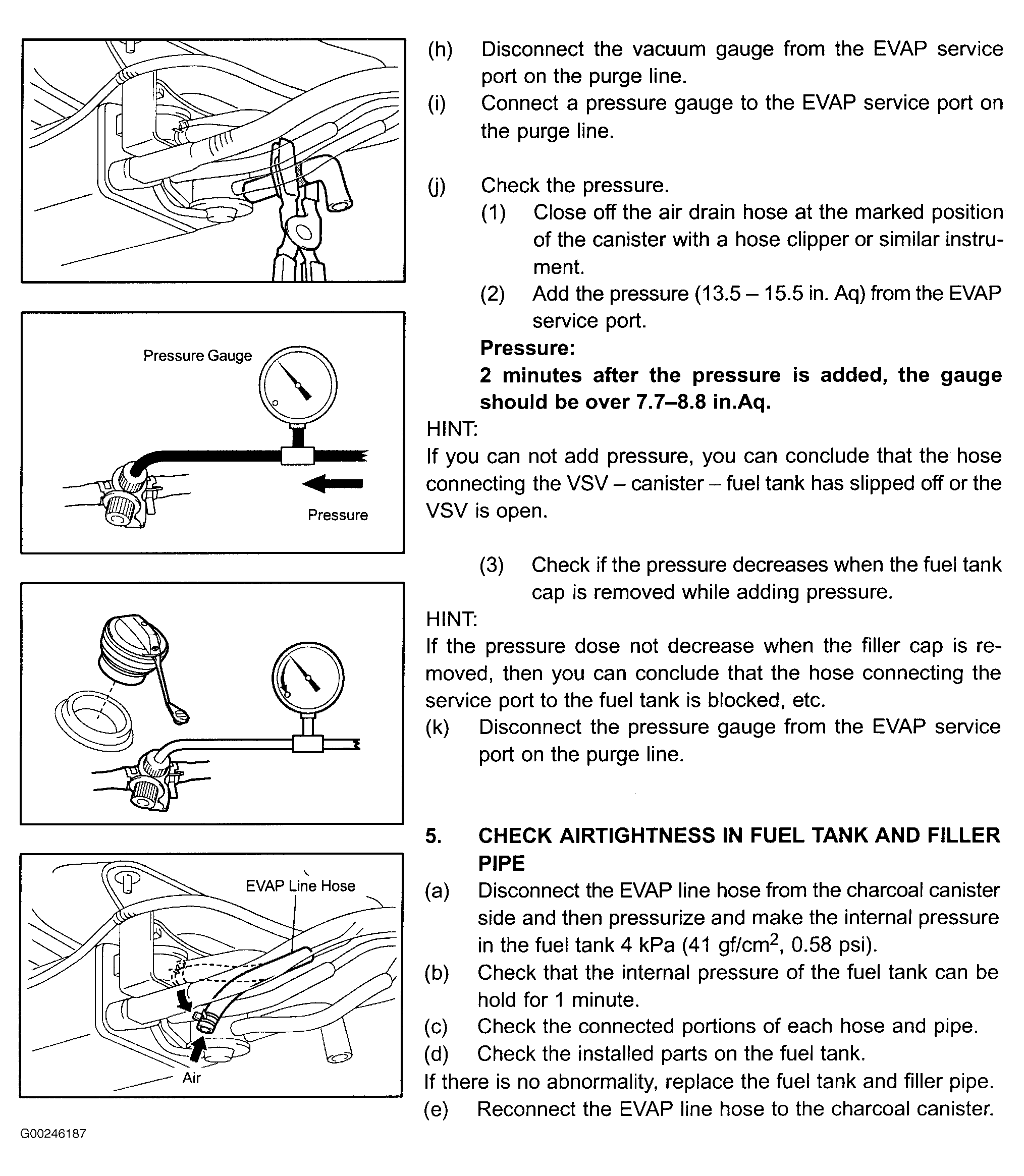

Fig 5: Testing Fuel EVAP System - 5 Of 5 (Highlander)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
