Fuel EVAP System Test (RAV4)

NOTE: Manufacturer provides testing information for testing airtightness of fuel tank and components along with testing of charcoal canister and fuel EVAP system.

For fuel EVAP system test, see Fig 1-Fig 5 .

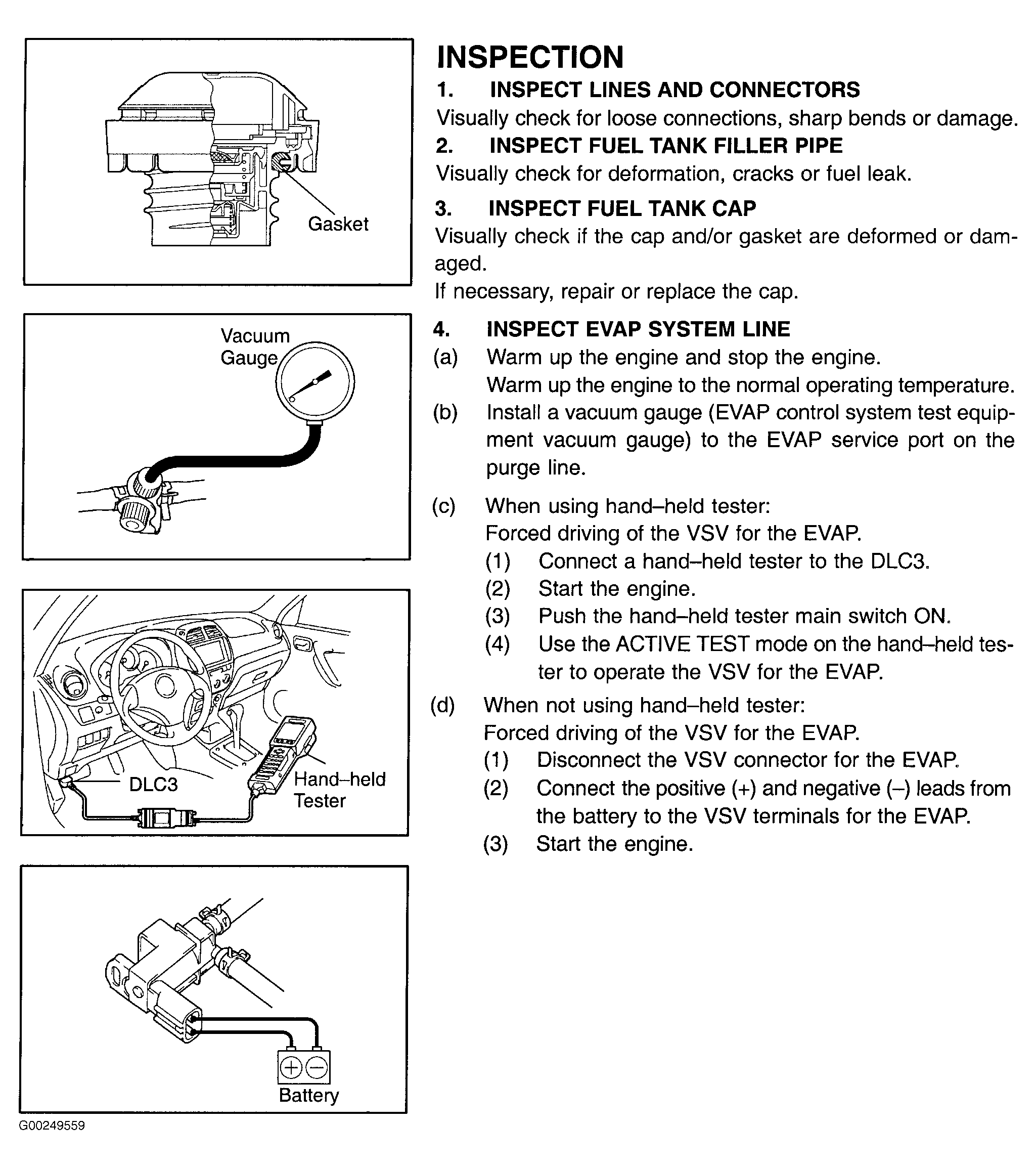

Fig 1: Testing Fuel EVAP System - 1 Of 5 (RAV4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

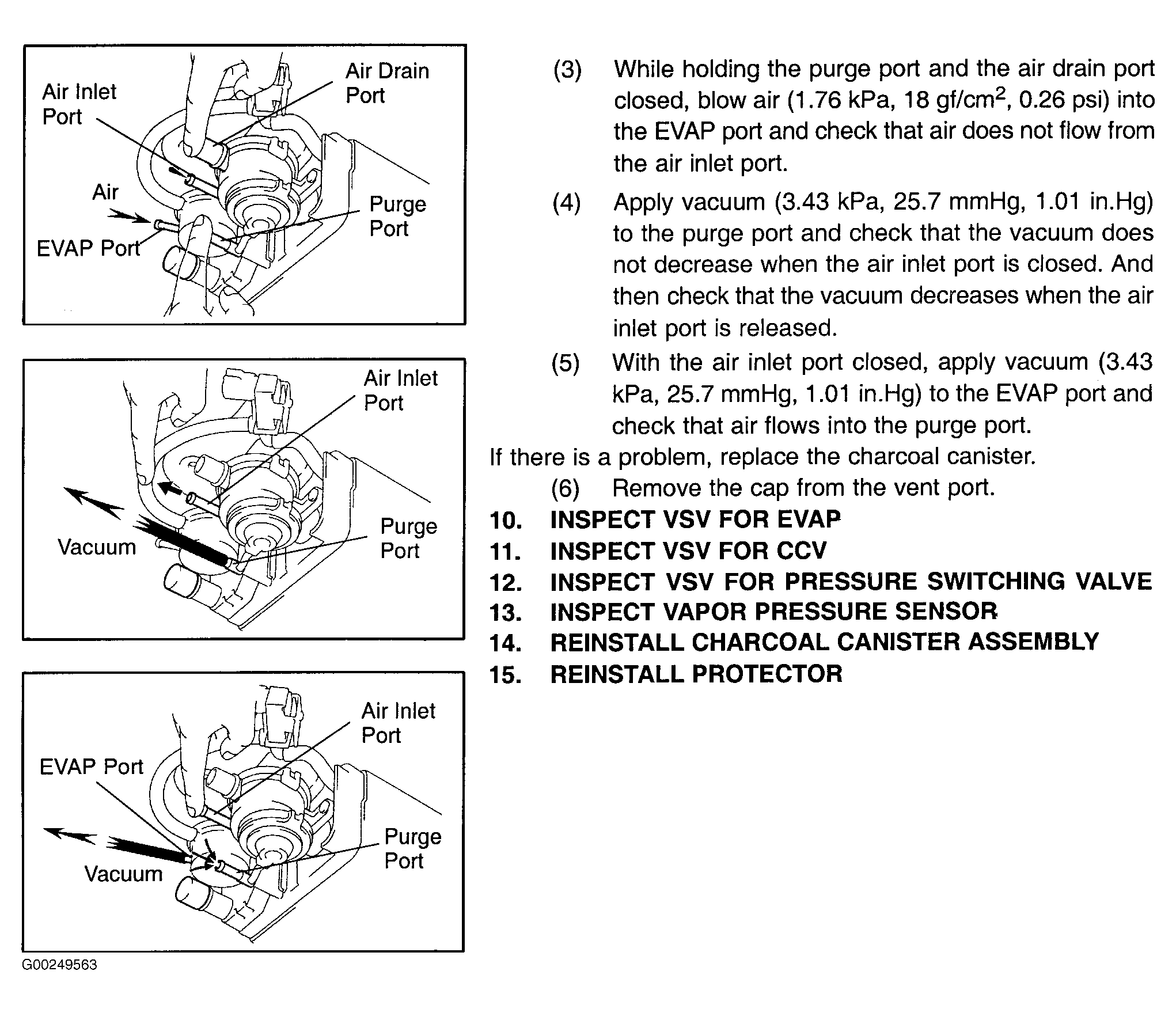

Fig 2: Testing Fuel EVAP System - 2 Of 5 (RAV4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

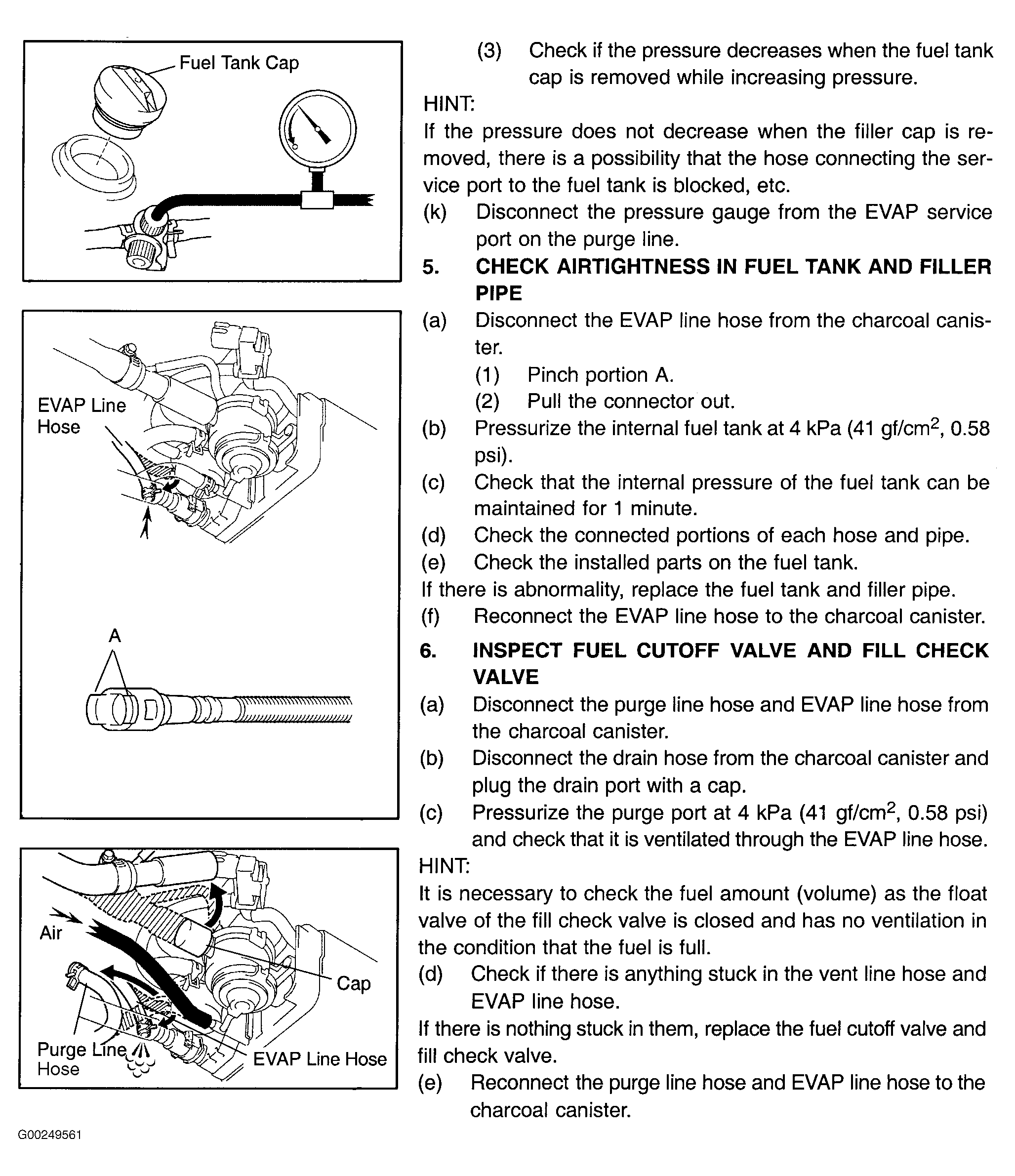

Fig 3: Testing Fuel EVAP System - 3 Of 5 (RAV4)

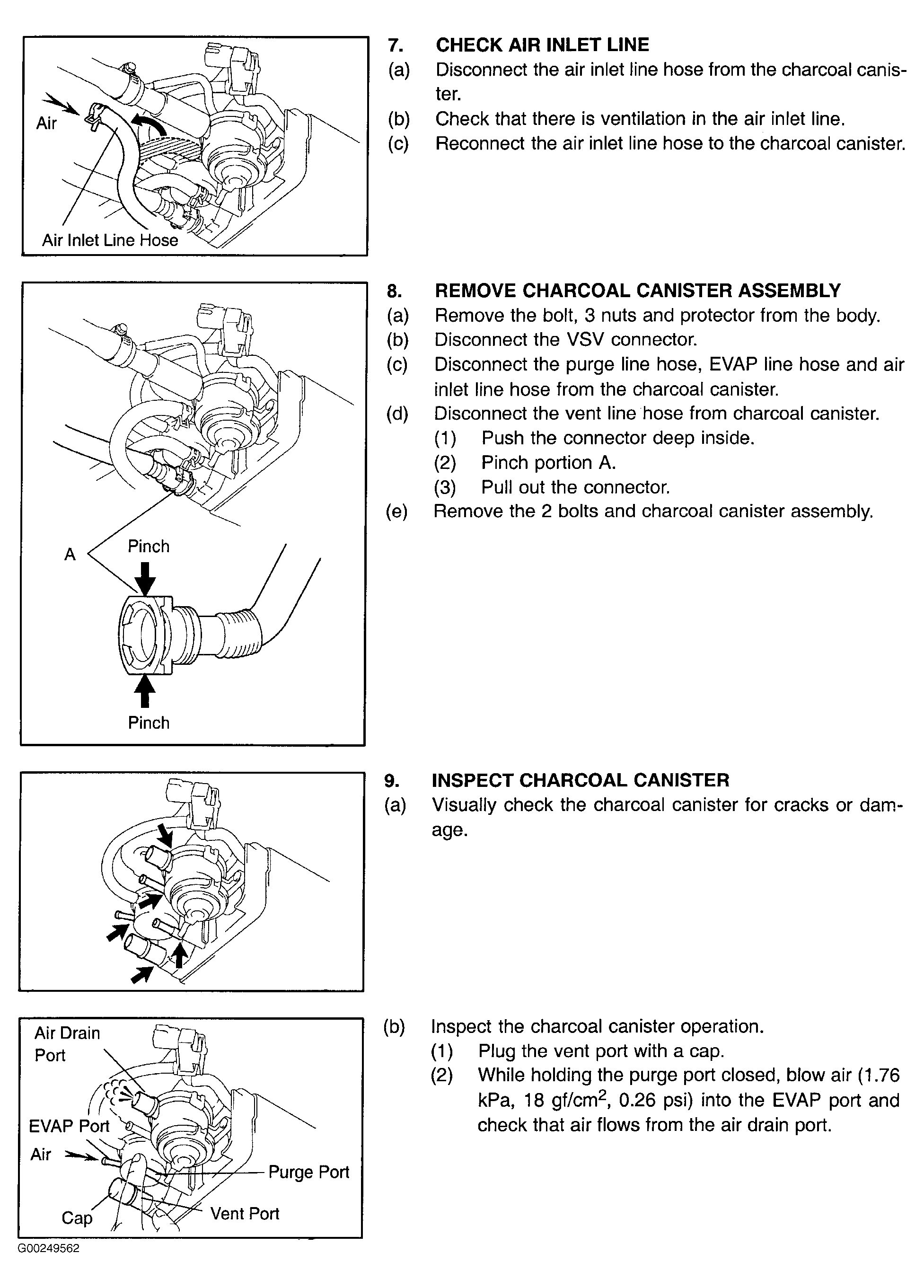

Fig 4: Testing Fuel EVAP System - 4 Of 5 (RAV4)

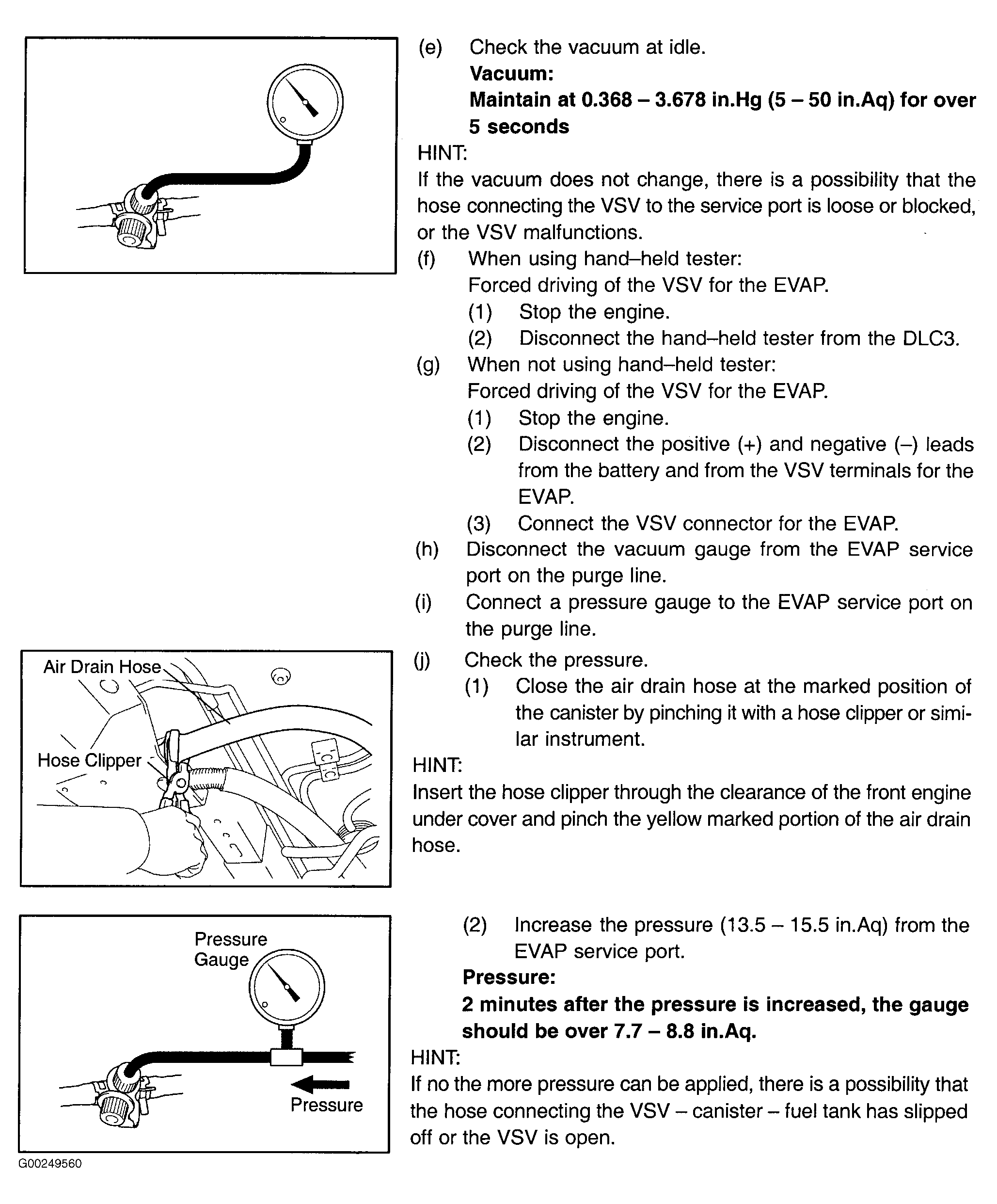

Fig 5: Testing Fuel EVAP System - 5 Of 5 (RAV4)
