Fuel Injectors (Camry Solara)

For fuel injector testing procedures, see Fig 1-Fig 2 .

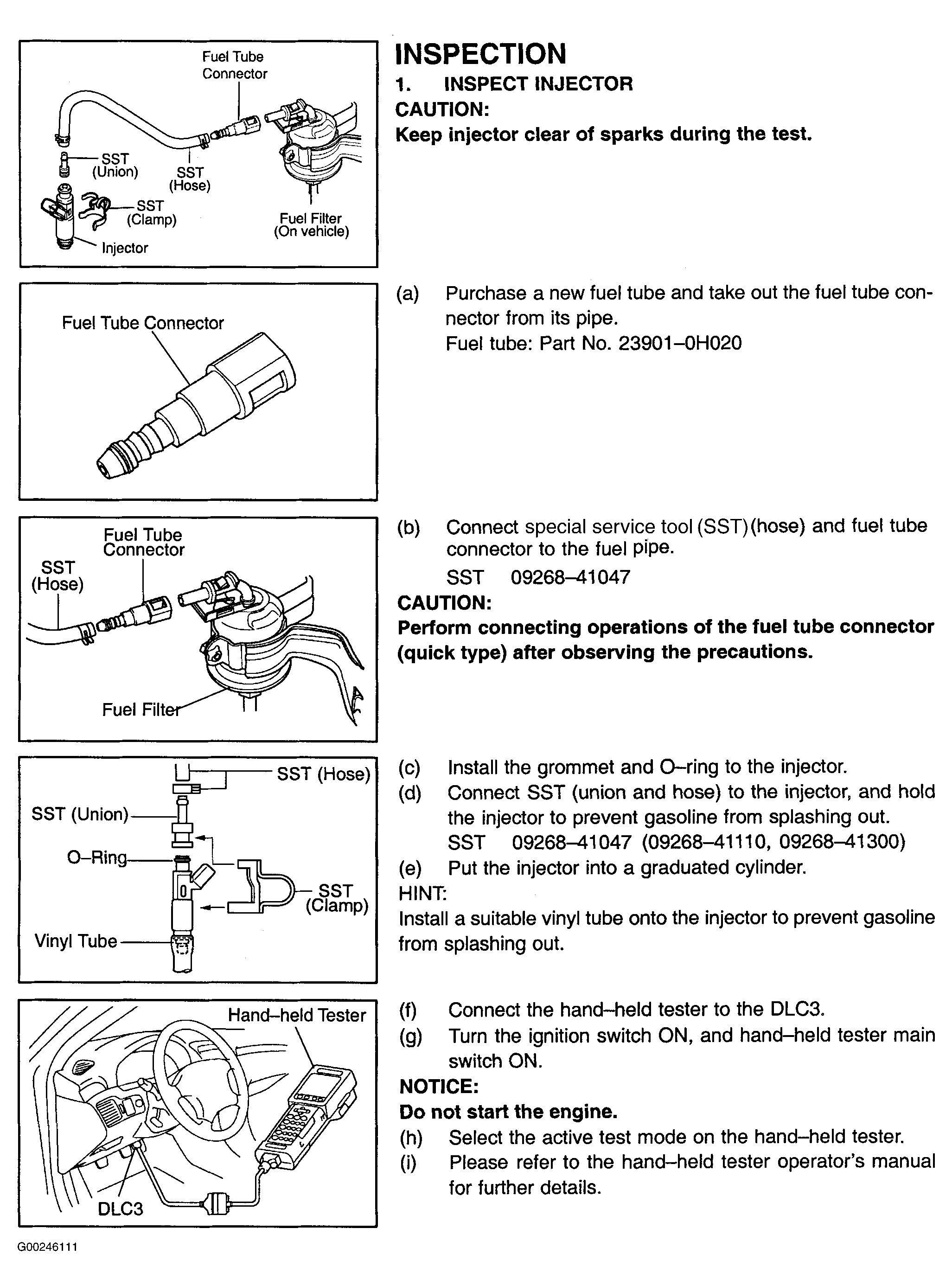

Fig 1: Testing Fuel Injectors - 1 Of 2 (Camry Solara)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

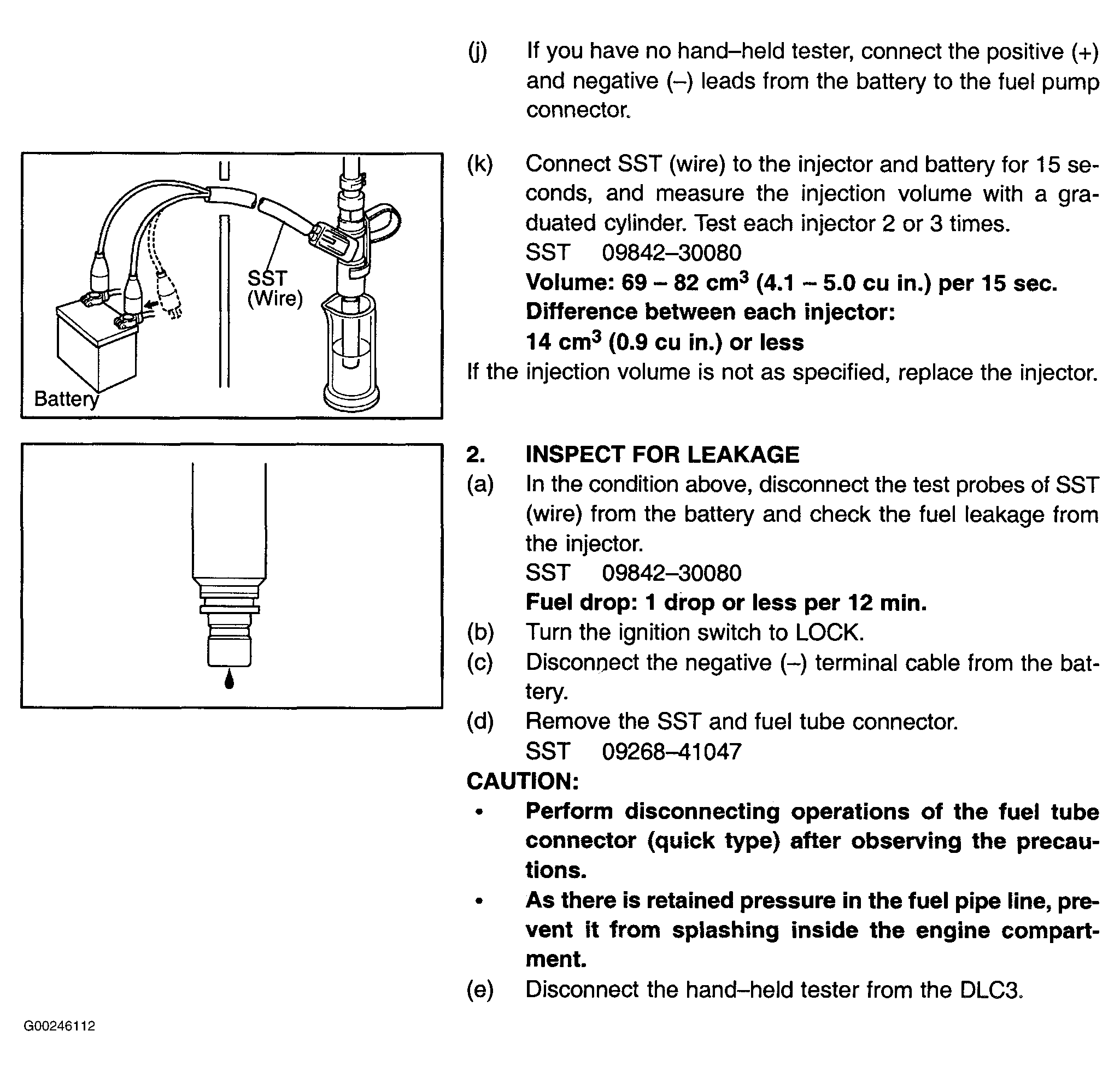

Fig 2: Testing Fuel Injectors - 2 Of 2 (Camry Solara)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
