Engine Controls - System & Component Testing - 4-Cylinder
›
Fuel Systems
›
Fuel Control
›
Fuel Injectors (Prius)
Fuel Injectors (Prius)
WARNING:
On Prius, read service precautions before proceeding with service procedure. See
SERVICE PRECAUTIONS
.
For fuel injector testing procedures, see
Fig 1
-
Fig 2
.

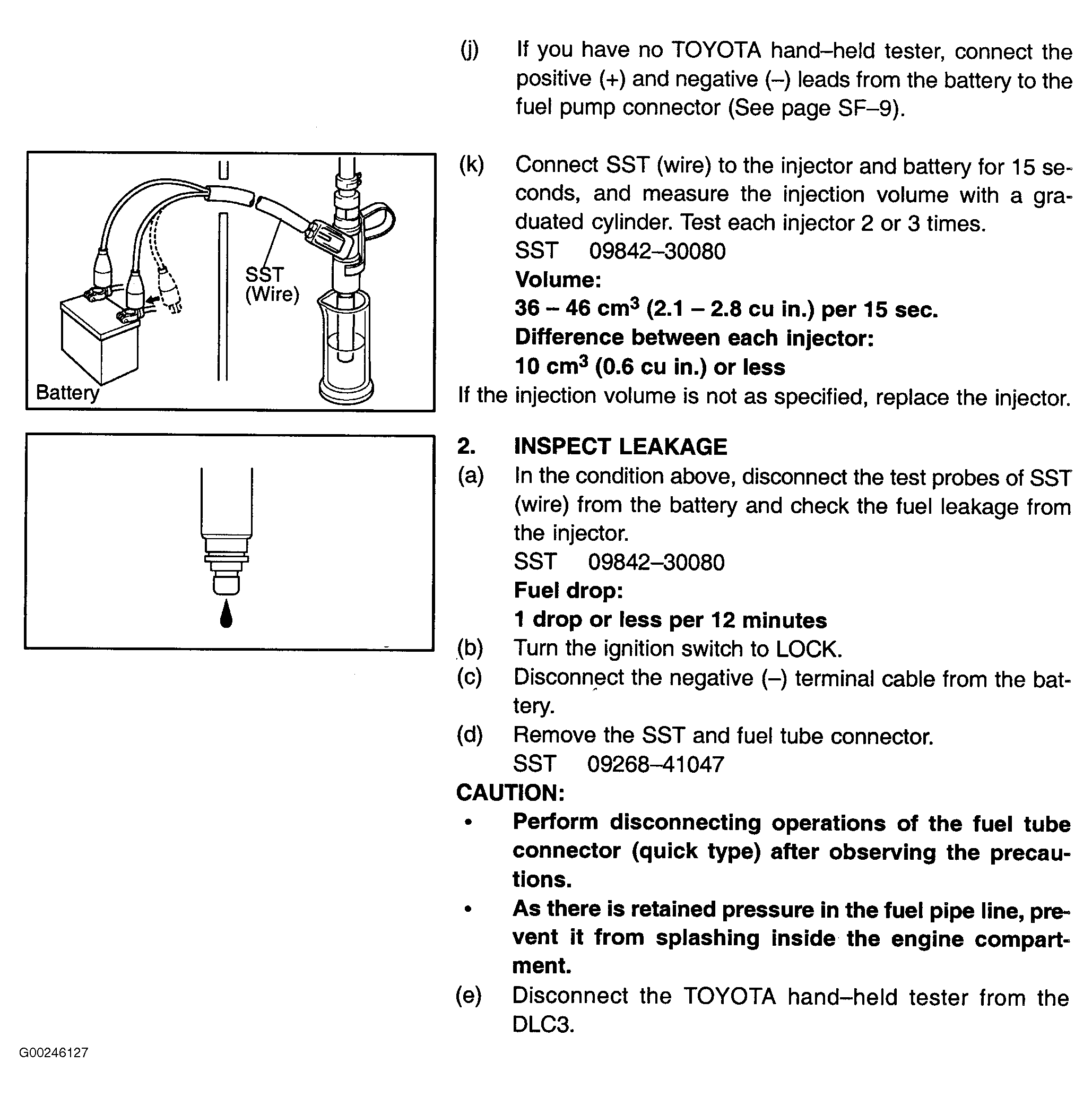

Fig 1: Testing Fuel Injectors - 1 Of 2 (Prius)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

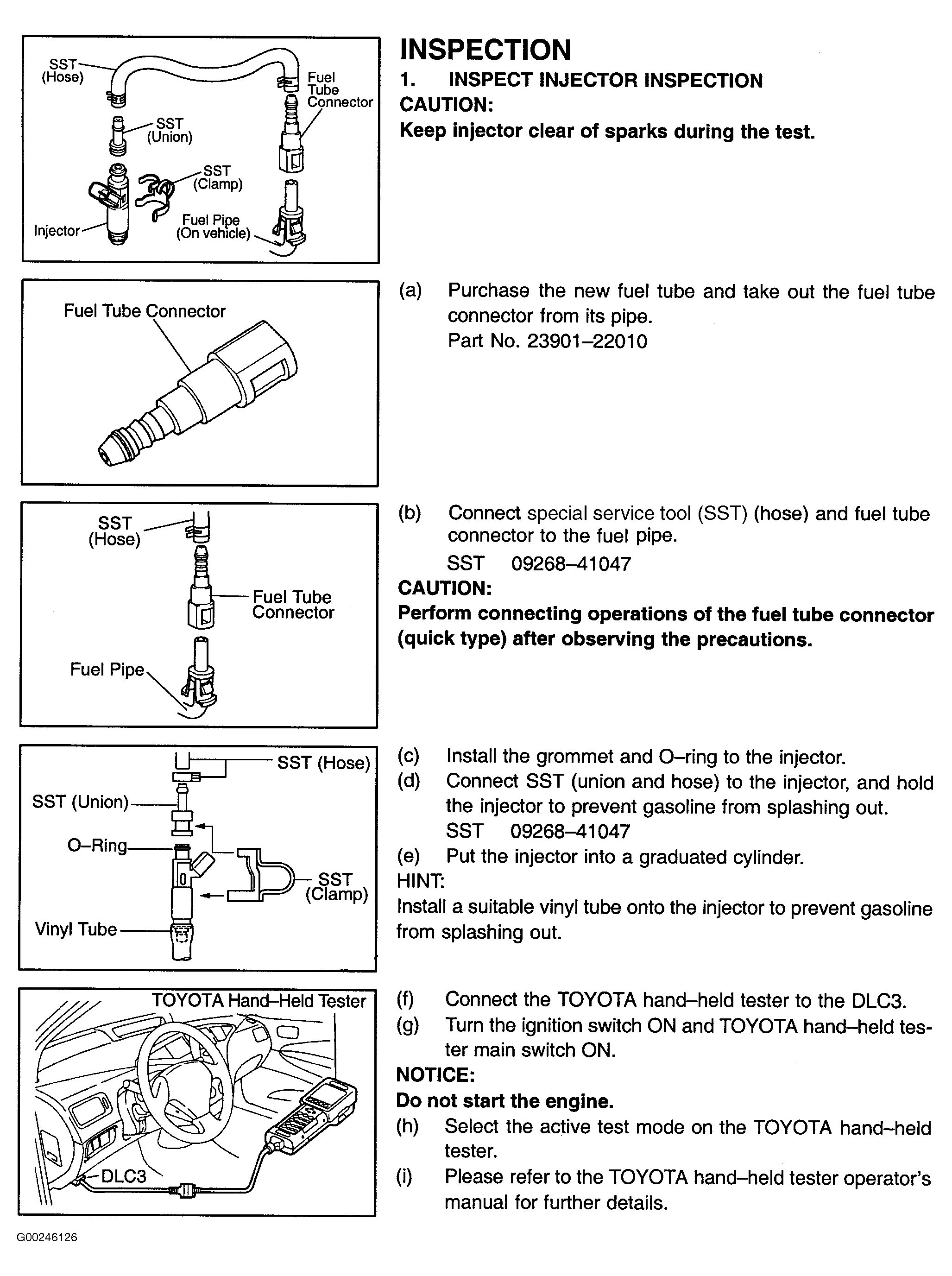

Fig 2: Testing Fuel Injectors - 2 Of 2 (Prius)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
