Component Locations
WARNING: This page is about a different car, the 2003 Toyota Camry and 2002 Toyota Camry. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:

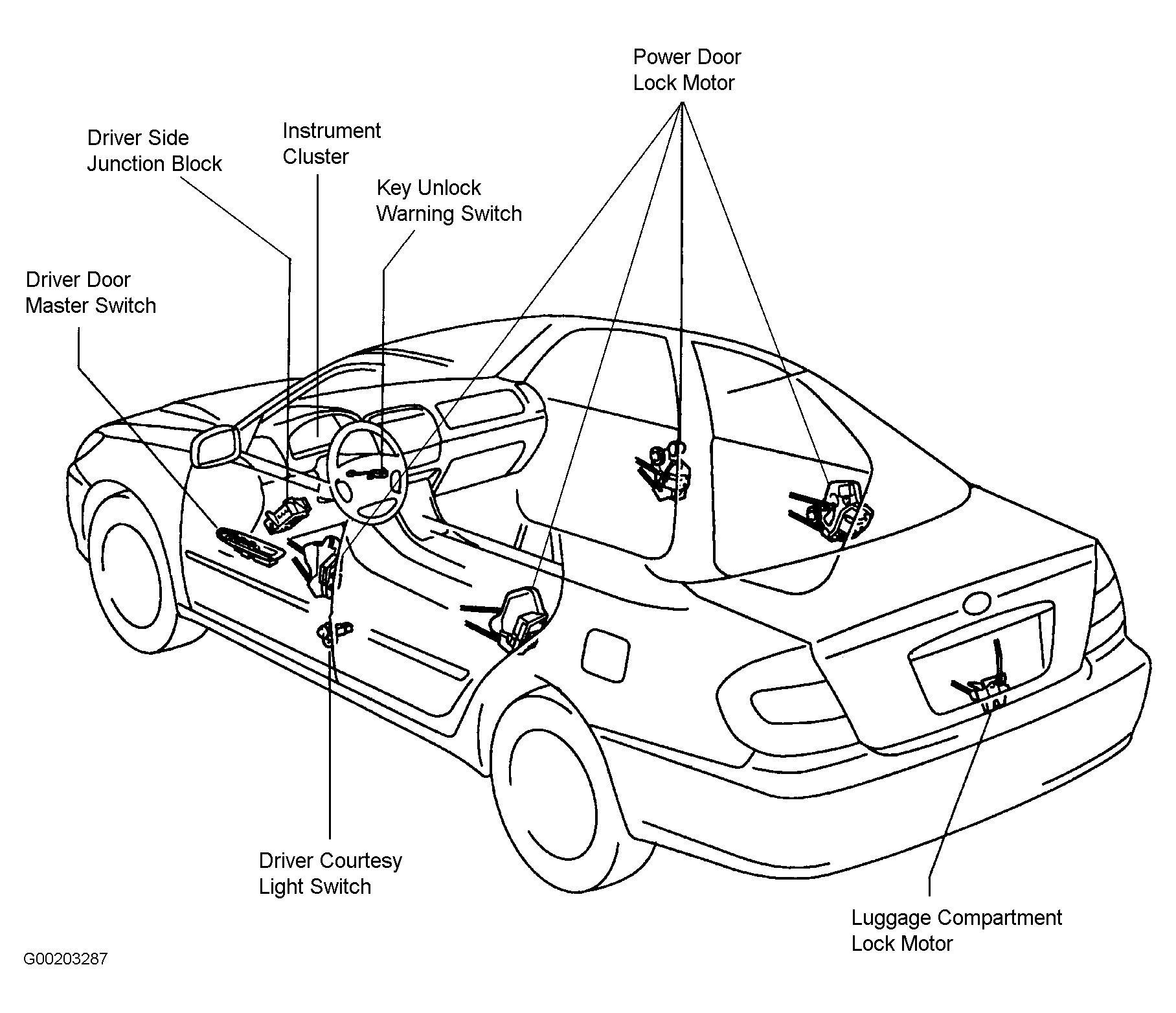

For additional power door lock system component locations, see illustration. See Fig 1.
COMPONENT LOCATIONS
| Component | Location |
|---|---|
| Body Control Electronic Control Unit | Attached To Driver Side Junction Block |
| Door Courtesy Light Switch | On Door Jamb |
| Driver Door Master Switch | In Driver Door Armrest |
| Driver Side Junction Block | Left Side Of Instrument Panel, Behind Access Panel To Left Of Steering Column |
| Engine Hood Courtesy Switch | Integral Part Of Latch Assembly |
| Front Passenger Door Lock Switch | In Front Passenger Door Armrest |
| Instrument Cluster | On Instrument Panel, Above Steering Column |
| Key Unlock Warning Switch | On Right Side Of Steering Column, Below Ignition Switch |
| Luggage Compartment Courtesy Switch | Integral Part Of Motor |
| Luggage Compartment Motor | Bottom Of Luggage Compartment (Trunk) Lid |
| Luggage Compartment Unlock Detection Switch | Integral Part Of Luggage Compartment Lid Key Cylinder |
| OPEN DOOR Indicator Light | About Center Of Instrument Cluster, Under Left Turn Signal Indicator |
| Power Door Lock Motor | Inside Each Door |
