Cruise Control Switch

WARNING: This page is about a different car, the 2002 Toyota Tundra. However, it is still accessible from the selected car via links, so may be relevant.

For cruise control switch resistance values, see Fig 1.

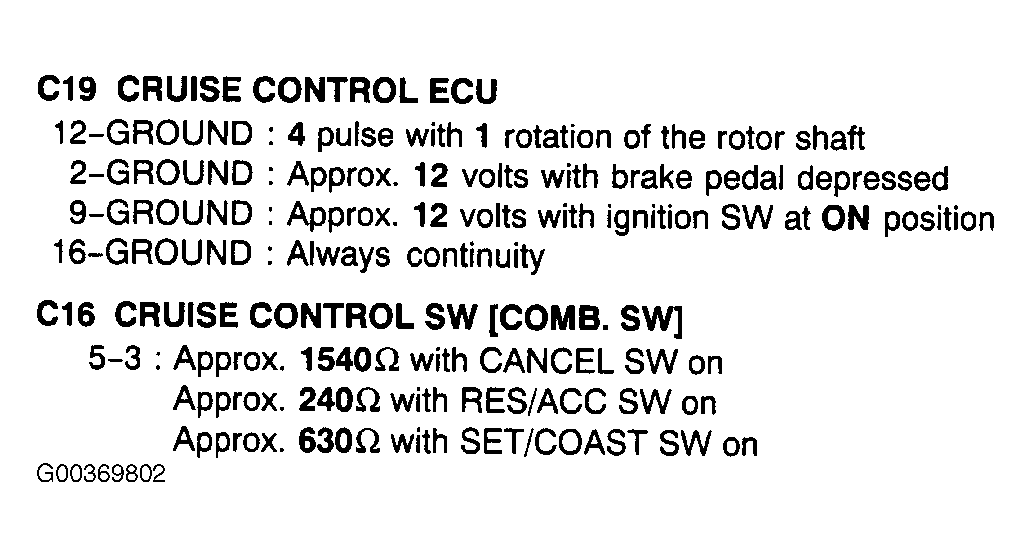

Fig 1: Identifying Cruise Control ECU Voltages & Cruise Control Switch Resistance Values
