Inspect Ignition Switch Continuity

WARNING: This page is about a different car, the 2002 Toyota Sequoia. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Identifying Ignition Switch Terminals

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

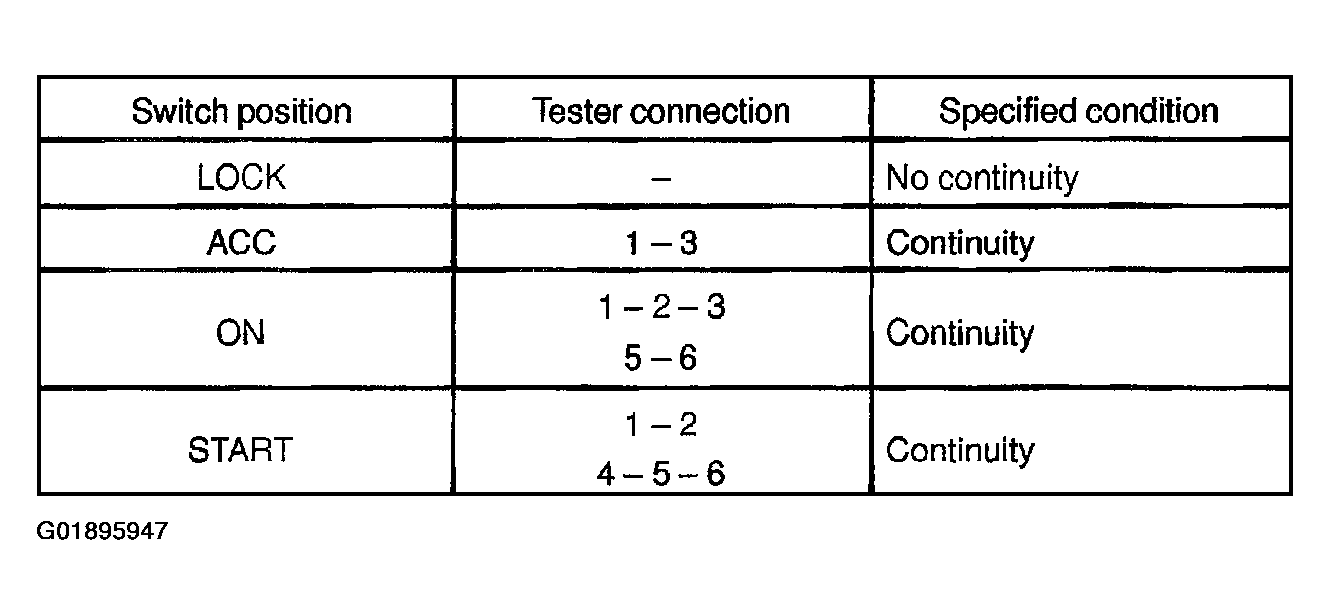

Fig 2: Ignition Switch Specifications

If continuity is not as specified, replace the switch.
