Pressure Switch Removal

WARNING: This page is about a different car, the 2002 Toyota Prius. However, it is still accessible from the selected car via links, so may be relevant.

Discharge refrigerant from refrigerant system .
At the time of installation, evacuate air from refrigeration system and charge system with refrigerant and inspect for leakage of refrigerant.Specified amount: Single A/C: 500 7 plus or minus; 50 g (17.65 7 plus or minus; 1.76 oz.).
REMOVE FRONT BUMPER .

NOTE:

Lock the switch mount on the tube with an open end wrench, being careful not to deform the tube, and remove the switch.
At the time of installation, lubricate a new "O" ring with compressor oil and install them to the switch.

Remove pressure switch :
1. Disconnect the connector.
2. Remove the pressure switch from the liquid tube.

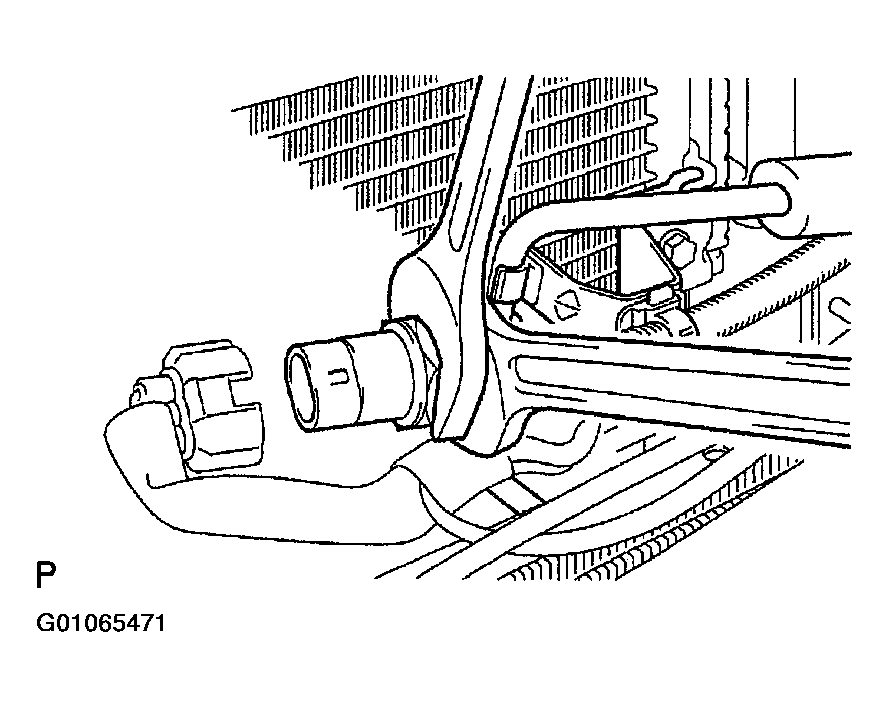

  Fig 1: Removing Pressure Switch
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  Torque: 9.8 N.m (100 kgf.cm, 7 ft.lbf)
