Terminals Of Ecu

WARNING: This page is about a different car, the 2003 Toyota Sequoia. However, it is still accessible from the selected car via links, so may be relevant.

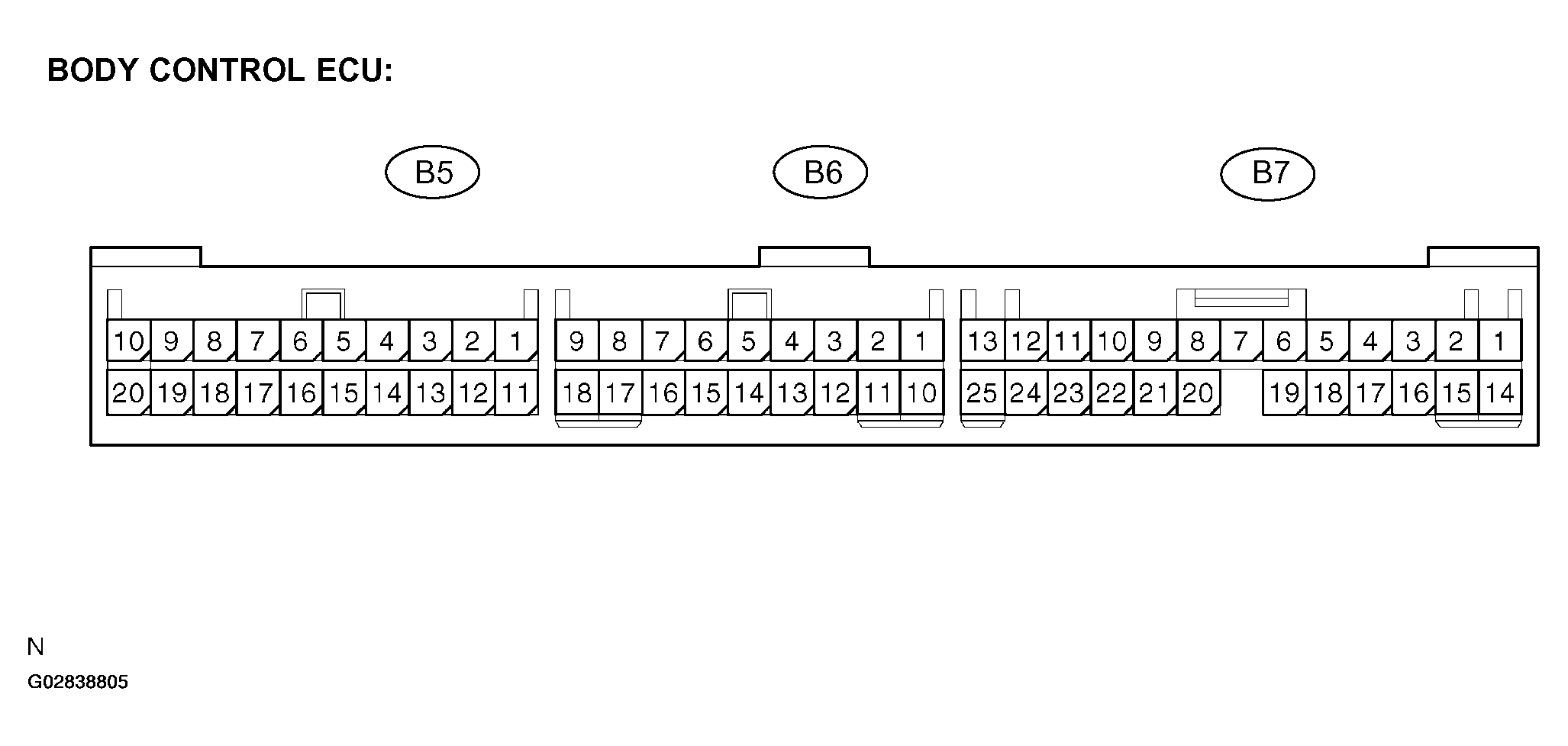

Fig 1: Identifying Terminals Of ECU - Body Control ECU

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

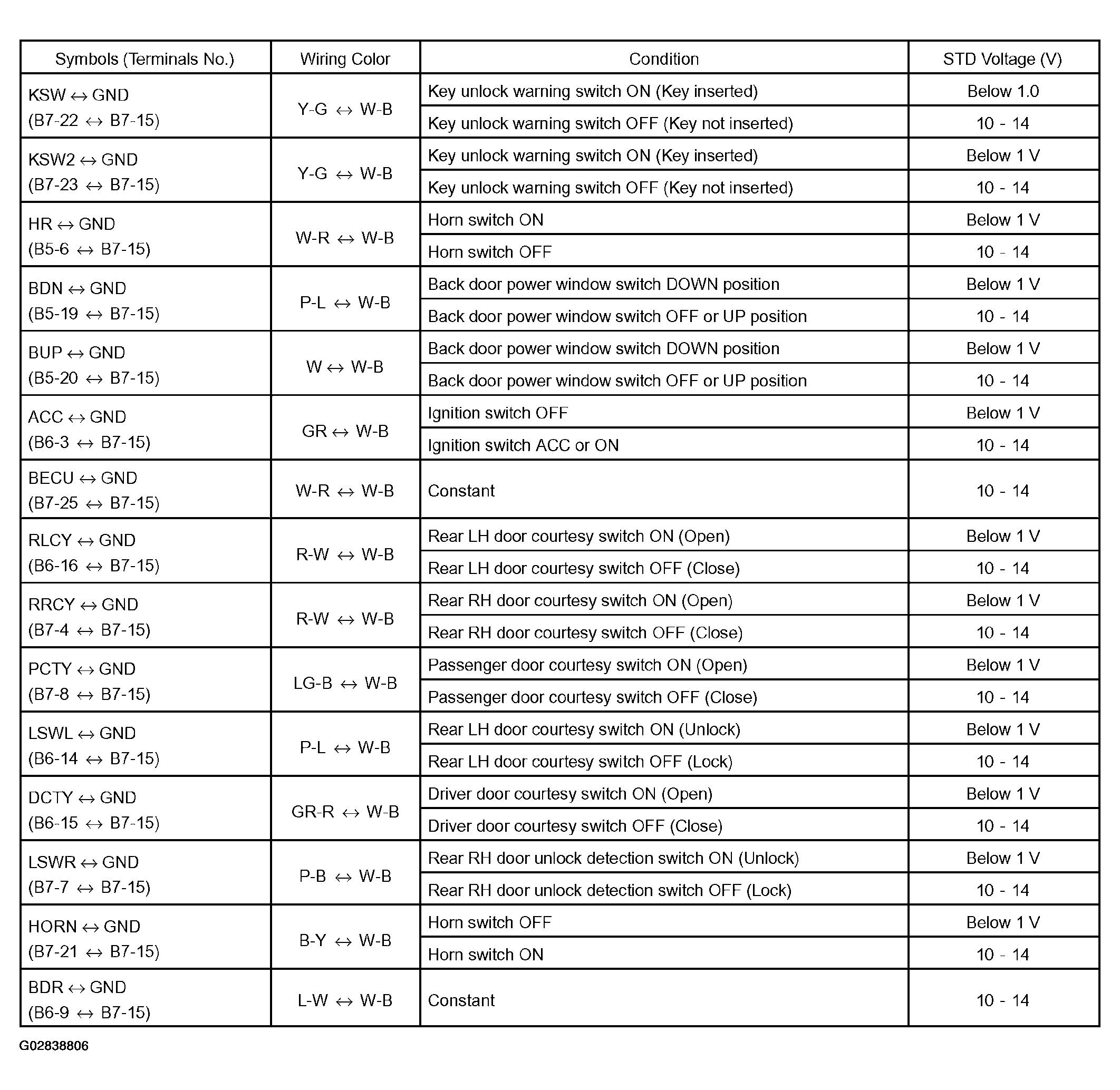

Fig 2: Terminals Specification Chart (1 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

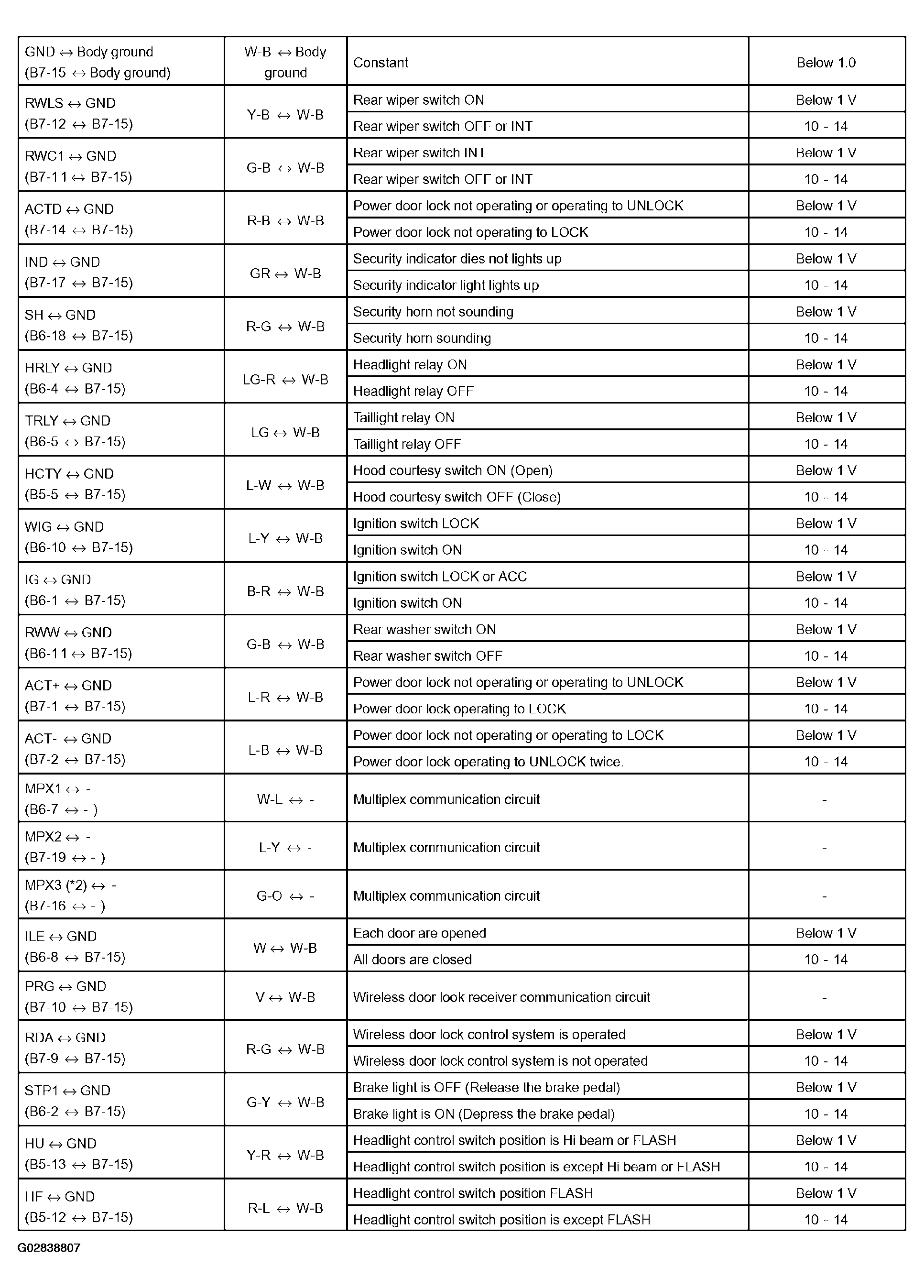

Fig 3: Terminals Specification Chart (2 Of 3)

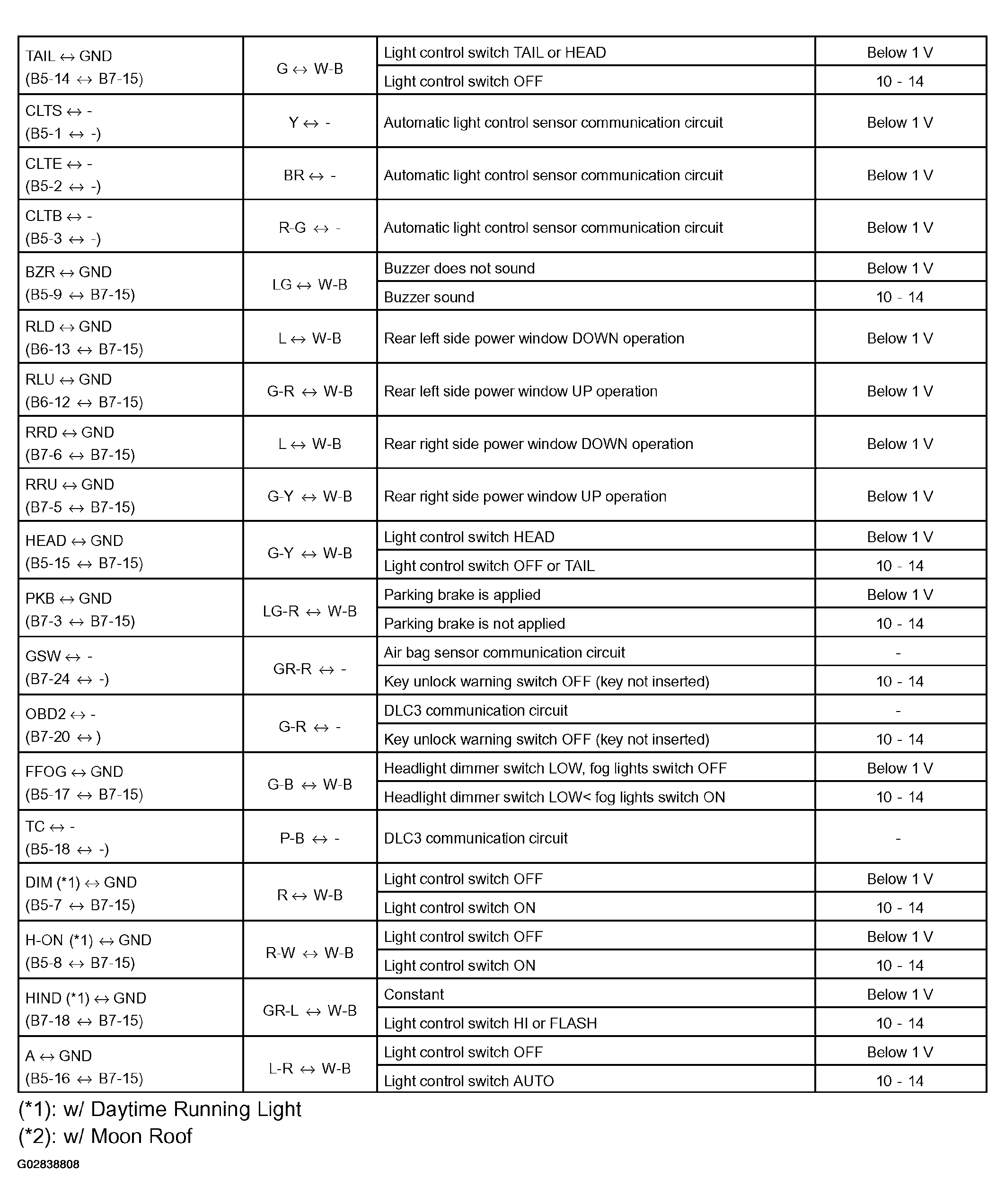

Fig 4: Terminals Specification Chart (3 Of 3)
