Section 363 (Propeller Shaft)
›
Components
Section 363 (Propeller Shaft): Components
WARNING:
This page is about a different car, the 2003 Toyota Sequoia. However, it is still accessible from the selected car via links, so may be relevant.

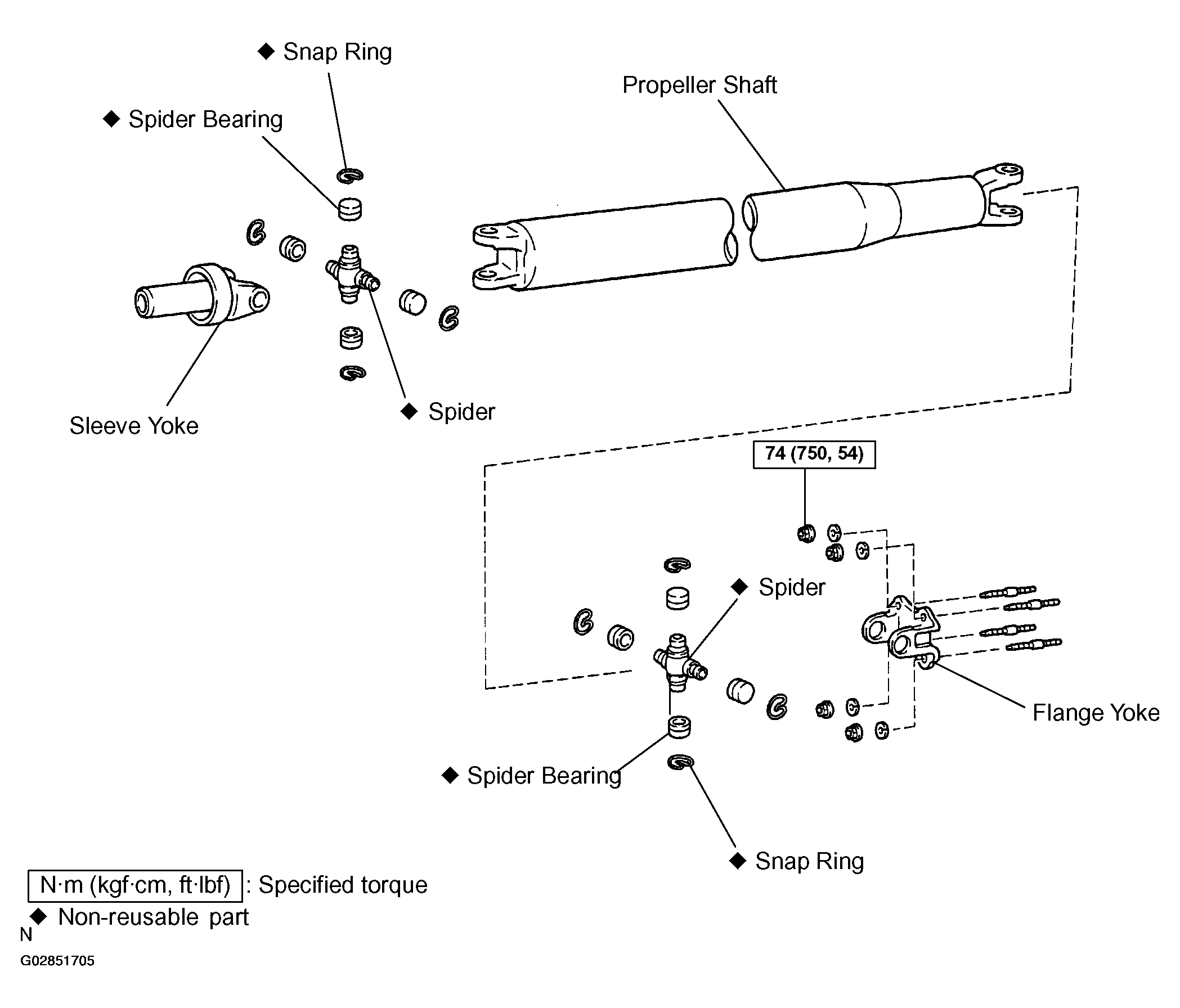

Fig 1: Exploded View Of Propeller Shaft Assembly (2WD)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
