Section 379 (Combination Meter)
›
Circuit
Section 379 (Combination Meter): Circuit
WARNING:
This page is about a different car, the 2003 Toyota Sequoia. However, it is still accessible from the selected car via links, so may be relevant.

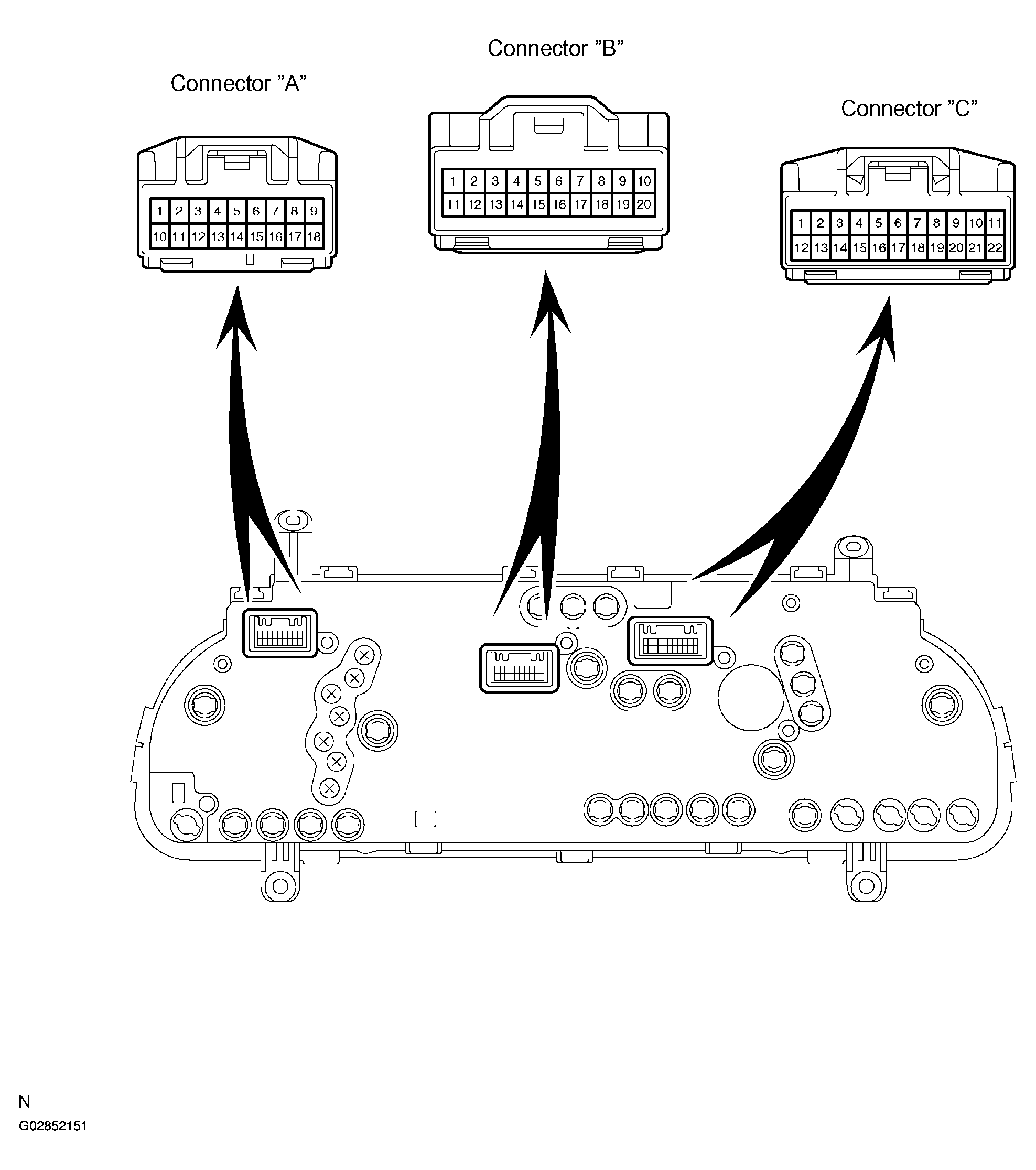

Fig 1: View Of Connector
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

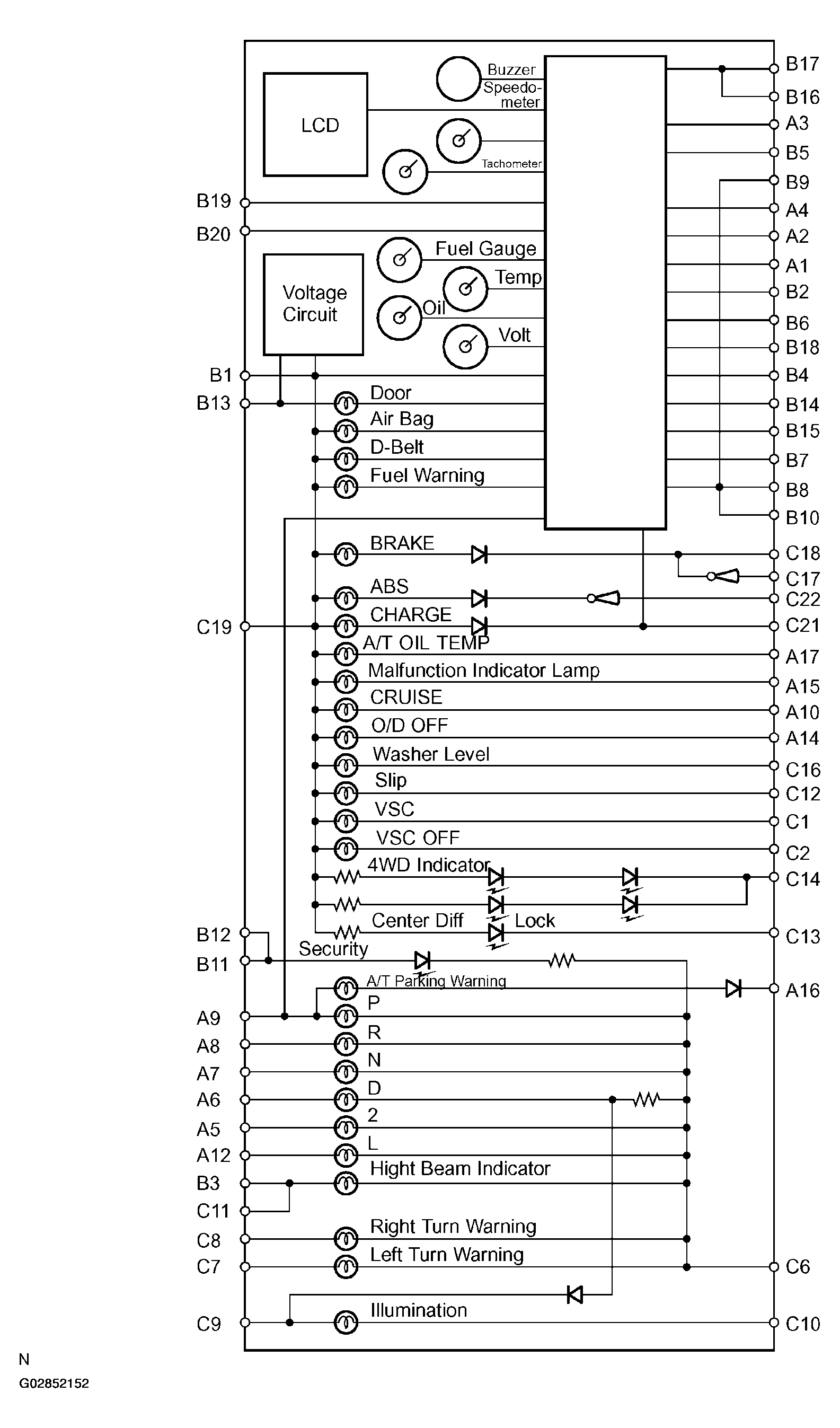

Fig 2: Combination Meter Circuit Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

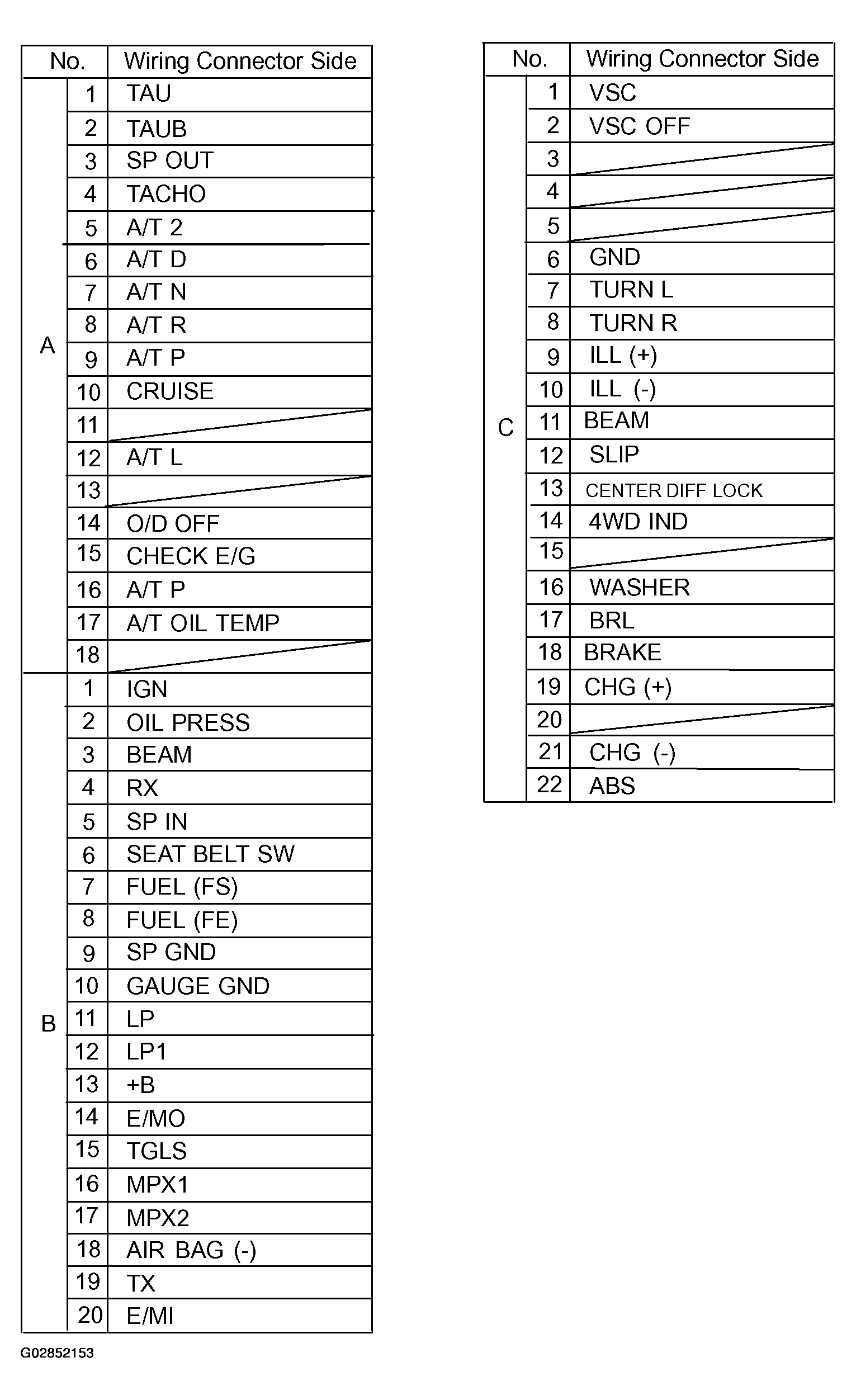

Fig 3: Wiring Connector Side Specifications
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
