Section 394 (Cooling Unit): Components

WARNING: This page is about a different car, the 2003 Toyota Sequoia. However, it is still accessible from the selected car via links, so may be relevant.

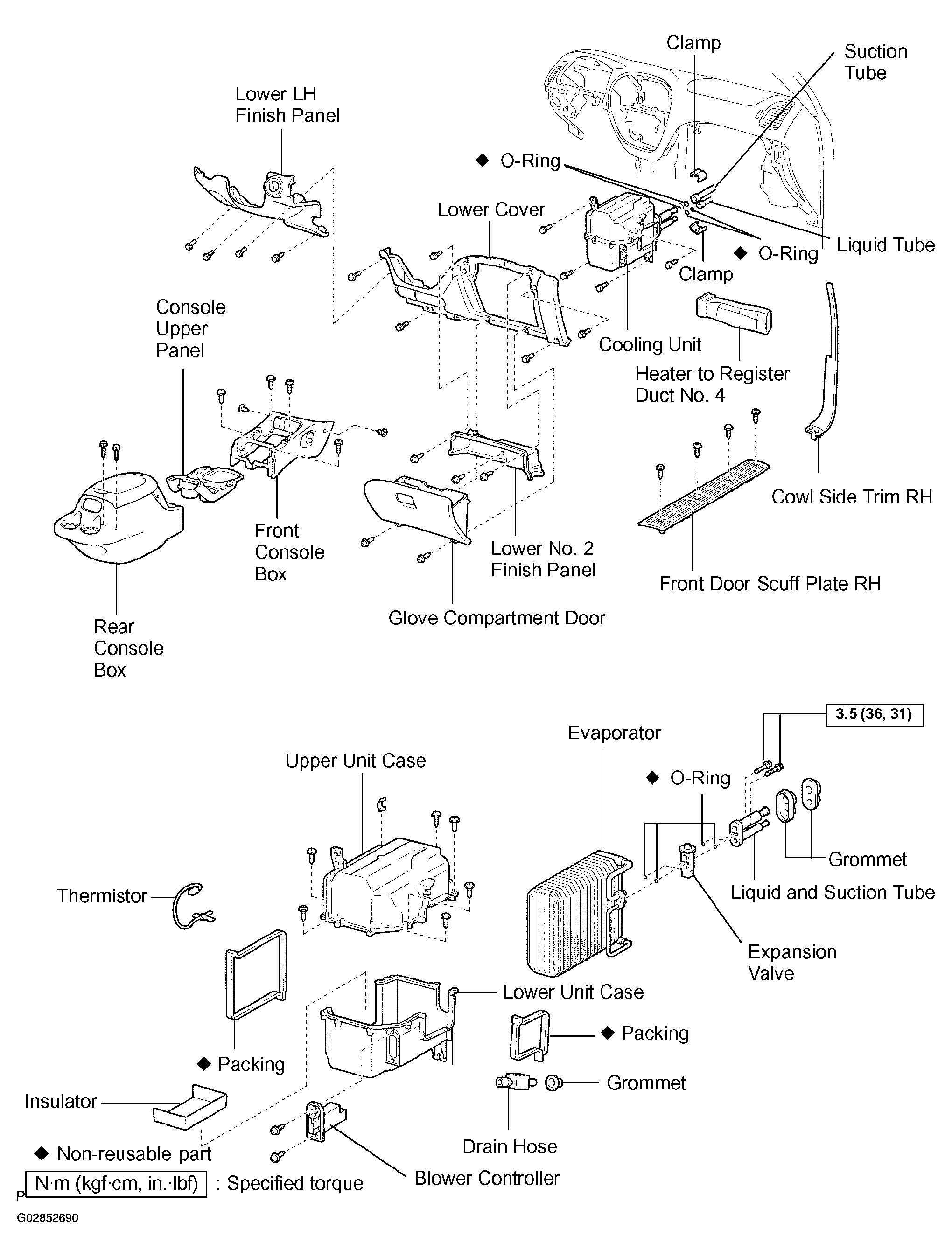

Fig 1: Identifying Cooling Unit Components
G02852690Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
