Compressor And Magnetic Clutch: Components

WARNING: This page is about a different car, the 2002 Toyota Tundra. However, it is still accessible from the selected car via links, so may be relevant.

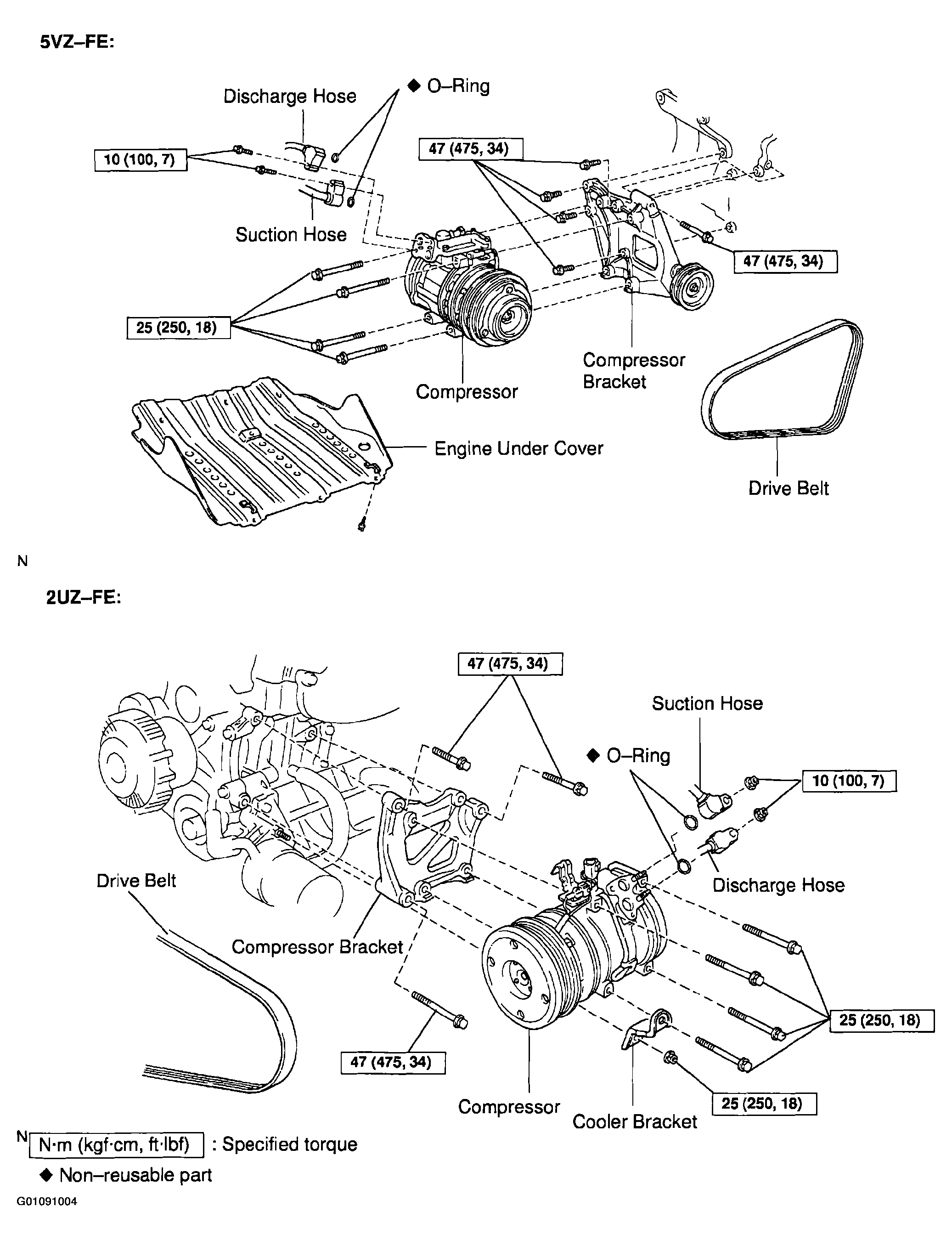

Fig 1: Identifying Compressor & Magnetic Clutch Components (1 Of 2)
G01091004Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

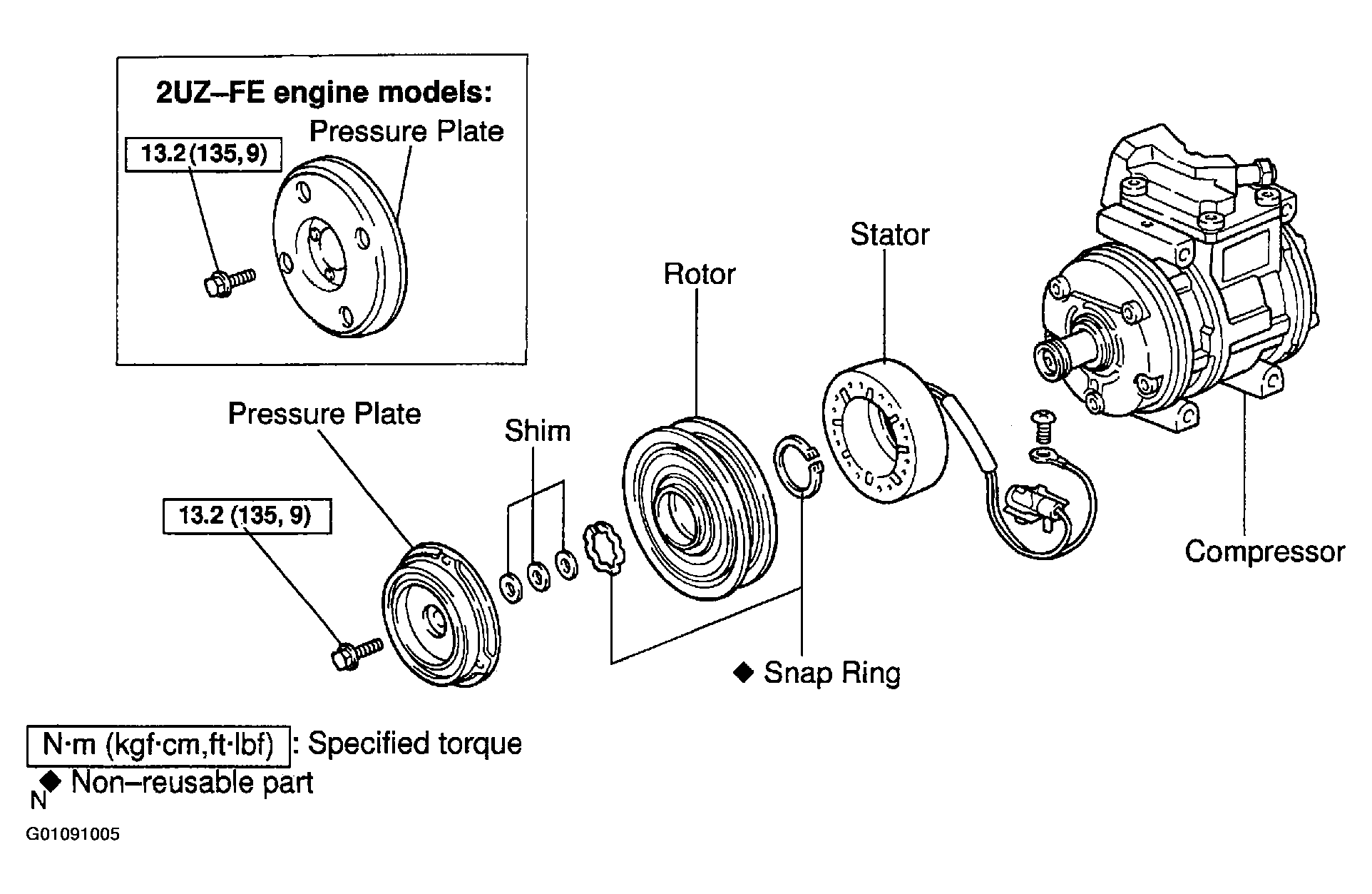

Fig 2: Identifying Compressor & Magnetic Clutch Components (2 Of 2)
G01091005Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
