Component Locations
WARNING: This page is about a different car, the 2002 Toyota Highlander. However, it is still accessible from the selected car via links, so may be relevant.

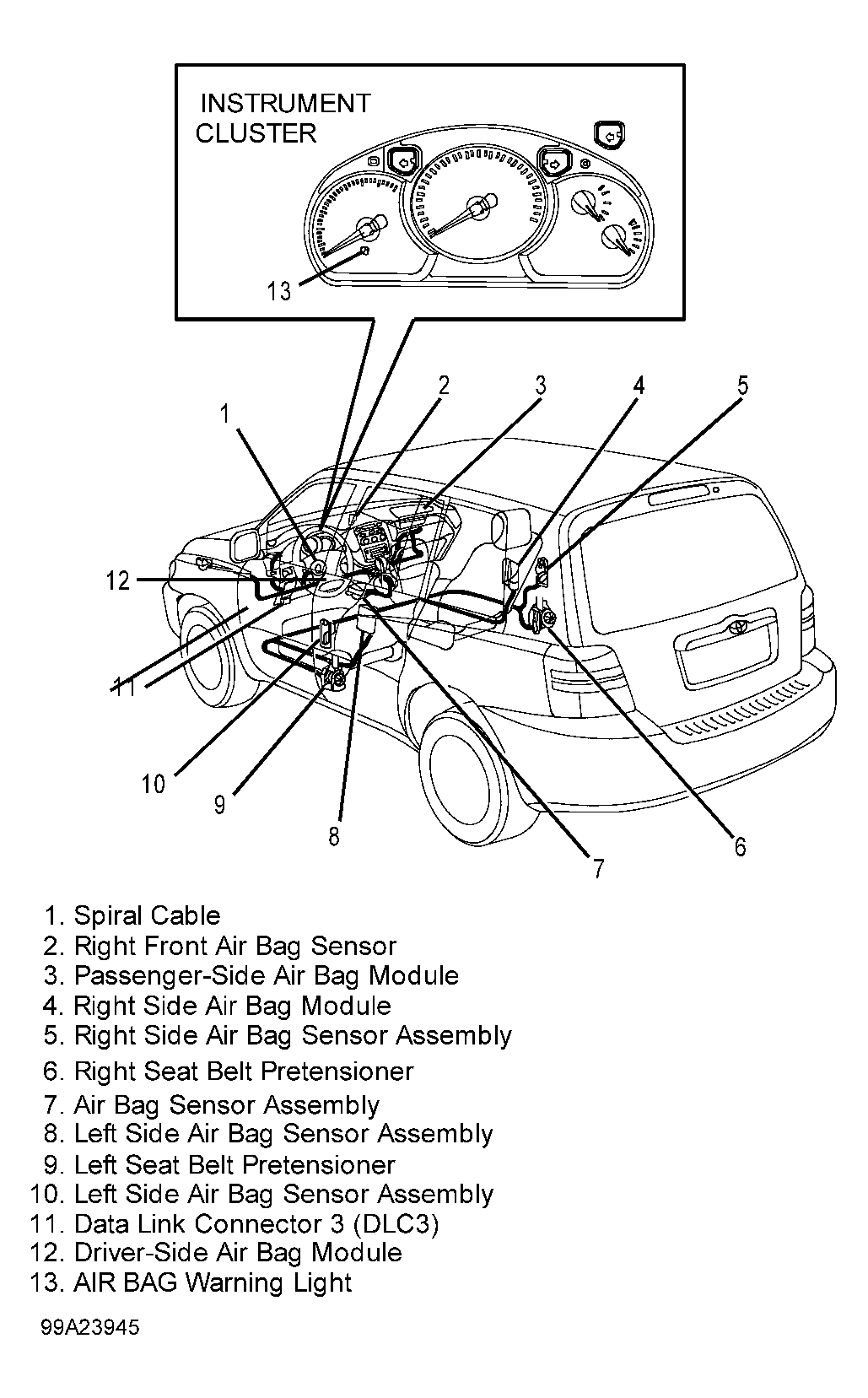

RESTRAINT SYSTEM COMPONENT LOCATIONS
| Component | (1)Location | ||
|---|---|---|---|
| Air bag sensor assembly | On floor, inside lower center finish panel | ||
| Spiral cable | On steering column, attached to combination switch | ||
| Driver-side air bag module | In steering wheel pad, on front face of steering wheel | ||
| Front air bag sensors | Inside right and left front side members | ||
| Passenger-side air bag module | Right side of instrument panel, above glove box | ||
| Seat belt pretensioner | Integrated with front seat belt retractor | ||
| Side air bag sensor assembly | Inside right and left center pillar, behind center pillar trim panel | ||
| Side air bag module | Outboard side of right and left front seat back | ||
|
|||
