Automatic Transmission Floor Shift Assembly (ATM): Components

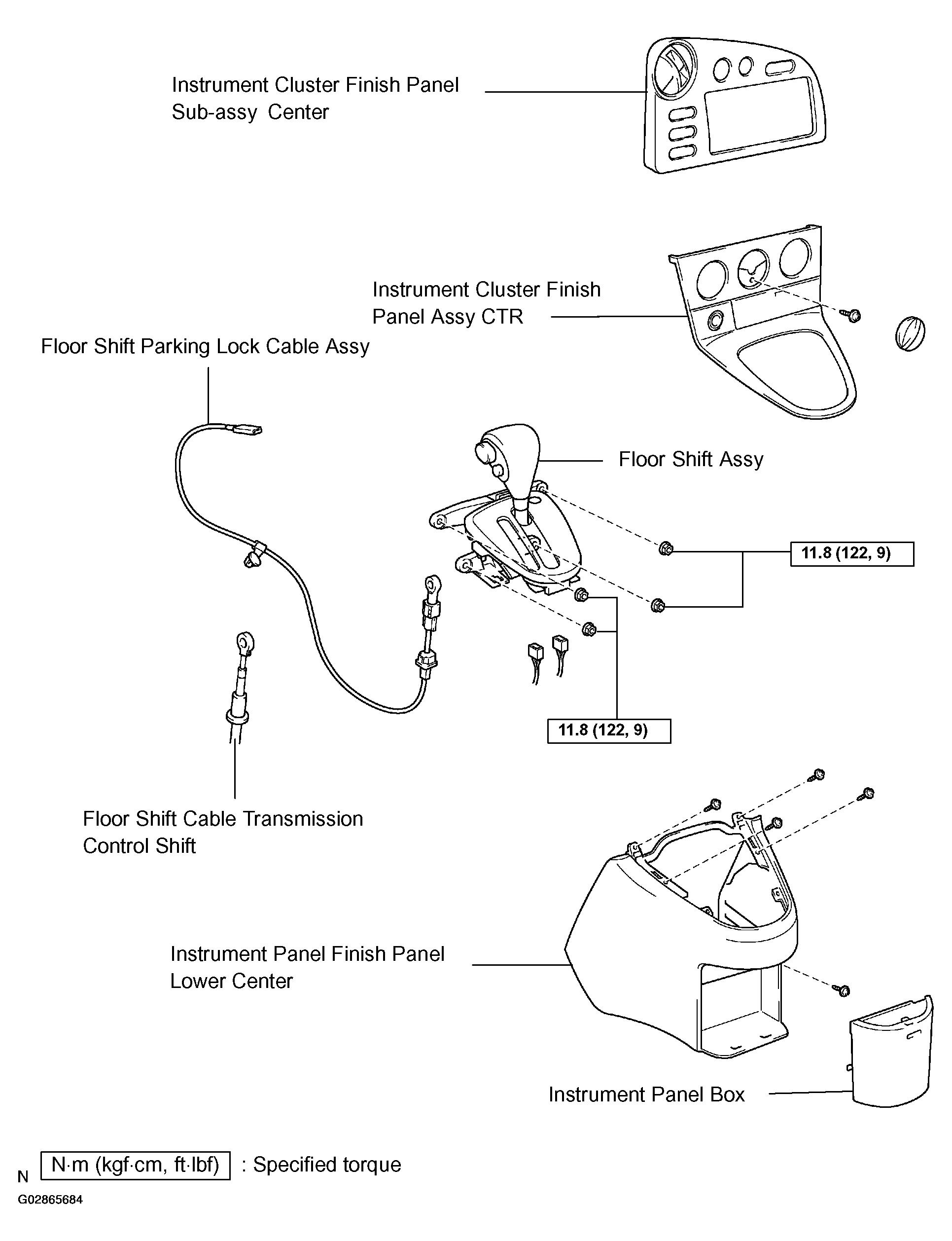

Fig 1: Identifying Floor Shift Assembly (ATM) Components (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

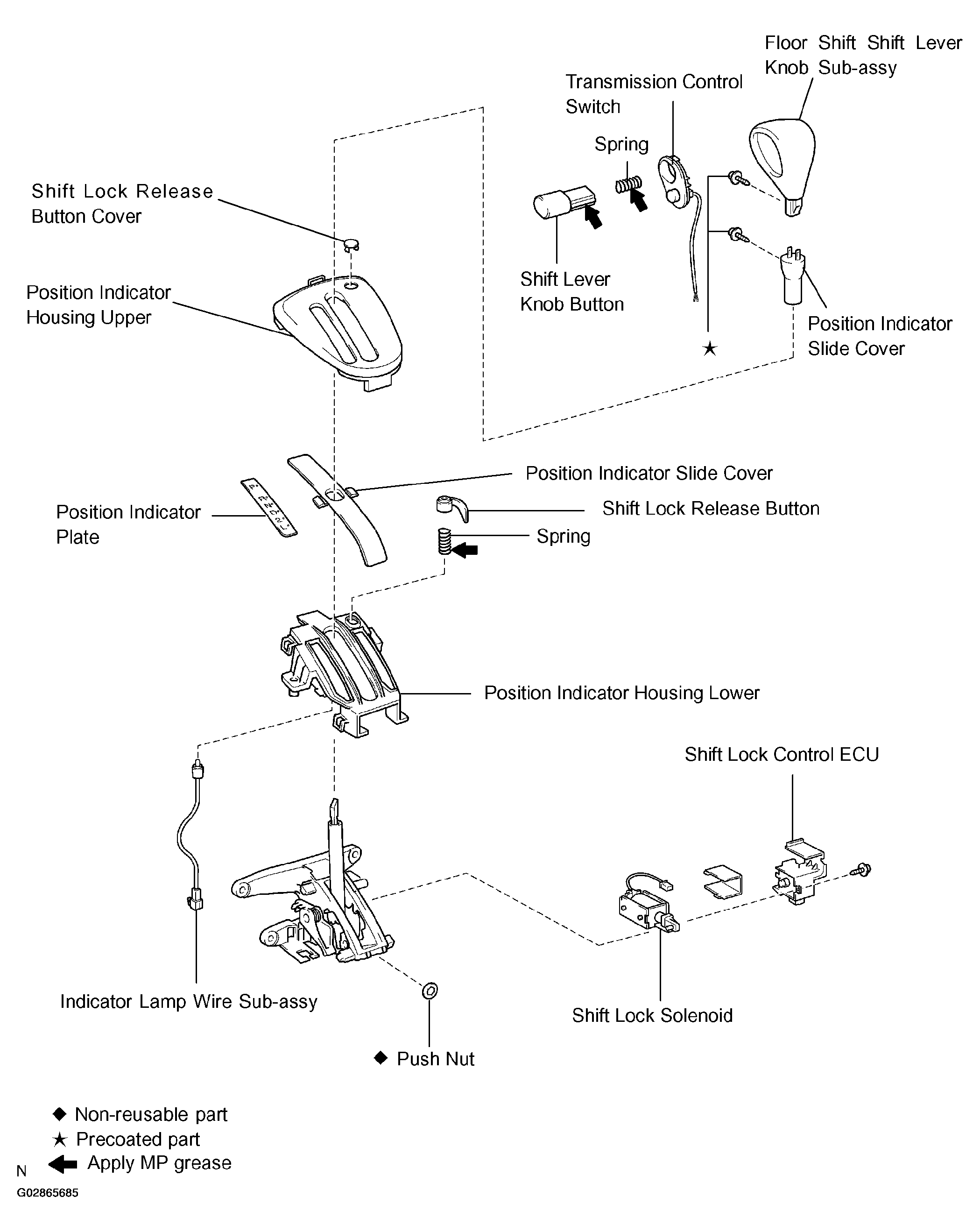

Fig 2: Identifying Floor Shift Assembly (ATM) Components (2 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
