Description & Operation: Introduction

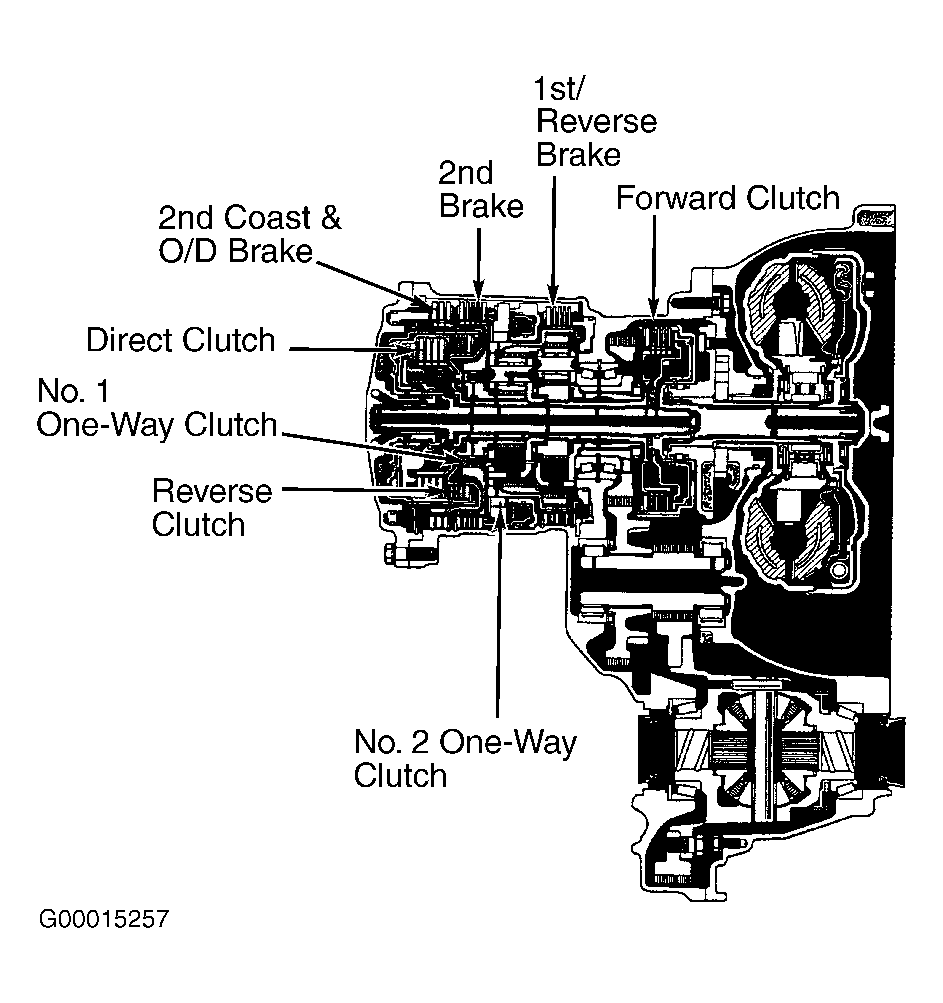

The U341F transaxle is a 4-speed electronically controlled transaxle. Transaxle uses a lock-up torque converter, direct clutch, forward clutch, reverse clutch, 2nd coast and Overdrive (O/D) brake, 2 planetary gears, 2nd brake, 2 one-way clutches, 1st/reverse brake, and hydraulic and electronic control systems. See Fig 1.
The U341F transaxle transmits power to vehicle's rear wheels by use of a transfer assembly. For transfer assembly overhaul procedure, see TRANSFER ASSEMBLY OVERHAUL - MATRIX article.
